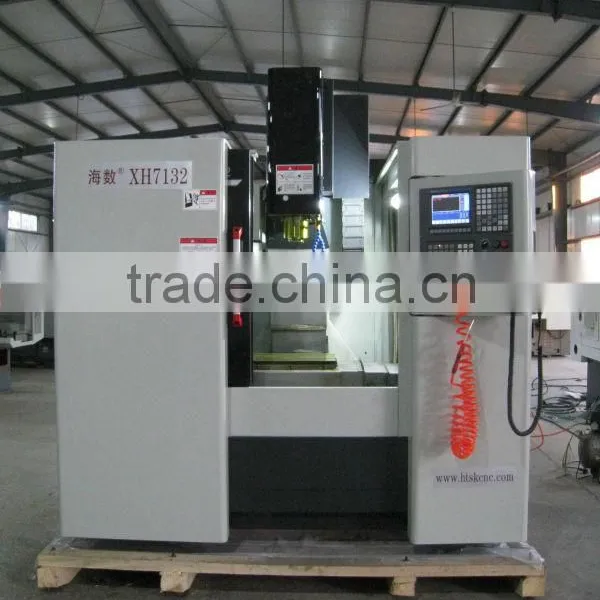

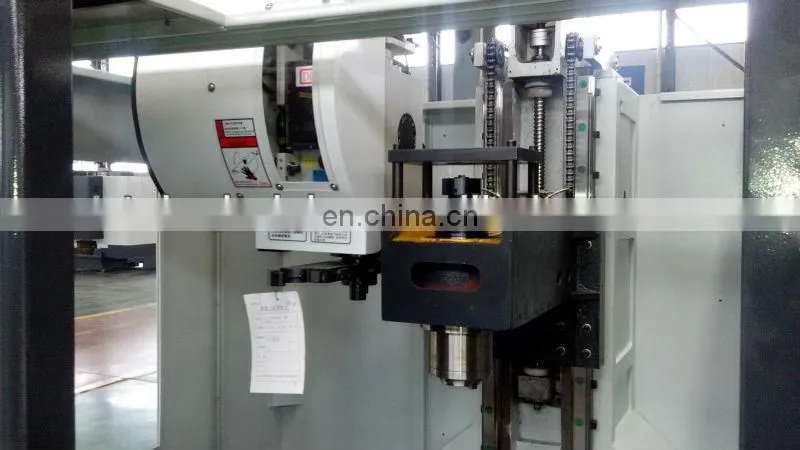

XH7132 VMC machine vertical high precision 5 axis cnc machine price
Specification |
UNIT |
XH7132 |
Table size |
MM |
920*320 |
Spindle hole taper |
|
BT40 |
Travel range |
MM |
620*350*500 |
NO./width/distance of T-slot |
MM |
3-14-85 |
Max.load of table |
KG |
500 |
Distance from spindle nose to table surface |
MM |
100-600 |
Distance from spindle axis to vertical guideway |
MM |
395 |
Rapid feed speed |
M/MIN |
18 |
Feed speed |
MM/MIN |
2.5-3000 |
Spindle speed |
R/MIN |
40-6000 |
Spindle motor power |
KW |
3.7 |
Tool magazine capacity |
piece |
16 |
Max tool weight |
kg |
8 |
Max tool size |
mm |
Φ120*200 |
Positioning accuracy |
MM |
±0.015 |
Repeat position accuracy |
MM |
±0.0075 |
Overall dimension(L×W×H) |
MM |
2500×2260×2300 |
Net weight |
KG |
2540 |

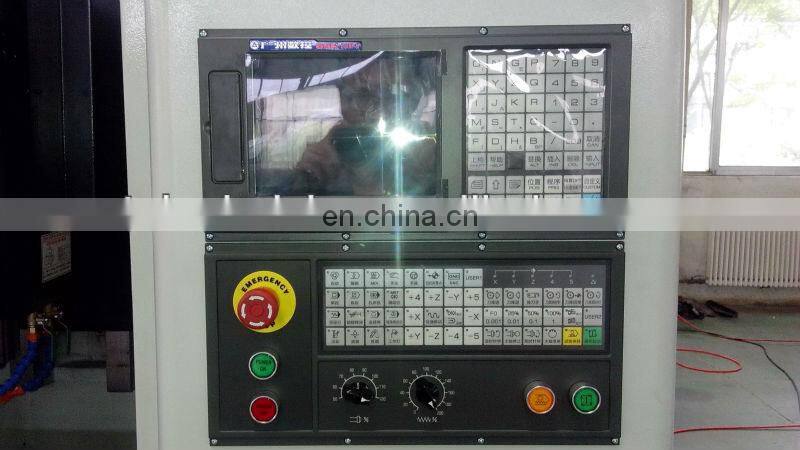

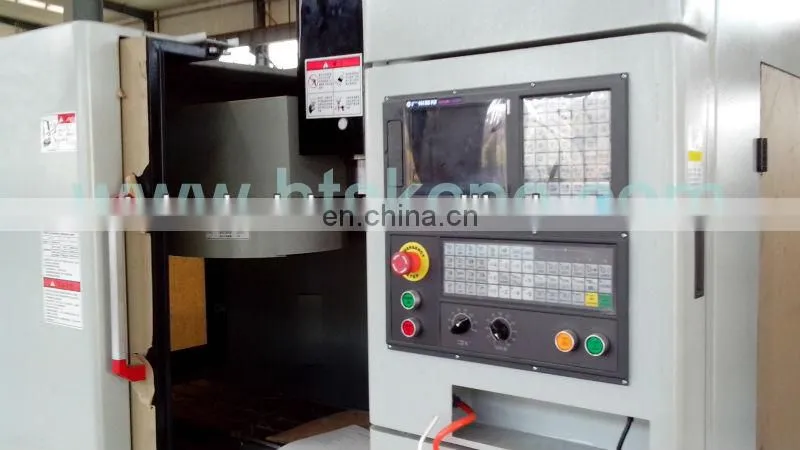

Controller |
GSK25I |
Standard configurations:
1. GSK25i/KND2000M/HUAZHONG 22M controller system
2. bearing:NSK
3. strong current:Schneider
4. Geneva Type tool changer , Tool magazine capacity 16
5. Hardened rail
Opitonal configuration:
1. Fanuc:Oi-mate-MD
2. tool magazine capacity 20
3. mechanical arm tool changers

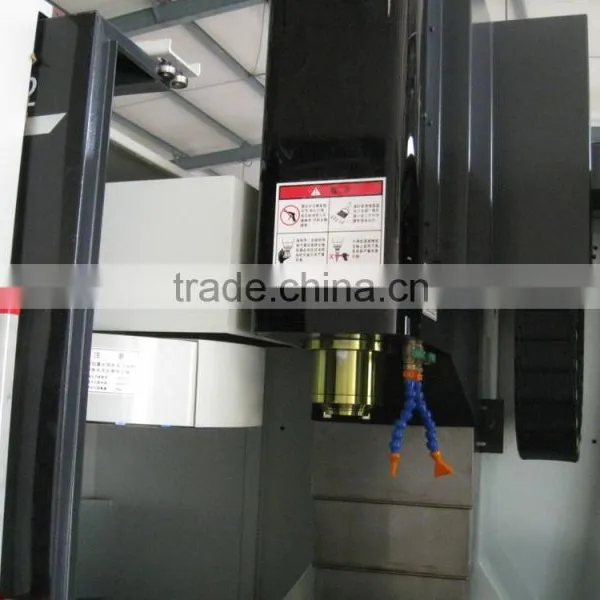

details inside

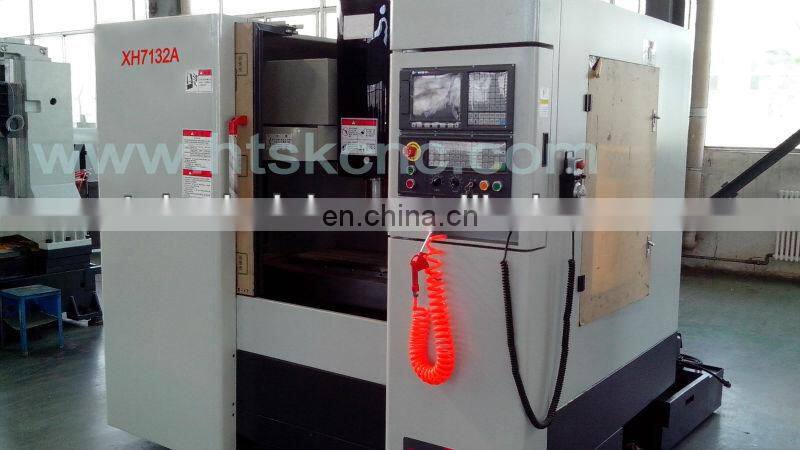

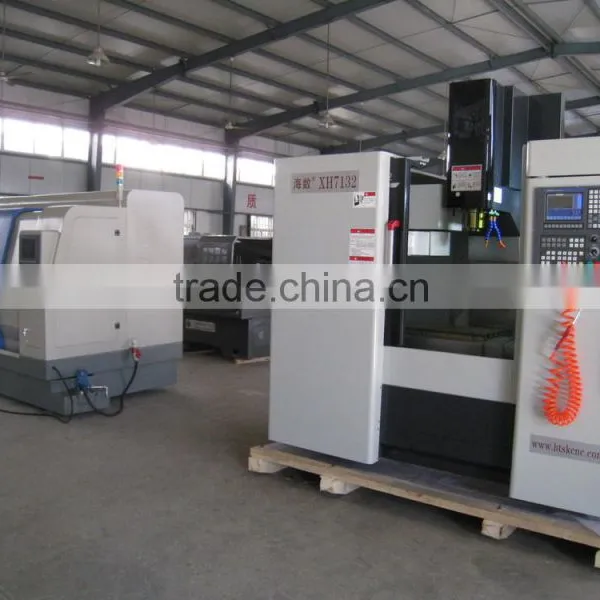

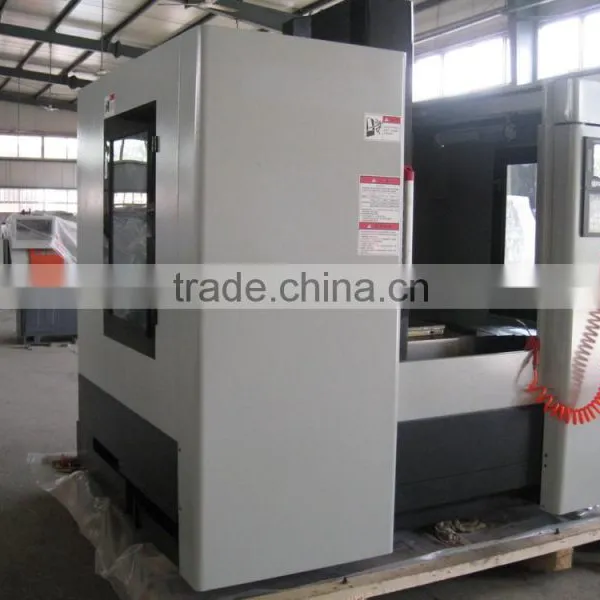

XH7132A machine
