Hot Sale Vertical Machining Center XH7132A

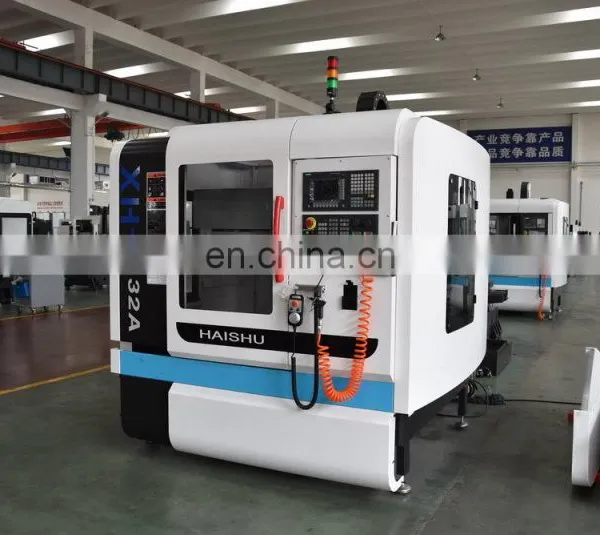

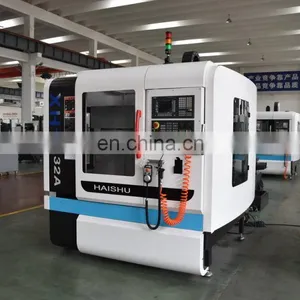

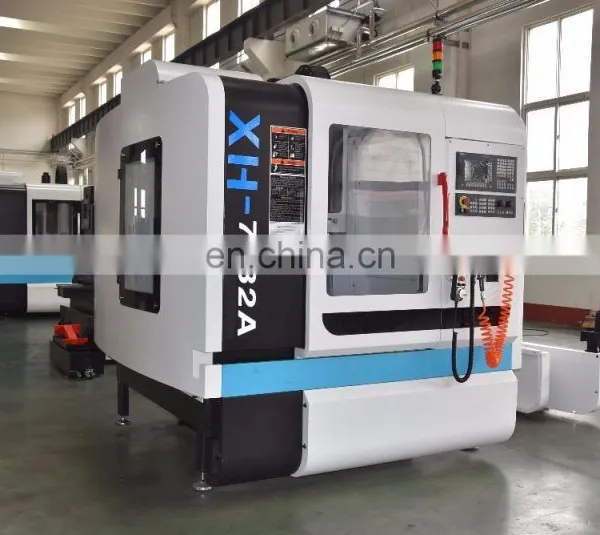

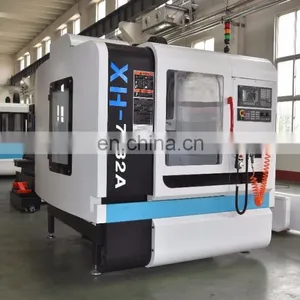

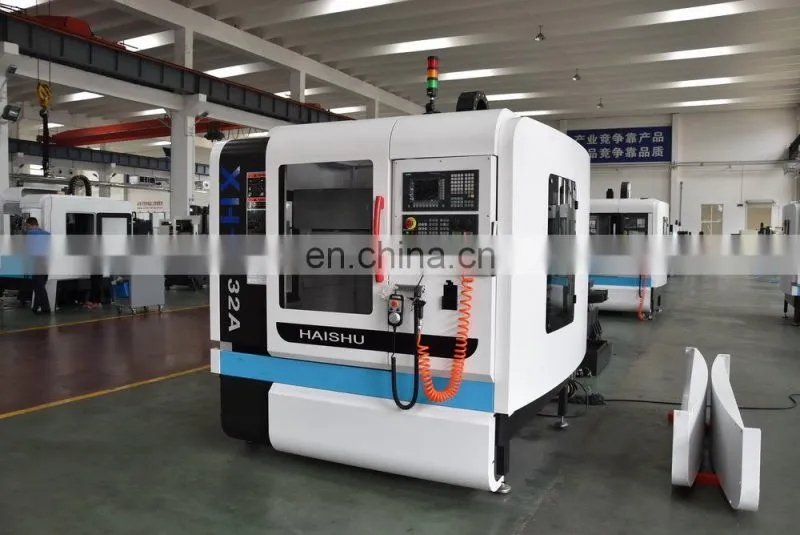

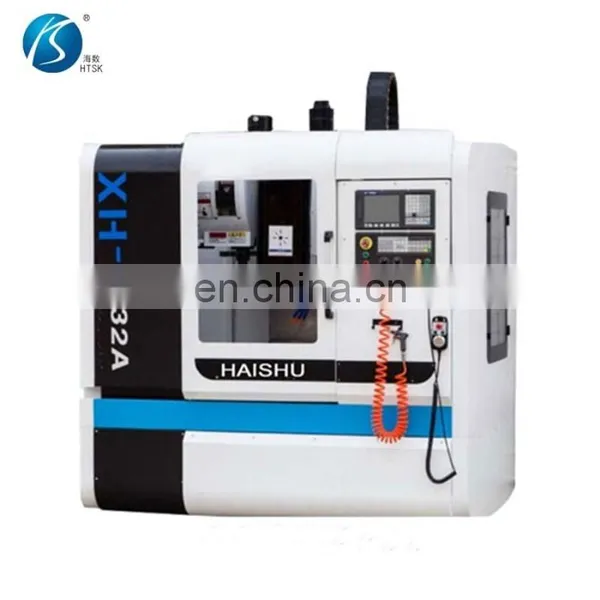

Vertical Machining Center XH7132A designed and manufactured by HAISHU Machinery is the 3 axis CNC machining center. Our CNC vertical machining center XH7132A is equipped with famous brand rectangular guide ways and high accuracy ball screw, the design spindle speed range is 40~6000rpm, the rapid feed speed is up to 24m/min. The totally enclosed protection device is adopted which assures the safety of worker and lustration of environment. Our vertical CNC machining center XH7132A is the ideal equipment for such industries as machinery, electron, instrument, instrument, mould and automobile etc.
Vertical Machining Center XH7132A Specifications
| No | Item | Unit | Specifications |
|---|---|---|---|
| 1 | Table travel(X,Y,Z) | mm | 620×350×500 |
| 2 | Table size | mm | 920×320 |
| 3 | Number/Width/Distance of T-slot | mm | 3-14-85 |
| 4 | Distance from spindle nose to table surface | mm | 100~600 |
| 5 | Distance from spindle center to column guideway | mm | 420 |
| 6 | Taper of spindle | m/min | BT40 |
| 7 | Spindle speed range | r/m | 40-6000rpm |
| 8 | Spindle motor power | kw | Servo 5.5 |
| 9 | Rapid feed speed(X,Y,Z) | m/min | 24/24/18 |
| 10 | Feed speed (X,Y,Z) | mm/min | 2.5~6000 |
| 11 | Tool magazine capability | 16 | |
| 12 | Max. size of tool | mm | φ120×200 |
| 13 | Max. Weight of tool | kg | 8 |
| 14 | Positioning accuracy | mm | ±0.005 JIS |
| 15 | Repeat positioning accuracy | mm | ±0.003 JIS |
| 16 | Overall dimension | mm | 2020×1970×2160 |
| 17 | Machine weight | kg | 3200 |
Vertical Machining Center XH7132A Features

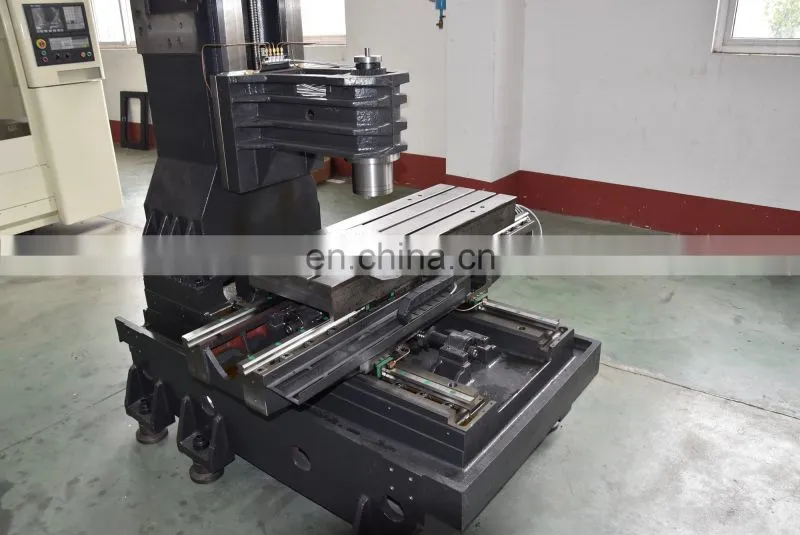

- X,Y, Z Three-axis ultra-wide hard rail to ensure rigidity of machine processing.
- Taiwan ball screw.
- Japan NSK Bearings.
- Taiwan high-speed high-precision spindle.
- Taiwan magazine, Tool storage capacity 16.
Vertical Machining Center XH7132A Configurations
Standard Configuration
- GSK25i
- 16 hats style magazine.
- RS232 communication interface.
Optional configuration
- CNC system optional: FANUC oi mate-MD, Siemens 828D, HNC-808M, KND-2000M.
- 16 disc magazine.
- CNC fourth axis.
- Automatic chip removal system.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
standard exported wooden case
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
