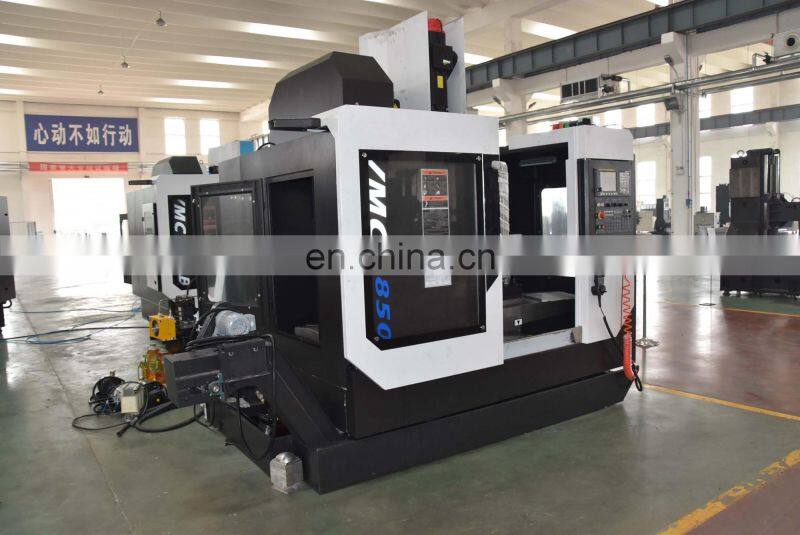

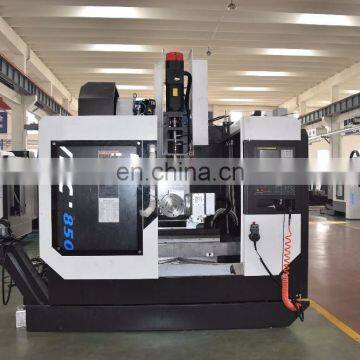

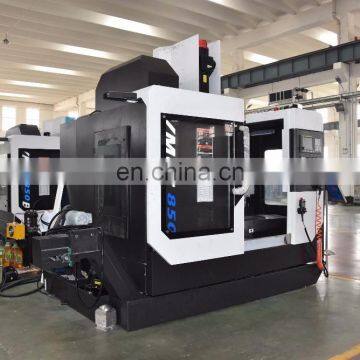

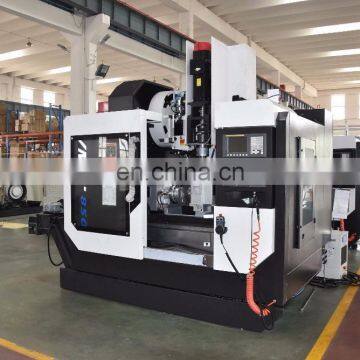

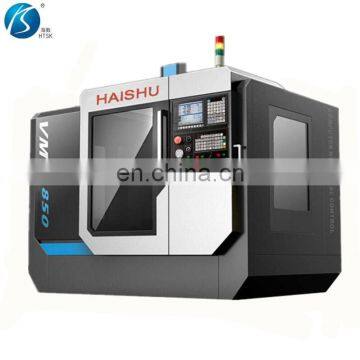

High Performance 5 Axis CNC Machining Center – VMC850
HAISHU brand 5 axis CNC Machine can process five sides of a part in a single setup which provides infinite possibilities as to the part sizes and shapes you can effectively process. Our high performance 5 axis CNC machining center fabricated with robust box-way castings establishes a foundation of rigidity and dynamic stiffness, and its high volume, high pressure spindle coolant improves tool life by eliminating heat and evacuating chips from the cutting area.
The flexible 5 axis CNC machining center can process milling, drilling, tapping, boring and a variety of processes, etc. It is the ideal processing equipment for such industries as machinery, electron, instrument, instrument, mould, automobile etc.
5 Axis CNC Machining Center VMC850 Specifications
| Item | Detail | Unit | Specification | |
|---|---|---|---|---|
| Stroke | Moving range X,Y,Z | mm | 850×450×500 | |
| Nose to a rotary table (horizontal) distance | mm | 150-650 | ||
| Spindle center to column guideway surface distance | mm | 560 | ||
| Feed | Fast moving speed X,Y,Z | m/min | 30/30/24/min | |
| Cutting feed rate X,Y,Z | mm/min | 10~15000mm/min | ||
| Spindle | Spindle taper | BT40 | ||
| Spindle speed | r/min | 40~6000rpm | ||
| Main motor power | kw | AC servo 7.5 | ||
| Maximum torque | nm | 70 | ||
| Magazine | Tool storage capacity | 16 | ||
| Maximum tool weight | kg | 8 | ||
| Maximum tool dimensions | mm | φ130×300 | ||
| Rotary shaft | CNC rotary table diameter | mm | φ255 | |
| A-Axis inclination angle | degree | ±100 | ||
| Center hole | mm | φ80H7 | ||
| T slot | mm | 12H7 | ||
| Turntable maximum load | Kg | Level 100, Slant 75 | ||
| Accuracy | position accuracy | mm | X/Y/Z | ±0.005/300 |
| A | 50 ″ | |||
| C | 20 ″ | |||
| Repeatable position accuracy X/Y/Z/A/C | mm | X/Y/Z | ±0.003 | |
| A | 8″ | |||
| C | 4 ″ | |||
| Machine Size | L×W×H | mm | 2500×2300×2300 | |
| Net weight | kg | 4800 | ||
| Gross weight | kg | 4900 | ||
5 Axis CNC Machining Center VMC850 Configuration
Standard Configuration

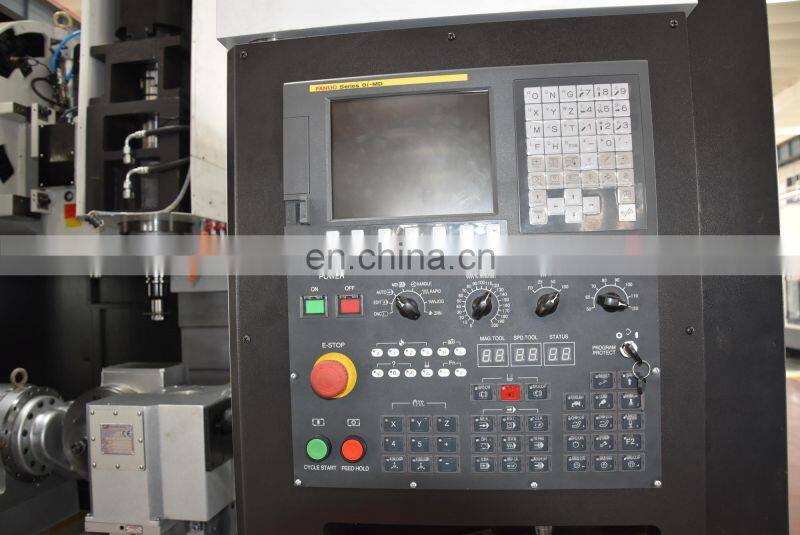

- CNC system – HNC

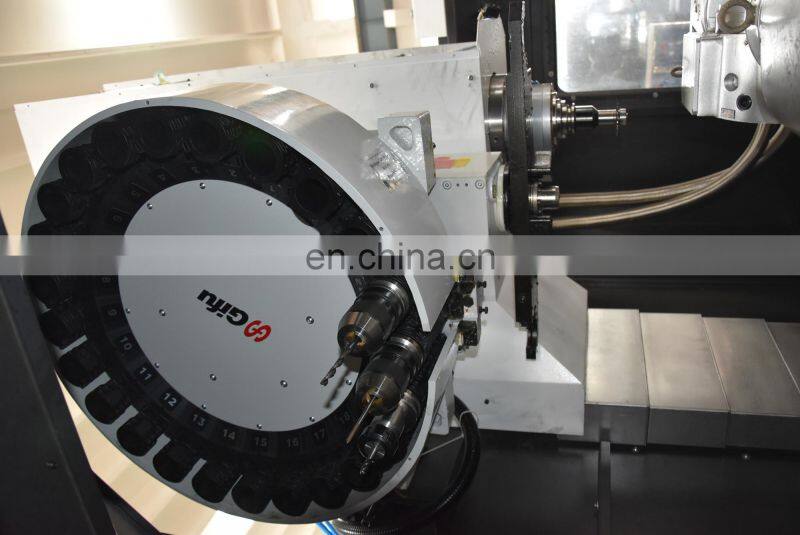

- Bamboo hat type tool magazine

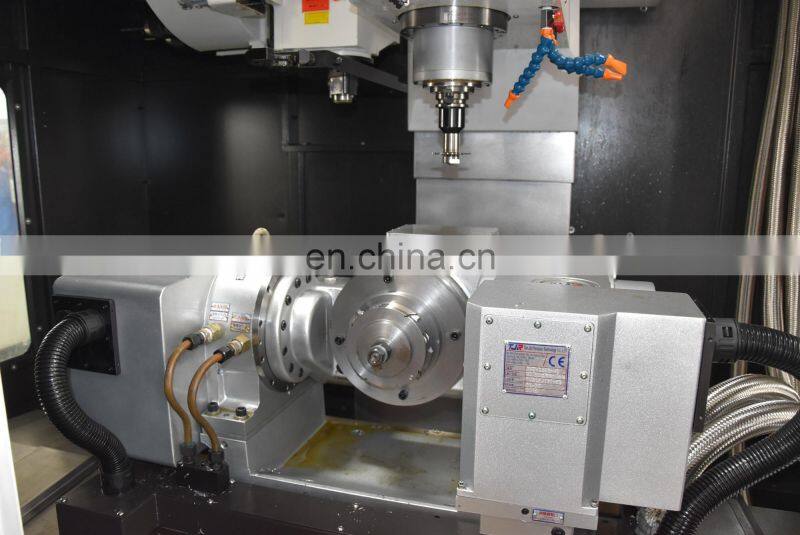

- The fifth Axis – FHR-255C
Optional configuration
- CNC system – GSK, FANUC, SIEMENS
- Disk type tool magazine
- Auto chip-removal system
5 Axis CNC Machining Center VMC850 Features
- Robust box-way castings
- High speed, low noise ball screw and wide linear guideways on three axis
- High rigid machine frame to fit high accelerations
- Famous brand tool magazine
- High volume, high pressure spindle coolant
- Direct drive spindle with standard speed 8000rpm
- Rapid feed to reduce Non-machining time
- High speed for mass production
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
