Multi-functional VMC850W 5-Axis Vertical machining center

FOB Price

USD $20,000 - $60,000 / Set

1 Set(Min.Order)

Supply Ability 90 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Packaging Details

VMC850W 5-Axis Vertical machining center with standard exported package,

Product Description

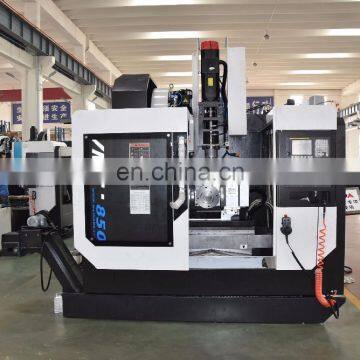

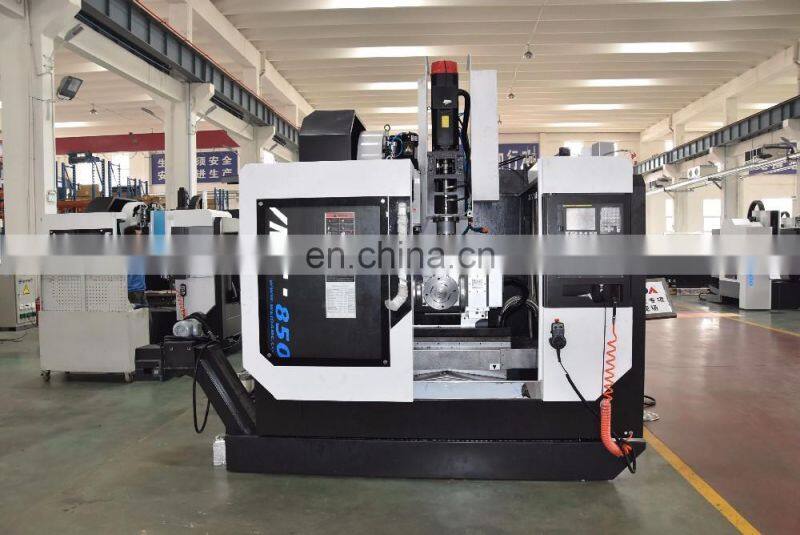

VMC850W 5-Axis Vertical machining center

Item	Detail	Unit	parameter
Stroke	Moving range X,Y,Z	mm	850×450×500
	Nose to a rotary table (horizontal) distance	mm	150-650
	Spindle center to column guideway surface distance	mm	560
Feed	Fast moving speed X,Y,Z	m/min	30/30/24/min
Feed	Cutting feed rate X,Y,Z	mm/min	10~15000mm/min
Spindle	Spindle taper		BT40
	Spindle speed	r/min	40~6000rpm
	Main motor power	kw	AC servo 7.5
	Maximum torque	nm	70
Magazine	Tool storage capacity		16
	Maximum tool weight	kg	8kg
	Maximum tool dimensions	mm	φ130×300

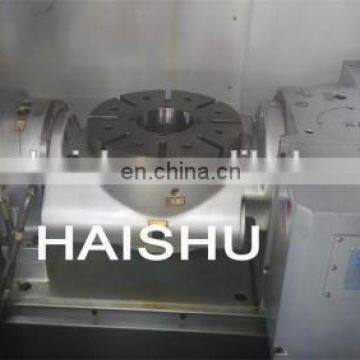

Rotary shaft	CNC rotary table diameter	mm	φ255
	A-Axis inclination angle	°	±100°
	Center hole	mm	φ80H7
	T-slot	mm	12H7
	Turntable maximum load	Kg	Level:100;Slant:75
Accuracy	positioning accuracy	mm	x/y/z : ±0.005/300
			A : 50 ″
			C : 20″
	Repeatability positioning accuracy	mm	x/y/z : ±0.003
			A : 8″
			C : 4″
Shape size	L×W×H	mm	2500×2300×2300
Net weight		kg	4800
Gross weight		kg	4900

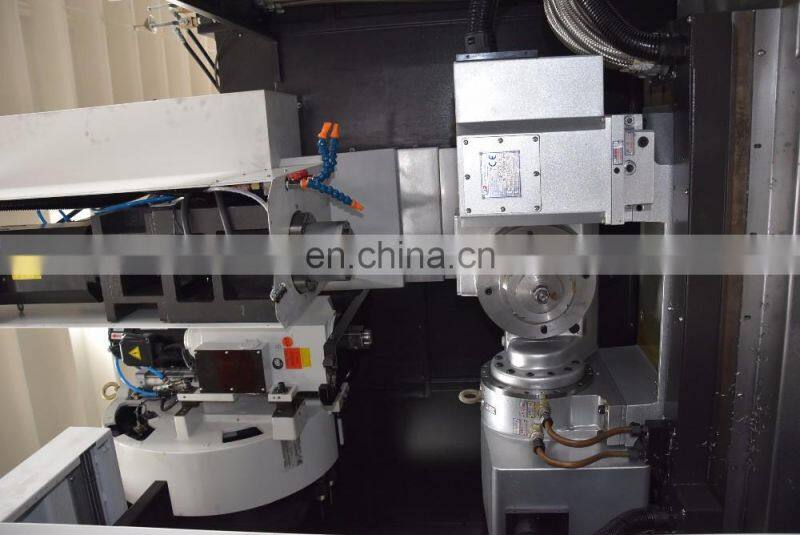

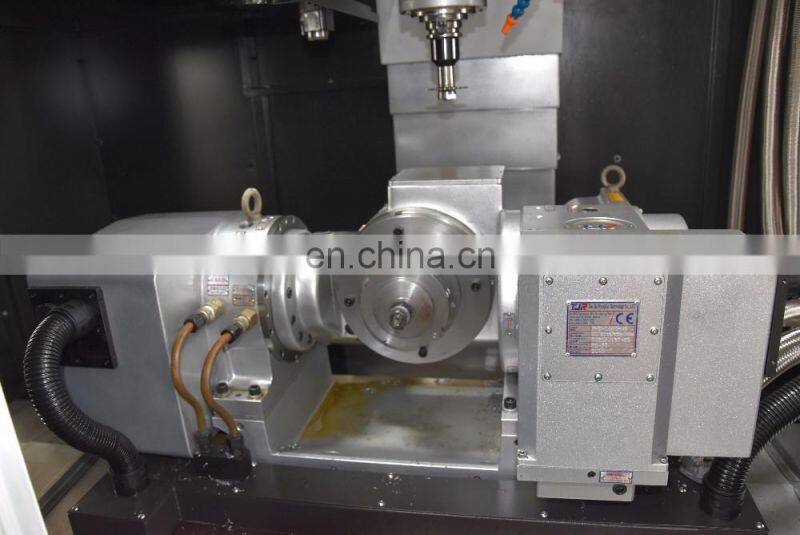

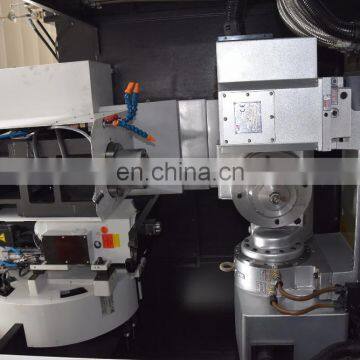

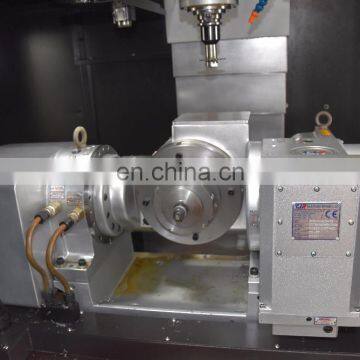

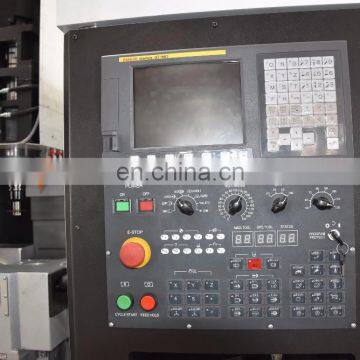

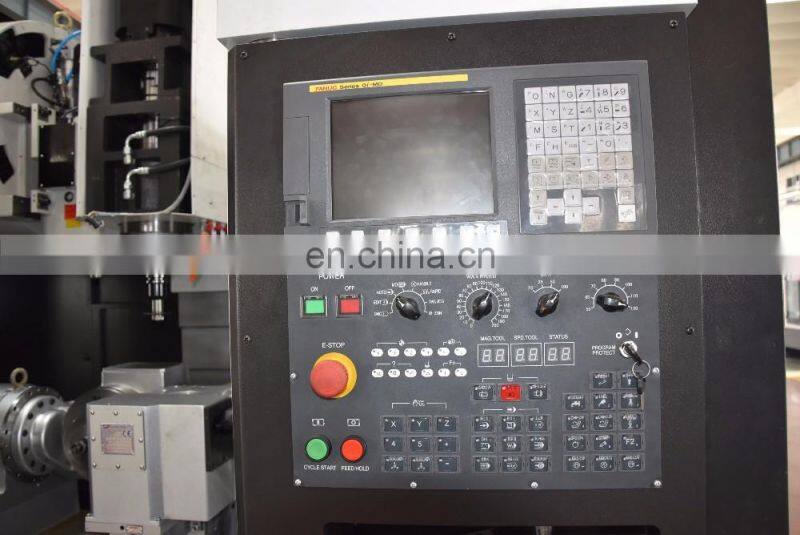

Detailed Imag

Certifications

Our Service

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.

Company Profile

Horizontal Lathe Co., Ltd.

All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
