Product Details
| Brand Name | HaiShu | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New |
standard exported package
Product Description

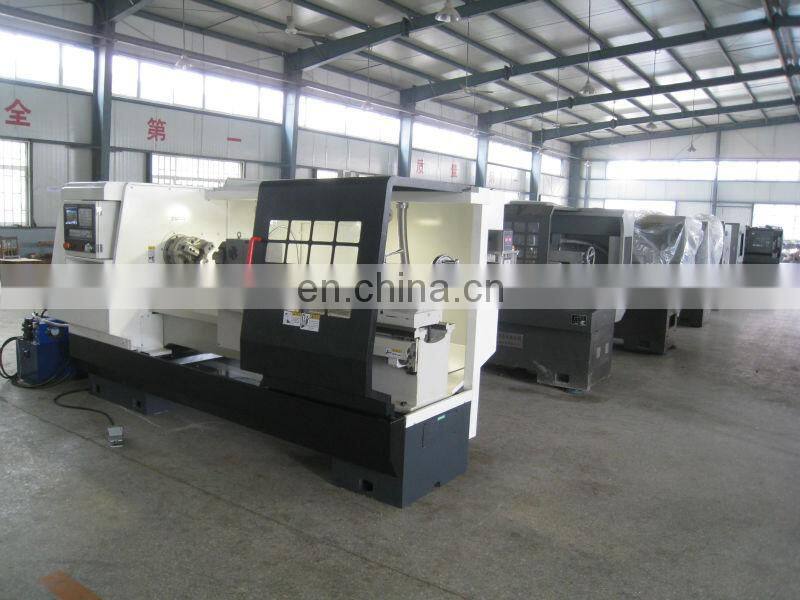

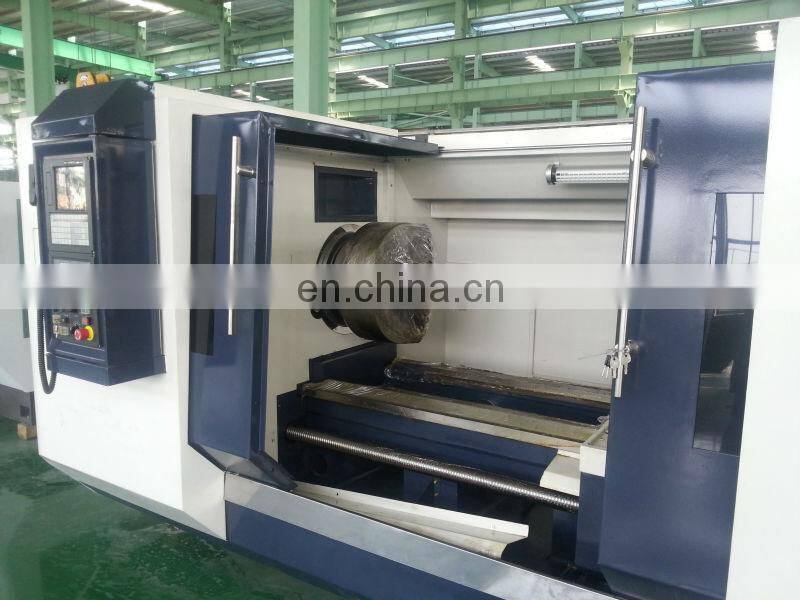

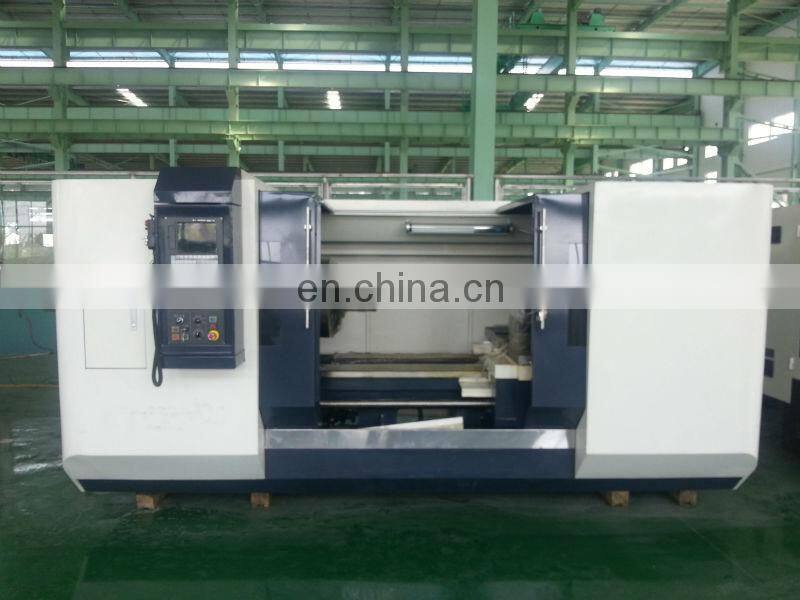

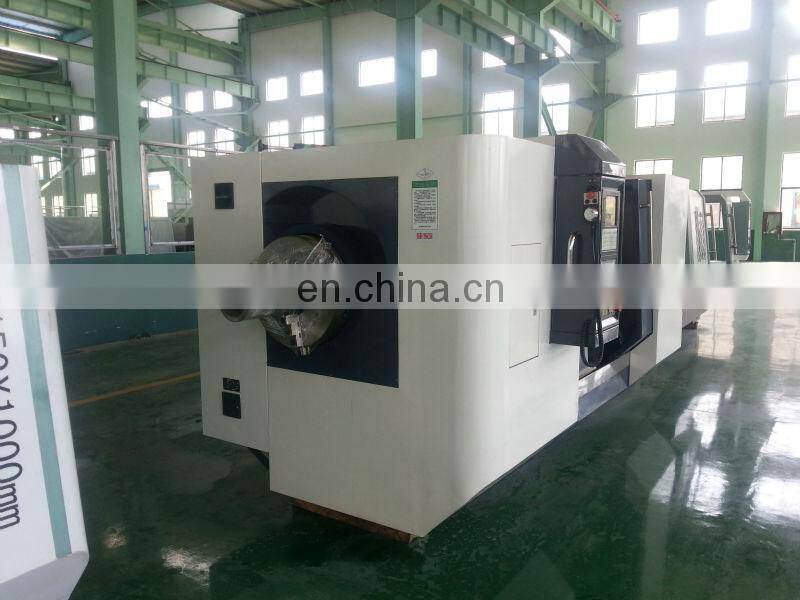

pipe thread cnc lathe CKG1327B-1 lathe cnc oil 10"spindle bore,lathe cnc oil takisawa
machine technical parameter:
No | Item | Unit | Specification |
CKQ1327B-1 | |||
1 | Max. swing over bed | mm | 800 |
2 | Max. swing over carriage | mm | 480 |
3 | Max. length of work piece | mm | 1500/3000 |
4 | Bed guideway span | mm | 660 |
5 | Main transmission form | Three level mechanical transmission,conversion stepless speed | |
6 | Range of spindle speed | rpm | 18~450 |
7 | Spindle bore | mm | 280 |
8 | Main motor power | KW | 15 |
9 | Max. travel of turret | mm | X:480 Z:1520 |
10 | Fast moving speed | mm/min | X:4000 Z:5000 |
11 | Feed positioning accuracy | mm | 0.032 |
12 | Feed repetitive positioning accuracy | mm | 0.011 |
13 | Workpiece processing precision | IT6 | |
14 | Workpiece surface roughness | Ra 1.6 | |
15 | Tailstock sleeve diameter | mm | 100 |
16 | Tailstock sleeve stroke | mm | 300 |
18 | Tailstock sleeve taper | MT6 | |
19 | Turret repetitive positioning accuracy | mm | 0.01 |
20 | Cutter bar section | mm | 40×40 |
21 | Servo motor | N.m | X:15 Z:23 |
22 | Overall dimensions(L*W*H) | mm | 3700*1800*1760 |
23 | Net weight | Kg | 5000 |
Standard configuration | Select configuration |
1, CNC system: GSK980. 2, Electric turret: vertical four station electric turret. 3,3 jaw manual chuck 4, Automatic lubrication system, Cooling system,Linghten system 5,Standard tools 6,Unit packing list | 1, CNC system: Beijing KND, Japan FANUC, Germany SIEMENS. 2, Electric turret: horizontal 8 station electric turret. 3, Cradle. |

Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
