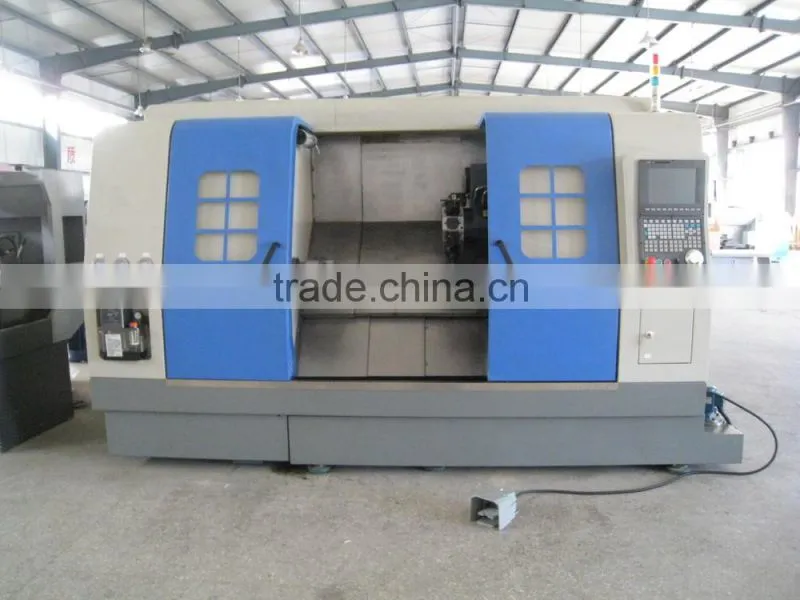

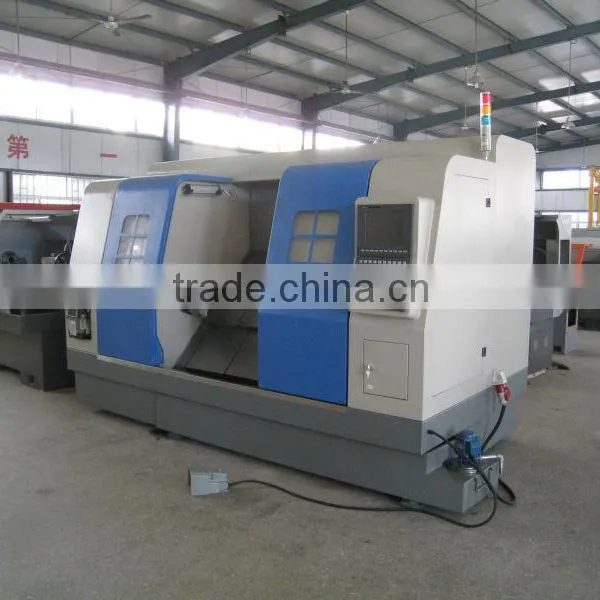

Help CenterCNC550A High Precision Cnc Lathe Milling Composite Machine With Sub-spindle
Related Products
-
CNC450A China Full Function Horizontal Slant Bed Cnc Multitasking Twin Spindle LatheUS$ 78,700 - 115,000MOQ: 1 Set -
CNC550A High Precision Cnc Multitasking Twin Spindle Lathe Slant Bed Cnc Lathe Turning CenterUS$ 85,000 - 115,000MOQ: 1 Set
-
CNC250A Slant Bed Combination Cnc Lathe Sub Spindle Machine With PriceUS$ 78,700 - 115,000MOQ: 1 Set
-
CNC350A Cnc Combination Lathe Milling Machine /double Spindle Cnc With Driven ToolsUS$ 78,700 - 115,000MOQ: 1 Set
-
Multi-spindle CNC Lathe CNC150A China Full Function Cnc Lathe Machine Horizontal Drilling MachineUS$ 78,700 - 115,000MOQ: 1 Set
Main technical parameters:
No. |
Item |
Unit |
Technical parameters |
||||
CNC550A | |||||||
1 |
Maximum turning diameter on lathe’ body |
mm |
550 |
||||
2 |
Maximum workpiece length |
mm |
750/1000/1500 |
||||
3 |
Maximum turning diameter |
mm |
500 |
||||
4 |
Spindle nose type and code |
mm |
A8 |
||||
5 |
Hydraulic chuck |
mm |
300/200mm |
||||
6 |
Front spindle bore taper |
1:20 |
|||||
7 |
Spindle bore |
mm |
75 |
||||
8 |
Maximum load-bearing chucked components |
kg |
60 |
||||
9 |
2 - servo spindle motor speed |
mm/min |
0-4000 |
||||
10 |
Rapid traverse X / Z |
mm/min |
40000 |
||||
11 |
CS1; CS2 main servo motor power |
kW |
15 |
||||
12 |
X servo motor maximum torque |
N.m |
15 |
||||
13 |
Z, Y servo motor maximum torque |
N.m |
15 |
||||
14 |
Power Specifications |
v |
380±10%. 50Hz±1Hz |
||||
15 |
Carrier transfer time (one station) |
s |
1.6(Horizontal 12) |
||||
16 |
Carrier transfer repeat positioning accuracy |
0.005" |
|||||
17 |
X-axis travel |
mm |
350 |
||||
18 |
Z-axis travel |
mm |
1100/13501850 |
||||
19 |
B-axis(sub-spindle) travel |
mm |
1400/1650/2150 |
||||
21 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
||||
22 |
Hydraulic servo turret form |
Horizontal 12-station power turret |
|||||
23 |
Knife handle size |
mm |
25*25 |
||||
24 |
Net weight |
kg |
7500kg |
||||
25 |
Size(L×W×H) |
mm |
3750*1800*2000 |
||||
Standard configuration:

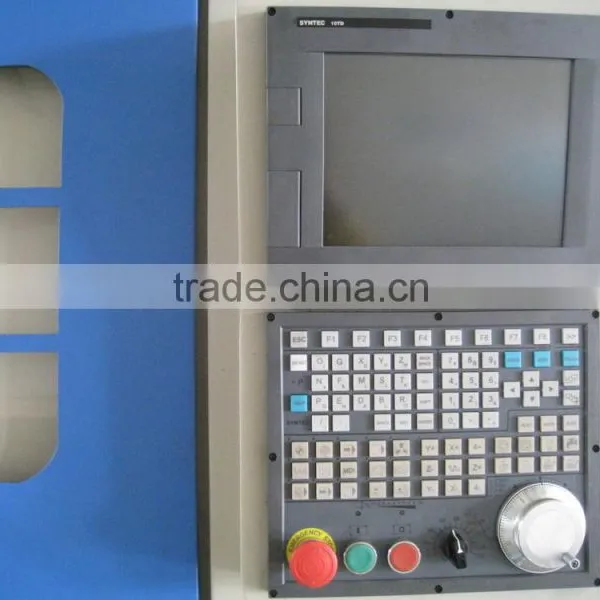

1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide
5.The spindle unit and motor

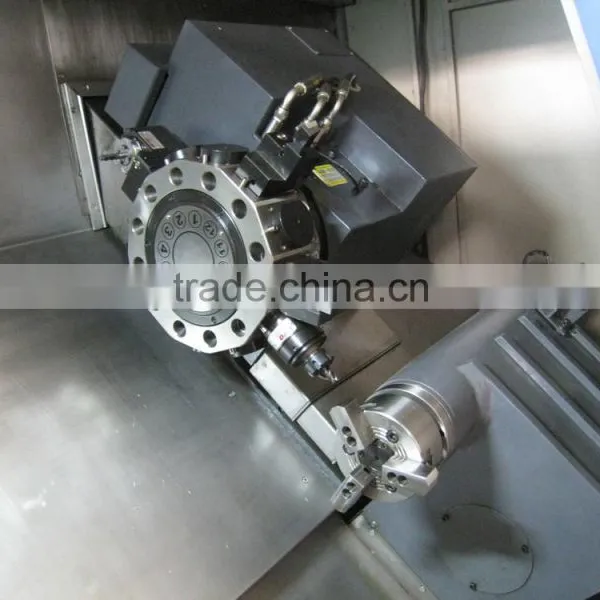

6.Horizontal 12 station servo turret
7.BearingNSK
8.Fully enclosed protection system
Sample service,customized service,best and total after-sales service , IWS!
engineer provide installment and training freely!
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
certificaton
Our machine through the ISO, EU CE certification
Packing standard: standard exported package case, composite material Fumigation-free packing
