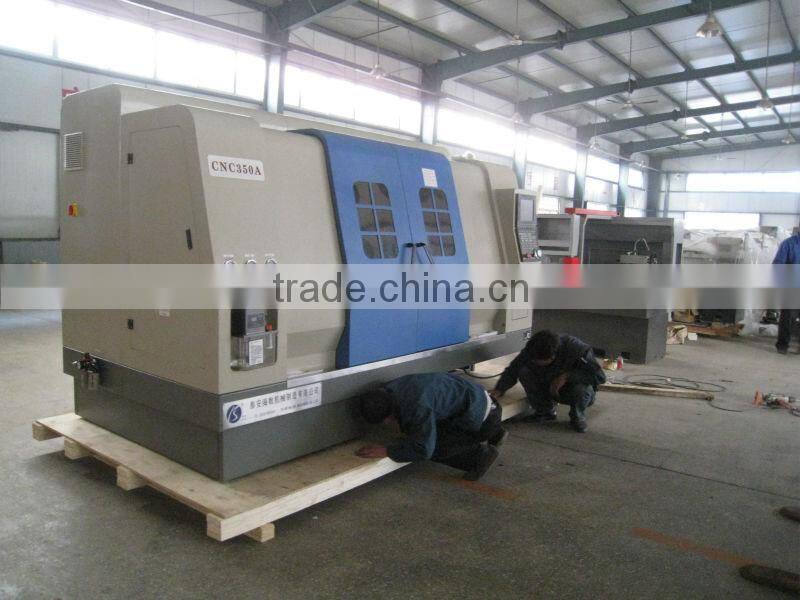

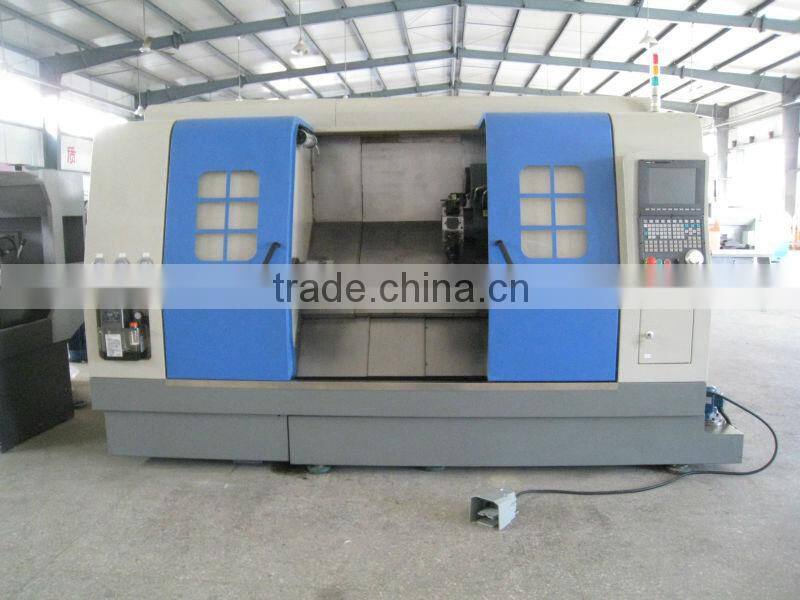

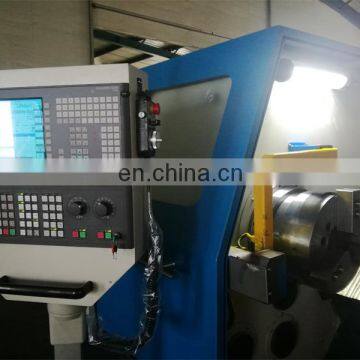

CNC350A Cnc Combination Lathe Milling Machine /double Spindle Cnc With Driven Tools

No.

Item

Unit

Technical parameters

CNC150A

CNC250A

CNC350A

CNC450A

CNC550A

1

Maximum turning diameter on lathe’ body

mm

160

200

350

450

550

2

Maximum workpiece length

mm

350/450/550

650/750/1000

3

Maximum turning diameter

mm

100

160

300

400

500

4

Spindle nose type and code

mm

A6

A6

A8

A8

A12

5

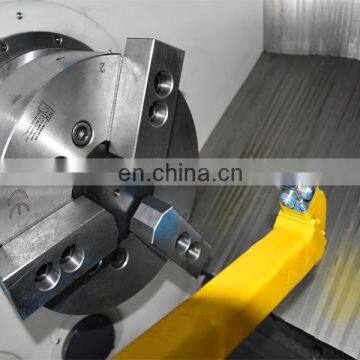

Hydraulic chuck

mm

2-φ100

(4")/100

2-φ160

(6")/100

2-φ200

(8")/135

2-φ250

(10")/160

2-φ300

(12")/200

6

Front spindle bore taper

1:20

7

Spindle bore

mm

38

40

60

60

70

8

Maximum load-bearing chucked components

kg

50

100

500

500

800

9

2 - servo spindle motor speed

mm/min

0-8000

10

Rapid traverse X / Z

mm/min

40000

11

CS1; CS2 main servo motor power

kW

3.7

5.5

7.5

7.5

11

12

X servo motor maximum torque

N.m

6

10

10

10

15

13

Z, Y servo motor maximum torque

N.m

10

15

15

15

20

14

Power Specifications

v

380±10%. 50Hz±1Hz

15

Carrier transfer time (one station)

s

1.6(Horizontal 12)

16

Carrier transfer repeat positioning accuracy

0.005"

17

X-axis travel

mm

100

150

200

300

300

18

Z-axis travel

mm

350/450/550

650/750/1000

19

B-axis(sub-spindle) travel

mm

650/750/850

950/1050/1300

20

Y-axis travel

mm

50

100

150

200

250

21

Biaxial dynamic docking concentricity

mm

0.004

0.004

0.005

0.005

0.005

22

Hydraulic servo turret form

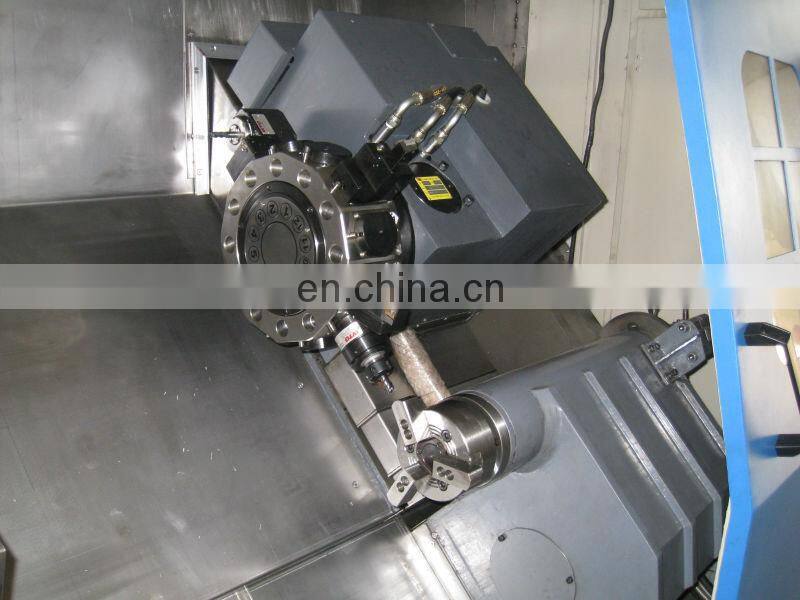

Horizontal 12-station power turret

23

Knife handle size

mm

20×20

25×25

25×25

32×32

32×32

24

Net weight

kg

3000/3500/4000

5500/6500/8500

25

Size(L×W×H)

mm

2000/2100/2200×1350×1750

2600/2700/3000×1600×1950
