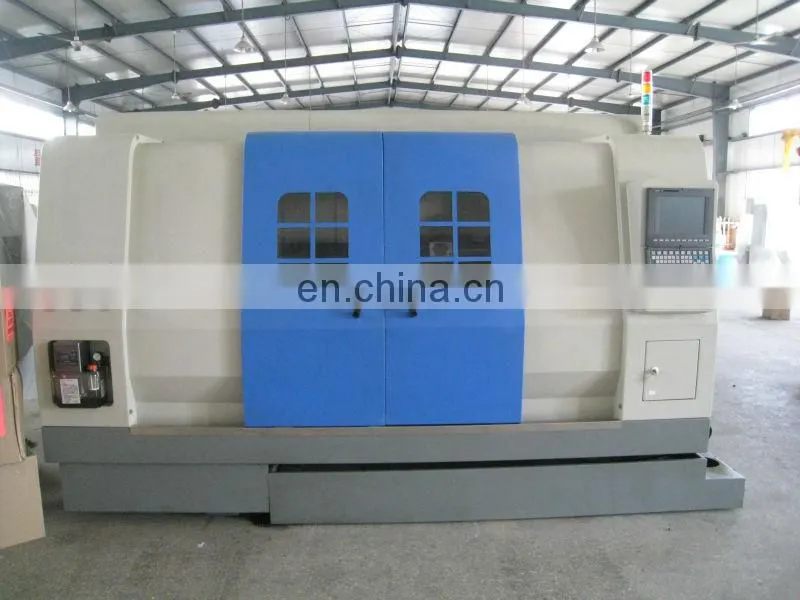

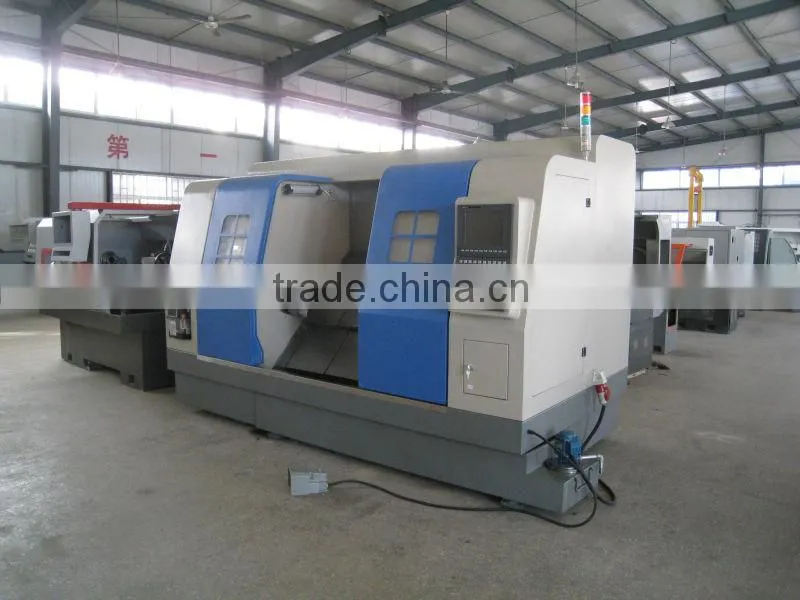

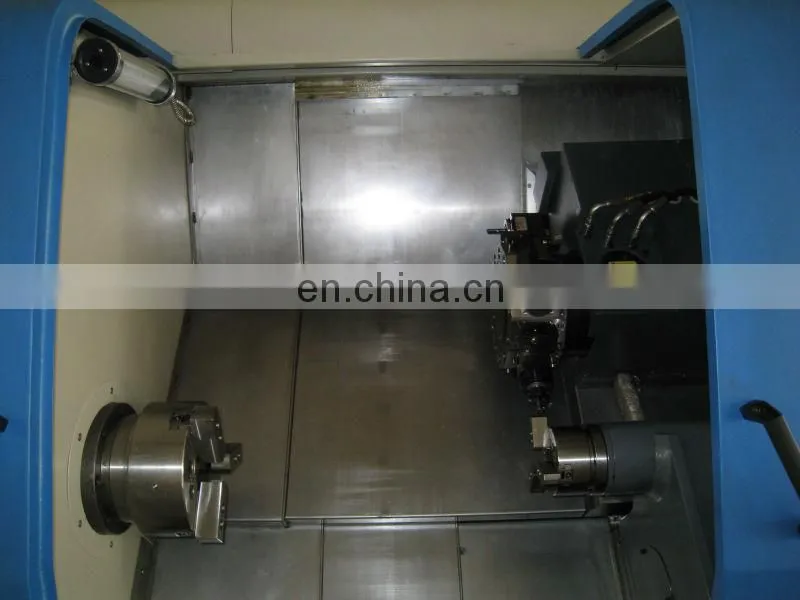

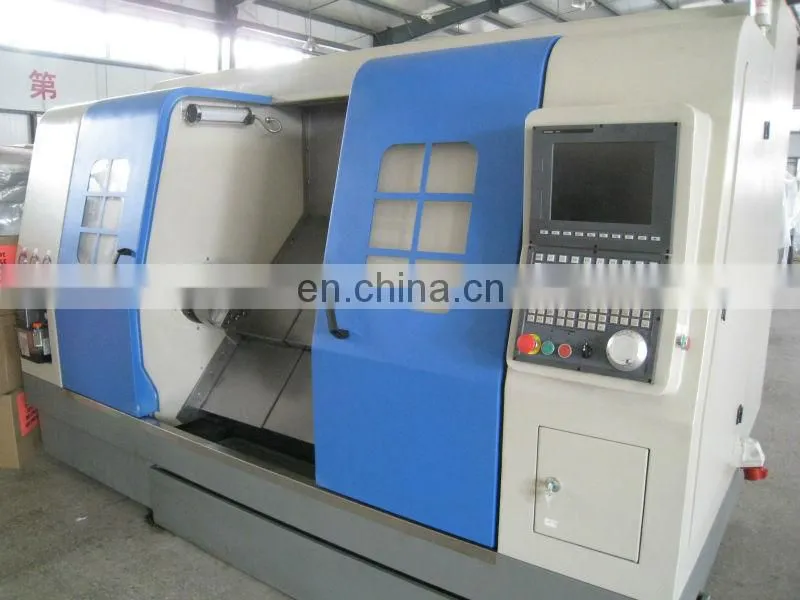

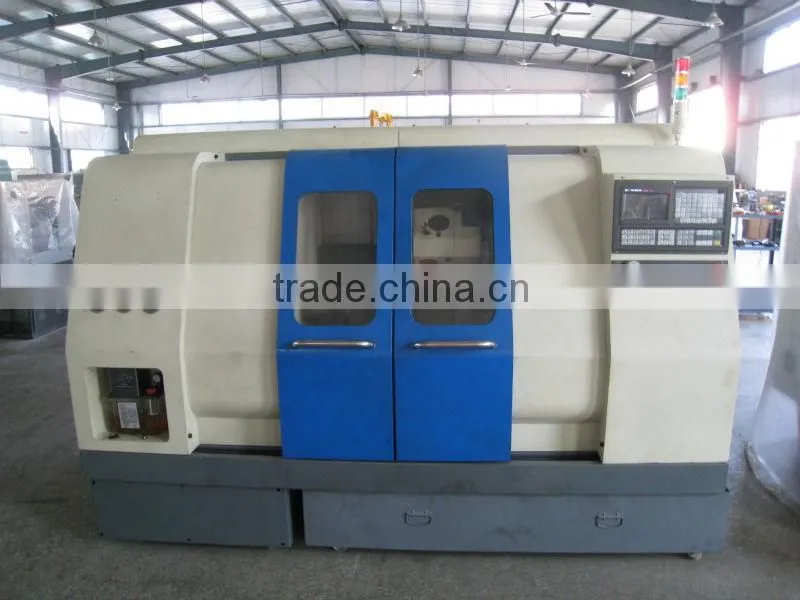

CNC550A high precision twin spindle cnc lathe milling center

FOB Price

USD $85,000 - $115,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu	Place of Origin	Shandong, China
Model Number	CNC550A	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

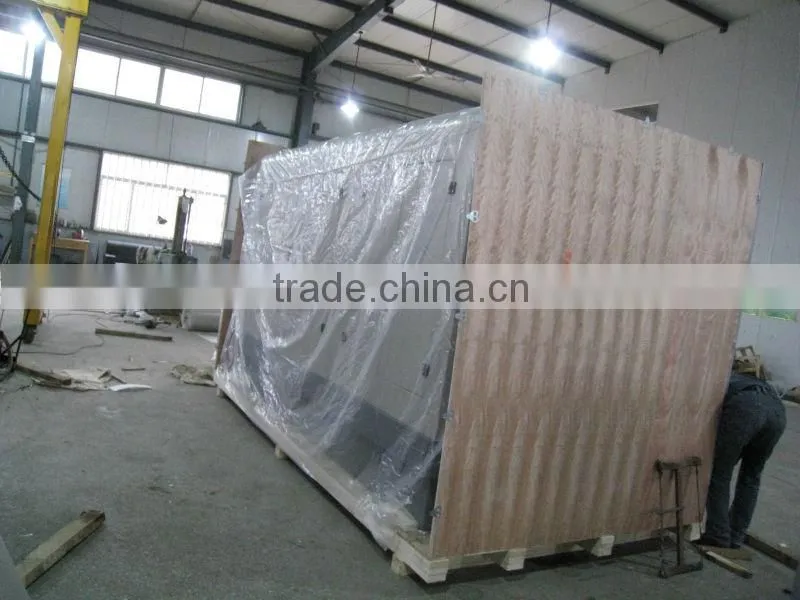

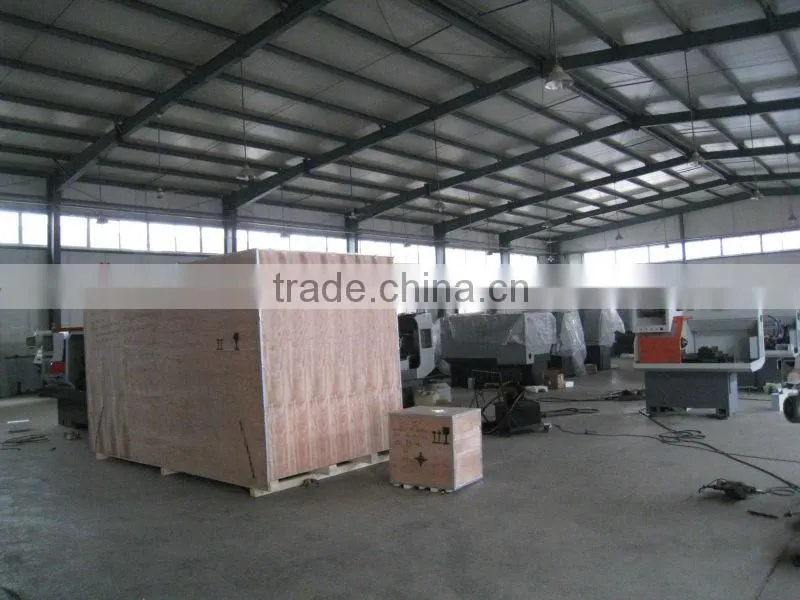

Packaging Details

1.standard exported wooden case,Fumigation-free packing in wooden cases 2.inner package:stretch film

Product Description

CNC550A high presision twin spindle cnc lathe milling center

Main technical parameters:

No.	Item	Unit	Technical parameters
No.	Item	Unit	CNC550A
1	Maximum turning diameter on lathe’ body	mm	550
2	Maximum workpiece length	mm	750/1000/1500
3	Maximum turning diameter	mm	500
4	Spindle nose type and code	mm	A8
5	Hydraulic chuck	mm	300/200mm
6	Front spindle bore taper		1:20
7	Spindle bore	mm	75
8	Maximum load-bearing chucked components	kg	60
9	2 - servo spindle motor speed	mm/min	0-4000
10	Rapid traverse X / Z	mm/min	40000
11	CS1; CS2 main servo motor power	kW	15
12	X servo motor maximum torque	N.m	15
13	Z, Y servo motor maximum torque	N.m	15
14	Power Specifications	v	380±10%. 50Hz±1Hz
15	Carrier transfer time (one station)	s	1.6(Horizontal 12)
16	Carrier transfer repeat positioning accuracy		0.005"
17	X-axis travel	mm	350
18	Z-axis travel	mm	1100/13501850
19	B-axis(sub-spindle) travel	mm	1400/1650/2150
21	Biaxial dynamic docking concentricity	mm	0.005

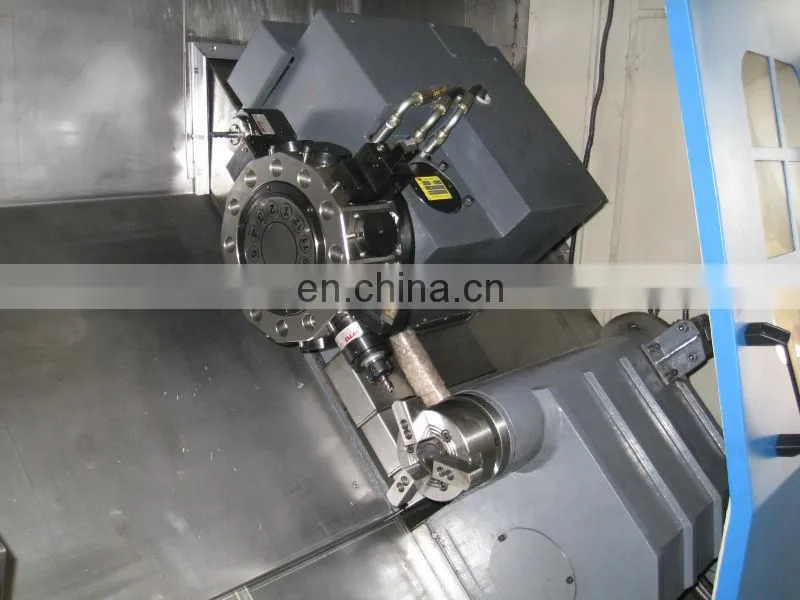

22	Hydraulic servo turret form		Horizontal 12-station power turret
23	Knife handle size	mm	25*25
24	Net weight	kg	7500kg
25	Size(L×W×H)	mm	375018002000

Standard configuration:
1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide

5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.BearingNSK

8.Fully enclosed protection system

Our Services

Sample service,customized service,best and total after-sales service , IWS!

engineer provide installment and training freely!

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine expect of CNC system, which guarantee is threeyears

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.

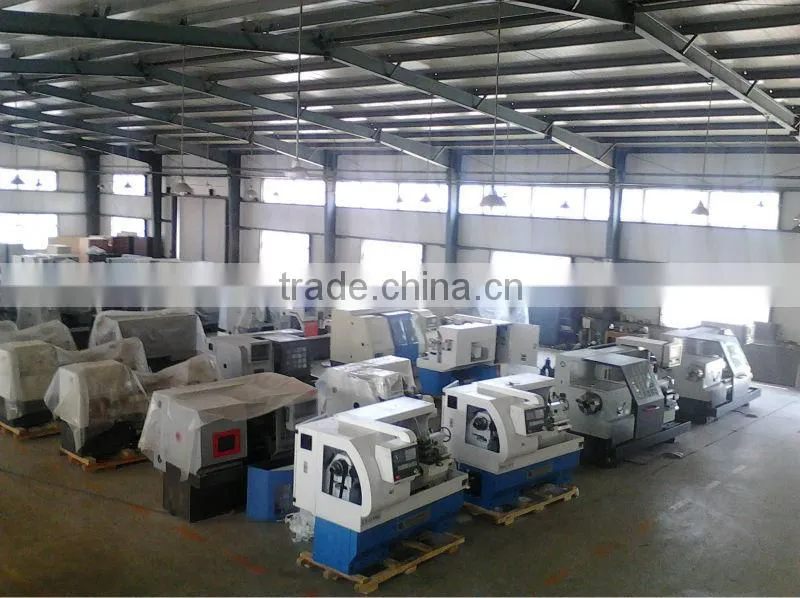

Company Profile
