CNC350A twin spindle cnc lathe with live tooling
Standard configuration:
Standrd configurations:
1.Taiwan Syntec controllers sytem
2.Double Servo spindle unit
3.Double Hydraulic solid chuck
4.Horizontal 12 hydraulic servo power turret
5.Three axis linear guide
6.Turning coolant system
7.Auto lubrication system
8.Whole protection door
Optional configurations:
1.fanuc/siemens controller system
2.Hydraulic hollow chuck
3.Auto bar feeder
4.Auto chip cleaner
5.Auto catcher device
6.Auto protection door
7.Loading robot
8.Increase Y axis
technical parameter:
No. |
Item |
Unit |
specifications |
CNC350A | |||
1 |
Max.rotation diameter on lathe’ body |
mm |
350 |
2 |
piece lengt |
mm |
750 |
3 |
Max.turning diameter |
mm |
300 |
4 |
Spindle nose type and code |
mm |
A8 |
5 |
Hydraulic chuck1 |
mm |
Φ200 |
6 |
Hydraulic chuck2 |
mm |
Φ135 |
7 |
Front spindle bore taper |
|
1:20 |
8 |
Spindle bore |
mm |
50 |
9 |
2- Servo spindle speed range |
rpm |
0-4000 |
10 |
X/Z/B Rapid traverse |
mm/min |
40000 |
11 |
Cs1,Cs2 main servo motor power |
kW |
7.5 |
12 |
C-axis(Turret power axis) motor power |
kw |
3.7 |
13 |
X/Z-axis motor max.torque |
N.m |
10 |
14 |
Y-axis travel(optional) |
mm |
+35/-35 |
15 |
B-axis(sub-spindle) motor max.torque |
N.m |
15 |
16 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
17 |
Turret transfer time (one station) |
s |
1.6 (horizontal12) |
18 |
Turret transfer repeat positioning accuracy |
mm |
0.005" |
19 |
X-axis travel |
mm |
200 |
20 |
Z-axis travel |
mm |
1100/1350/1850 |
21 |
B-axis (sub-spindle) travel |
mm |
1400/1650/2150 |
22 |
C-axis(Turret power axis) max.speed |
rpm |
4000 |
23 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
24 |
hydraulic servo turret form |
Horizontal 12-station servo power turret |
|
25 |
Turret cylinder clamping force |
kg |
4240 |
26 |
Turret hydraulic power source |
kg/cm² |
40 |
27 |
Power tool holder specification |
VDI40 DIN5480 |
|
28 |
Knife handle size |
mm |
20*20 |
29 |
Net weight |
kg |
5000 |
30 |
Size(L×W×H) |
mm |
3250*1800*2000 |

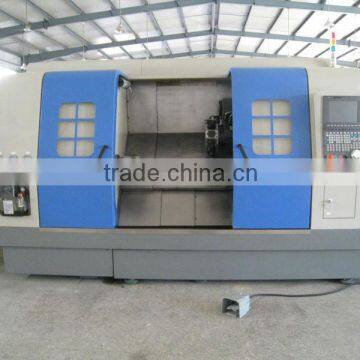

CNC350A twin spindle cnc lathe with live tooling photos
choose taian haishu cnc machines reason

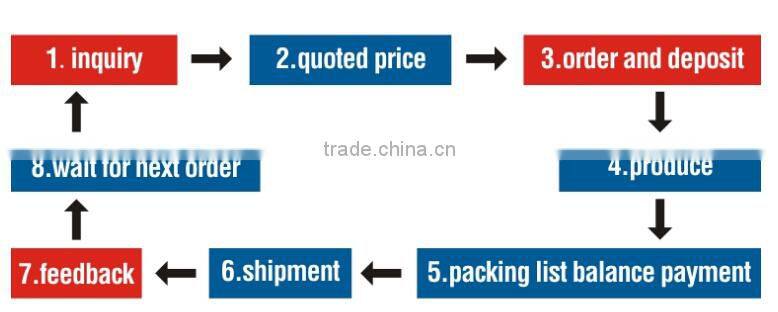

how to buy taian haishu cnc machines
