Help CenterTwin Spindle Two Turret CNC Turning Center CNC 350T From China
Related Products
-
Cnc Dual-channel Dual Spindle CNC Turning Center for Sale With Live Tooling TurretUS$ 50,000 - 80,200MOQ: 1 Set -
CNC350T Double Spindle Cnc Lathe Machine , New or Used Cnc Turning CenterUS$ 15,000 - 350,000MOQ: 1 Set
-
New Taiwan CNC Lathe Machine Price CNC 450B And CNC Turning Center With Living ToolsUS$ 5,000 - 25,000MOQ: 1 Set
-
CNC350A CNC Milling Lathe Machine Tool and Drilling MillingUS$ 18,000 - 110,000MOQ: 1 Unit
-
CNC Turning Center With High Speed Spindle ,Live Tooling Turret Or Power TurretUS$ 20,000 - 35,000MOQ: 1 Set
No. |
Item |
Unit |
Technical parameters |
|
CNC350T | ||||
1 |
Maximum turning diameter on lathe’ body |
mm |
350 |
|
2 |
Maximum workpiece length |
mm |
750/1000/1500 |
|
3 |
Maximum turning diameter |
mm |
300 |
|
4 |
Spindle nose type and code |
mm |
A8 |
|
5 |
Hydraulic chuck |
mm |
2-φ200 (8") |
|
6 |
Front spindle bore taper |
1:20 |
||
7 |
Spindle bore |
mm |
60 |
|
8 |
Maximum load-bearing chucked components |
kg |
500 |
|
9 |
2 - servo spindle motor speed |
mm/min |
0-8000 |
|
10 |
Rapid traverse X / Z |
mm/min |
40000 |
|
11 |
CS1; CS2 main servo motor power |
kW |
7.5 |
|
12 |
X servo motor maximum torque |
N.m |
10 |
|
13 |
Z, Y servo motor maximum torque |
N.m |
15 |
|
14 |
Power Specifications |
v |
380±10%. 50Hz±1Hz |
|
15 |
Carrier transfer time (one station) |
s |
1.6(Horizontal 12) |
|
16 |
Carrier transfer repeat positioning accuracy |
0.005" |
||
17 |
X-axis travel |
mm |
200 |
|
18 |
Z-axis travel |
mm |
350/450/550 |
|
19 |
B-axis(sub-spindle) travel |
mm |
650/750/850 |
|
20 |
Y-axis travel |
mm |
150 |
|
21 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
|
22 |

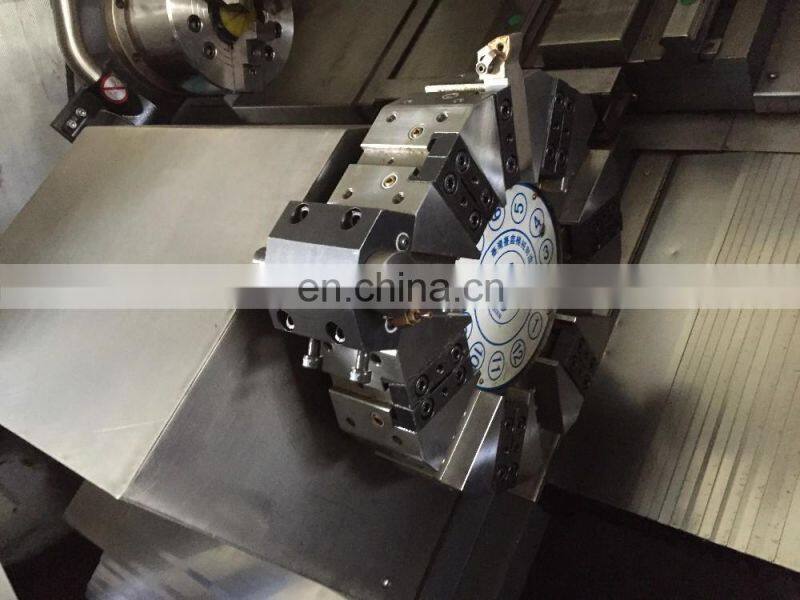

Hydraulic servo turret form |
Horizontal 12-station power turret |
||
23 |
Knife handle size |
mm |
25×25 |
|
24 |
Net weight |
kg |
4000 |
|
25 |
Size(L×W×H) |
mm |
2000/2100/2200×1350×1750 |
|
Standard configuration:
1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide
5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.Bearing NSK
8.Fully enclosed protection system
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
