Main technical parameters:
No. |
Item |
Unit |
Technical parameters |
||||
CNC350T | |||||||
1 |
Maximum turning diameter on lathe’ body |
mm |
350 |
||||
2 |
Maximum workpiece length |
mm |
350/450/550 |
650/750/1000 |
|||
3 |
Maximum turning diameter |
mm |
300 |
||||
4 |
Spindle nose type and code |
mm |
A8 |
||||
5 |
Hydraulic chuck |
mm |
2-φ200 (8") |
||||
6 |
Front spindle bore taper |
1:20 |
|||||
7 |
Spindle bore |
mm |
60 |
||||
8 |
Maximum load-bearing chucked components |
kg |
500 |
||||
9 |
2 - servo spindle motor speed |
mm/min |
0-8000 |
||||
10 |
Rapid traverse X / Z |
mm/min |
40000 |
||||
11 |
CS1; CS2 main servo motor power |
kW |
7.5 |
||||
12 |
X servo motor maximum torque |
N.m |
10 |
||||
13 |
Z, Y servo motor maximum torque |
N.m |
15 |
||||
14 |
Power Specifications |
v |
380±10%. 50Hz±1Hz |
||||
15 |
Carrier transfer time (one station) |
s |
1.6(Horizontal 12) |
||||
16 |
Carrier transfer repeat positioning accuracy |
0.005" |
|||||
17 |
X-axis travel |
mm |
200 |
||||
18 |
Z-axis travel |
mm |
350/450/550 |
650/750/1000 |
|||
19 |
B-axis(sub-spindle) travel |
mm |
650/750/850 |
950/1050/1300 |
|||
20 |
Y-axis travel |
mm |
150 |
||||
21 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
||||
22 |
Hydraulic servo turret form |
Horizontal 12-station power turret |
|||||
23 |
Knife handle size |
mm |
25×25 |
||||
24 |
Net weight |
kg |
4000 |
||||
25 |
Size(L×W×H) |
mm |
2000/2100/2200×1350×1750 |
||||
Standard configuration:
1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide
5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.Bearing NSK
8.Fully enclosed protection system

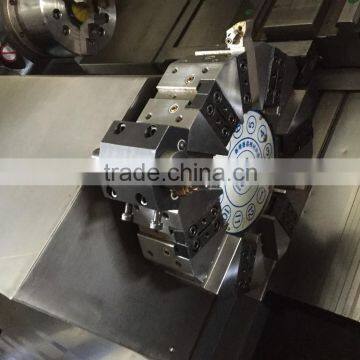

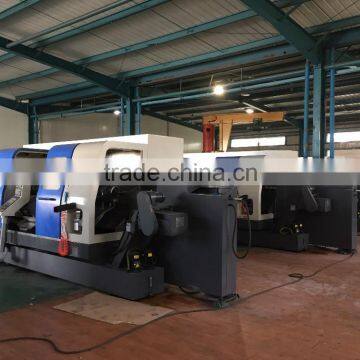

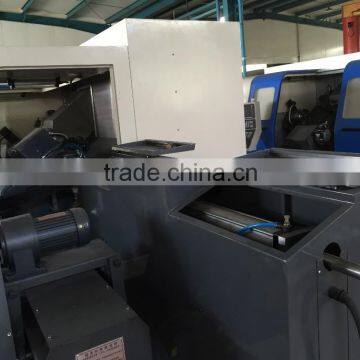

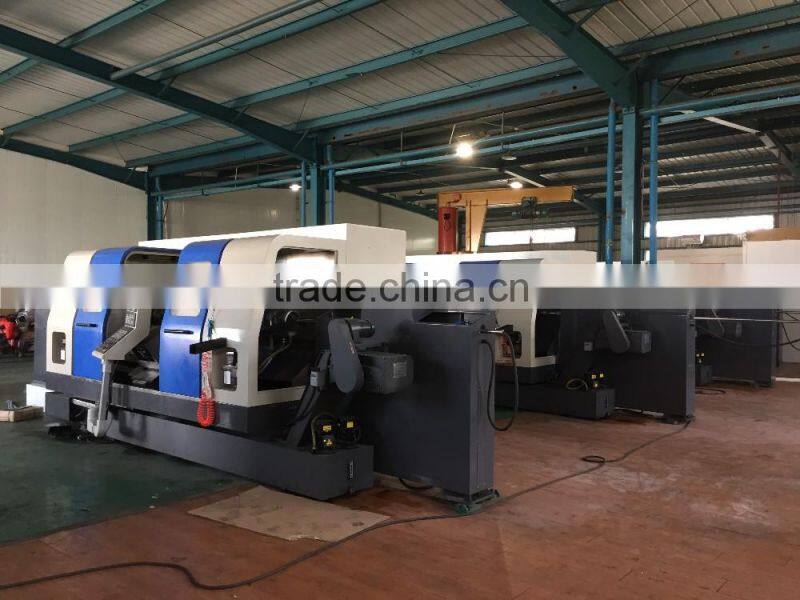

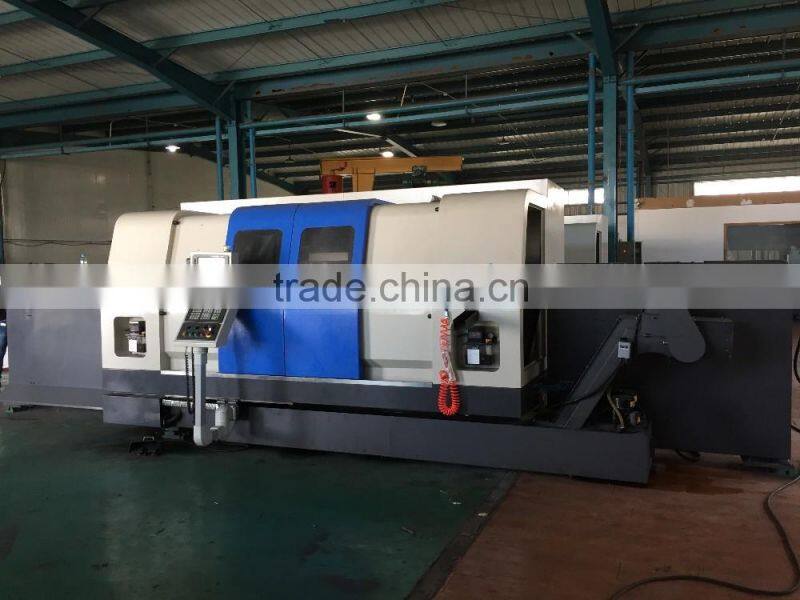

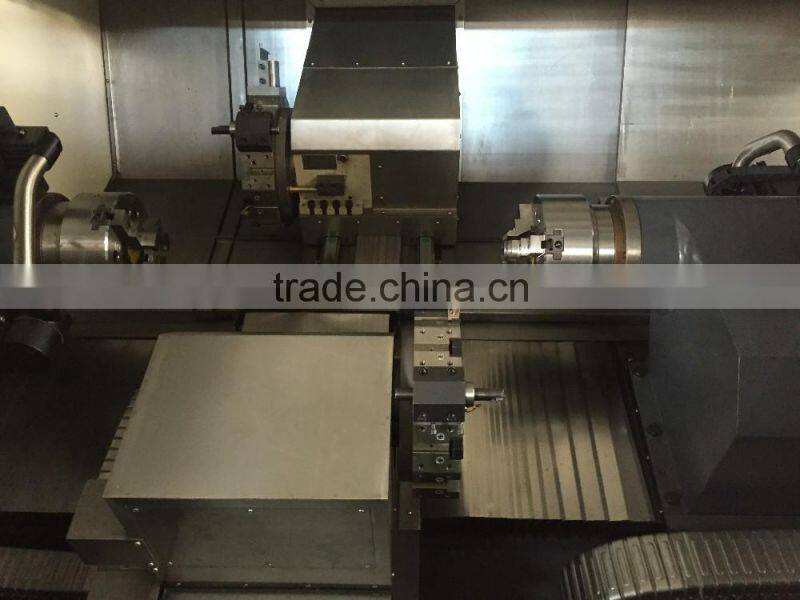

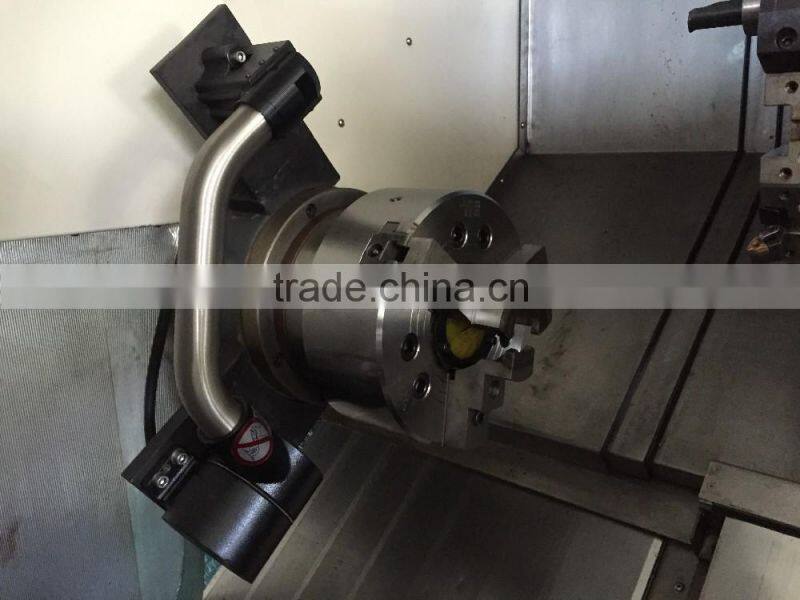

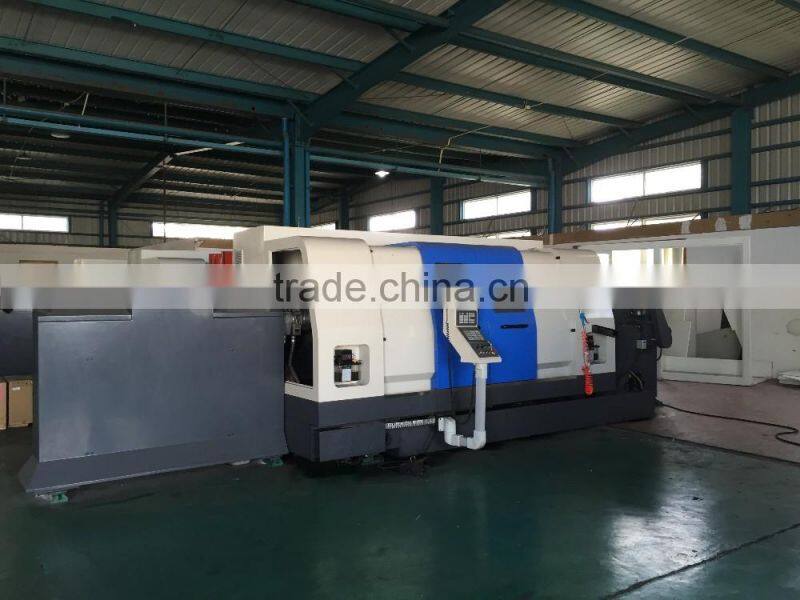

twin spindle six axis linkage cnc lathe turning mlling machine detailed photos
