VMC850 5-Axis Machining Center Vertical Process Siemens Control

Horizontal Lathe Co., Ltd.
5Yrs
VMC850 5-Axis Machining Center Vertical Process Siemens Control thumbnail-1
VMC850 5-Axis Machining Center Vertical Process Siemens Control thumbnail-2
VMC850 5-Axis Machining Center Vertical Process Siemens Control thumbnail-3
VMC850 5-Axis Machining Center Vertical Process Siemens Control thumbnail-4
VMC850 5-Axis Machining Center Vertical Process Siemens Control thumbnail-5
VMC850 5-Axis Machining Center Vertical Process Siemens Control thumbnail-6
VMC850 5-Axis Machining Center Vertical Process Siemens Control photo-1
VMC850 5-Axis Machining Center Vertical Process Siemens Control photo-2

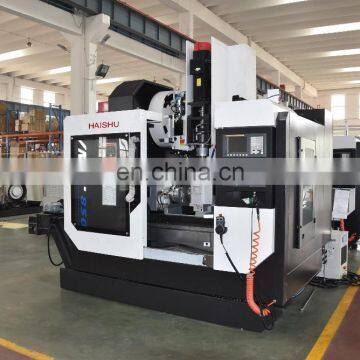

VMC850 5-Axis Machining Center Vertical Process Siemens Control photo-3
VMC850 5-Axis Machining Center Vertical Process Siemens Control photo-4
VMC850 5-Axis Machining Center Vertical Process Siemens Control photo-5
VMC850 5-Axis Machining Center Vertical Process Siemens Control photo-6
US$ 40,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HaiShu
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao /Tianjin/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HaiShu
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Condition New

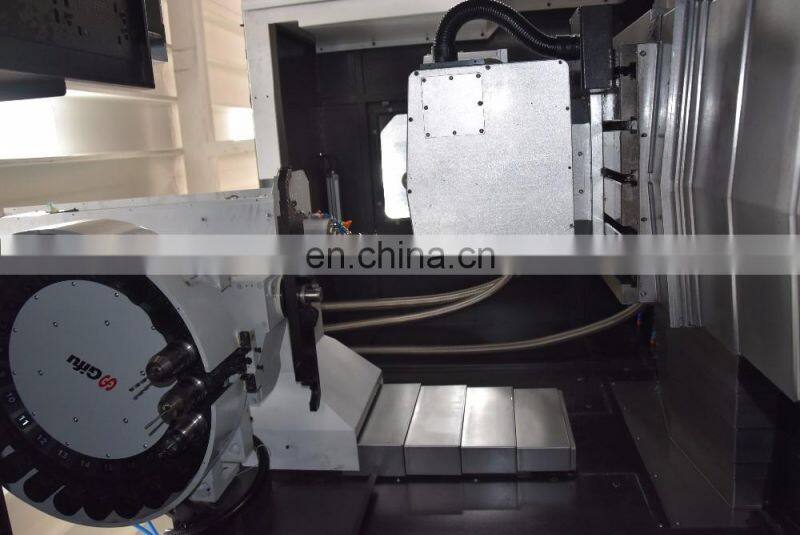

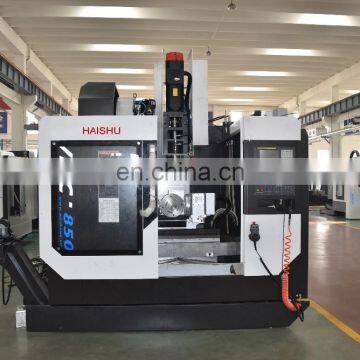

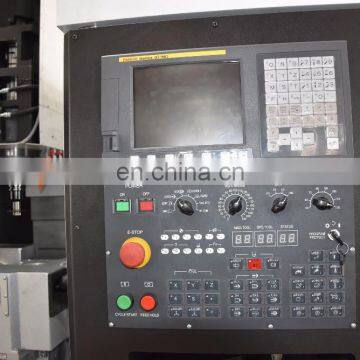

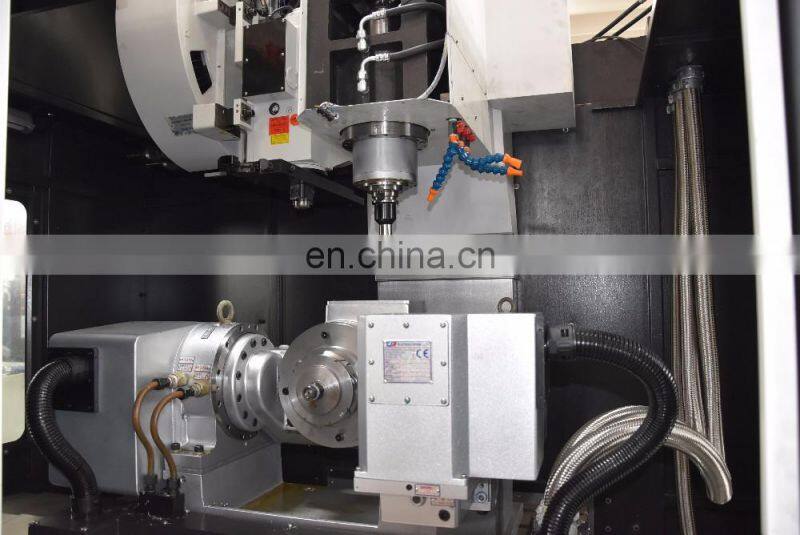

Detailed Images

VMC850 5-Axis machining center one year warranty vertical processing

certificates



SPECIFICATION
Item
Detail
Unit
parameter
Stroke
Moving range X,Y,Z
mm
850×450×500
Nose to a rotary table (horizontal) distance
mm
150-650
Spindle center to column guideway surface distance
mm
560
Feed
Fast moving speed X,Y,Z
m/min
30/30/24/min
Cutting feed rate X,Y,Z
mm/min
10~15000mm/min
Spindle
Spindle taper
BT40
Spindle speed
r/min
40~6000rpm
Main motor power
kw
AC servo 7.5
Maximum torque
nm
70
Magazine
Tool storage capacity
piece
16
Maximum tool weight
kg
8kg
Maximum tool dimensions
mm
φ130×300
4 station electric tool
mm
0.008
Rotary shaft
CNC rotary table diameter
mm
φ255
A-Axis inclination angle
°
±100°
Center hole
mm
φ80H7
T-slot
mm
12H7
Turntable maximum load
Kg
Level:100; Slant:75
Accuracy
positioning accuracy
mm
X/Y/Z
±0.005/300
A
50 ″
C
20″
Repeatability positioning accuracy X/Y/Z/A/C
mm
X/Y/Z
±0.003
A
8″
C
4″
Shape
size
L×W×H
mm
2500×2300×2300
Net weight
kg
4800
Gross weight
kg
4900
Packing & Delivery
Packaging
Size
2530×2330×2330
Weight
4.9 T



Packaging Details
The normal package is wooden box. we will use pe film for packing or pack it according to customers special request.

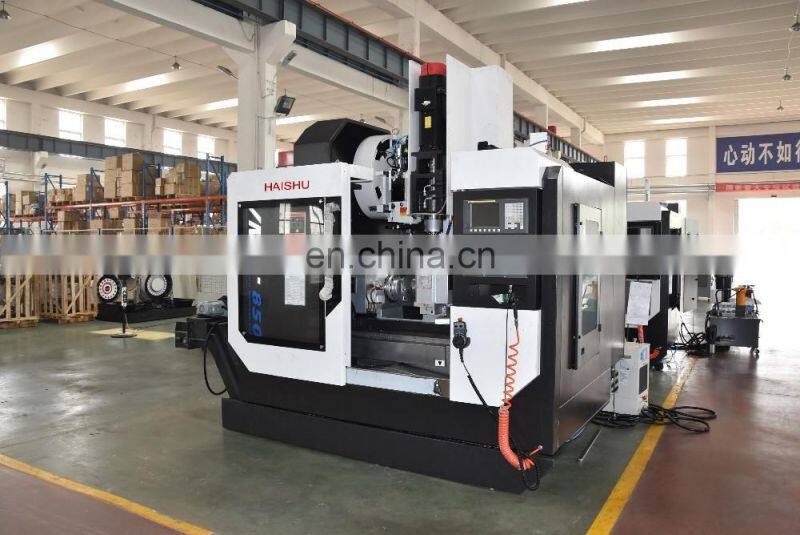

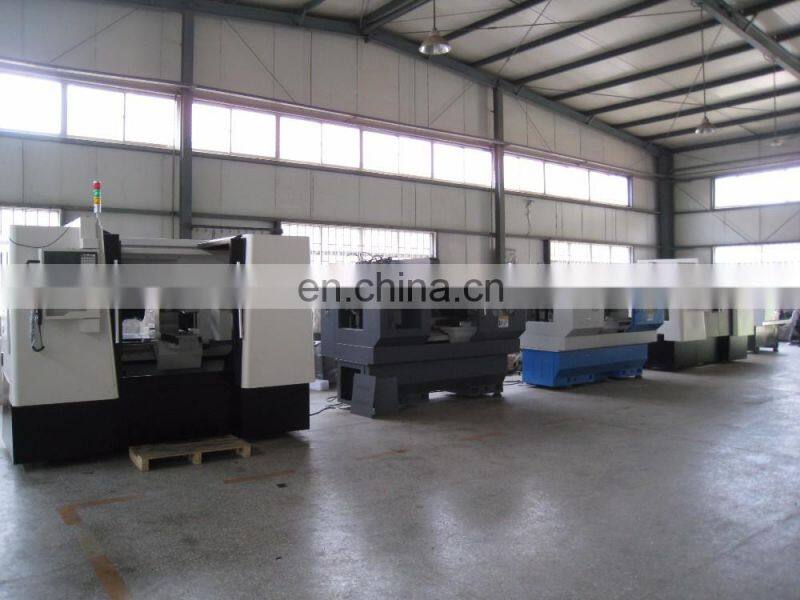

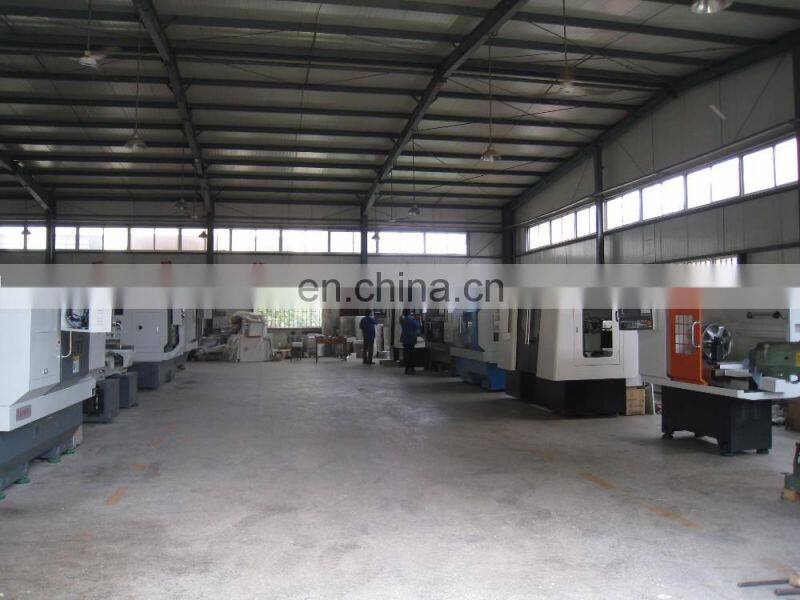

Our FACTORY

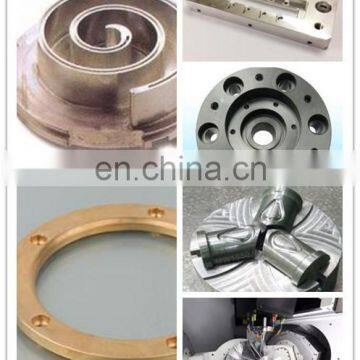

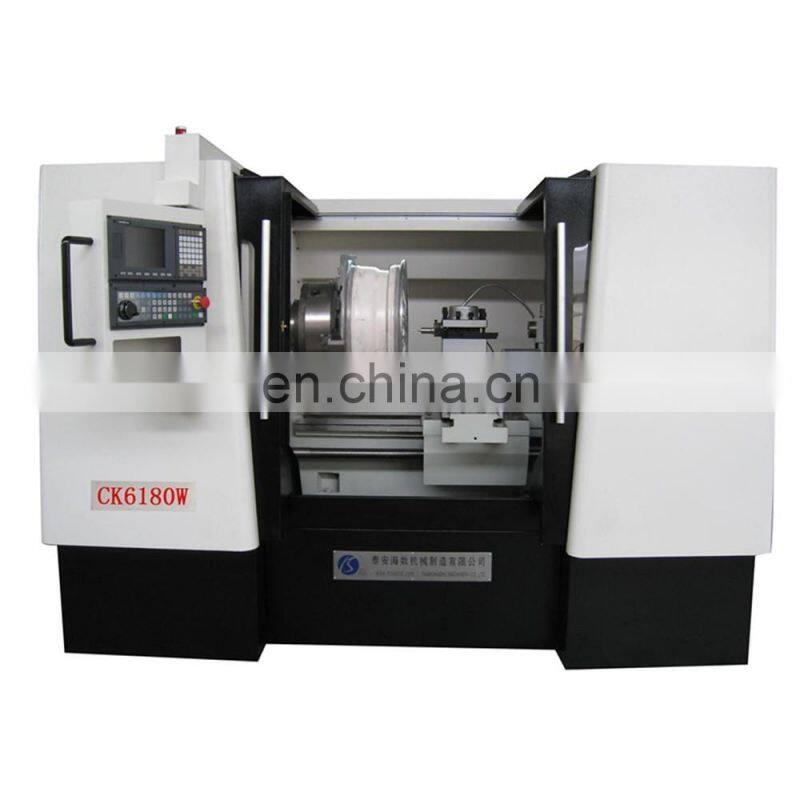

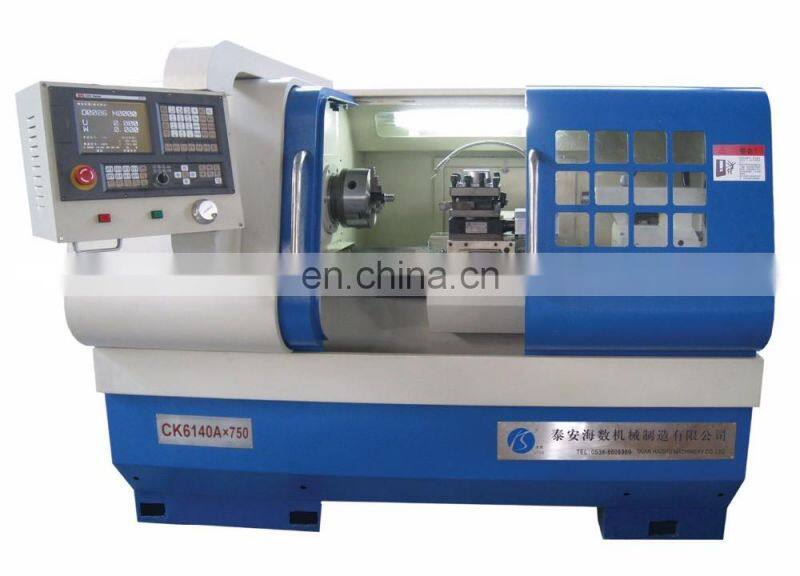

Products show
