CNC450B-1 cnc turning lathe machine tool price list with hydraulic tool post

FOB Price

US$ 24,000 - 90,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HAISHU		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Packaging Details

wood packaging 20-foot container:12Sets

Product Description

CNC450B-1 cnc turning lathe machine tool price list with hydraulic tool post

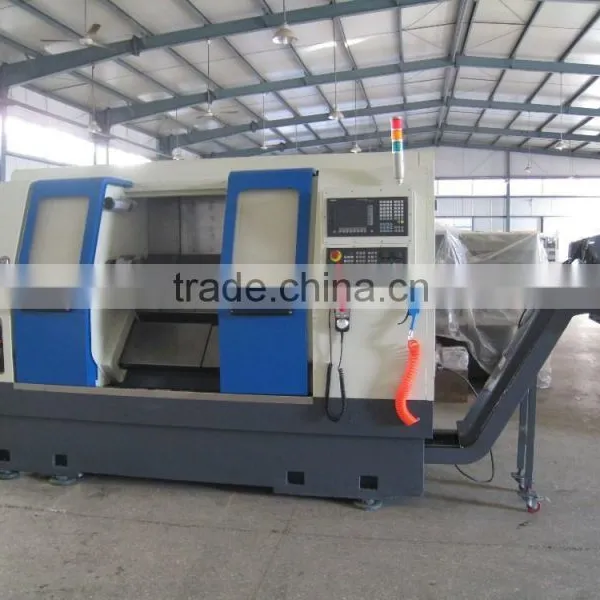

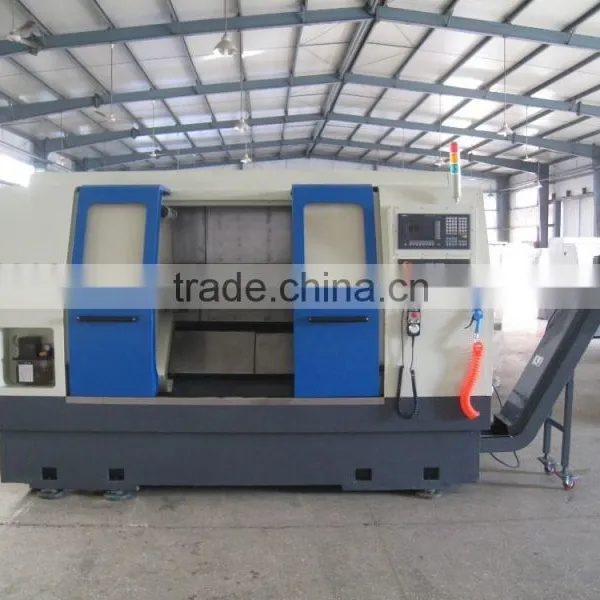

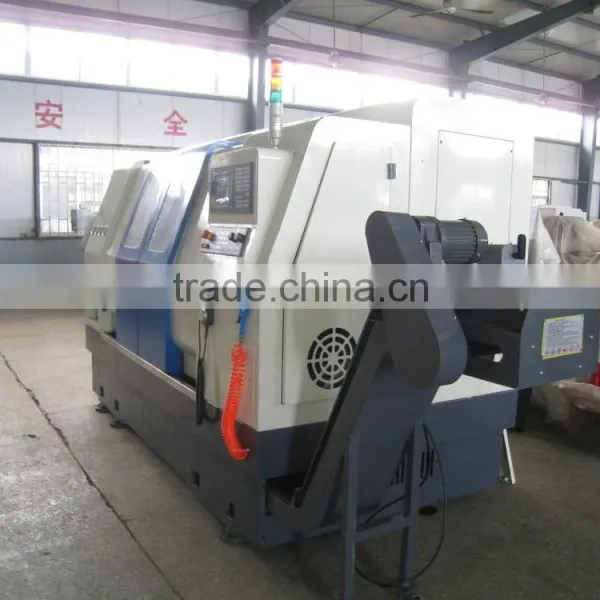

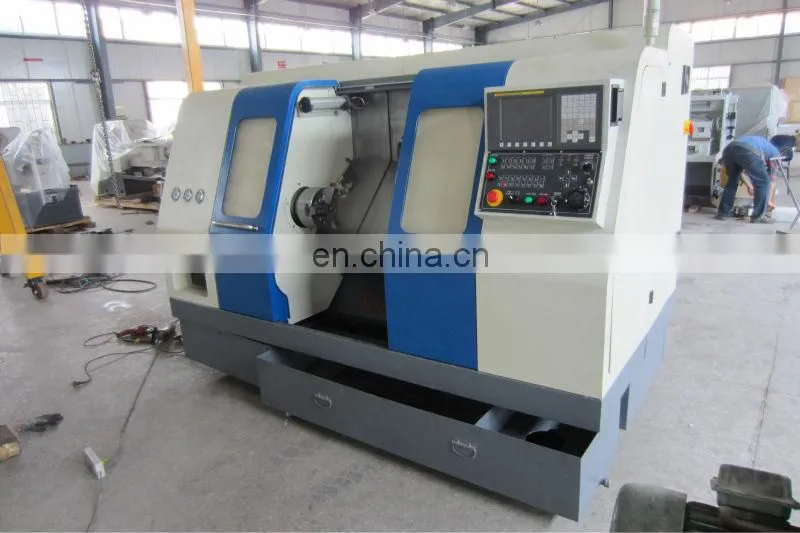

CNC450(B-1)slant bed CNC lathe

(3-axis harden guide, three gears change speed, harden cutting )

No.	Item	Unit	specifications
No.	Item	Unit	CNC450(B-1)
1	Max.rotation diameter on lathe’ body	mm	450
2	piece lengt	mm	750
3	Max.turning diameter	mm	400
4	Spindle nose type and code	mm	A8
5	Hydraulic chuck	mm	φ250 (10")
6	Front spindle bore taper		1:20
7	spindle bore	mm	60
8	Spindle form	Programmable three gears auto hydraulic speed change
9	Spindle frequency control speed range	rpm	20-3000
10	X/Z Rapid traverse	mm/min	20000
11	Main servo motor power	kW	11
12	X/Z-axis motor max.torque	N.m	10
13	Power specifications	V	380±10%. 50Hz±1Hz
14	Turret transfer time (one station)	s	1.6(horizontal type 12)
15	Turret transfer repeat positioning accuracy		0.005"
16	X-axis travel	mm	300
17	Z-axis travel	mm	1100/1350/1850
18	B-axis travel	mm	1100/1350/1850
19	Hydraulic turret form		Horizontal 12 hydraulic turret
20	Tailstock sleeve diameter/ travel	mm	70/100
21	Tailstock tapered bore taper	Morse	4#
22	Tailstock form (programming optional)		Electric drive
23	Tailstock sleeve form		Hydraulic drive
24	Knife handle size	mm	25*25
25	Net weight	kg	5000
26	Size(L×W×H)	mm	3000×1650×1900

Standrd configurations:

1.GSK980TDc controllers sytem

2.Programmable three gears auto hydraulic speed change

3.Hydraulic solid chuck

4.Horizontal 12 hydraulic turret

5.Three axis harden guide

6.Electric tailstock,hydraulic sleeve

7.Turning coolant system

8.Auto lubrication system

9.Whole protection door

Optional configurations:

1.fanuc/siemens controller system

2.Hydraulic hollow chuck

3.Electric and programming tailstock

4.Auto bar feeder

5.Auto chip cleaner

6.Auto catcher device

7.Auto protection door

8.Loading robot
