Hot sell!!! Newest Hobby mini lathe CNC slant bed machine/ easy operation bench lathe CNC250B-1
- 90 Set / Sets per Month
- Qingdao
- T/T Credit Card
- CNC 300D Slant bed cnc lathe / small automatic cnc comprehensive turning lathe
- slant bed type cnc lathe milling machine composite functions cnc tool CNC300D
- CNC300D Taiwan CNC Lathe Multitasking,Gang type
- CNC300D CNC Automatic Lathe Drilling Milling Turning Machine with Multi-functions
- Hotziontal CNC Slant Bed Used Metal Lathe Machine For Sale
- Advanced level Micro Lathe CNC6110 Teaching CNC lathes Best selling Mini machine
Product Details
Brand Name: | Haishu | Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas service center available |
Condition: | New |
Packaging Details
Hot sell!!! Newest Hobby mini lathe CNC slant bed machine/ easy operation bench lathe CNC250B-1 into Fumigation-free packing wooden case
Product Description
Hot sell!!! Newest Hobby mini lathe CNC slant bed machine/ easy operation bench lathe CNC250B-1
Technical paramete
CNC250(B-1)slant bed CNC lathe
(3-axis harden guide, three gears change speed, harden cutting )
No. |
Item |
Unit | specifications |
CNC250(B-1) | |||
1 | Max.rotation diameter on lathe’ body | mm | 250 |
2 | piece lengt | mm | 750 |
3 | Max.turning diameter | mm | 200 |
4 | Spindle nose type and code | mm | A8 |

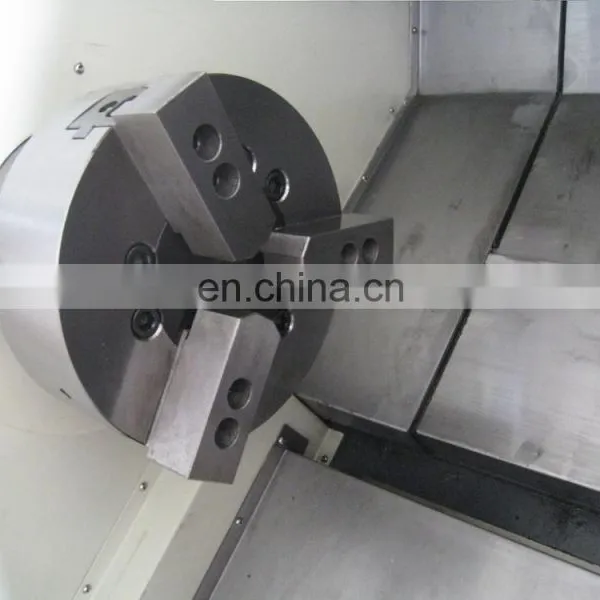

5 | Hydraulic chuck | mm | φ250 (10") |
6 | Front spindle bore taper |
| 1:20 |
7 | spindle bore | mm | 60 |
8 | Spindle form | Programmable three gears auto hydraulic speed change | |
9 | Spindle frequency control speed range | rpm | 20-3000 |
10 | X/Z Rapid traverse | mm/min | 20000 |
11 | Main motor power | kW | 7.5 |
12 | X/Z-axis motor max.torque | N.m | 10 |
13 | Power specifications | V | 380±10%. 50Hz±1Hz |
14 | Turret transfer time (one station) | s | 1.6(horizontal12) |
15 | Turret transfer repeat positioning accuracy |
| 0.005" |
16 | X-axis travel | mm | 300 |
17 | Z-axis travel | mm | 1100/1350/1850 |
18 | B-axis travel | mm | 1100/1350/1850 |
19 | Hydraulic turret form |
| Horizontal 8 hydraulic turret |

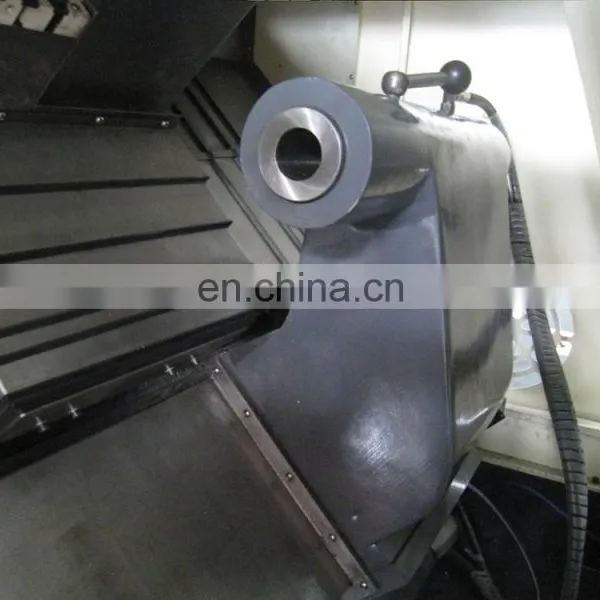

20 | Tailstock sleeve diameter/ travel | mm | 70/100 |
21 | Tailstock tapered bore taper | Morse | 4# |
22 | Tailstock form (programming optional) |
| Electric drive |
23 | Tailstock sleeve form |
| Hydraulic drive |
24 | Knife handle size | mm | 25×25 |
25 | Net weight | kg | 5000 |
26 | Size(L×W×H) | mm | 3000×1650×1900 |
Standard configurations:
1.GSK980TDc controllers sytem
2.Spindle 3 gears frequency control speed
3.Hydraulic solid chuck

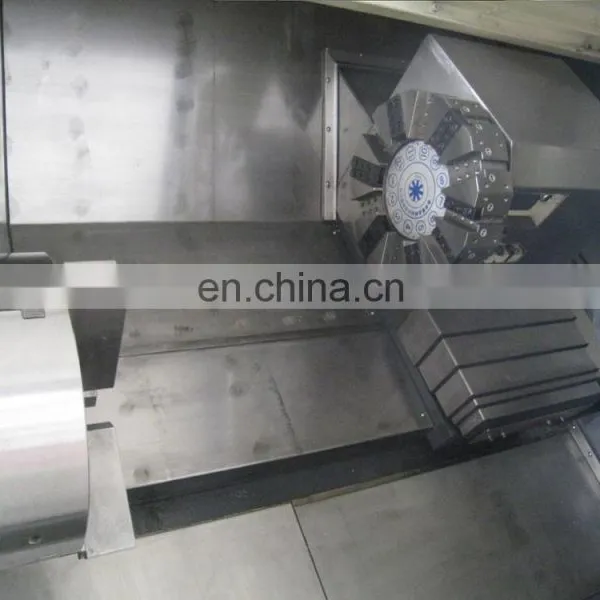

4.Horizontal 8 hydraulic turret
5.Three axis harden guide, suitable for hard turning the cnc lathe
6.Electric tailstock,hydraulic sleeve
7.Turning coolant system
8.Auto lubrication system
9.Whole protection door
Optional configurations:
1.fanuc/siemens controller system
2.Hydraulic hollow chuck
3.Electric and programming tailstock
4.Auto bar feeder
5.Auto chip cleaner
6.Auto catcher device
7.Auto protection door
8.Loading robot

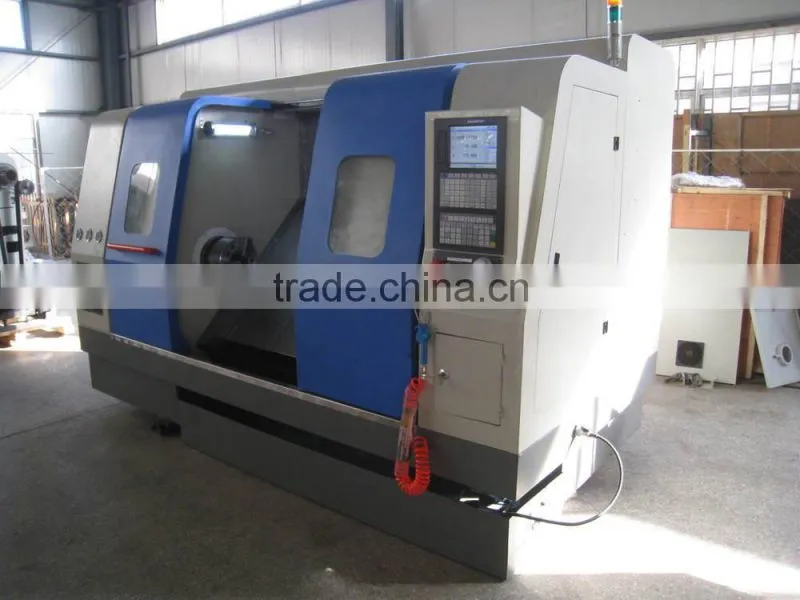

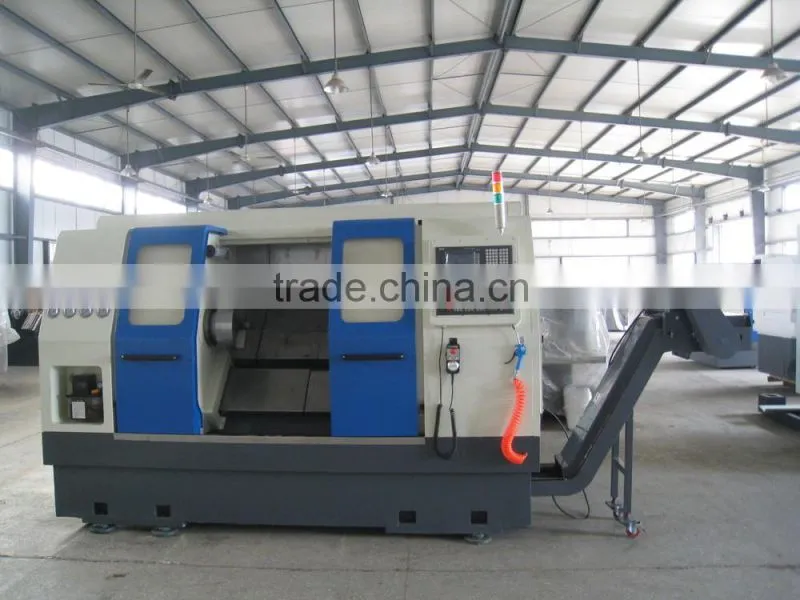

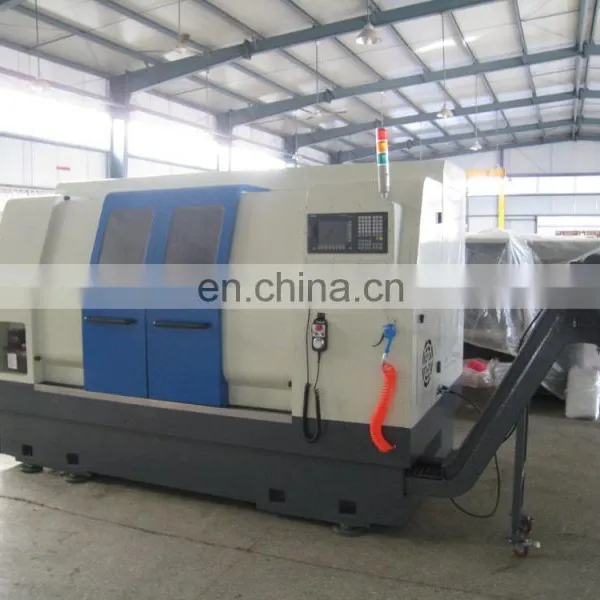

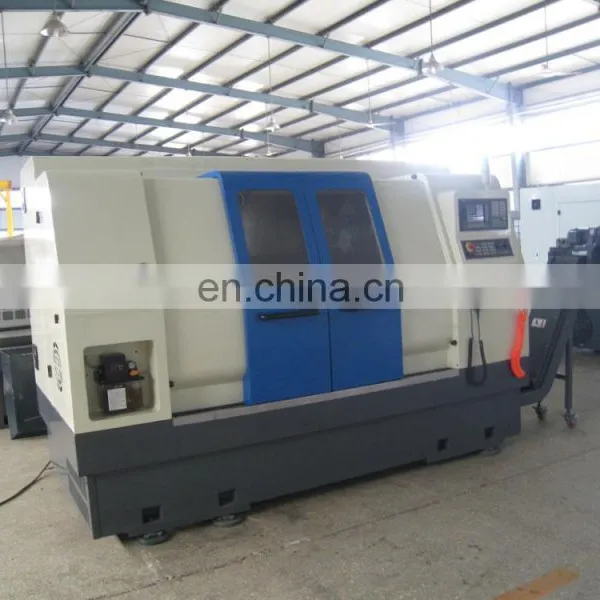

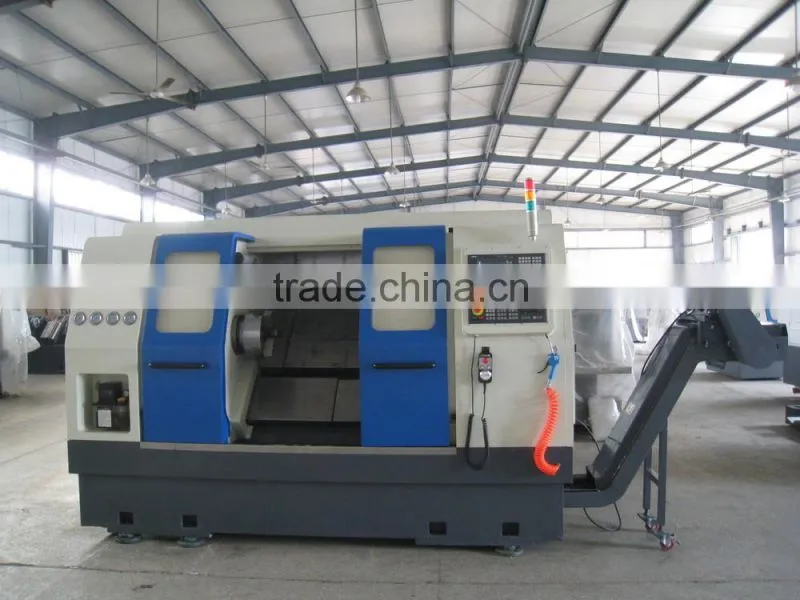

slant bed cnc lathe machine photos
machine package

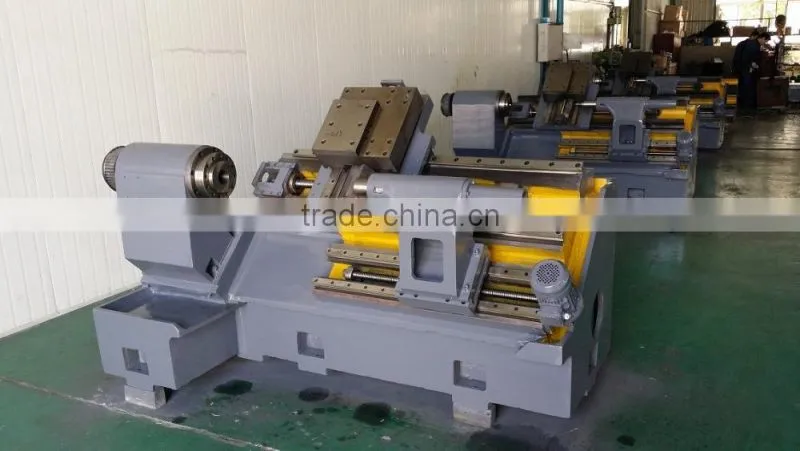

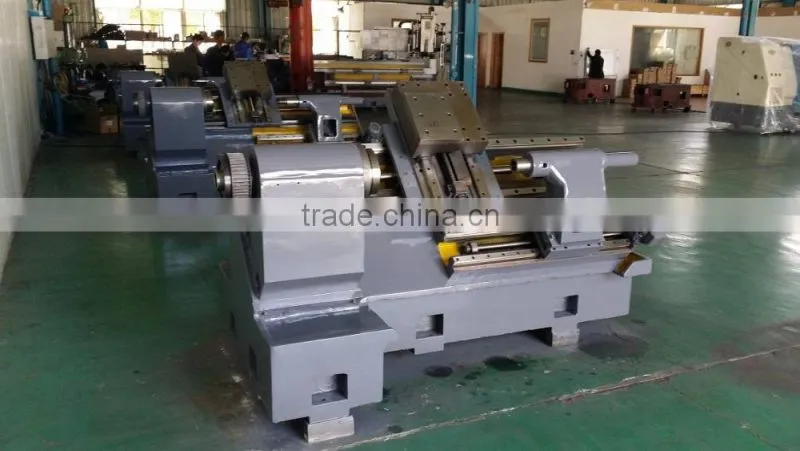

bare machine of inclined
CE of inclined cnc lathe
