Hotziontal CNC Slant Bed Used Metal Lathe Machine For Sale CNC350B-1
function:
c metal cutting lathe
2. slant bed cnc machine
3. cnc lathe with slant bed
Welcome to our factory for visiting.glad to cooperate with you in nearest future.
if you need more machines, pls send inquiry to us. thanks.
1.Main features
* 45 slanting bed is convenient to discharge waste metal pieces
* Main-motor conversion stepless speed regulaling
* Hydraulic motor pump system uses the structure, low noise, good seal;
* Complete protection cover can equiped
* The cast iron base will strengthen the machine rigidity
* The big spindle case will improve the spindle rigidit

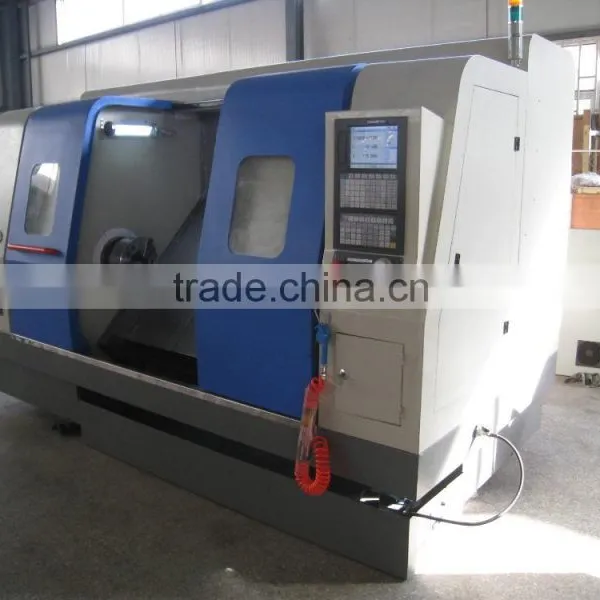

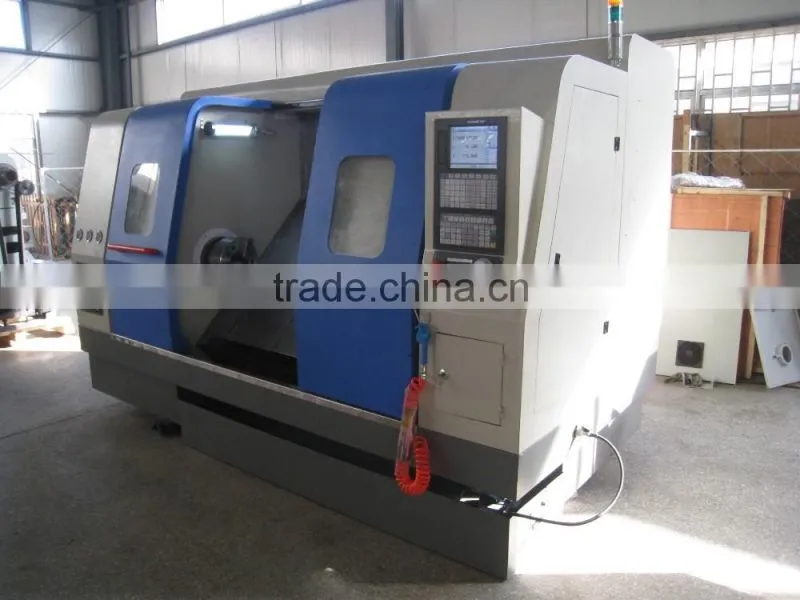

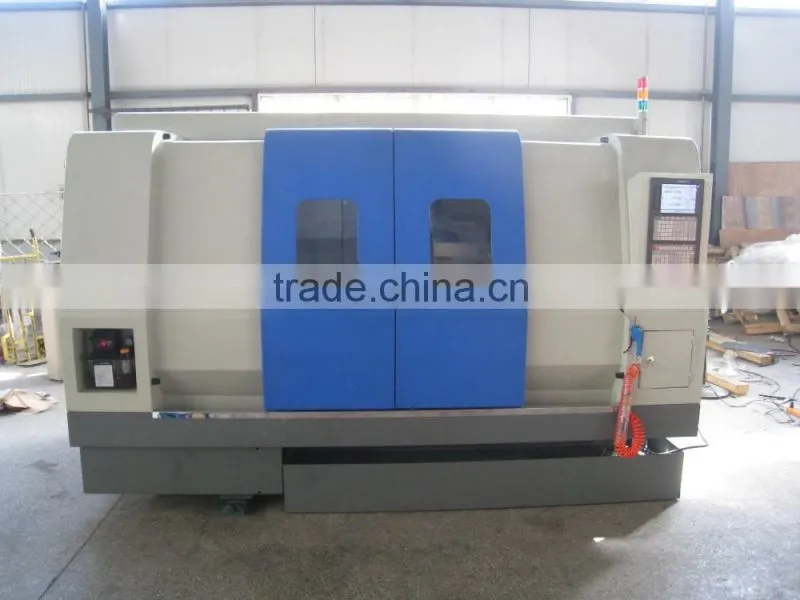

CNC350B-1 Slant bed CNC lathe
Specification
(3-axis harden guide, three gears change speed, harden cutting )
Max. rotation diameter on lathe’ body: 350mm
Max. workpiece length: 750/1000/1500mm
Max. turning diameter: 300mm
Spindle nose type and code: A8
Hydraulic chuck: Φ200mm
Front spindle bore taper: 1:20
Spindle bore: 60mm
Spindle speed range: 40-4000rpm
Power specification: 380V 50Hz 3 phases
X travel: 200mm
Z travel: 1100/1350/1850
Hydraulic turret form: horizontal 8-station turret
Knife handle size: 20*20mm
Net weight: 3500kg
Standard configurations:
- CNC system: SYNTEC, GSK980
- Three gears handle, harden cutting, harden guide
- Two hydraulic center solid chuck
- Horizontal 8 tool turret
- Turning cooling system
- Automatic lubrication system
- The whole protection system
- 380V 50Hz 3 phases
Select configuration: (add more price)
- CNC system: Fanuc, Siemens
- Increasing the Y-axis
- Two hydraulic hollow chuck
- Automatic feeder

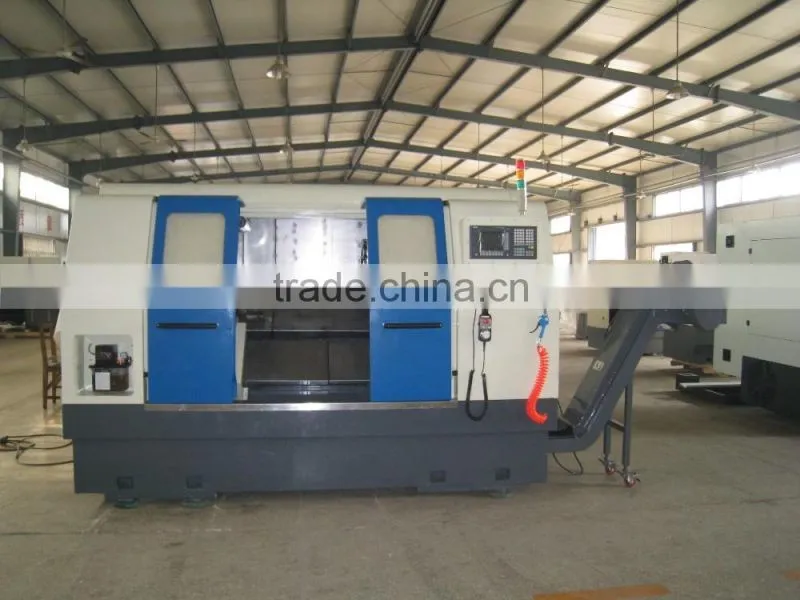

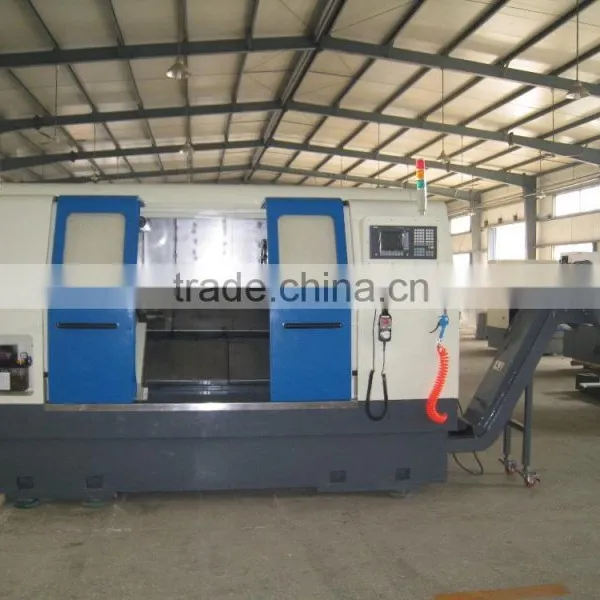

- Automatic chip conveyor
- Automatic pick pieces equipment
- Automatic protective door
- Loading and unloading robots
- Change voltage
