slant bed type cnc lathe milling machine composite functions cnc tool CNC300D
- 50 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- CNC300D Taiwan CNC Lathe Multitasking,Gang type
- CNC300D CNC Automatic Lathe Drilling Milling Turning Machine with Multi-functions
- Hotziontal CNC Slant Bed Used Metal Lathe Machine For Sale
- Advanced level Micro Lathe CNC6110 Teaching CNC lathes Best selling Mini machine
- newest hobby Micro Lathe CNC6110 Precision Mini machine Teaching CNC lathes
- newest hobby Mini machine CNC6110 Mini Lathe Cheap Micro Lathe
Product Details
Brand Name: | HaiShu | Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas service center available |
Condition: | New |
Packaging Details
hottest cnc lathe CNC300D slant bed CNC turning milling drilling machine into standard wooden case
Product Description

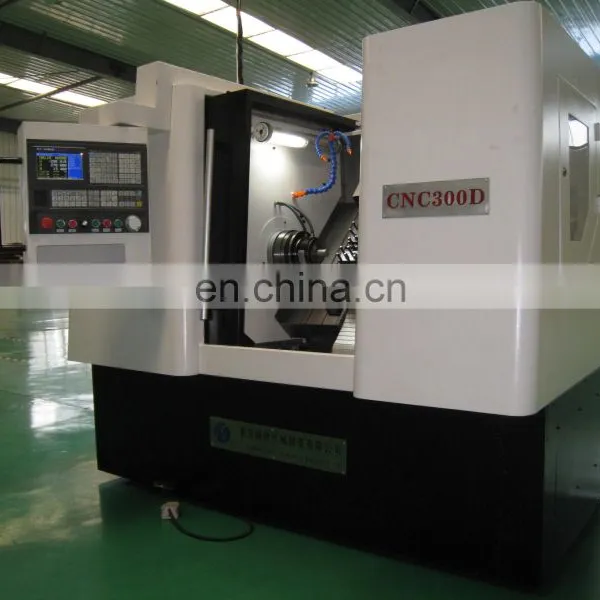

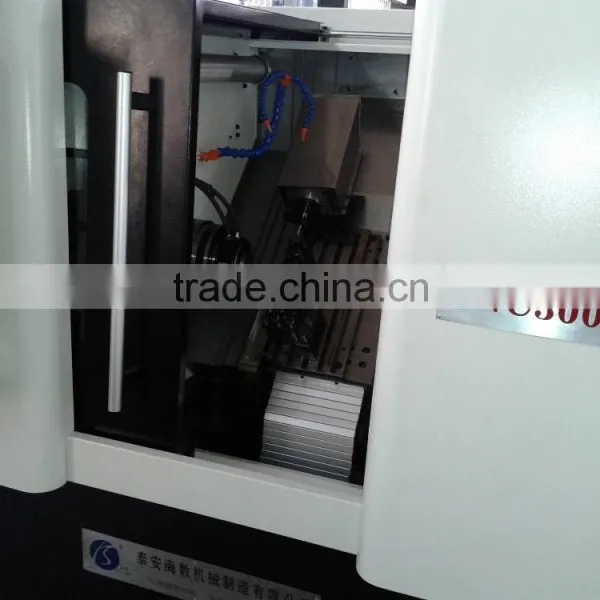

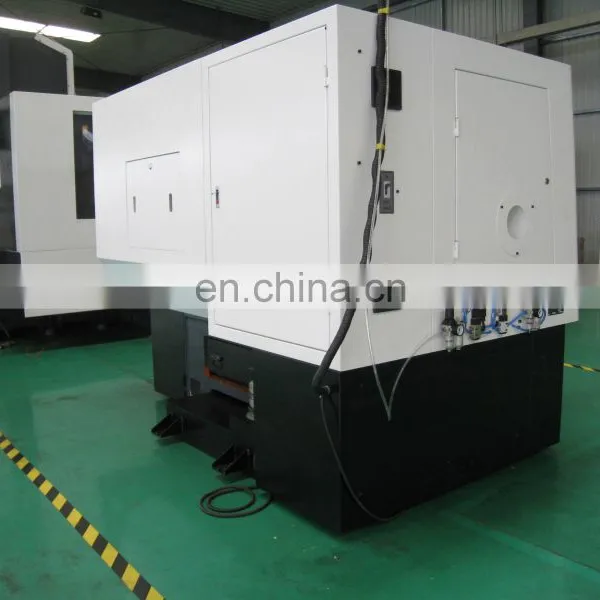

slant bed type cnc lathe milling machine composite functions cnc tool CNC300D
Characteristics
1,45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2.The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
3.The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
4.Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;
5,X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use:
This machine is suitable for high accuracy and conformance requirements for small and medium size disk and short axle parts.
Technical parameters
Item | parameters |
Maximum turning diameter over bed | Φ300 mm |
Maximum turning diameter over skateboard | Φ120 mm |
X-axis maximum stroke | 280 mm |
Z-axis maximum stroke | 320 mm |
Rail width | 325mm |
Spindle head model | ISOA2-5 / MT5 |
Spindle bore | Φ41mm |
Speed | 5000r/min |
Chuck | Φ160 mm(Optional collet) |

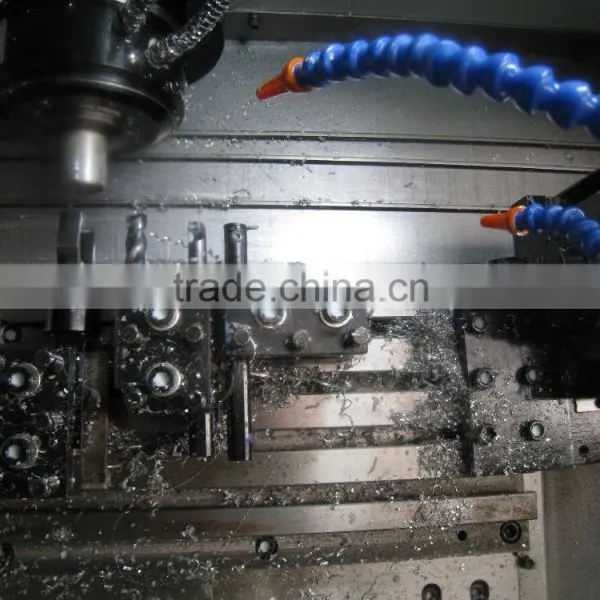

Turret type | row tool |
Tool shank specifications | 20×20 mm |
Knife block center high | 61 mm |
Main motor power | 3.7 kw(Servo) |
X-axis maximum torque | 5 Nm |
Z-axis maximum torque | 7.5 Nm |
Foot of the bed to spindle center height | 935 mm |
Power head clamping tool diameter | Φ2~13mm |
Power head speed range | 3000~12000rpm |
Power head power | 1.5kw |
The machine can clamp the tool number | 8 |
Oversize | 2030×1626×1730mm |
Net weight | 1500 kg |
standard export packing
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
