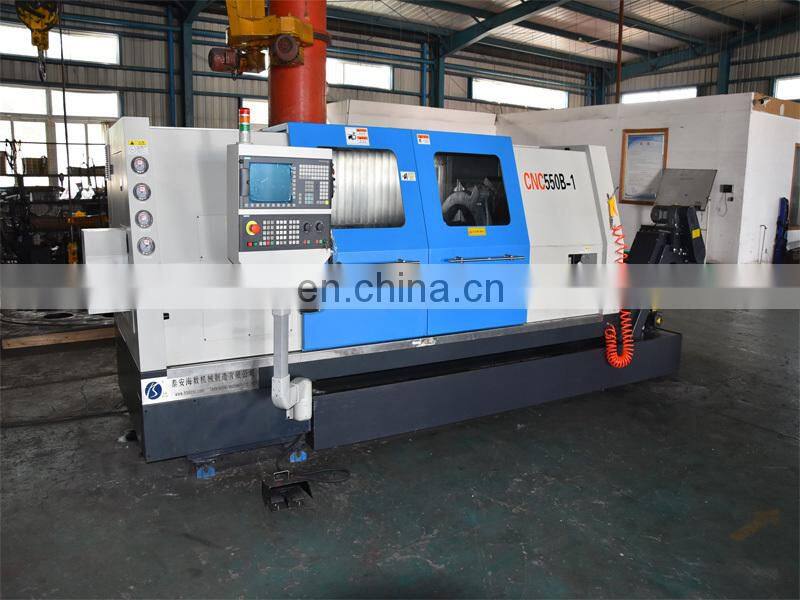

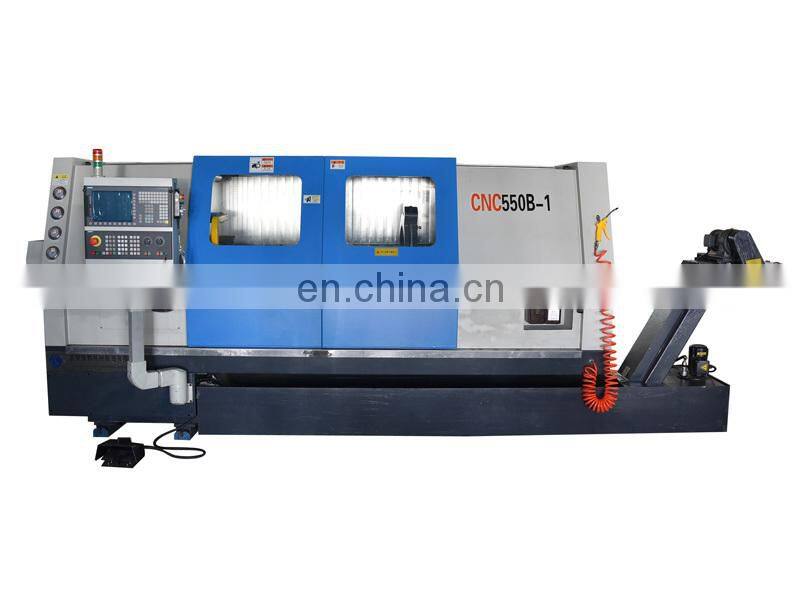

CNC550B-1*1500 special CNC lathe for sale special cnc lathe specification
Main specifications:
Item |
Unit |
Technical parameters |
|
|
CNC550B-1 |
Max.rotation diameter on lathe’ body |
mm |
550 |
Max. length of processing |
mm |
1500 |
Max. diameter of processing |
|
500 |
Spindle taper type |
|
A11 |
Hydraulic chuck |
mm |
ø300 (12") |
Spindle front bore taper |
|
1:20 |
Spindle through hole |
mm |
70 |
Spindle speed change form |
|
Three-level gear box, hydraulic automatic conversion, frequency regulation speed. |
Spindle speed range |
Rpm |
Factory settings: 20-2000, >2000 (Optional) |
X/Z fast moving speed |
mm /min |
10000 |
Spindle motor power |
kW |
30 |
X / Z axis servo motor maximum torque |
N.m |
27 |
Power supply |
V |
380±10%; 50 Hz ± 1 Hz |
Turret conversion time (1 station) |
sec |
1.6 (horizontal 8 station) |
Turret repeat positioning accuracy |
mm |
0.005' |
X-axis travel |
mm |
350 |
Z-axis travel |
mm |
1850 |
Turret type |
|
Horizontal 8 station |
Tailstock sleeve diameter / stroke |
mm |
80/100 |
Tail hole taper |
Morse |
5 |
Tailstock assembly moving form |
|
Manual and electric |
Tailstock sleeve moving form |
|
Hydraulic |
Tool handle size |
mm |
25*25 |
Machine size |
mm |
5100*1750*1900 |
Package size |
mm |
5230*1910*2100 |
Machine net weight |
kg |
7300 |
Machine gross weight |
kg |
8000 |
2.Main configuration

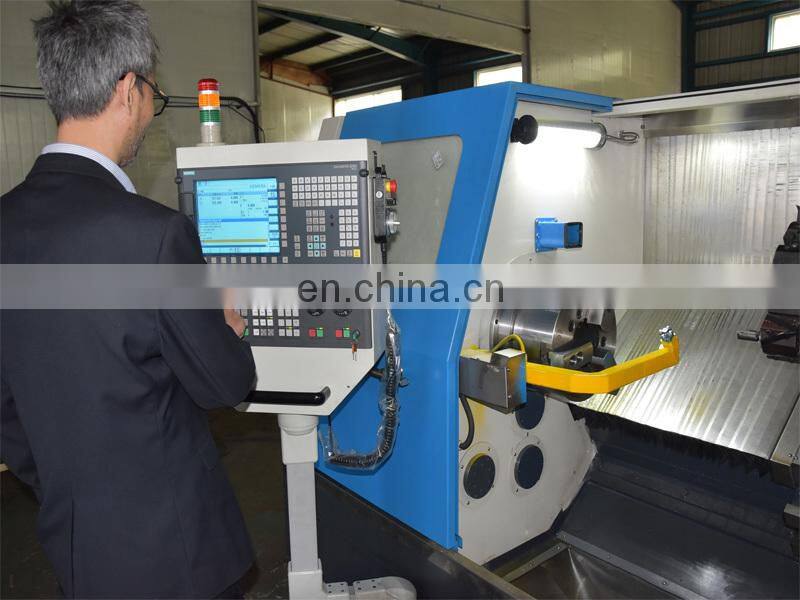

2.1 Siemens 828D CNC system.
2.2 Taiwan 12" hydraulic hollow chuck
2.3 Taiwan horizontal 8-station turret
2.4 Renishaw tool auto-checking instrument
2.5 NSK Bearings,
2.6 Third axis gear box, automatic hydraulic shift, variable frequency stepless speed regulation
2.7 Manual tailstock, hydraulic sleeve
2.8 Manual center frame, the maximum clamping diameter 385 mm
2.9 Taiwan precision ball screw
2.10 X / Z rail hard track
2.11 Automatic lubrication system
2.12 Cooling system
2.13 Fully enclosed protection
2.14 Three-color alarm lights
2.15 Automatic chip conveyor
CNC550B-1*1500 special CNC lathe for sale special cnc lathe specification with standard export package
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery co.,Ltd. is specialized in design production and sales of CNC machine tools. The leading product is "HAISHU" brand CNC lathe,CNC Turning center, Machining center, etc..
Our company is equipped with the ministry of domestic trade and foreign trade, with independent import and export right. Product best-selling more than 20 domestic provinces and municipalities and autonomous regions, and exported to the US, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Lebanon, Czechoslovakia, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Argentina, Russia, Belarus, Lithuania, Serbia, Tunisia, Bahrain, South Africa, South Korea, India, Indonesia, Malaysia, Thailand, the Philippines, Egypt, Iran, Bangladesh, Iraq, Yemen, Mongolia,etc. more than 45 countries.
We have years of CNC machine tool development and manufacturing experience, in order to "science and technology innovation, good faith service" business philosophy in close cooperation with old and new customers, grow together, common development.
