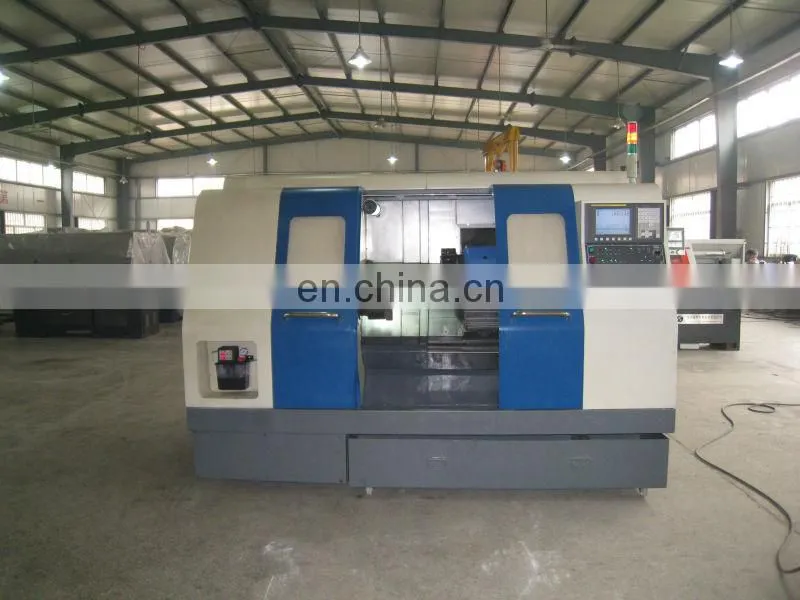

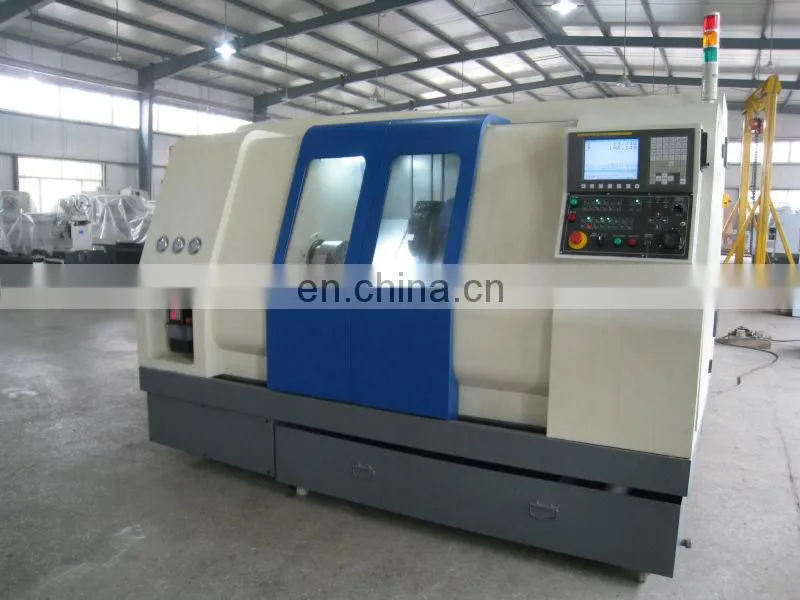

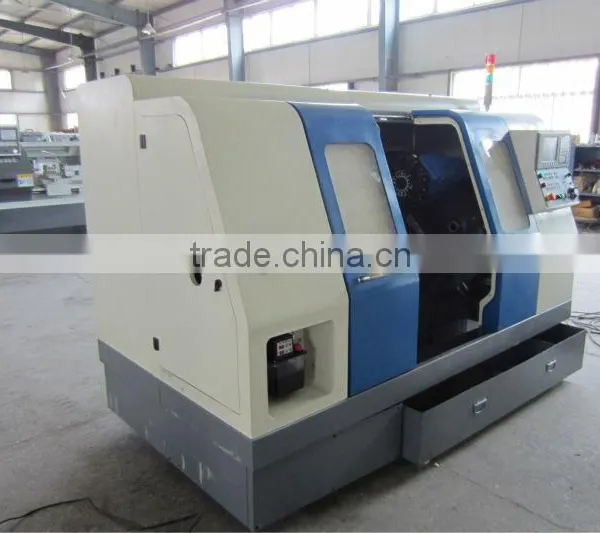

high precision horizontal cnc slant bed lathe cnc lathe milling machine
Technical parameters
Technical specification |
CNC 450B-1 |
Max.swing diameter on bed |
400mm, |
Hydraulic third gear spindle speed range |
10-360;80-500;480-1800rpm. |
Max. turning length |
550mm |
Main motor power(Frequency conversion) |
7.5KW |
Max. turning diameter |
350 mm |
X/ZFeed motor power |
6/10N.m |
Spindle types of end |
A8
|
Maximum workpiece swing diameter skateboard |
Φ280mm |
Cutting speed m/min |
0-5000m/min |
Center - from the ground |
1200mm |
Number of tools |
8 |
X/Z Rapid traverse |
30000mm/min |
Hydraulic chuck |
φ200Xφ50mm |
Carrier transfer time (one station) |
0.4(Horizontal8)s
|
Front spindle bore taper |
MT6 |
The turret repeat positioning accuracy |
0.008mm |
Spindle bore |
φ65mm |
X:Stroke |
300mm |
Two top distance |
500mm
|
Z:Stroke |
850mm |
Hydraulic tailstock quill diameter / stroke |
φ65/120mm
|
Machine weight |
4000Kg |
Tailstock taper taper |
MT4 |
Workpiece accuracy |
IT6-IT7 |
X/Z Positioning accuracy |
0.01/0.008mm |
Surface roughness |
Ra1.6μm |
X/Z Repeat positioning accuracy |
0.005/0.008mm |
Turret form Horizontal |
8Station(Servo) |
Total installed capacity |
10KW |
Arbor size |
25×25 |
Rail width |
380mm |
Bed slope |
45° |
Standard configuration:
1. Control system: GSK

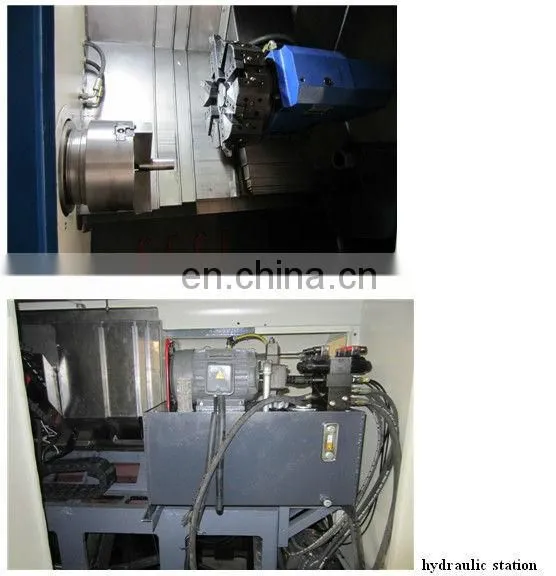

2. Solid hydraulic chuck
3. Horizontal 8-station servo turret
4. Automatic lubrication system
5. Coolant system
6. Fully enclosed protection system
7.Hydraulic tailstock
8. Spindle hydraulic third gear, Frequency stepless speed regulation
Features:
1)This model CNC lathe is an economical, practical machine tools,
2)mature product structure, stable and reliable performance and quality,
3) 45 degree tilt bed hard rail;
4)famous brand precision ball screw.
Every year, exported more than 500 Billion,home sales more than 300billion.
quality control ,Research and Development
l State of the art manufacturing unit
l Qualified and experienced professional team
l Strong R&D
l Quality products
l Timely Execution of projects
l Competitive pricing
l Customer focused approach
At precent, unitl now,
exported countries :America, Italy,Australia, Russia ,Germany, Greece ,Lithuania, Lebanon,Turkey ,Belarus, India, Korea, Bulgaria, Denmark,Peru, Mexico, New Zealand, Czech Republic, Indonesia... Etc.
certificaton
Our machine through the EU CE certification
