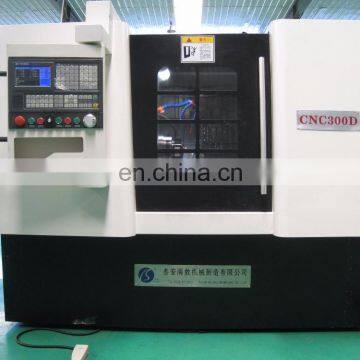

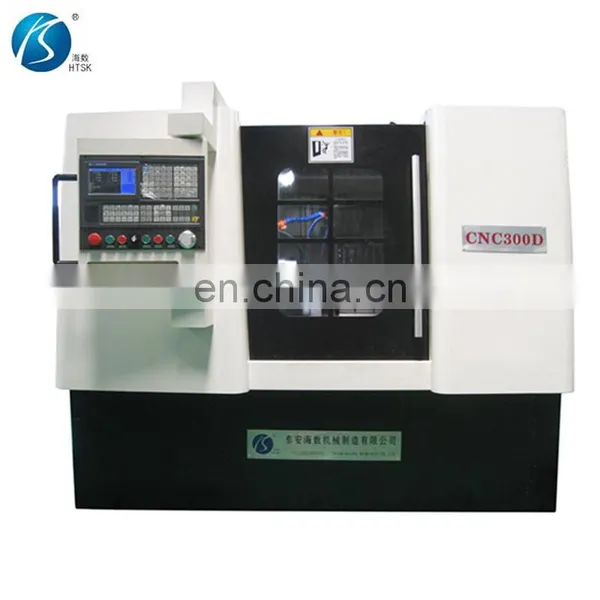

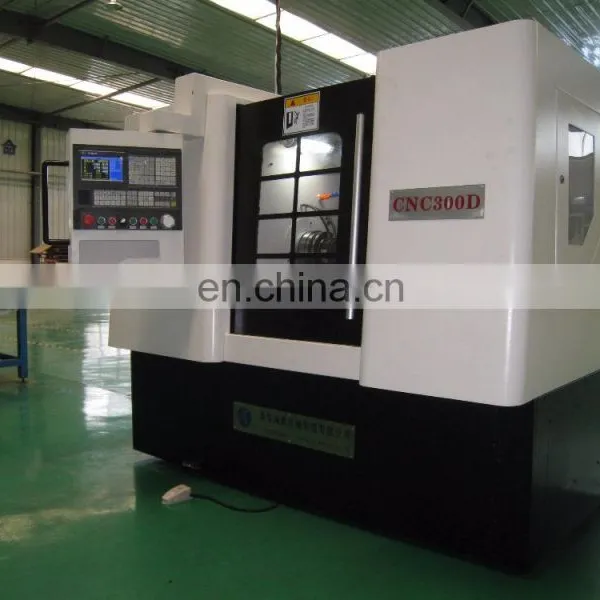

High precision and high speed CNC300D slant bed CNC turning milling/drilling machine from Haishu
Characteristics
1,45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2.The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
3.The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
4.Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;
5,X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use:

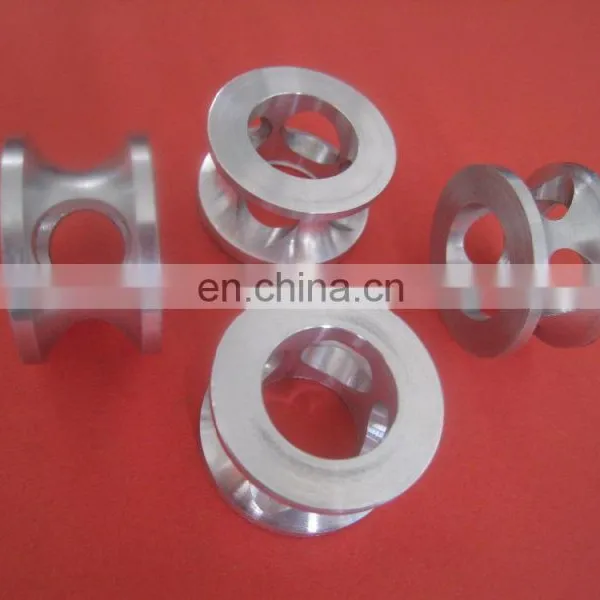

This machine is suitable for high accuracy and conformance requirements for small and medium size disk and short axle parts.
Technical parameters
Item |
parameters |
Maximum turning diameter over bed |
Φ300 mm |
Maximum turning diameter over skateboard |
Φ120 mm |
X-axis maximum stroke |
280 mm |
Z-axis maximum stroke |
320 mm |
Rail width |
325mm |
Spindle head model |
ISOA2-5 / MT5 |
Spindle bore |
Φ41mm |
Speed |
5000r/min |
Chuck |
Φ160 mm(Optional collet) |
Turret type |
row tool |
Tool shank specifications |
20×20 mm |
Knife block center high |
61 mm |
Main motor power |
3.7 kw(Servo) |
X-axis maximum torque |
5 Nm |
Z-axis maximum torque |
7.5 Nm |
Foot of the bed to spindle center height |
935 mm |
|
Power head clamping tool diameter |
Φ2~13mm |
Power head speed range |
3000~12000rpm |
Power head power |
1.5kw |
The machine can clamp the tool number |
8 |
Oversize |
2030×1626×1730mm |
Net weight |
1500 kg |
standard export packing
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
