High Performance Price Ratio CNC300D Slant Bed CNC Machine on Promotion
- QINGDAO
- T/T Credit Card
You May Like
-
CNC450A CNC Turning Milling Drilling Machine Tools
-
CNC550B-1 Horizontal Slant Bed Cnc Lathe Machine Siemens 550series With Lineal Guide
-
Popular CNC Turning Centers CNC550B-1 Automatic CNC Lathe Machine
-
CNC550B-1 Big Cnc Lathe Machine China Special Cnc Lathe Machine From Haishu
-
Special CNC Lathe Function Technology CNC Lathe Machine for Sale CNC550B-1
-
CNC550B-1*1500 Special CNC Lathe for Sale Special Cnc Lathe Specification
Product Details
| Brand Name | HaiShu | Place of Origin | Shandong, China | |
| Model Number | CNC300D | After-sales Service Provided | Overseas service center available | |
| Condition | New |
Wooden case or as per clients' requirements.
Product Description

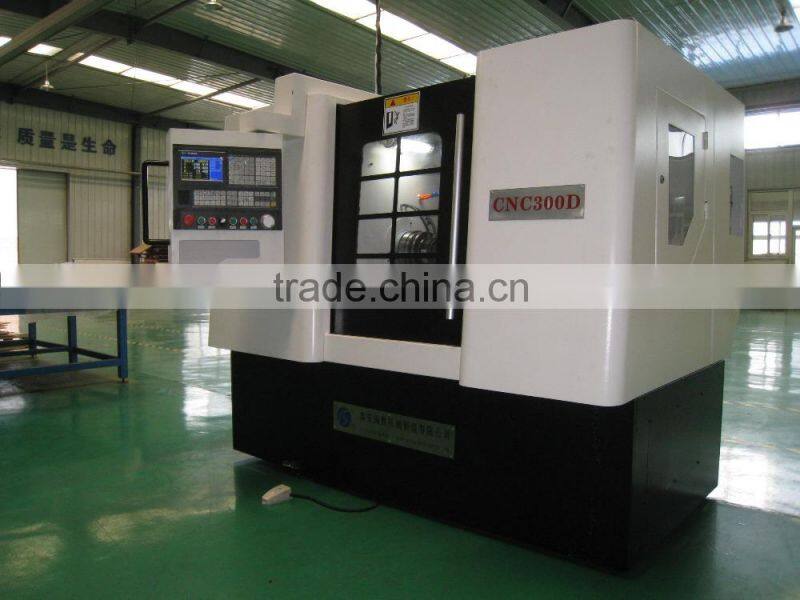

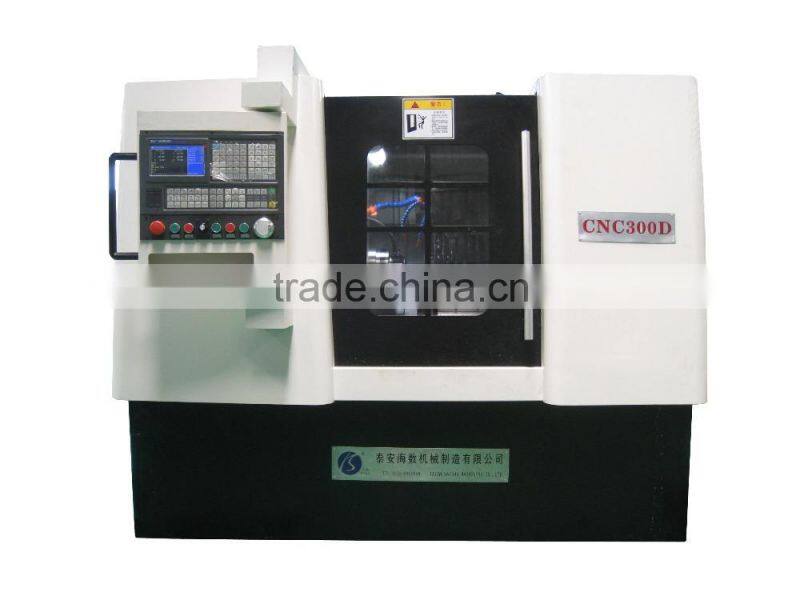

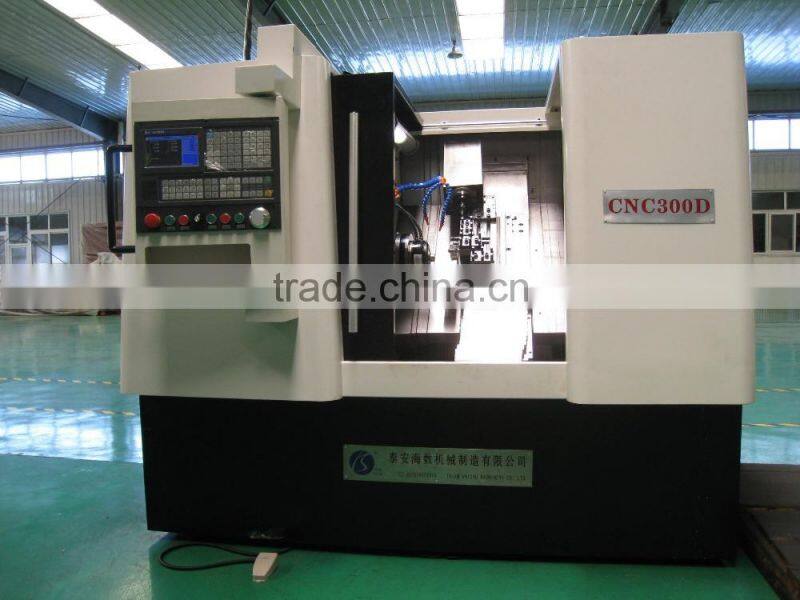

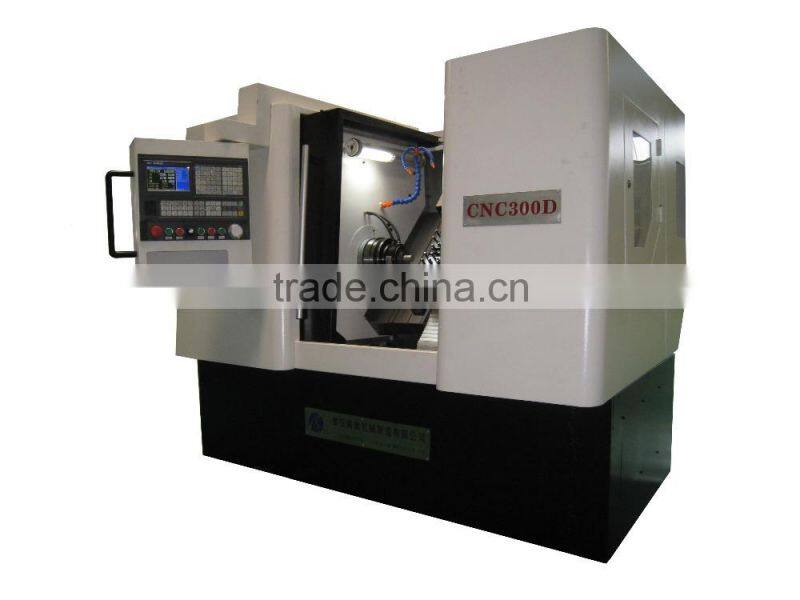

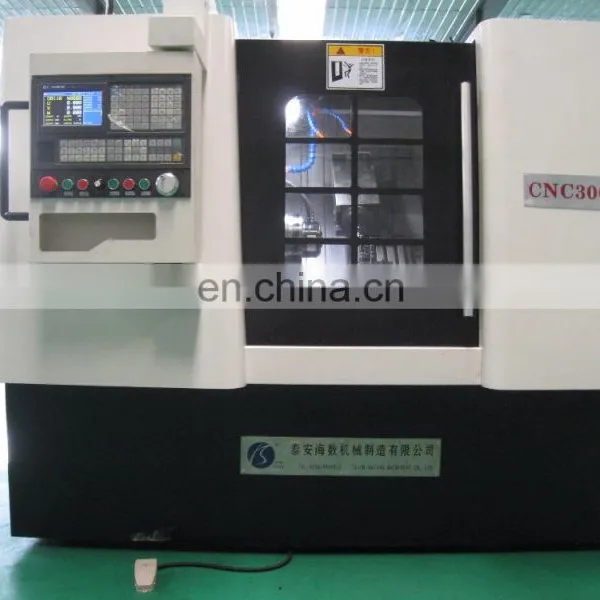

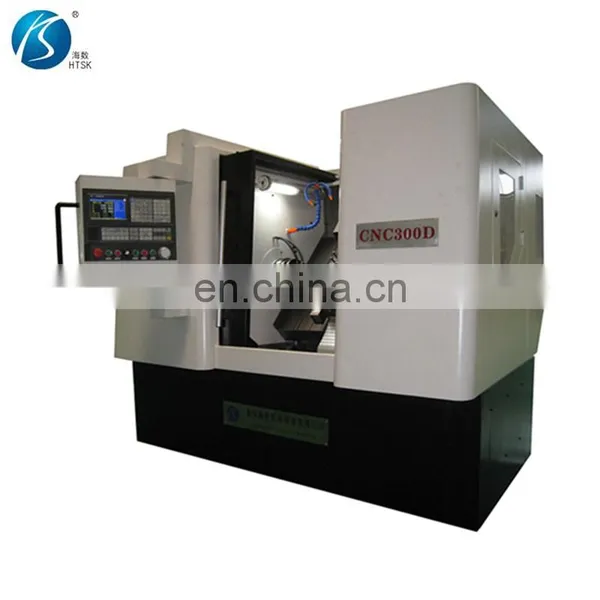

High precision and high speed CNC300D slant bed CNC turning milling/drilling machine from Haishu
Characteristics
1,45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2.The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
3.The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
4.Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;

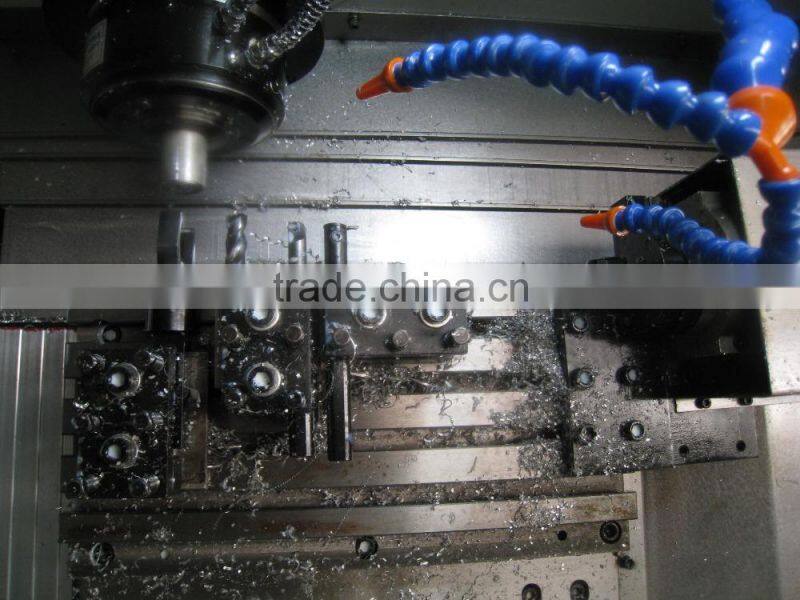

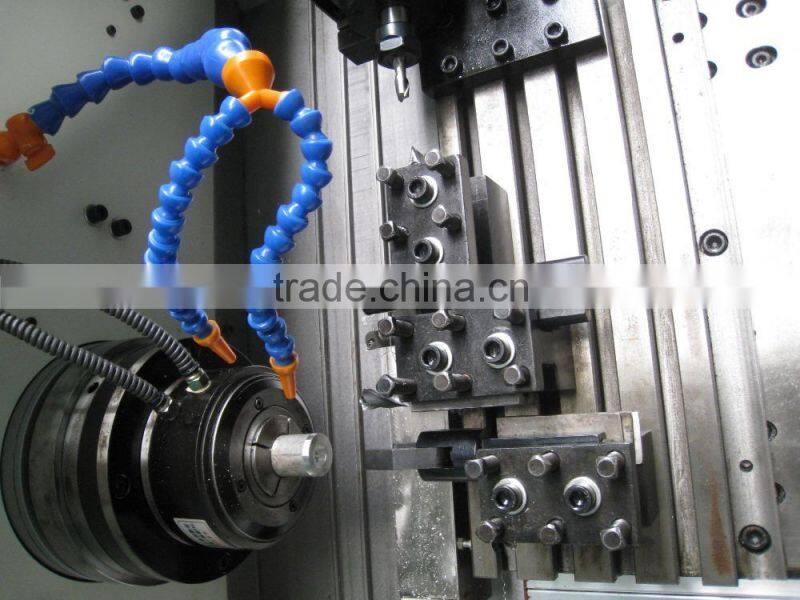

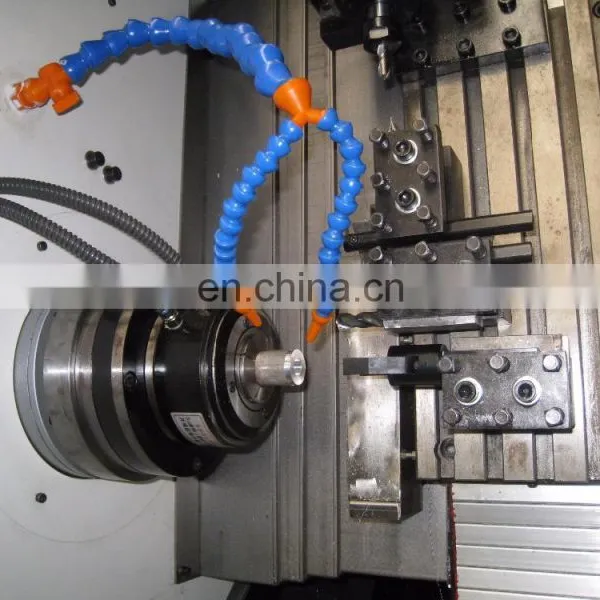

5,X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use:

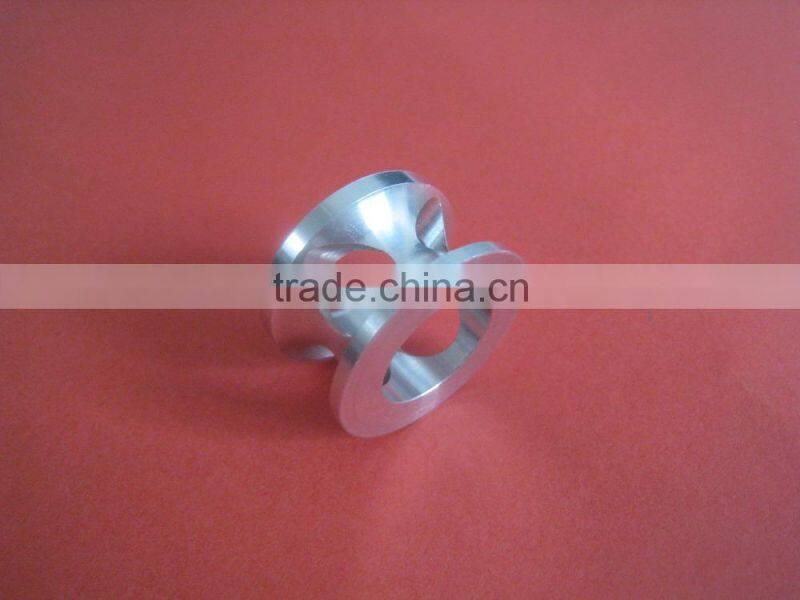

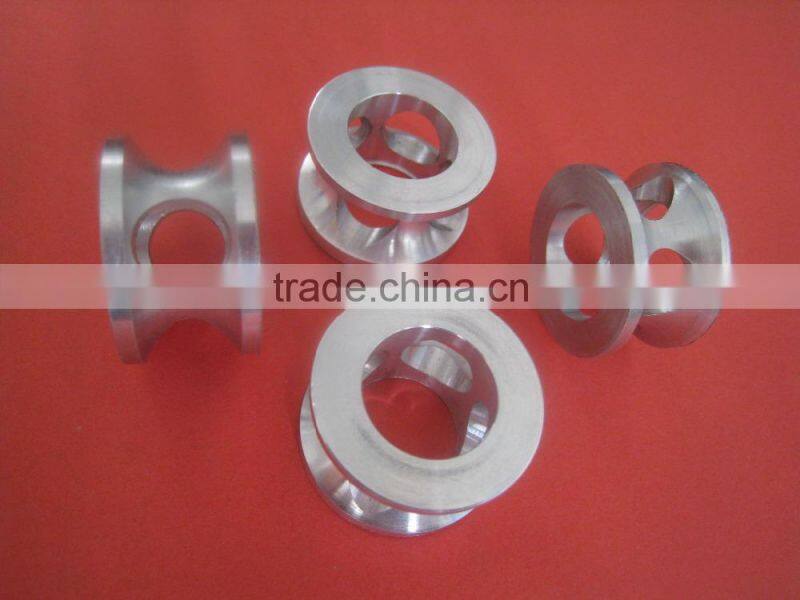

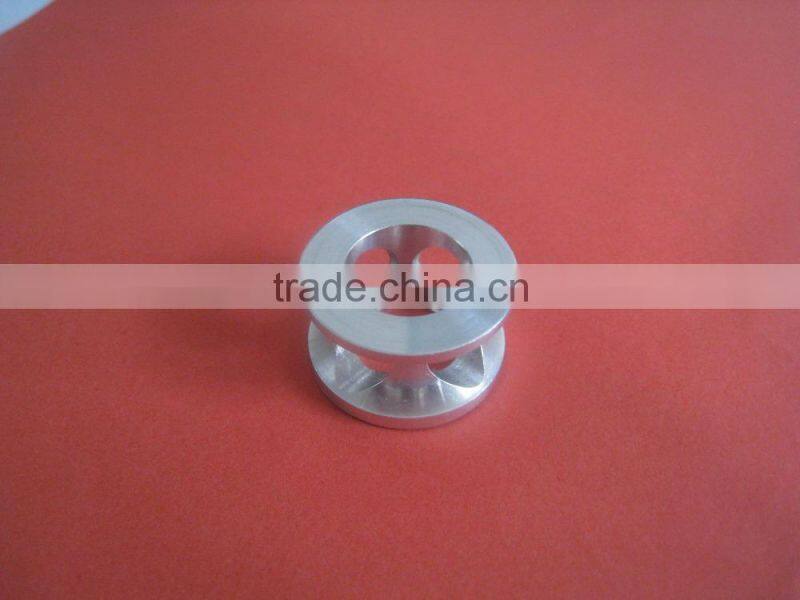

This machine is suitable for high accuracy and conformance requirements for small and medium size disk and short axle parts.
Technical parameters
Item | parameters |
Maximum turning diameter over bed | Φ300 mm |
Maximum turning diameter over skateboard | Φ120 mm |
X-axis maximum stroke | 280 mm |
Z-axis maximum stroke | 320 mm |
Rail width | 325mm |
Spindle head model | ISOA2-5 / MT5 |
Spindle bore | Φ41mm |
Speed | 5000r/min |
Chuck | Φ160 mm(Optional collet) |
Turret type | row tool |
Tool shank specifications | 20×20 mm |
Knife block center high | 61 mm |
Main motor power | 3.7 kw(Servo) |
X-axis maximum torque | 5 Nm |
Z-axis maximum torque | 7.5 Nm |
Foot of the bed to spindle center height | 935 mm |
Power head clamping tool diameter | Φ2~13mm |
Power head speed range | 3000~12000rpm |
Power head power | 1.5kw |
The machine can clamp the tool number | 8 |
Oversize | 2030×1626×1730mm |
Net weight | 1500 kg |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
standard exported wooden case
