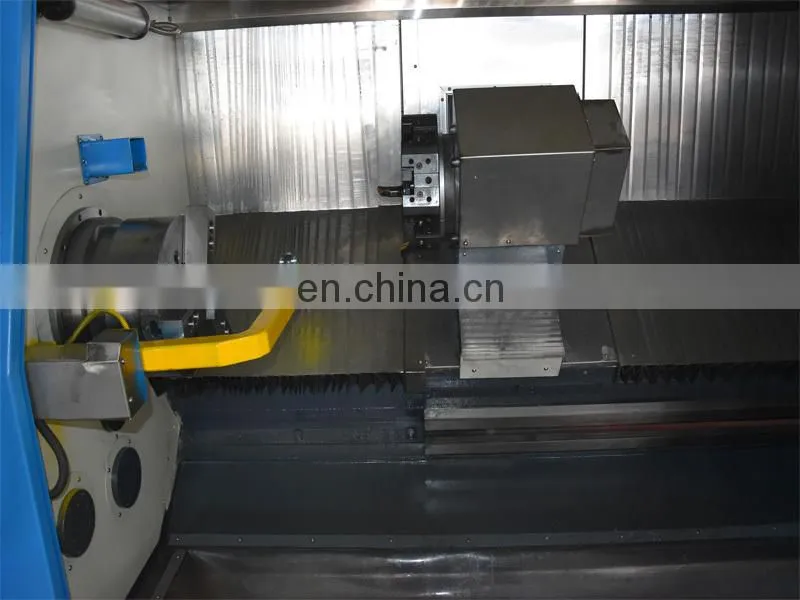

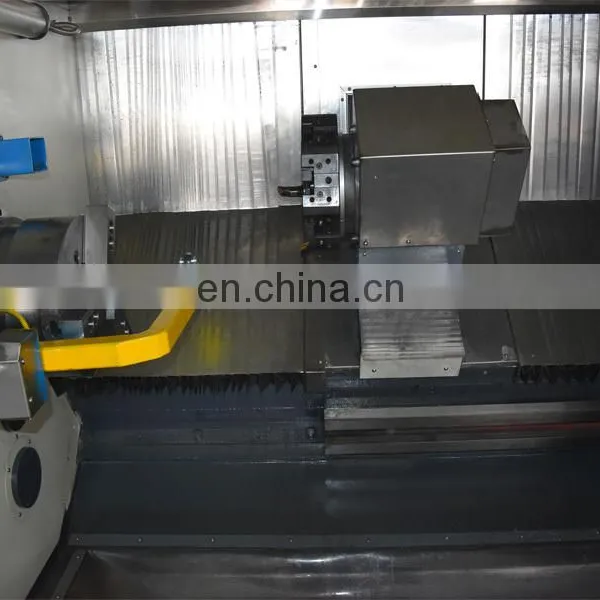

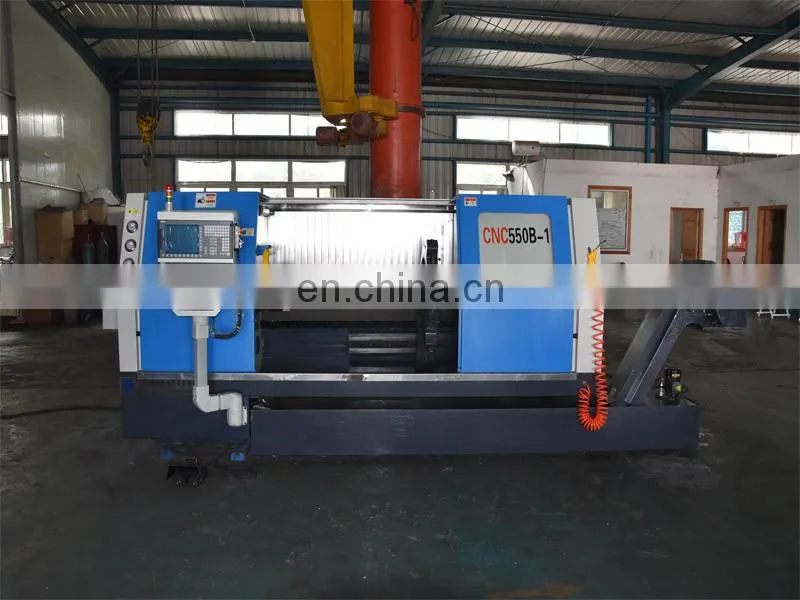

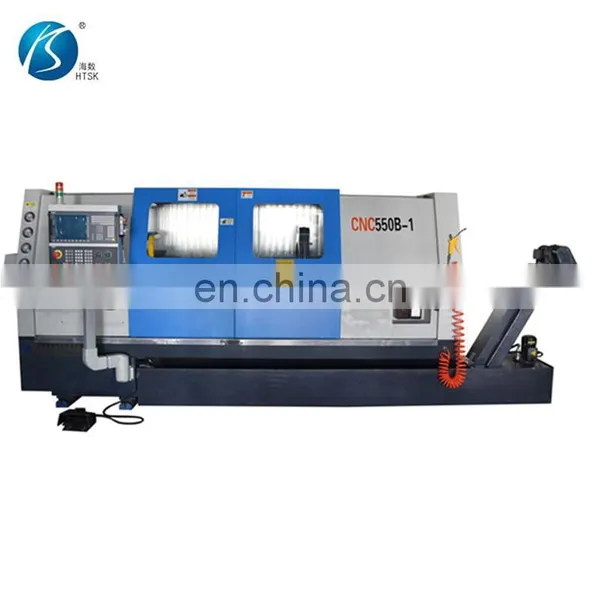

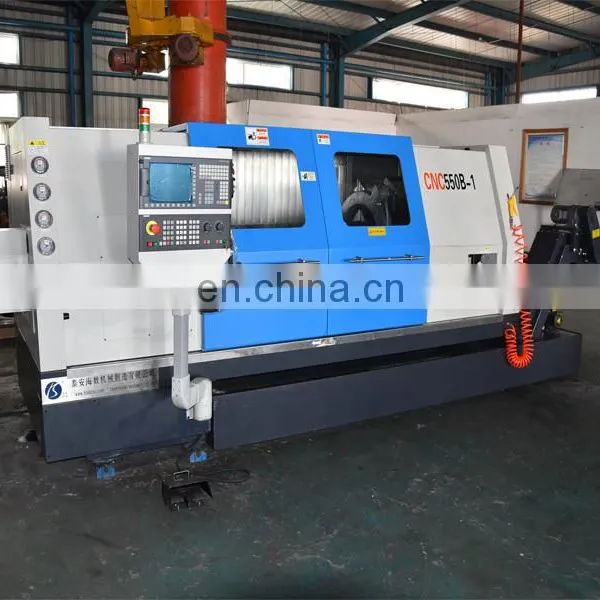

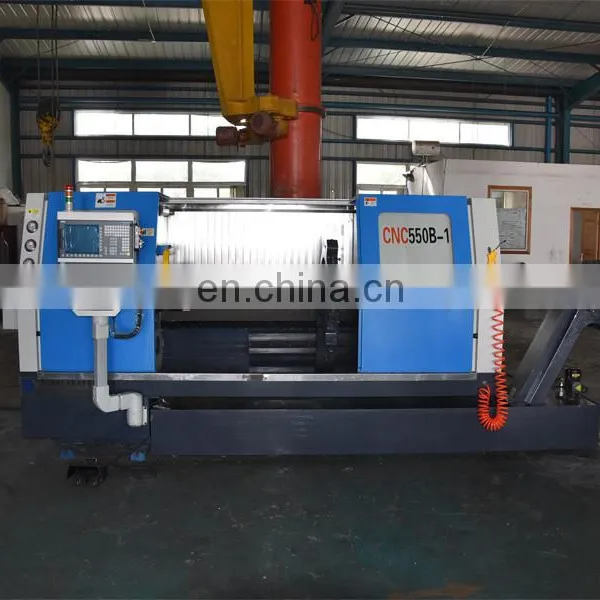

Slant bed cnc lathe CNC550B-1 special large model
Technical Parameters
NO |
Item |
Unit |
Technical parameters |
CNC550B-1 | |||
1 |
Max.rotation diameter on lathe’ body |
mm |
550 |
2 |
Max. length of processing |
mm |
1500 |
3 |
Max. diameter of processing |
|
500 |
4 |
Spindle taper type |
|
A11 |
5 |
Hydraulic chuck |
mm |
ø300 (12") |
6 |
Spindle front bore taper |
|
1:20 |
7 |
Spindle through hole |
mm |
70 |
8 |
Spindle speed change form |
|
Three-level gear box, hydraulic automatic conversion, frequency regulation speed. |
9 |
Spindle speed range |
Rpm |
Factory settings: 20-2000, >2000 (Optional) |
10 |
X/Z fast moving speed |
mm /min |
10000 |
11 |
Spindle motor power |
kW |
30 |
12 |
X / Z axis servo motor maximum torque |
N.m |
27 |
13 |
Power supply |
V |
380±10%; 50 Hz ± 1 Hz |
14 |
Turret conversion time (1 station) |
sec |
1.6 (horizontal 8 station) |
15 |
Turret repeat positioning accuracy |
mm |
0.005' |
16 |
X-axis travel |
mm |
350 |
17 |
Z-axis travel |
mm |
1850 |
19 |
Turret type |
|
Horizontal 8 station |
20 |
Tailstock sleeve diameter / stroke |
mm |
80/100 |
21 |
Tail hole taper |
Morse |
5 |
22 |
Tailstock assembly moving form |
|
Manual and electric |
23 |
Tailstock sleeve moving form |
|
Hydraulic |
24 |
Tool handle size |
mm |
25*25 |
25 |
Machine size |
mm |
5100*1750*1900 |
26 |
Package size |
mm |
5230*1910*2100 |
27 |
Machine net weight |
kg |
7300 |
28 |
Machine gross weight |
kg |
8000 |
Main configuration

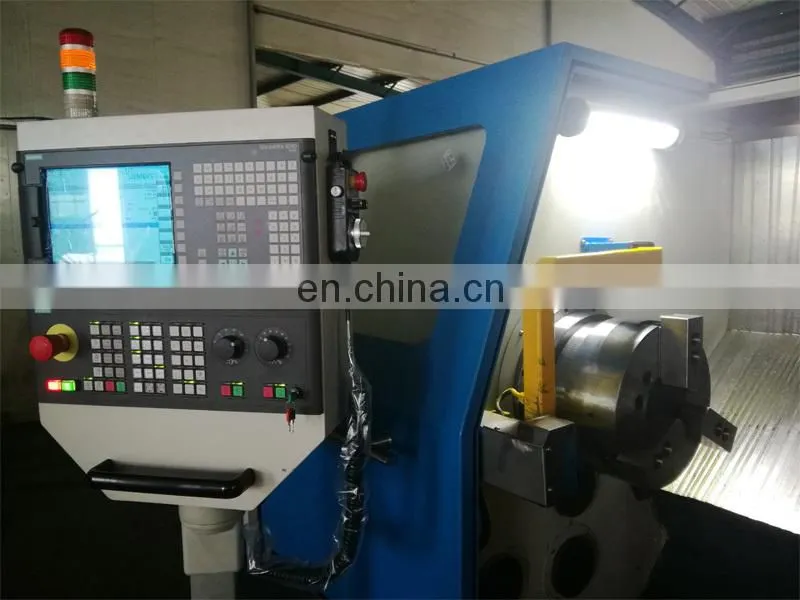

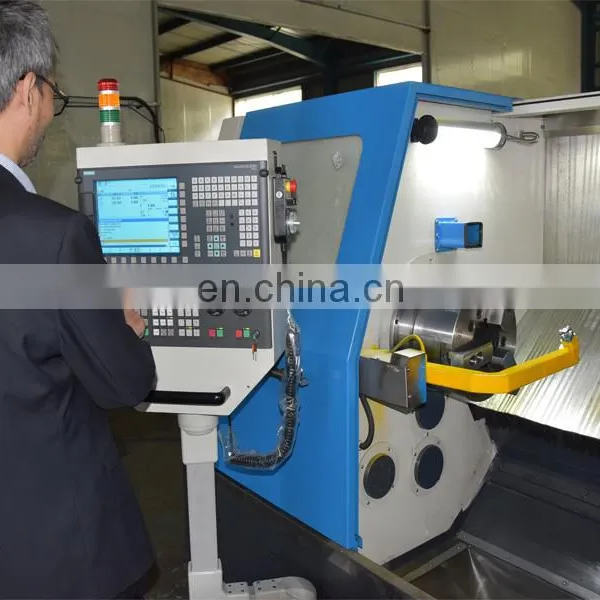

2.1 Siemens 828D CNC system.

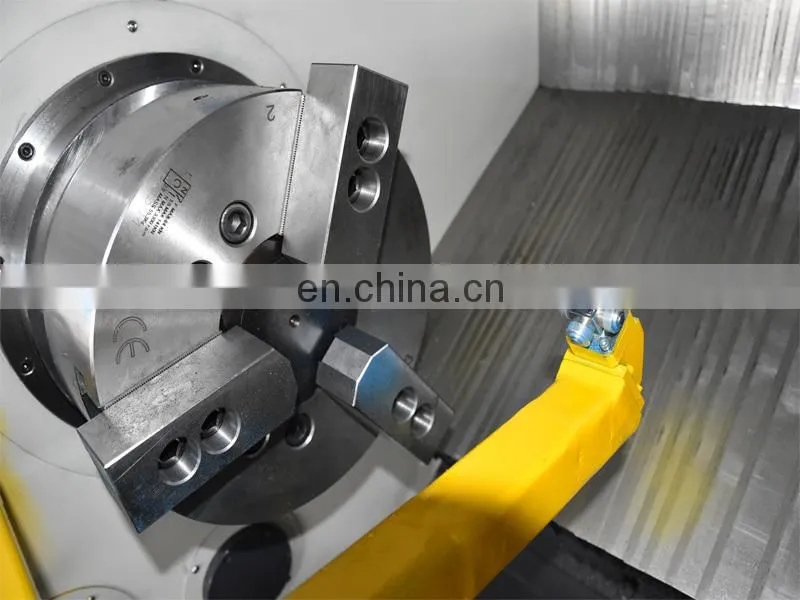

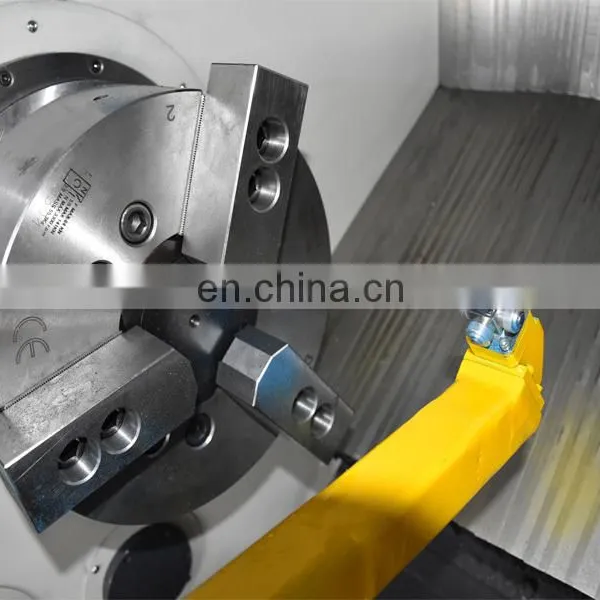

2.2 Taiwan 12" hydraulic hollow chuck
2.3 Taiwan horizontal 8-station turret
2.4 Renishaw tool auto-checking instrument
2.5 NSK Bearings,
2.6 Third axis gear box, automatic hydraulic shift, variable frequency stepless speed regulation
2.7 Manual tailstock, hydraulic sleeve
2.8 Manual center frame, the maximum clamping diameter 385 mm
2.9 Taiwan precision ball screw
2.10 X / Z rail hard track
2.11 Automatic lubrication system
2.12 Cooling system
2.13 Fully enclosed protection
2.14 Three-color alarm lights
2.15 Automatic chip conveyor
standard exported wooden case
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
Our customer from allover the world:
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
-
1. How long is the warranty period for the cnc lathe?
Our warranty period is one year, life service. -
2. Is there any requirement for the voltage of the cnc lathe?
Our standard voltage is generally 3-phase 380V, if you need to customize the other voltage please tell us in advance. -
3. May i change the color of the cnc lathe?
The color of the machine can be customized according to the color card provided by you -
4. Could the cnc lathe be customized?
As long as you provide detailed workpiece requirements or drawings, we can customize a special machine for you.
