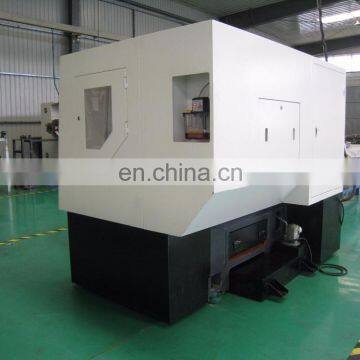

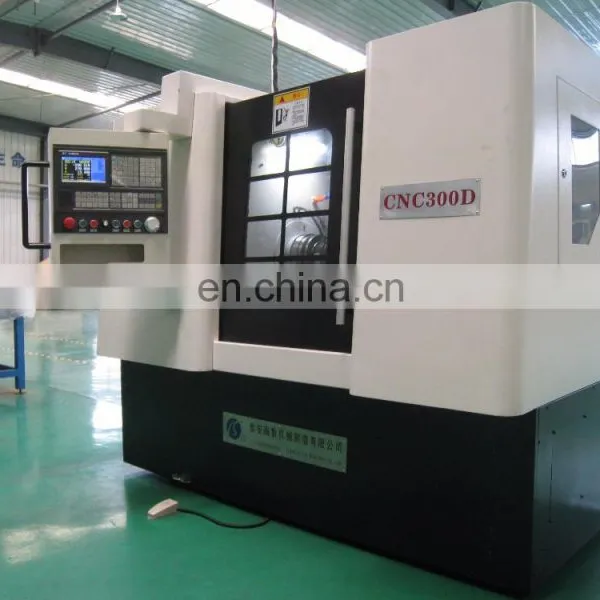

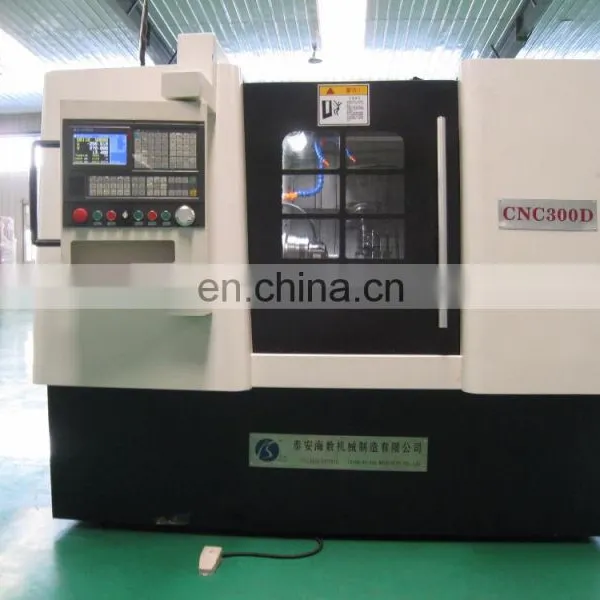

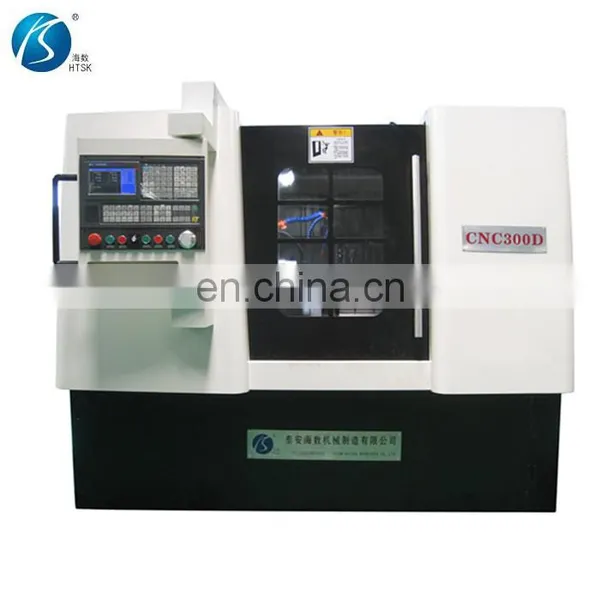

High precision and high speed CNC300D slant bed CNC turning milling/drilling machine from Haishu
Characteristics
1,45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2.The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
3.The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
4.Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;
5,X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use:
This machine is suitable for high accuracy and conformance requirements for small and medium size disk and short axle parts.
Technical parameters
Item | parameters |
Maximum turning diameter over bed | Φ300 mm |
Maximum turning diameter over skateboard | Φ120 mm |
X-axis maximum stroke | 280 mm |
Z-axis maximum stroke | 320 mm |
Rail width | 325mm |
Spindle head model | ISOA2-5 / MT5 |
Spindle bore | Φ41mm |
Speed | 5000r/min |
Chuck | Φ160 mm(Optional collet) |
Turret type | row tool |
Tool shank specifications | 20×20 mm |
Knife block center high | 61 mm |
Main motor power | 3.7 kw(Servo) |
X-axis maximum torque | 5 Nm |
Z-axis maximum torque | 7.5 Nm |
Foot of the bed to spindle center height | 935 mm |

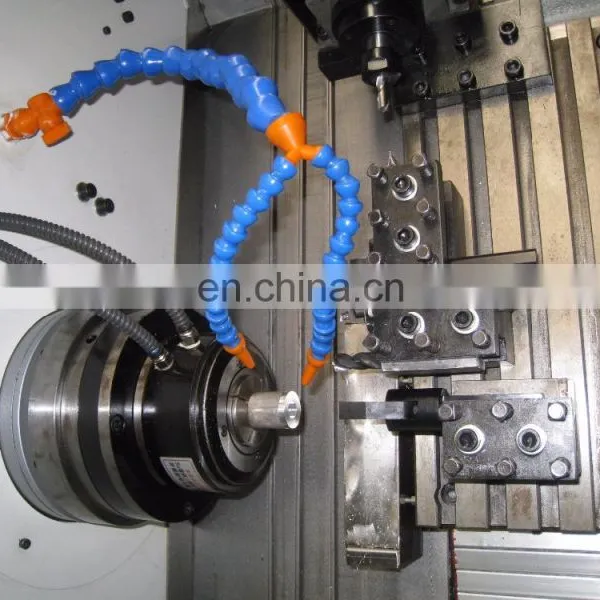

Power head clamping tool diameter | Φ2~13mm |
Power head speed range | 3000~12000rpm |
Power head power | 1.5kw |
The machine can clamp the tool number | 8 |
Oversize | 2030×1626×1730mm |
Net weight | 1500 kg |
standard export packing
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
Taian Haishu Machinery Co., Ltd. is a modern High-tech enterprise integrating design, manufacture and sale. Our company has two business departments: one is CNC department whose leading products are CNC Lathes, machining centers and other products and the other is test bench equipment department whose leading products are fuel injection pump test stands, High-pressure common rail injection system test benches, etc.
Our company has a professional technology team of product design/development and software development/application. Our team adopts 3-dimensional CAD computer-aided design equipment and PDM document management for equipment automation and management informatization. Our company passed ISO9001:2008 international quality system authentication. Our company has been awarded many honorary titles, such as "New Hi-Tech Enterprise". Our products have been widely used in automotive industry, military equipment, scientific research and universities' labs.
With high quality and innovative technology, our products always rank at the forefront among other similar products. Meanwhile, our products win great popularity not only in domestic markets but also in overseas markets.
