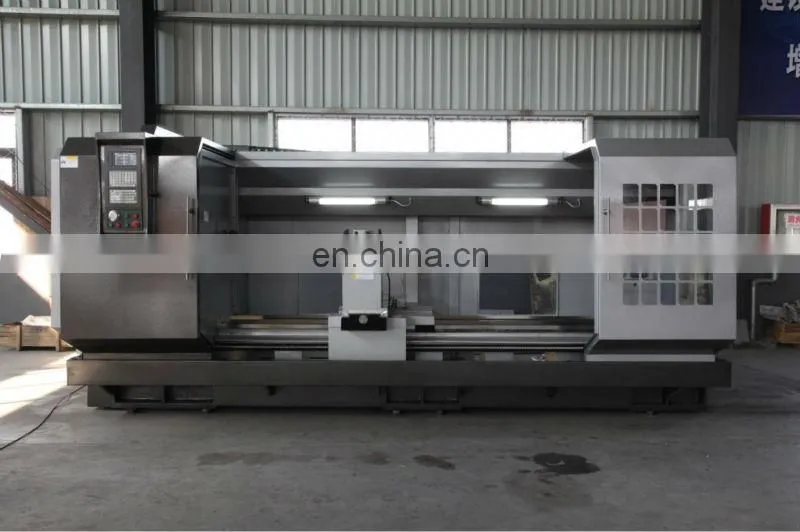

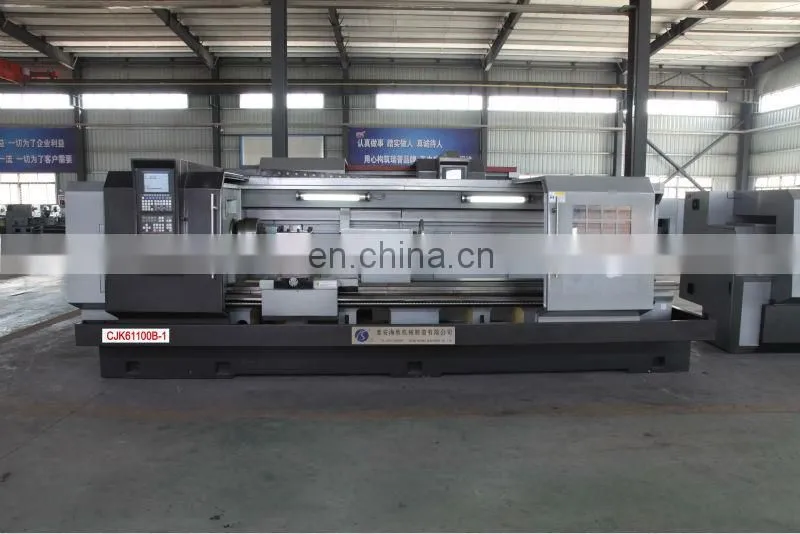

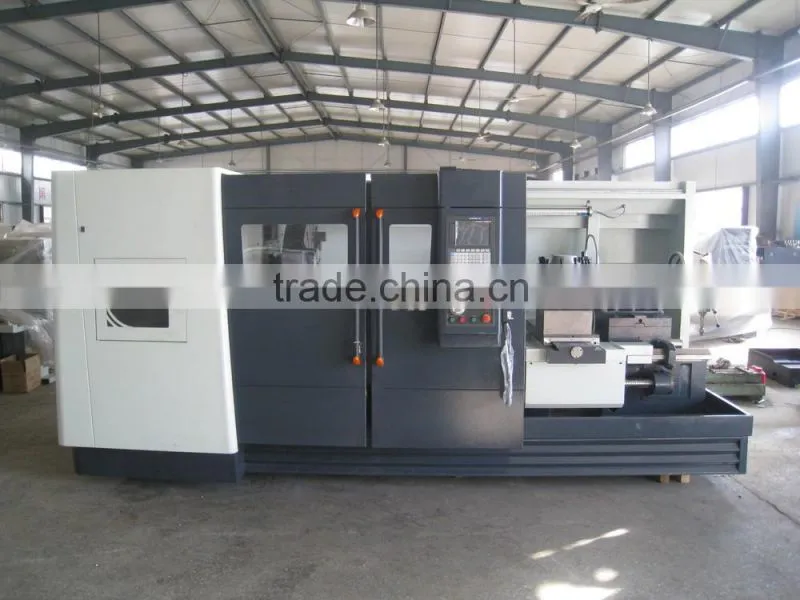

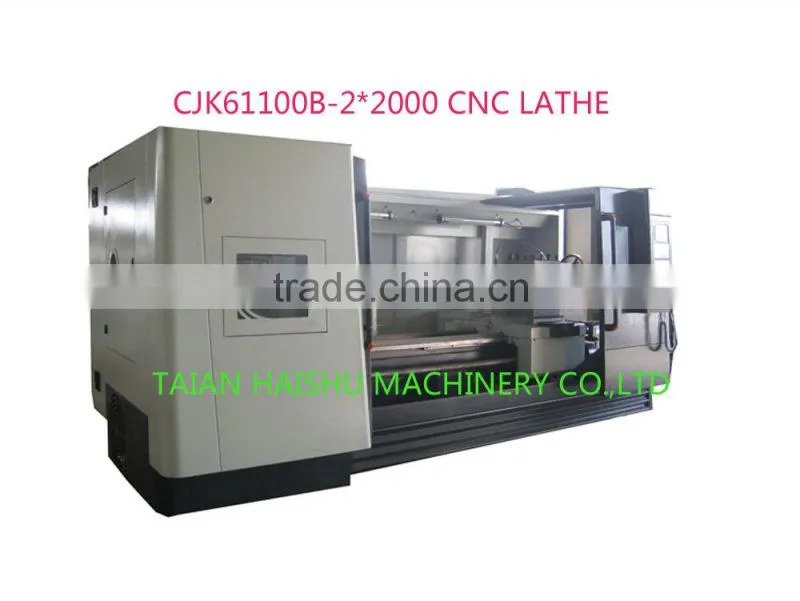

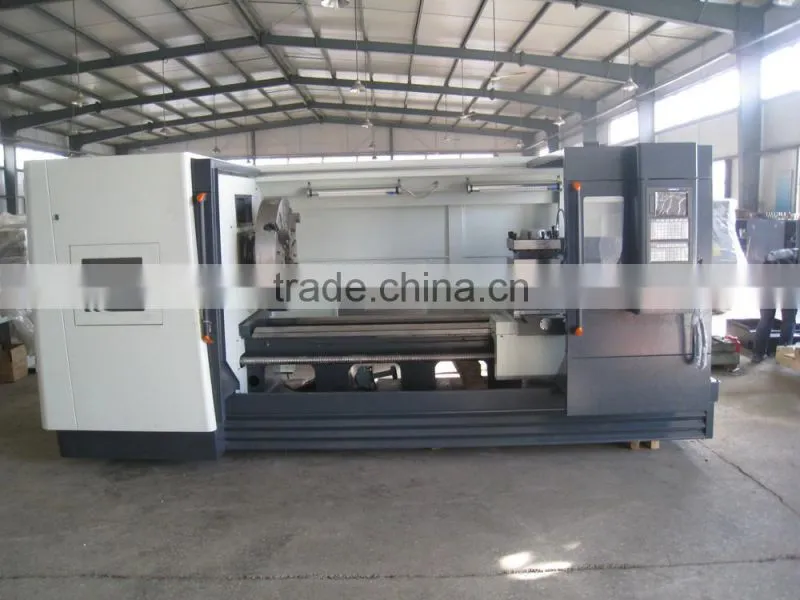

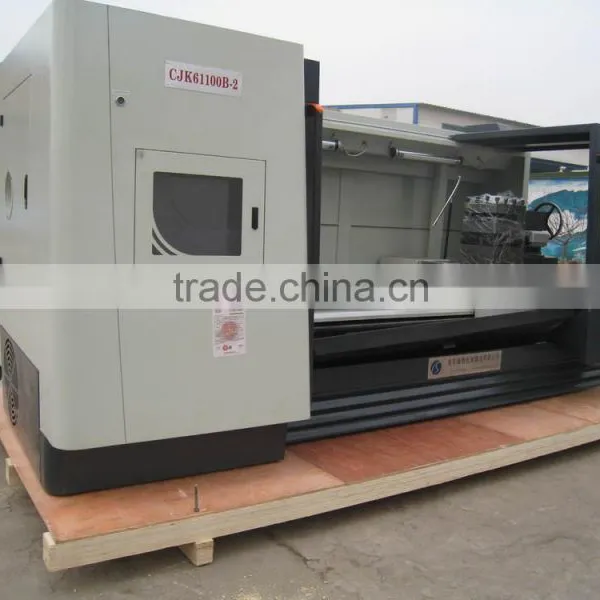

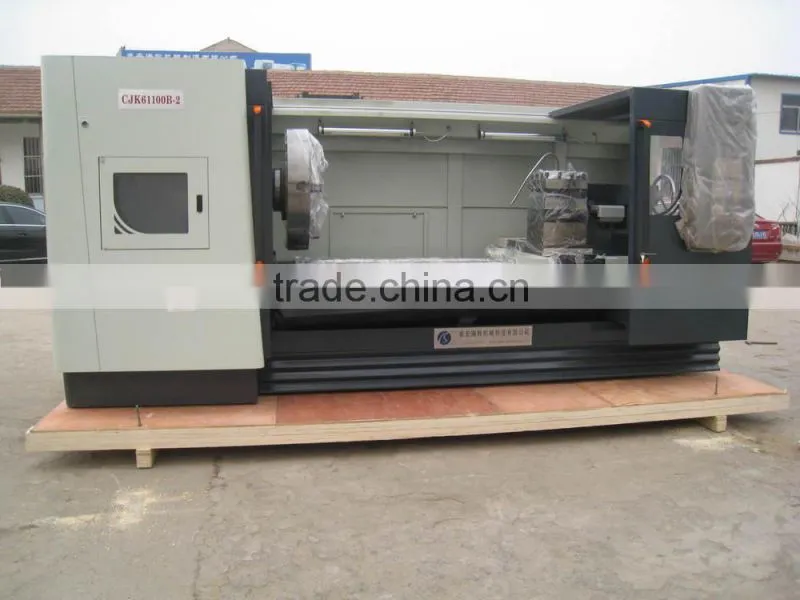

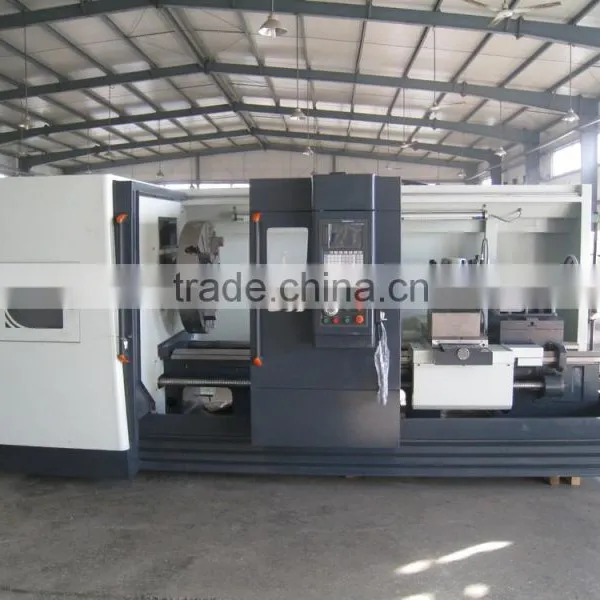

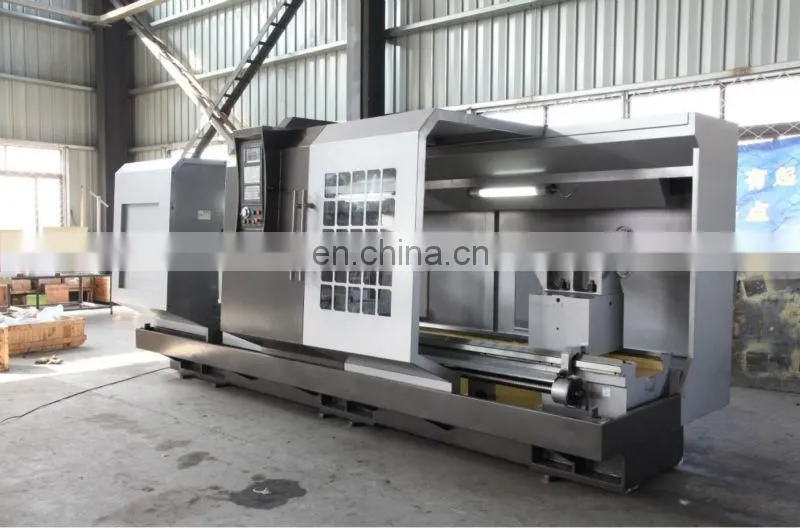

Heavy duty cnc lathe machine tool price and specification CJK61100B-2
nical parameter
Items |
CJK61100B-1 |
Max.swim over bed (mm) |
1000 |
Max.swim over carriage(mm) |
660 |
Max.length of work piece(mm) |
1000/1500/3000 |
Spindle speed |
auto 3 gear steps,stepless speed change in the step |
Range of Spindle speed (r/min) |
18-600 |
spindle nose |
C11 |
Spindel bore(mm) |
φ130 |
taper hole of spindle |
120 1:20 |
Main motor model |
YVP180L-6-15KW |
Max.travel(mm) |
X 500 Z 1200,1650,3100 |
rapid speeds(mm/min) |
X 4000 Z 5000 |
Min.feed increment(mm) |
X 0.01 Z 0.015 |
workpiece accuracy |
IT6-IT7 |
surface roughness |
Ra1.6 |
diameter of tailstock quil(mm) |
100 |
travel of tailstock quill(mm) |
250 |
taper hole of tailstock quill |
Morse 6 |
stand configuraion |

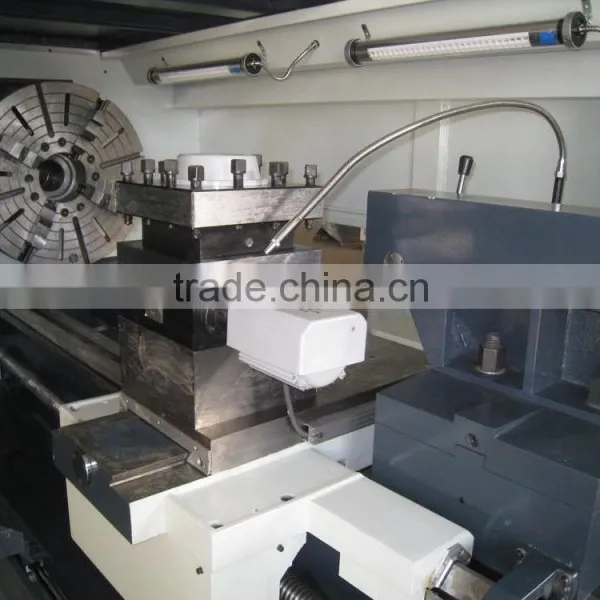

Vertical 4-position electrical turre |
Section of turning tool(mm) |
35*35 |
Packing size (mm) |
3750/4750/5500×1920×1800 |
weight |
5000/6000/7000 |
nfigurations
Standard configurations |
1. guide width is 660mm 2. spindle bore dia is 130mm 3. 4 electric tool post 4. spindle speed is a gear three handle, stepless change the speed, 5. X/Z servo driven 6. controller is GSK980TDb 7. motor power is 15kw 8. manual chuck and manual tailstock 9. auto lubrication 10. Semi-enclosed protection Tool box Instruction manual Packing list |
Opitional configurations |
.Siemens . Fanuc 0i-mate TD . NSK spindle bearing . 6 or 8 ,12position turret .Hydraulic chuck .Penumatic chuck .Pneumatic tailstock .Hydraulic tailstock |
Main features
1 Spindle brake way by electric brake
2 Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor
3 Imported or homemade CNC system
4 Rotary various workpiece surface automatically turning,precision maching
5 The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high
hardness,grinding the surface with high accuracy.
6 The carriage adopts plastic paste processing.wear small,high precision,long life.
7 Electronic hand wheel equipped,easy operation.
