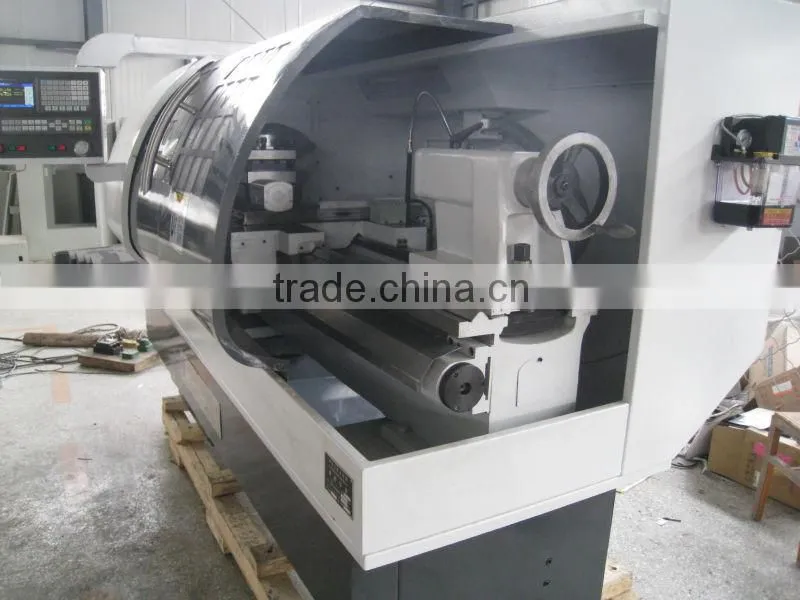

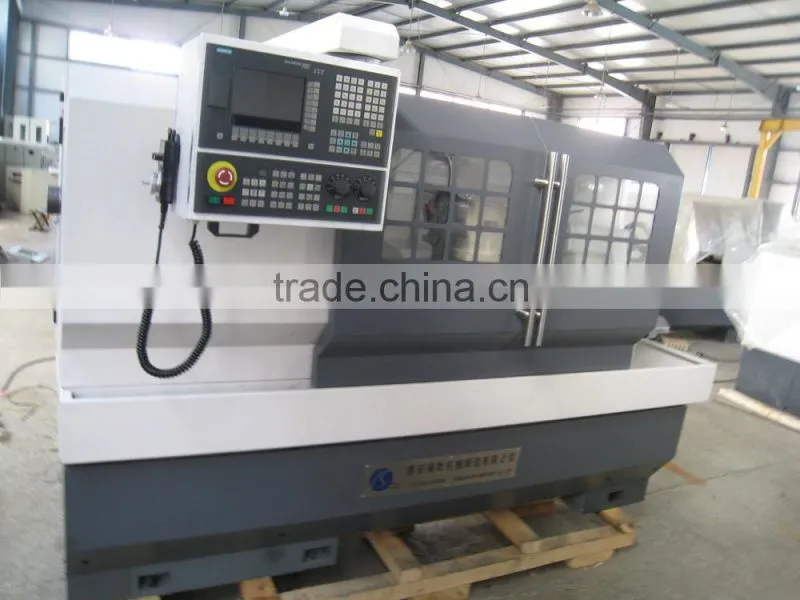

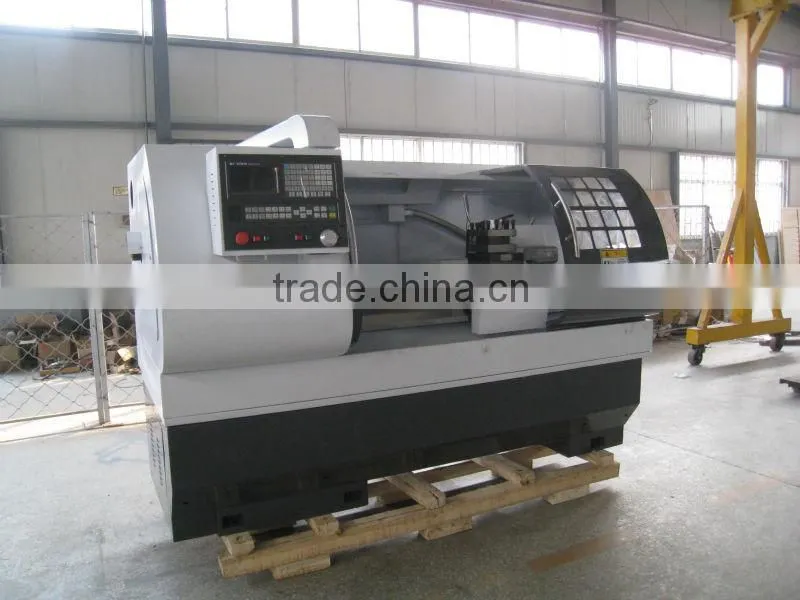

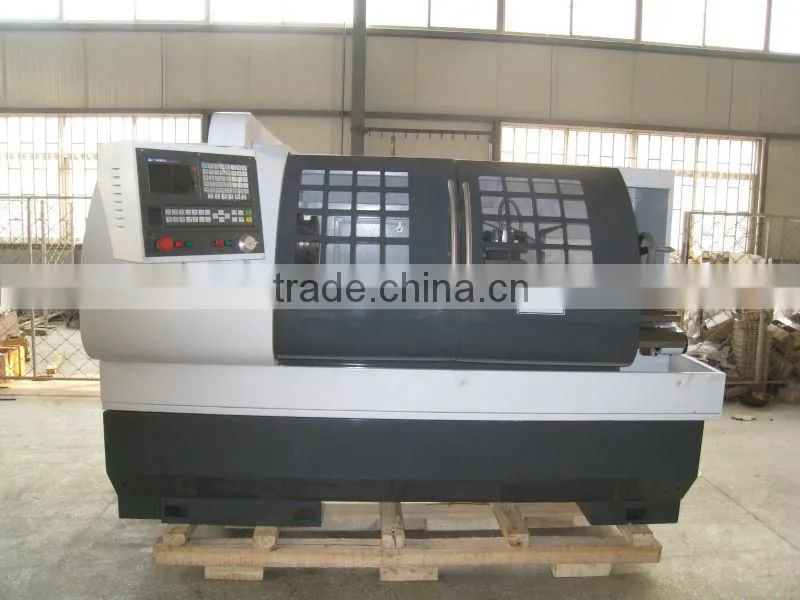

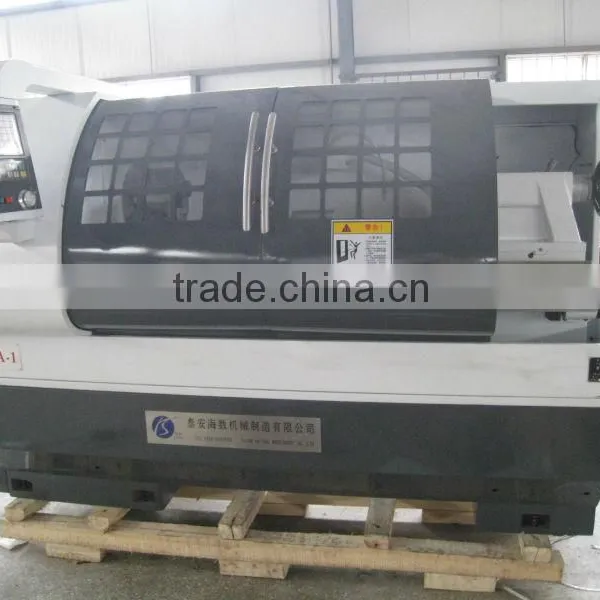

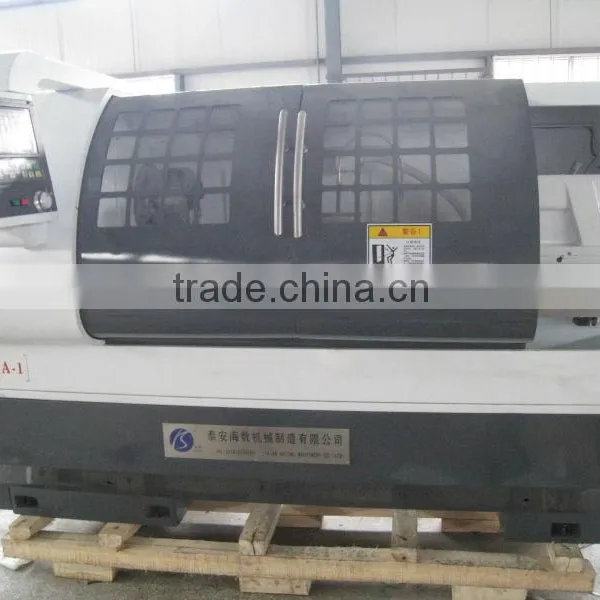

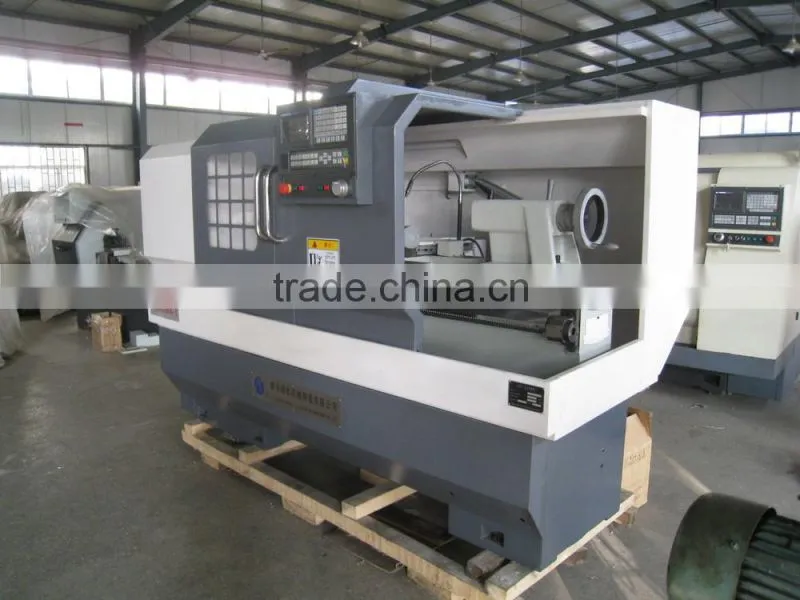

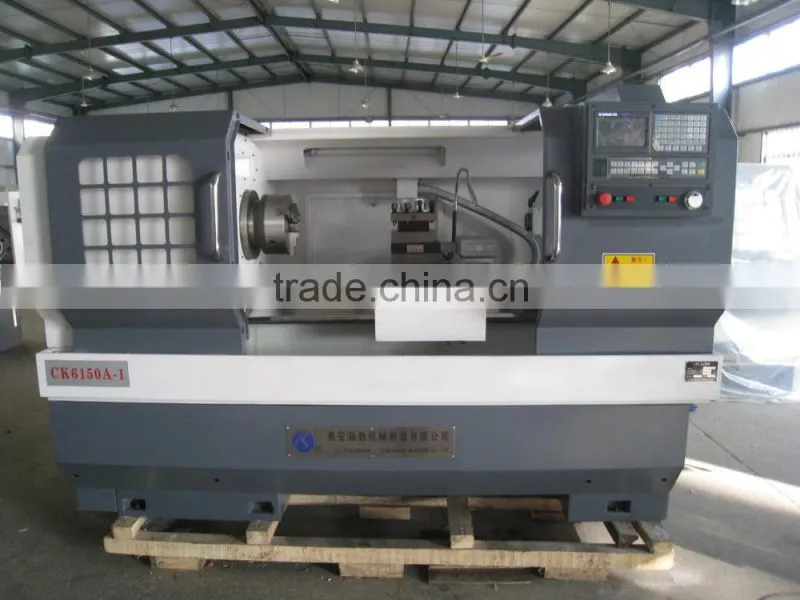

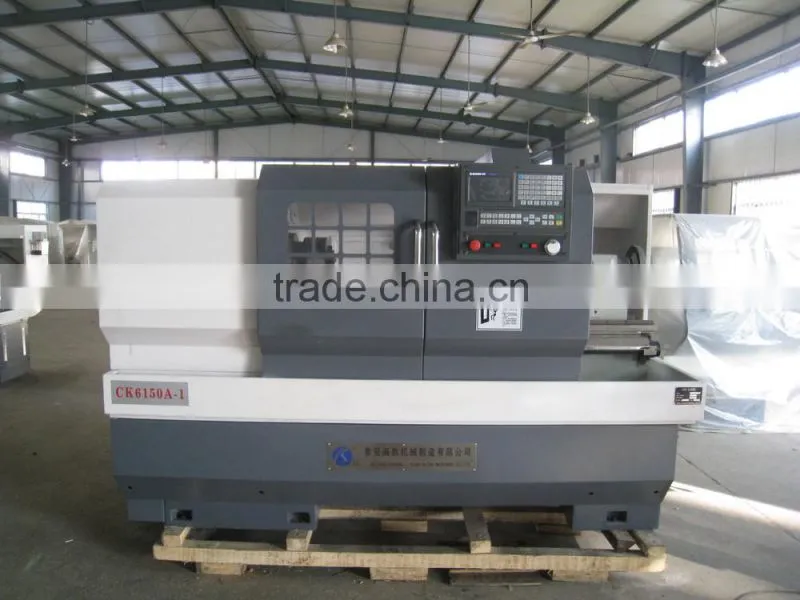

Help CenterTorno Cnc 6150 CK6150A-1Hot Sale! Mazak Cnc Lathe Price With Turret
Related Products
-
CK6136H Metal Lathe Conventional Cnc Lathe Machine Price Automatic LatheUS$ 8,000 - 11,000MOQ: 1 Set -
CJK61100B-2 CNC Automatical Heavy Duty Used Cnc Lathe Price With CE and Low PriceUS$ 4,800 - 85,000MOQ: 1 Set
-
Cnc Lathes Machine China Cnc Modern Machine Tools Hot Sale CK6140LUS$ 7,000 - 20,000MOQ: 1 Set
-
China Cnc Lathe Machine 5-axis Cnc Modern Machine Tools CK6136A-1US$ 6,000 - 20,000MOQ: 1 Set
-
Torno Cnc 6140 High Pression CK6140B Metal Working Machine Cnc Lathe Cnc ToolsUS$ 5,000 - 17,000MOQ: 1 Set
Item |
Unit |
Technical parameters |
Maximum tactical diameter of the lathe’s body |
mm |
φ500 |
Maximum tactical diameter of work-piece on the sliding plate |
mm |
φ290 |
Maximum workpiece length |
mm |
1000 |
Bed foot structure |
|
Separate bed foot |
Lathe bed width |
mm |
360 |
Main transmission form |
|
Independent spindle |
Speed mode |
|
Frequency stepless speed |
Range of spindle speed |
r/min |
150~2000 |
The form of the spindle head |
|
8-A2 |
Hole diameter of spindle |
mm |
φ70 |
Spindle centering axial taper |
|
1:4 |
Spindle taper |
|
1:20 |
Chuck dia. |
mm |
φ250 |
Main motor power |
KW |
7.5 |
Turret maximum stroke |
mm |
X:300; Z:760/1020 |
Fast-moving feed |
mm/min |
X:6000 Z:8000 |
Repeat positioning accuracy |
mm |
X:0.01 Z:0.015 |
Workpiece accuracy |
|
IT6-IT7 |
Workpiece surface roughness |
|
Ra1.6 |
Dia. of tailstock quill |
mm |
φ70 |
Tailstock quill stroke |
mm
|
120 |
Taper of tailstock quill |
|
MT5 |
Repeat positioning accuracy |
mm |
0.008 |
Section of turning tool |
mm |
25×25 |
Size(L×W×H) |
mm |
2300/2600×1500×1600 |
Net weight |
Kg |
2900/3200 |
standard configuratins
1.CNC system :GSK928

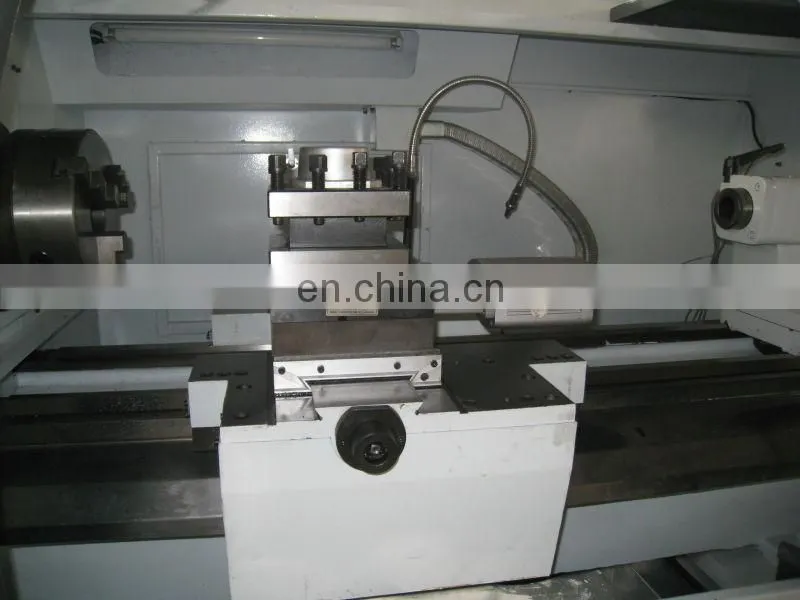

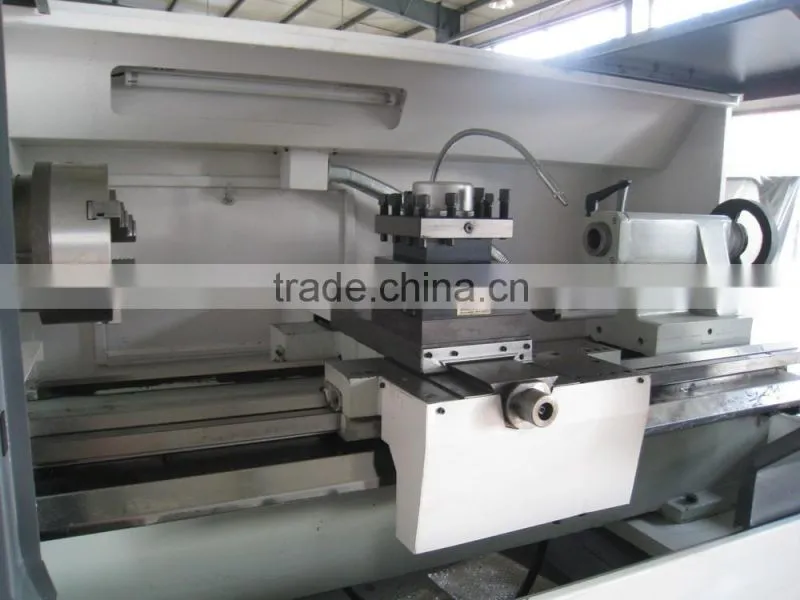

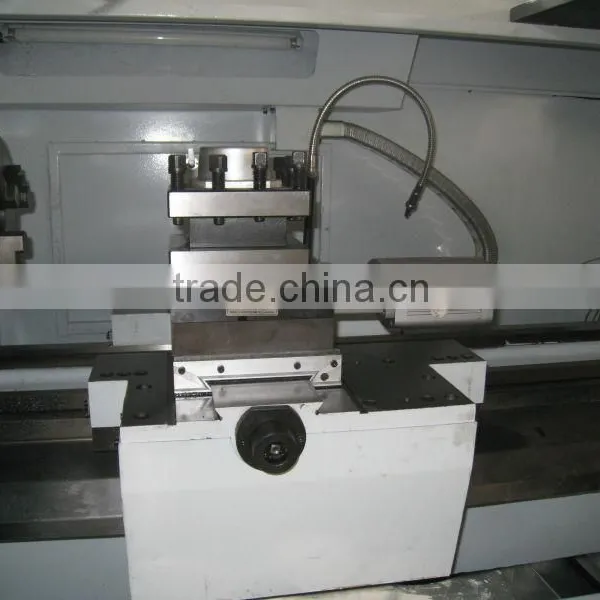

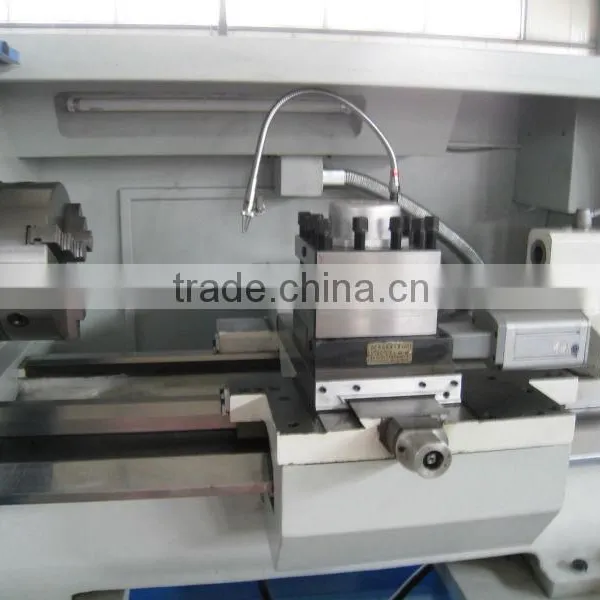

2. 4-position tools
3.Automatic lubrication system, coolant system, lighting system
4. Manual 3-jaw chuck Φ250mm

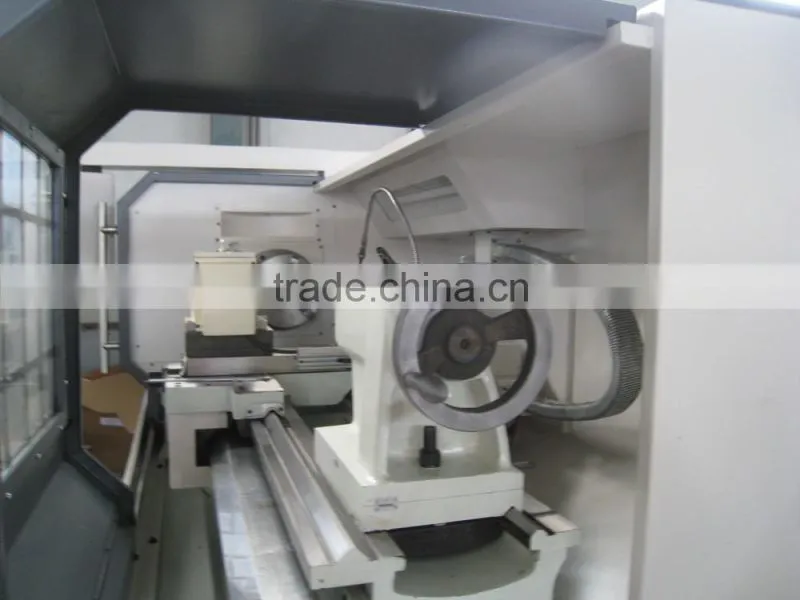

5.Manual tailstock
6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
7.Standard unit tools, packing list
8.english version manual instruction
9. one year warranty freely
optional configurations:

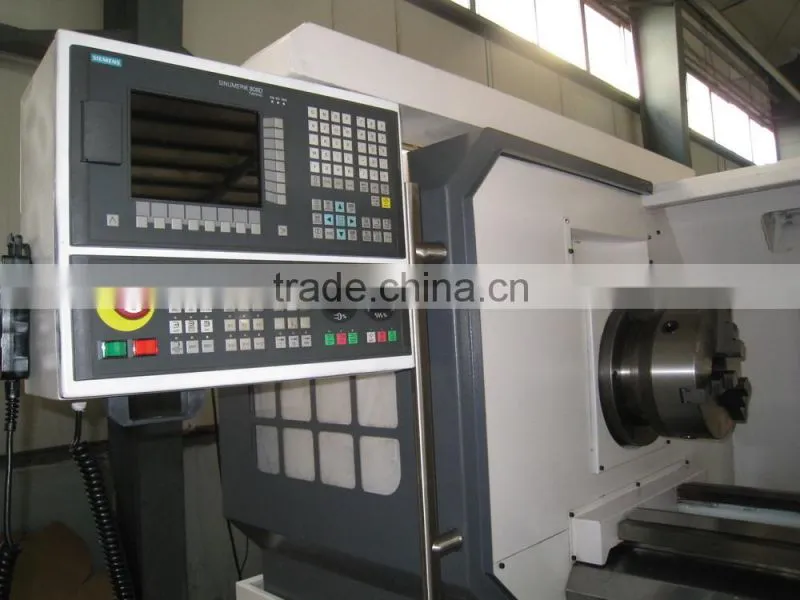

1.fanuc siemens controller
2.6/8 tool turret/gangtype tool crrier
3.hydraulic chuck/tailstock
4.pneumatic chuck/tailstock
5.auto bar feeder
6.220v/240/415v voltage..........
