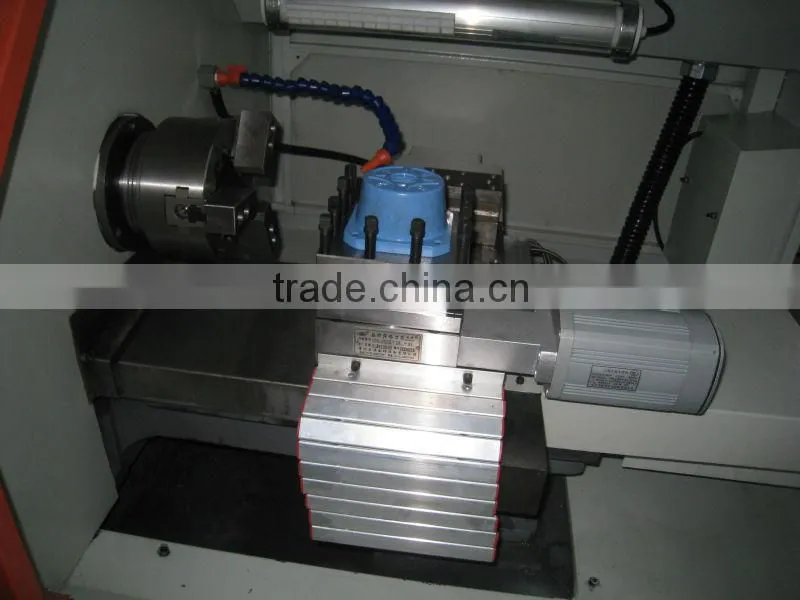

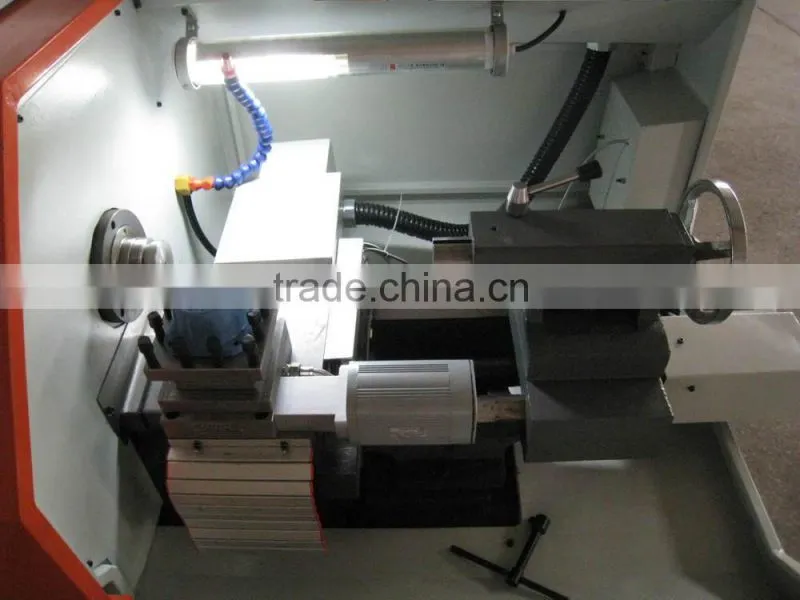

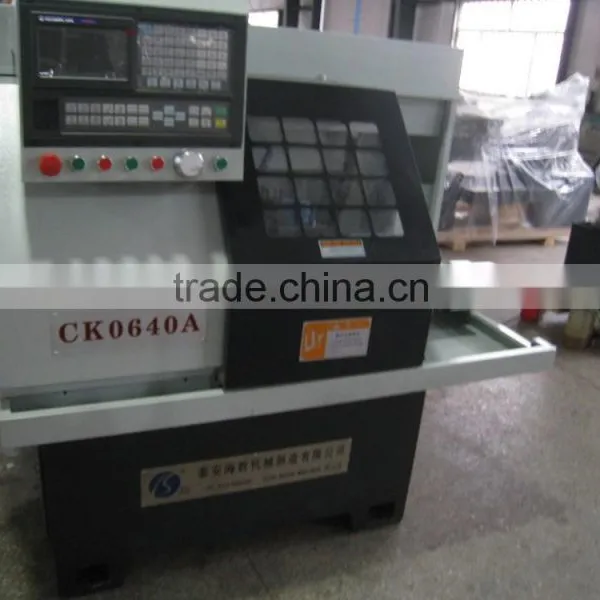

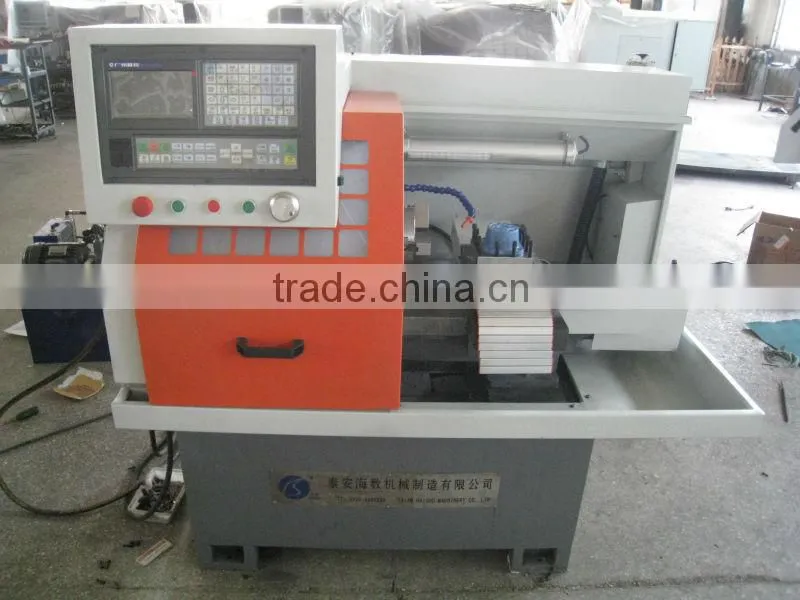

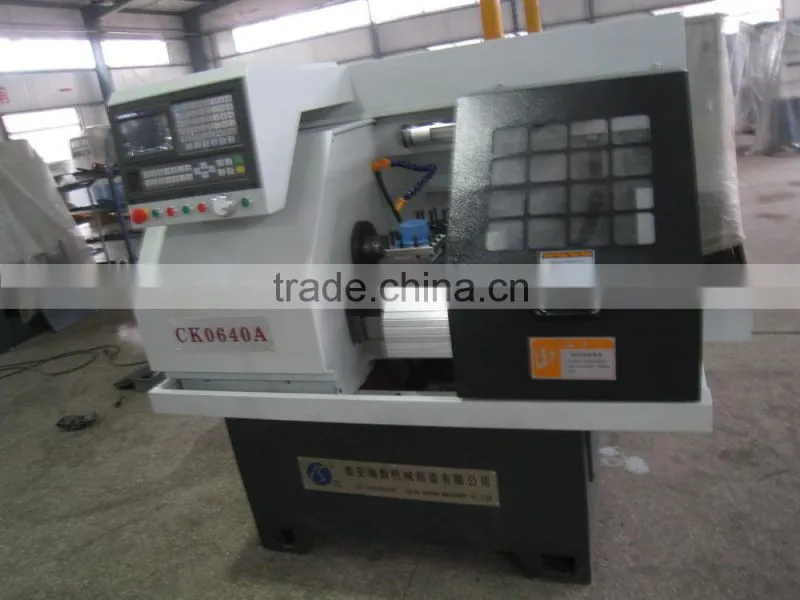

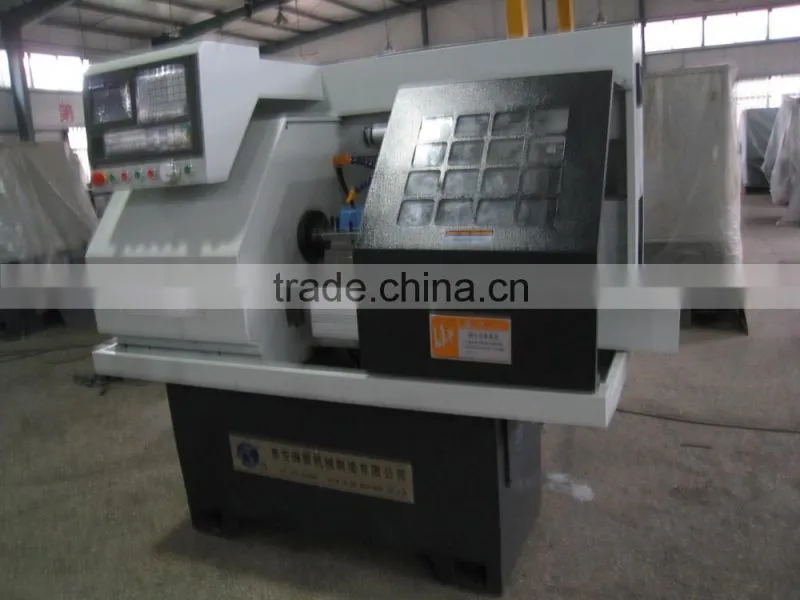

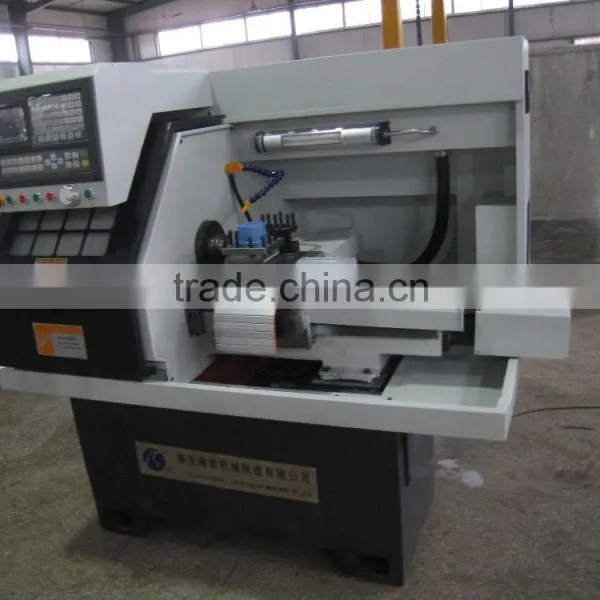

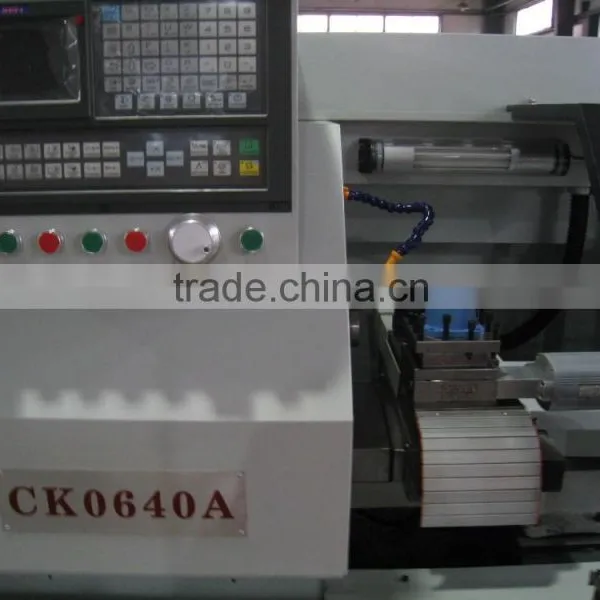

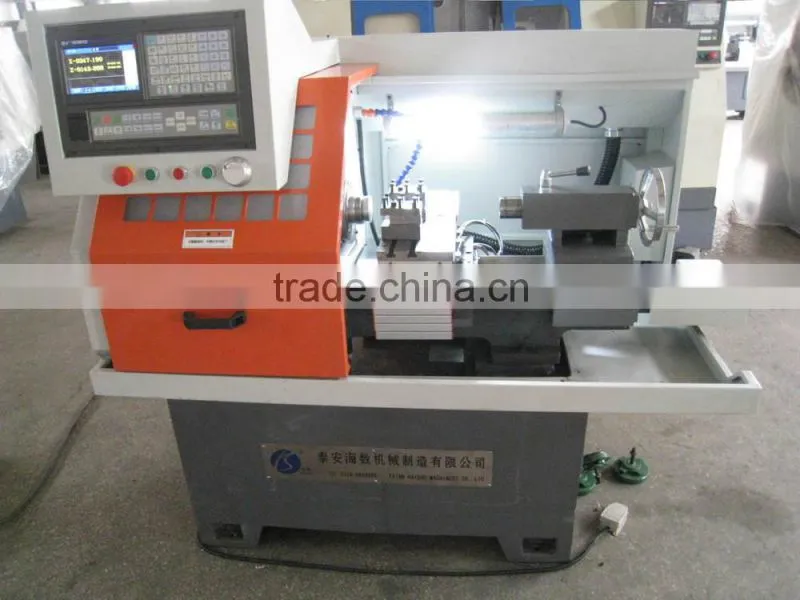

CK0640A cnc lathe machine price in india with flat bed type
Model |
CNC LATHE MACHINE CK0640A |
|
Max. swing dia. over bed |
300mm |
|
Max. swing dia. Slide over |
100mm |
|
Max. length of work piece |
Collect200mm/Chuck120mm |
|
Spindle nose |
A2-5 |
|
Through-hole diameter of spindle(mm) |
Φ48 |
|
Through-hole diameter of drawn pipe(mm) |
Φ40 |
|
X/Z-axis repeatability(mm) |
0.012/0.013 |
|
Number of turret positions |
gang-type tool carrier |
|
Spindle speeds |
150-3000r/min |
|
X axis travel(mm) |
260mm |
|
Z axis travel(mm) |
240mm |
|
X/Z-axis fast moving speed |
X:5m/min Z:8m /min |
|
CNC system |
GSK |
|
Max. length of work piece :Collect200/Chuck120 |
Main motor power |
3KW |
Overall dimensions(L*W*H) |
1600×1000×1550 |
|
Net weight/gross weight |
1000kg |
|
standard confgurations:

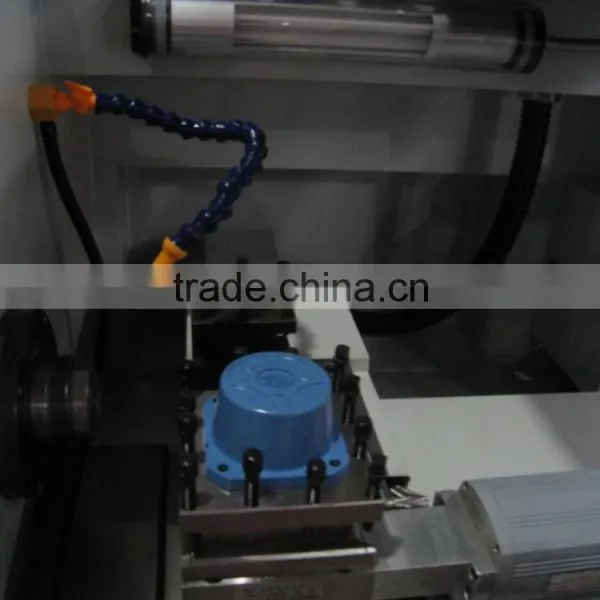

GSK980 controller
servo motor, servo driver
pneumatic chuck

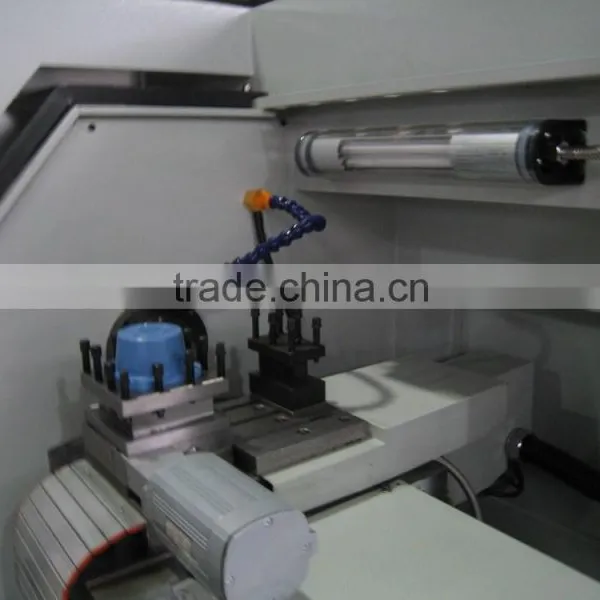

]gang-type tool carrier
manual tailstock
lihting system, auto lubrication system, coolant system

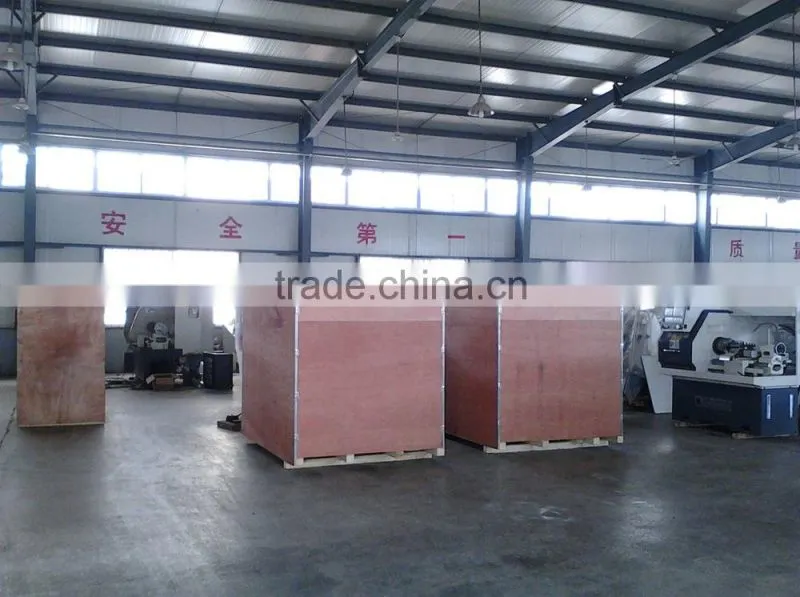

standard package list
opitional configurations:
manual chuck,
pneumatic tailstock
hydraulic chuck
4 stations turret
slant bed lathe
auto bar feeder
chip removel
