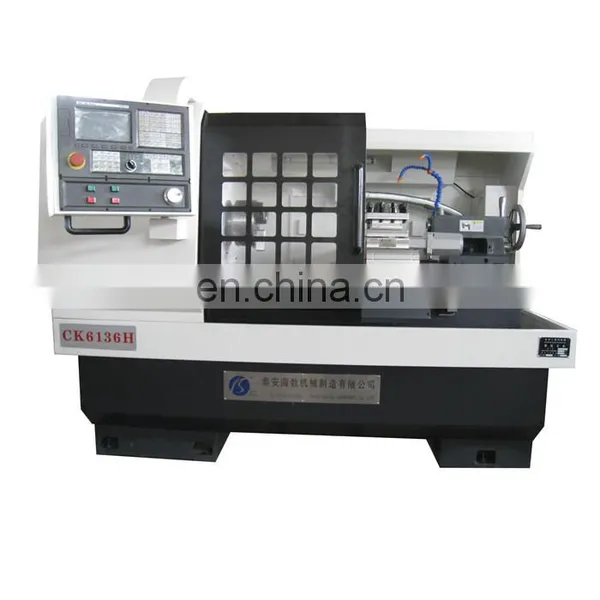

CK6136H Metal Small Cnc LatheUS$ 8,000 - 16,000MOQ: 1 Set

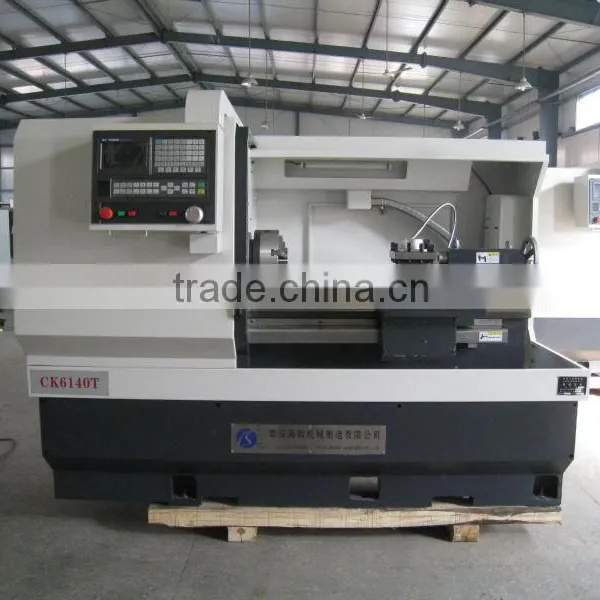

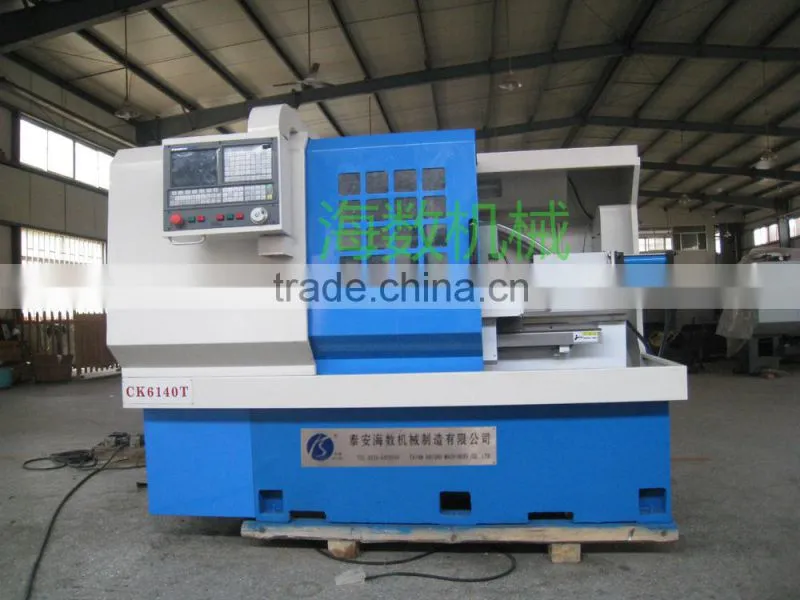

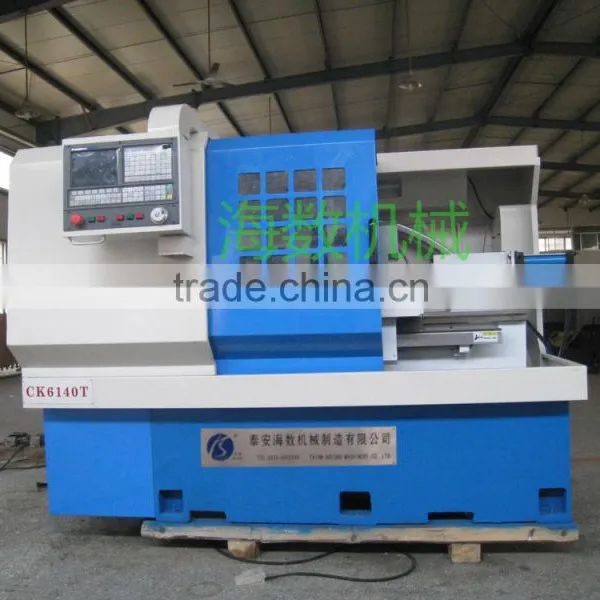

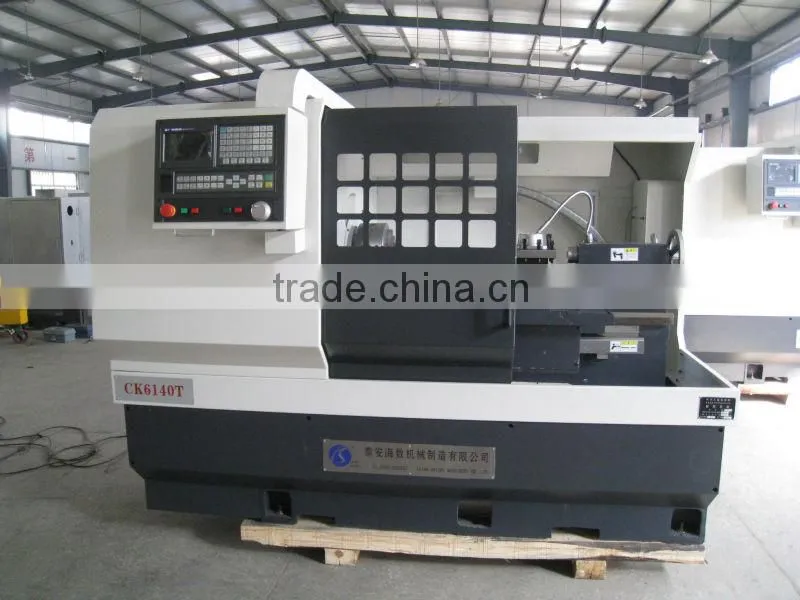

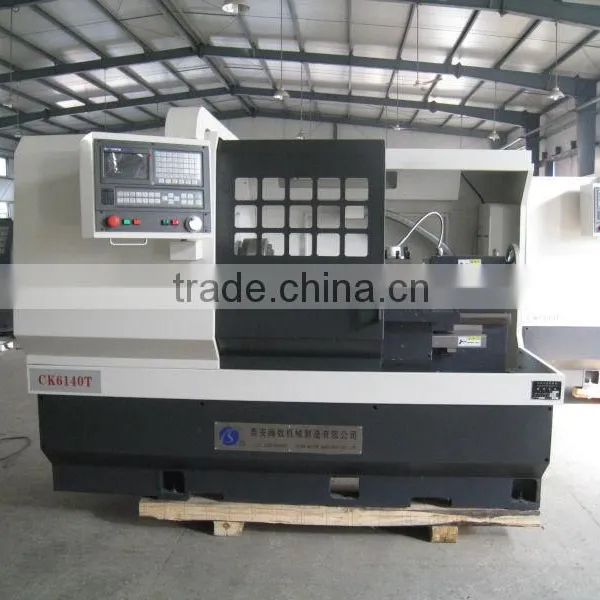

large market CK6140T cnc lathe machine price with CE and hydraulic tailstock
can choose color:white, black, blue.
A. ADVANTAGES: MULTI-PURPOSE TOOL CK6140T X 750mm
a. CE certificate petitive price c.easy for operation ncrete structure e.high efficient and economic f.high hydraulic components
specfications
Item |
Project name |
Technical paramaters |
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ420 |
Max.swiming over pallet(mm) |
Φ230 |
|
Max.the workpiece length(mm) |
750 1000 |
|
|
Main transmission |
Main transmission form |
Independent spindle; frequency conversion stepless |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
200~2800 |
|
The form of the spindle head |
NO.6 A2 type |
|
taper of Spindle hole |
MT6 |
|
Spindle bore(mm) |
Φ70 |
|
Chuck dia. (mm) |
Φ250 |
|
Main motor power(kw) |
5.5kw |
|
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
|
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
|
Taper of tailstock quill |
MT4 |
|
|
Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
Horizontal 6,8-station electric turret or gang-type tool camier |
|
Repeat positioning accuracy(mm) |
0.008 |
|
Section of turning tool(mm) |
25*25 |
|
|
Size and weight |
The size of the machine (length*width*height)(mm) |
2400*1450*1650 |
Net weight of the machine(kg) |
2000 |
standard configurations
1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication pump
4. Manual 3-jaw chuck Φ250mm
5.Manual tailstock
6.auto lubrication system,coolant system,lighting system
7.standard tools box
8.standard packing list
9.operational manual
10.Voltage:3 phase 380v 50HZ

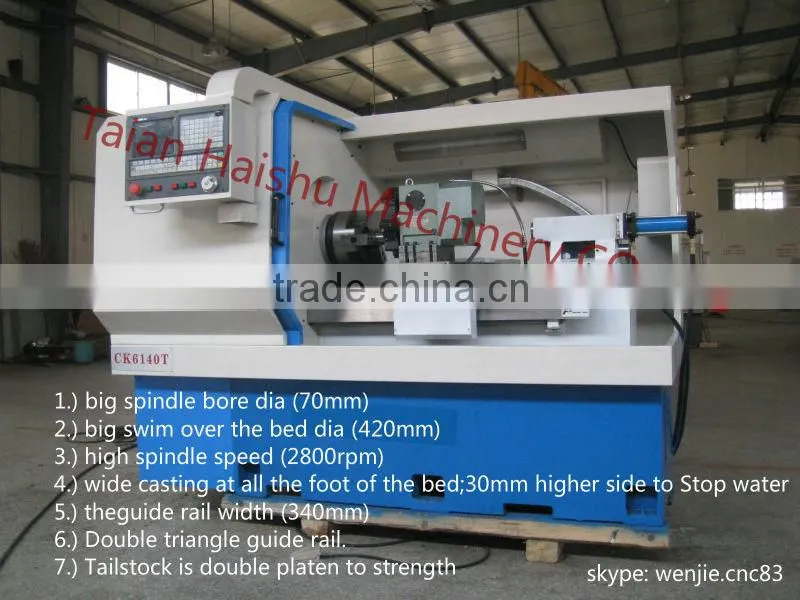

Main features
CK6140T
Large spindle bore (φ70mm),
Large turning diameter (φ420mm),
High spindle speed (2800rpm),
Overall width casting bed foot, 30mm high gear waterside,
Double triangle rail,
Tailstock assembly double plate tight.
increase spindle bore cnc lathe
