Home > Products > CNC Machine Center Spindles > 8000 rpm Cnc Machine Center Spindle Belt Driven Spindle Bt40
8000 rpm Cnc Machine Center Spindle Belt Driven Spindle Bt40
- 1000 Piece / Pieces per Month
- Shenzhen/shanghai
- T/T Credit Card
- BT40 spindle motor 8000rpm OD140mm belt driven spindle
- Taiwan made vertical installation cnc machine center belt drive spindlefor sale
- High Quality 10000RPM SP40 Belt Drive Spindle for Cnc Machine Center Use
- Hot selling ST40 direct drive cnc machine Spindle
- 2018 Hot Sale ST40 Direct Drive Spindle for Cnc Machine Center
- Hot Selling Cnc BT40 Direct-Coupled Spindle in cnc machine center
Product Details
Brand Name: | SCT | Place of Origin: | Guangdong, China | Model Number: | BT40-120 |
Operating Speed: | 8000rpm | Drive: | Belt Drive | ||
Maximum Torque: | 3.98nm |
Product Description

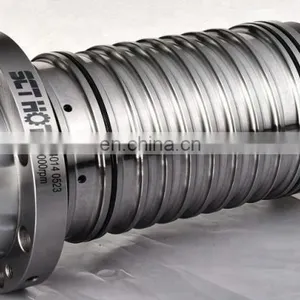

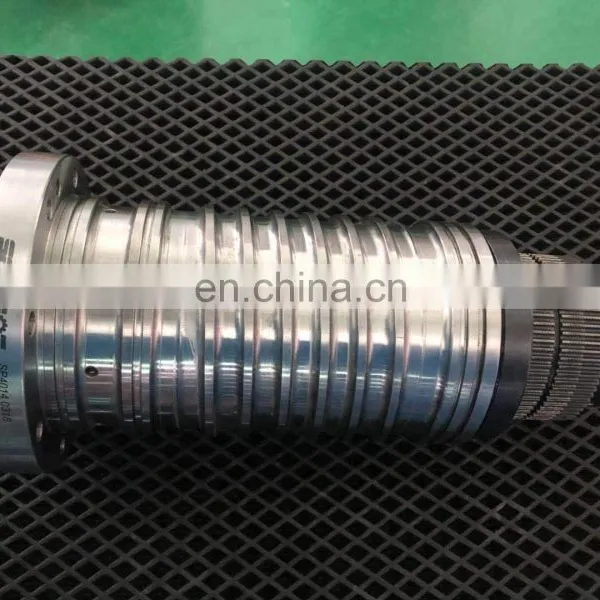

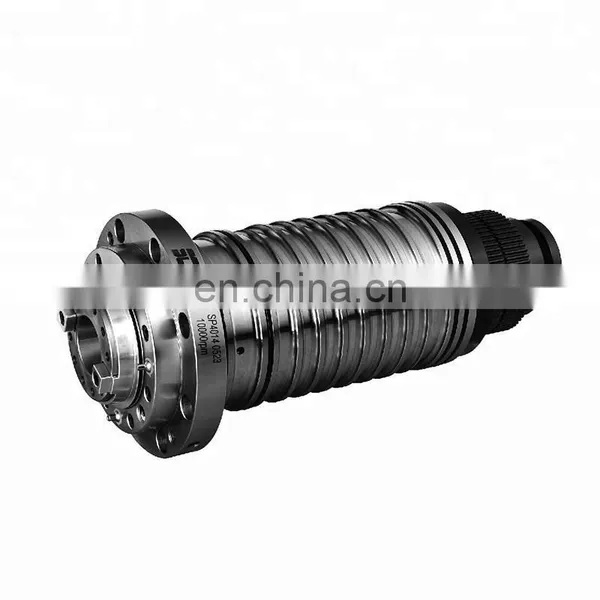

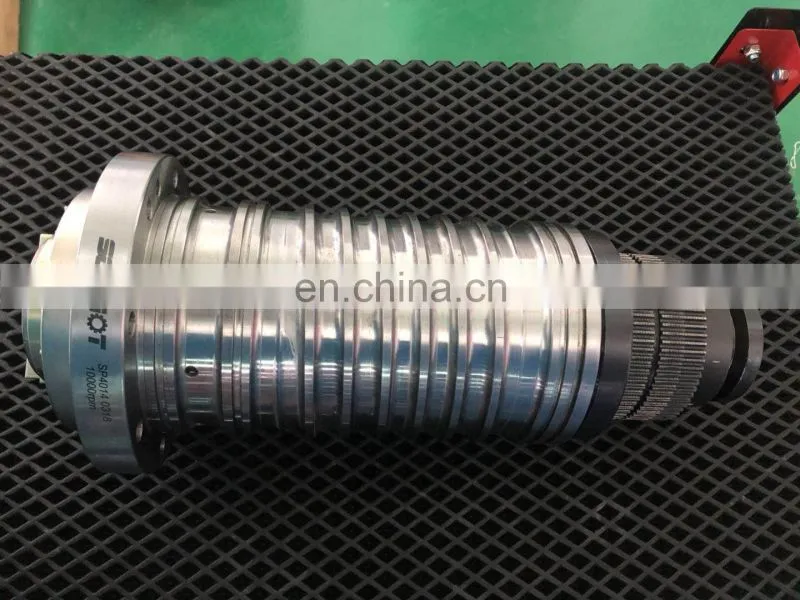

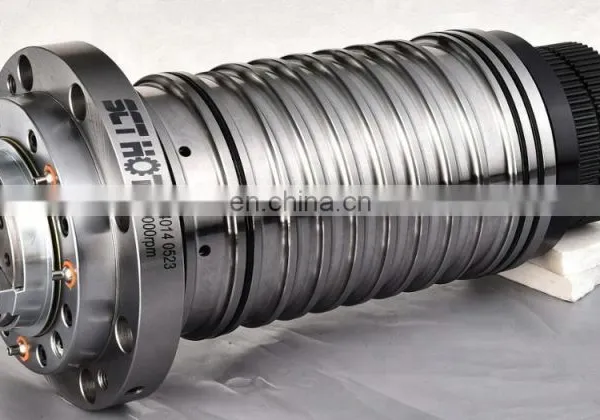

8000 rpm Vertical Cnc Machine Center Spindle Belt Driven Spindle Bt40
Feature:
Belt type BT40-120
1. Spindle speed: 8000 rpm;
2. Spindle with oil cooling, effective maintenance of the spindle temperature stability;
3. Good labyrinth ring design, effectively prevent cutting oil and exclude foreign materials.
4. Optional :center outlet device;
5. This spindle can be used for process components and mold engraving;
6. The spindle has a reserved floating buckle device.
7.KL series spindle used for MV500~MV800 Horizontal &vertical CNC machine center
Specification
Model |
BT40-120 |
Spindle speed |
8000 RPM |
Motor |
5.5/7.5KW |
Balance level |
G1 |
Spindle pull |
8KN |
Spindle bearing |
NSK P4 |
Nasal end deflection |
0.003mm |
Inner holder deflection |
0.002mm |
Normal temperature rise |
+18° |
Drive belt size |
5GT-68T |
Broaching tool |
four petals |
Installation |
vertical |
Cnc rotary table in stock

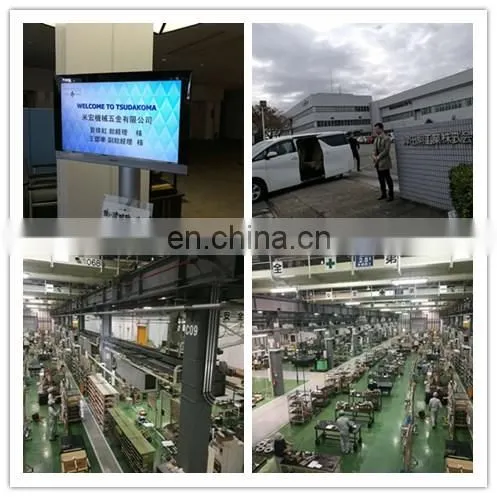

Agent of tsudakoma nc rotary table in south of China
About us
Dongguan Mihong Mechanical Hardware Co., Ltd is a professional manufacturer and supplier of high-precision cnc rotary table, cnc tool holder, cnc machine spindle and cnc machine center .
The precision machinery and professional talent,superb,sophisticated technology,has won the praise of China machine tool industry.
The main products:
1. Cnc rotary table :4th axis nc rotary table ,cam rotary table ,motor drive rotary table,5th axis rotary table etc.
2. Cnc machine spindle:
SP30 belt drive spindle ,SP40 belt drive spindle,SP50 belt drive spindle;
ST40 direct drive spindle ,ST50 direct drive spindle ;
ST30 tapping & drilling machine;
cnc lathe machine spindle : A2-4,A2-5 and A2-6
3.Cnc machine center :VMC550/VMC650/VMC850/VMC1160 etc.
4. Tool holder series, CNC tool holder, CNC tool holder, collet chuck, high speed tool-holder, machine tool holder, chuck, Powerful toolholder, CNC toolholder, ER toolholderis divided into BT toolholder etc.,
Our service:
1. OEM Manufacturing
2. Sample order
3. Cnc machine center solution.
4. Short lead time
Contact information
More information to company, copy the official website link for reference.
ATTN: Deanna
Add:No 8 Xingsan Road ,Chenwu Wusha, Changan Town ,Dongguan City ,Guangdong Province ,China
Tel:+86-769-85071566
Web: /
