Taiwan made horizontal vertical installation cnc belt drive spindle bt50 11kw spindle for sale
Feature:
Belt type BT50-150
1. Spindle speed: 6000 rpm;
2. Spindle with oil cooling, effective maintenance of the spindle temperature stability;
3. Good labyrinth ring design, effectively prevent cutting oil and exclude foreign
materials.
4. Optional :center outlet device;
5. This spindle can be used for process components and mold engraving;
6. The spindle has a reserved floating buckle device.
7.KL series spindle used for MV500~MV800 Horizontal &vertical CNC machine center.
Specification:
|
Model |
BT50-150 |
|
Spindle speed |
6000 RPM |
|
Motor |
11/15KW |
|
Balance level |
G1 |
|
Spindle pull |
16KN |
|
Spindle bearing |
NSK P4 |
|
Nasal end deflection |
0.003mm |
|
Inner holder deflection |
0.002mm |
|
Normal temperature rise |
+18° |
|
Drive belt size |
8YU-54T |
|
Broaching tool |
four petals |
|
Installation |
vertical & horizontal |

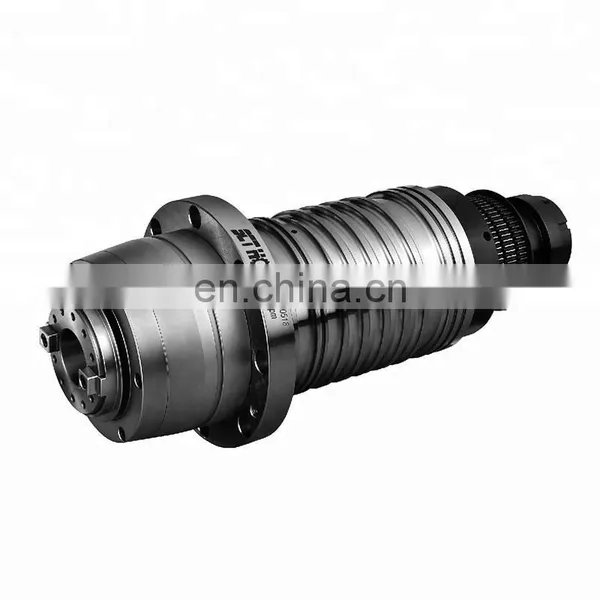

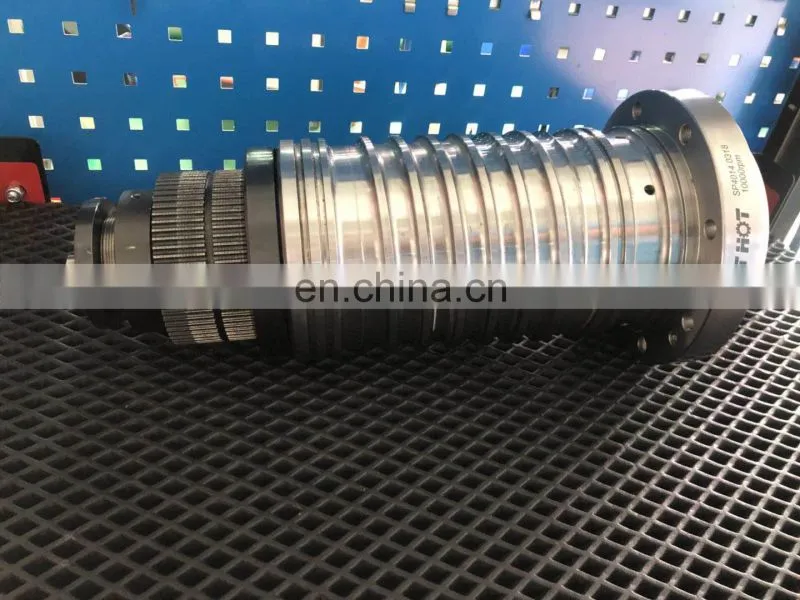

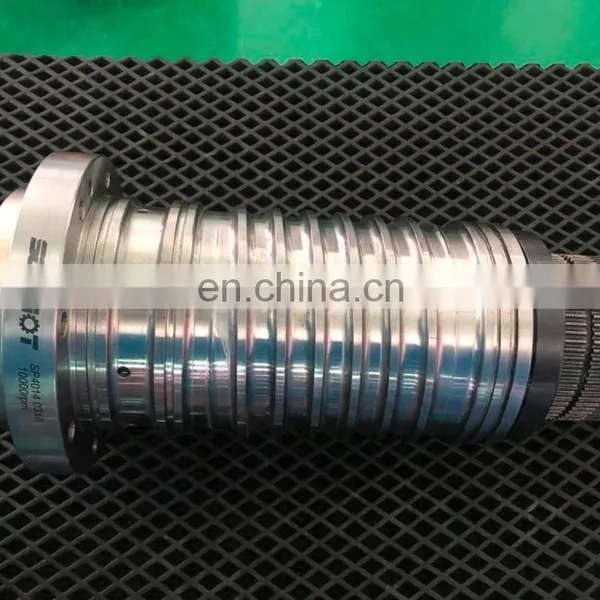

BT50-150 cnc machine spindle picture
1. Our company is a manufacture of NC rotary table ,tool holder ,cnc machines ,we can
supply technical support for these products without charge .
All tool holder and nc rotary precesion parts were made in taiwan factory,no need to
worry about the quality.
2. About the nc rotary table :
<1>. Before place an order of the nc rotary table ,please let us know your machine
center work table size,brand,system,wire case position,so we can supply the right
cnc rotary table with serve motor ,drive and cable etc .
<2>. About the tool holder ,we can supply tool holder specification before customers
place order .
1.Warranty: Non-human damage, one year guaranteed period.
2.Shipment: goods by send by sea or by express based on
customers request.
