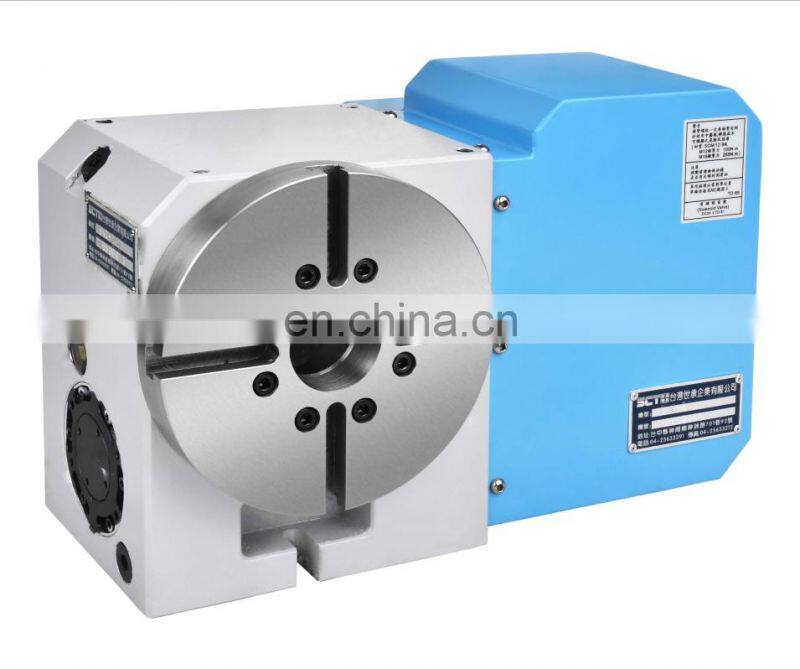

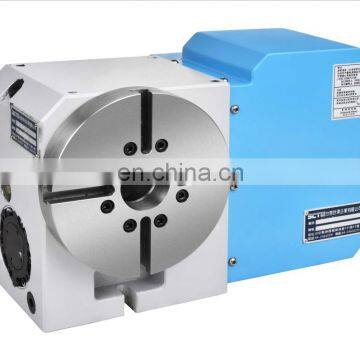

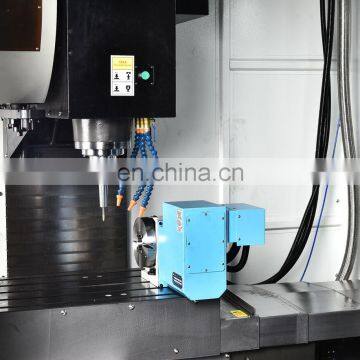

High Quality Cnc Rotary Table machining center Cnc Machined Parts manufacturer from China
Feature:
1. 90 degree indexing time only need 0.3 seconds.
2.Material:cam used special alloy steel, after carburizing can be precision grind.
3.The needle bearing used bearing steel ,after carburizing can be precision grind.

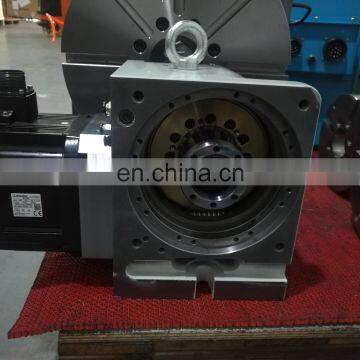

4. The advantages of cam roller structure:
<1.>The Cam and the needle roller bearings preloaded without clearance rolling drive.
<2.> No sliding friction and wear, continue to maintain no clearance movement characteristics

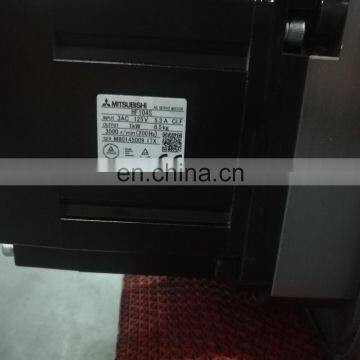

<3.> The indexing disc uses the brake servo motor. When the workpiece is machined in the indexing machine, the brake servo motor auxiliary cam mechanism is braked to meet the torque requirements of the processing and also save time.

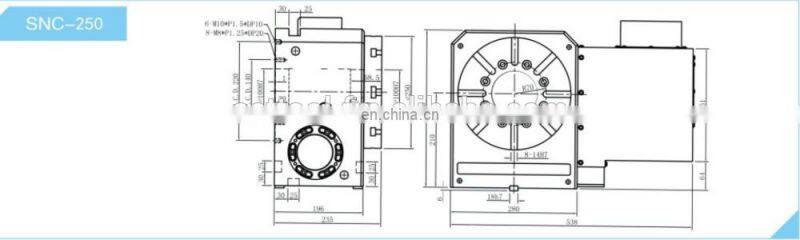

Specification
The Disc diameter | 250mm |
The disc spindle center hole | 80H7mm |
The disc spindle center through hole | 80mm |
Vertical placement center height | 210mm |
T-slot width of the rotary shaft disc | 14H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 5(pneumatic)35(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree |
Total gears rate | 1/60 |
Max speed of the rotary disc | 3000 RPM 50 |
4000 rpm 66.6 | |
Division precision | 15” |
G.W weight | 135kg |
Q: Are You Trading Company Or Manufacturer ?
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
