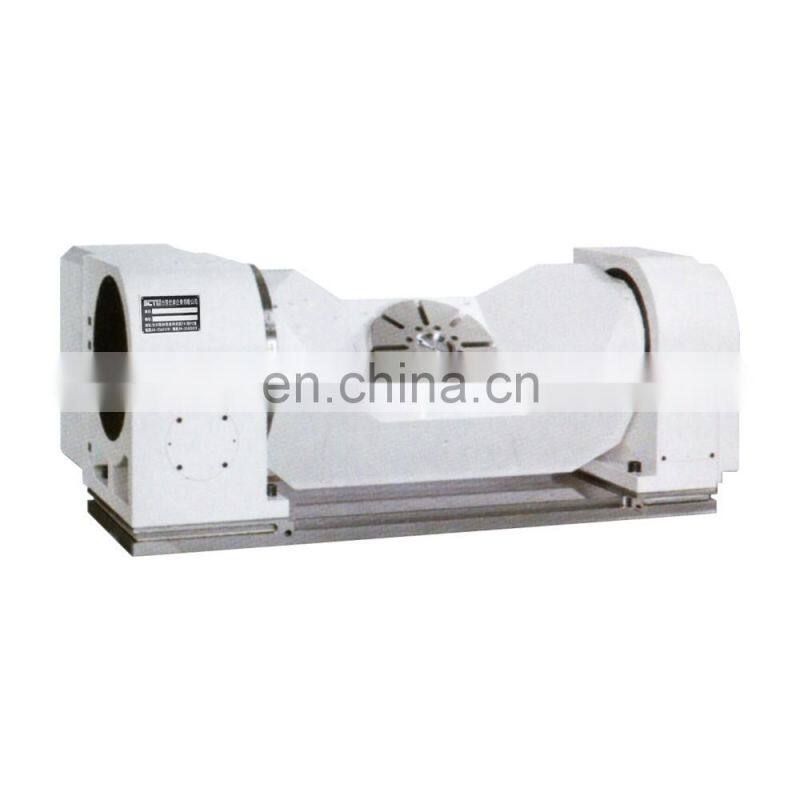

Precision Tilting 10 Inch 5th axis cnc rotary table
Feature
1. This 5 Axis CNC rotary table use imported precision dual-lead worm, turbine, turbine with aluminum bronze alloy,ensure the transmission positioning in high precision accuracy.
2.The turbine size nearly the disc size and the steel rigidity is better 30%~50% than similar products.
3. Swing structure with centerline maked the height same with the tilt disc height , it can inavoid coincides with the height of the rotary axis

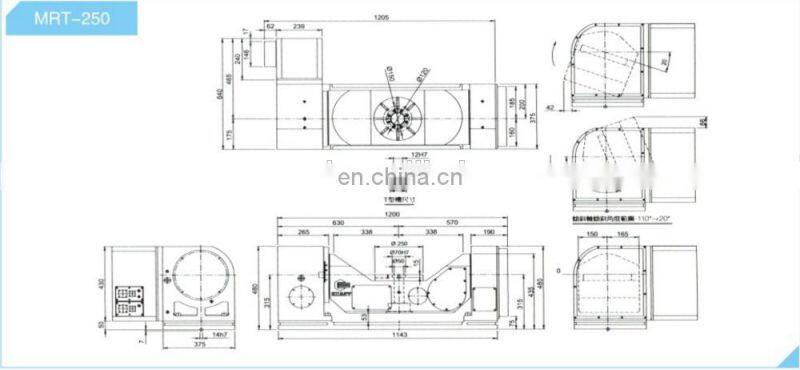

MRT-250
Specification
The Disc diameter | 250mm |
The disc spindle center hole | 50H7mm |
The disc spindle center through hole | 40mm |
Rotae spindle Level placement height on 0 degree | 295mm |
Rotate spindle Level placement center height on 90 degree | 450mm |
Rotate spindle level center height on 90 degree | 215 |
T-slot width of the rotary shaft disc | 12H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 35(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree rotate 0.001 degree tilting |
Total gears rate | 1/120 rotate 1/180 tilting |
Max speed of the rotary disc | 3000 RPM 25 Rotate |
3000 RPM 16.6 Tilting | |
Division precision | 15” |
G.W weight | 900kg |
