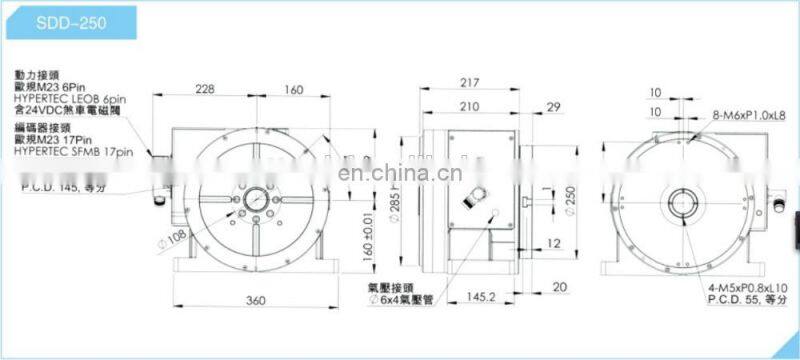

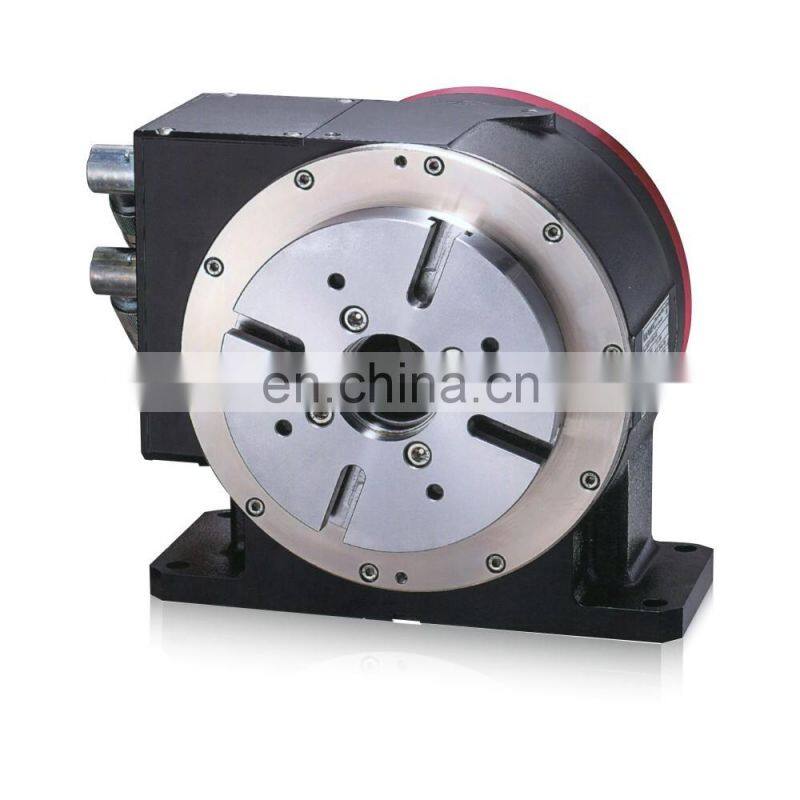

Precision DC motor indexing rotary for machine center use
Feature:
1.Direct drive motor load, no reducer, no backlash, low noise and compact structure.
2.Powerful overload capacity (4X), high speed, fast servo response.
3. This CNC rotary index table with absolute encoder (more than 20-bit ), it can be high-precision segmented.
4.The CNC rotary index table motor ‘s center hole penetrates, easy wiring and piping.
5. It can be packed by the costomers encoder.
6.It can made into 5-axis by customers requirement.
Specification:
Center height | 160mm |
Rotary disc diameter | 250 |
G.W | 80kg |
Rotary inertia | 1100kgcm |
Center through aperture | 46H7 |
T-slot width | 12H7mm |
Guide key width | 14H7 |
Load weight | 60kg |
Max rotate radial | 20/20um |
Cooling | Natural colling |
Brake system | pneumatic piston |
Locking torque | 450Nm |
Protection level | IP67 |
Drive input voltage | 220Vrms |
Rotor series | 44P |
Continuous max cutting torque | 120/480Nm |
Max rated speed | 100/200 |
Max rated current | 8.6/40 Arms |
Torque constant | 14Nm/Arms |
Min setting number | 0.001 degree |
Positioning/repeat accuracy | ±10/±4 |
