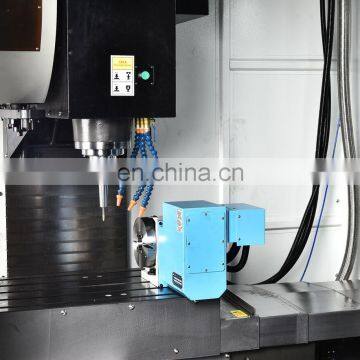

Wholesale Cnc Machining Center with 4th Axis Nc Rotary Table
1.The best bed structure design, can withstand the high G generated inertia.
2.Three-axis rapid displacement,significantly shorten the processing time.
3.High stability tool change system to reduce non-processing time.
Specification:
Model | V6 | V7 | V8 | V9 |
Work table size | 650x460mm | 820x500mm | 1000x500mm | 1000x520mm |
X.Y.Z travel | 600/480/500mm | 720/500/550mm | 800/500/500mm | 800/600/600mm |
T-slot | 18x3x215mm | 18x5x100mm | 18x3x230mm | 18x6x90mm |
Spindle nose to work table | 120-600mm | 100-660mm | 120-620mm | 125-725mm |
Max loading weight | 350kg | 450kg | 600kg | 800kg |
X,Y ,Z axis fast feed | 48/48/48m/min | 48/48/48m/min | 48/48/48m/min | 36/36/36m/min |
Cutting feed | 1-10000m/min | 1-10000m/min | 1-10000m/min | 1-10000m/min |
Spindle speed | 10000/12000/15000RPM | 10000/12000/15000RPM | 10000/12000/15000RPM | 10000/12000/15000RPM |
Spindle taper | BT40 | BT40 | BT40 | BT40 |
Spindle power | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
Positioning accuracy |
±0.005/300mm |
±0.005/300mm |
±0.005/300mm |
±0.005/300mm |
Re-positioning accuracy |
±0.003mm |
±0.003mm |
±0.003mm |
±0.003 mm |
Machine weight | 4300kg | 4500kg | 5400kg | 6200kg |
Size | 2350x2750x2700mm | 2550x2750x2700mm | 2800x2900x2800mm | 2850x3100x2900mm |
