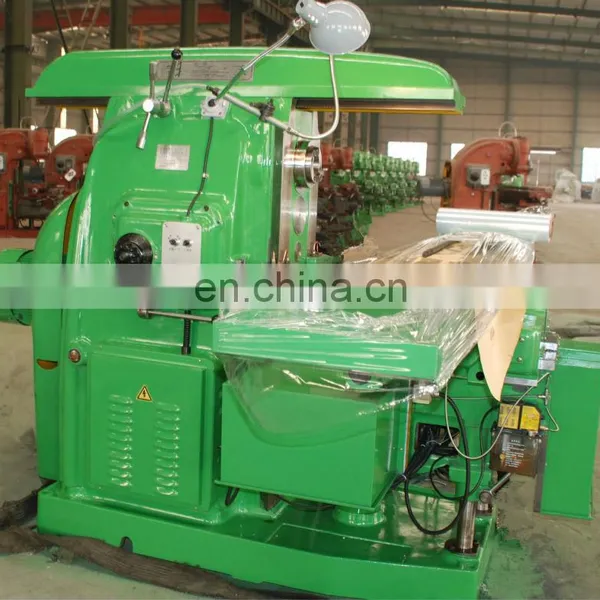

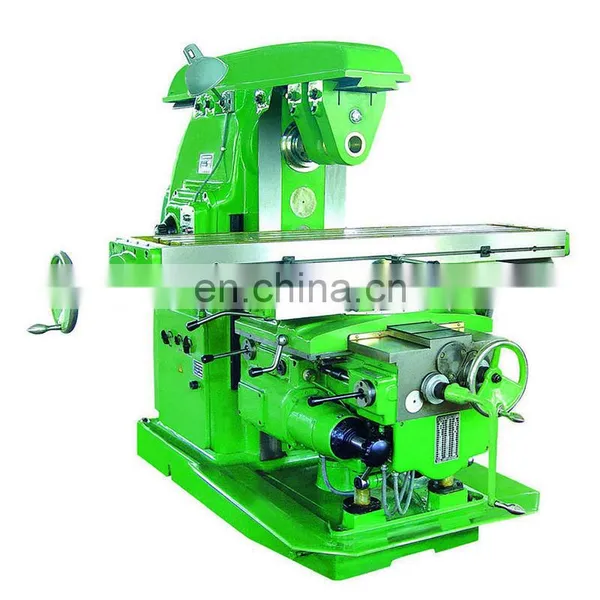

PRODUCT NAME:Universal horizontal Milling Machine X6140
SPECIFICATIONS:
|
Units |
x6140 |
Table size |
mm |
1700x400 |
No.of T-slots |
|
3 |
Width of T-slots |
mm |
18 |
Max load |
kg |
500 |
Longitudinal travel(manual/auto) |
mm |
900/880 |
Cross travel(manual/auto) |
mm |
315/300 |
Vertical travel(manual/auto) |
mm |
380/360 |
Rapid feed speed |
mm/min |
X:2300,Y:2300,Z:770 |
Spindle speed range |
r/min |
30-1500 |
Spindle speed step |
steps |
18 |
Max.swivel angle of spindle |
|
±45 |
Distance between spindle nose and table surface |
mm |
30/410 |
Power of spindle motor |
kw |
11 |
Overall dimensions(LxWxH) |
mm |
2556X2159X1830 |
Net weight |
kg |
3850 |
STANDARD ACCESSORIES:
wrenches,drawbar,foundation bolts,nuts,
washers,oil gun, lump ,mill cutter arbors
OPTIONAL ACCESSORIES(charge separately):
deviding head, DRO(for two axis or three axis),machine vise,rotary table,mill chuck,boring cutter holder,
facing cutter,vertical mill cutter,etc.
WHY CHOOSE US?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine
X6140/X6132,radial milling machine X6330, etc.
The sales performance, satisfied accessories,longtime work team experience,
stability & durability of the machines are our best selling points!
|
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. |
|
|
Assembly shop
|
|
|
Warehouse |
|
|
Casting
|
|
|
The main parts gear
|
|
