X6132 Universal Knee Type Milling Machine

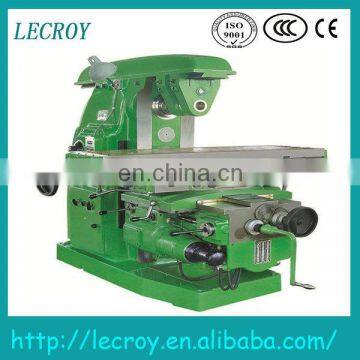

X6132 Universal Knee Type Milling Machine photo-1

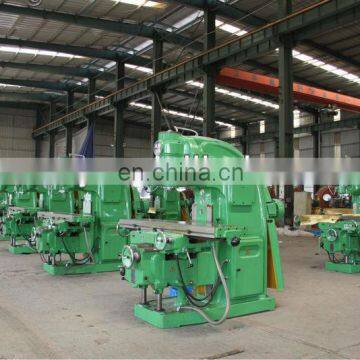

X6132 Universal Knee Type Milling Machine photo-2
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
lecroy
Place of Origin:
Jiangsu, China
Model Number:
X6132 universal knee type milling machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name lecroy
Place of Origin Jiangsu, China
Model Number X6132 universal knee type milling machine
After-sales Service Provided Overseas third-party support available
Condition New

PRODUCT NAME:X6132 universal knee type milling machine



SPECIFICATIONS:



Item Units X6132
Table Table size mm 320*1325/1600
No.of T-slots   3
Width of T-slots mm 18
Max load kg 500
Distance between T-slots mm 70
Travel Longitudinal travel(manual/auto) mm 700/680,980/960
Cross travel(manual/auto) mm 245/230
Vertical travel(manual/auto) mm 320/300
Spindle Spindle taper   7:24(ISO NO.50)
Spindle bore diameter mm 29
Spindle speed range r/min 30-1500
Spindle speed step steps 18
Axial mootion mm 85
Max.swivel angle of spindle   ±45
Distance from spindle nose to table surface min/max. mm 215/470
Distance from centre line of spindle to vertical guideway surface of column mm 30/350
Feedrate Cutting feed rate mm/min X:23.5-1180,Y:15-786,Z:8-394
Rapid feed rate mm/min X:2300,Y:2300,Z:770
NO. of feed mm 18
Motor Power of spindle motor kw 7.5
Power of feed motor kw 2.2
Others Overall dimensions(LxWxH) mm 2294X1170X1665
Net weight kg 2850

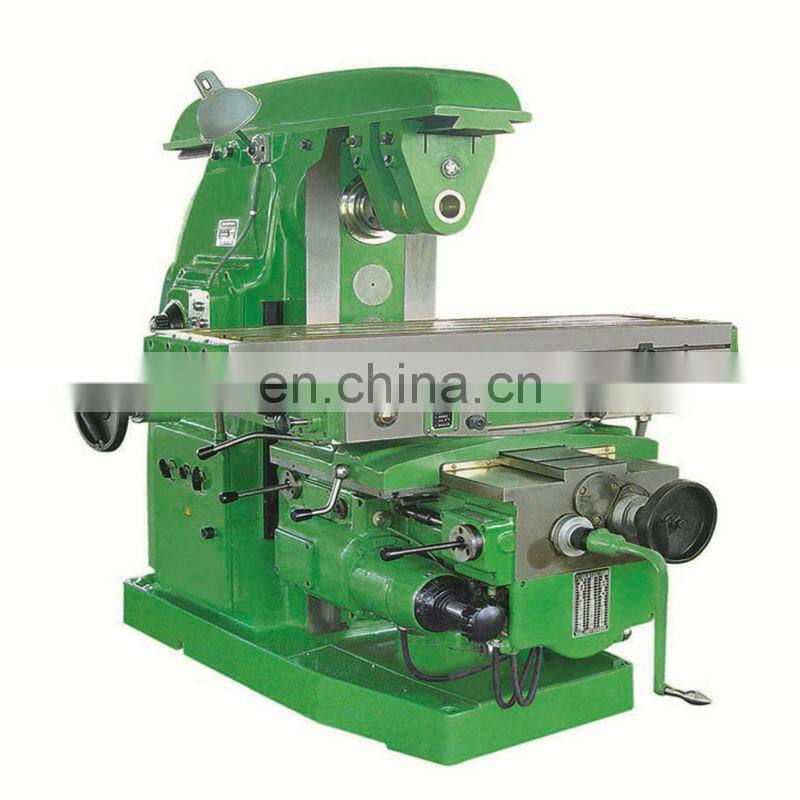

 X6132 universal knee type milling machine

STANDARD ACCESSORIES:

Wrenches/spanners,drawbar,foundation bolts ,nuts,washers,oil gun

lump ,mill cutter arbor



OPTIONAL ACCESSORIES(charge separately):

deviding head, DRO(for two axis or three axis), machine vise,rotary table(TS400),mill chuck,boring cutter holder,

facing cutter,vertical mill cutter,vertical milling head,etc.



WHY CHOOSE US?



We are the MANUFACTURER of high quality milling machine with competitive price!



Such as vertical milling machine X5040/X5032, universal horizontal milling machine

X6140/X6132,radial milling machine X6330, etc.



The  sales performancesatisfied accessories,longtime work team experience,

stability & durability of the machines are our best selling points!



Company Brief

Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.



   X6132 universal knee type milling machine

Assembly shop of vertical machining center

  We follow strict assembly technique after we check each parts are eligible.

   X6132 universal knee type milling machine

Assembly shop



   X6132 universal knee type milling machine



 Warehouse

   X6132 universal knee type milling machine

Casting





   X6132 universal knee type milling machine

 The main parts

  gear





   X6132 universal knee type milling machine
