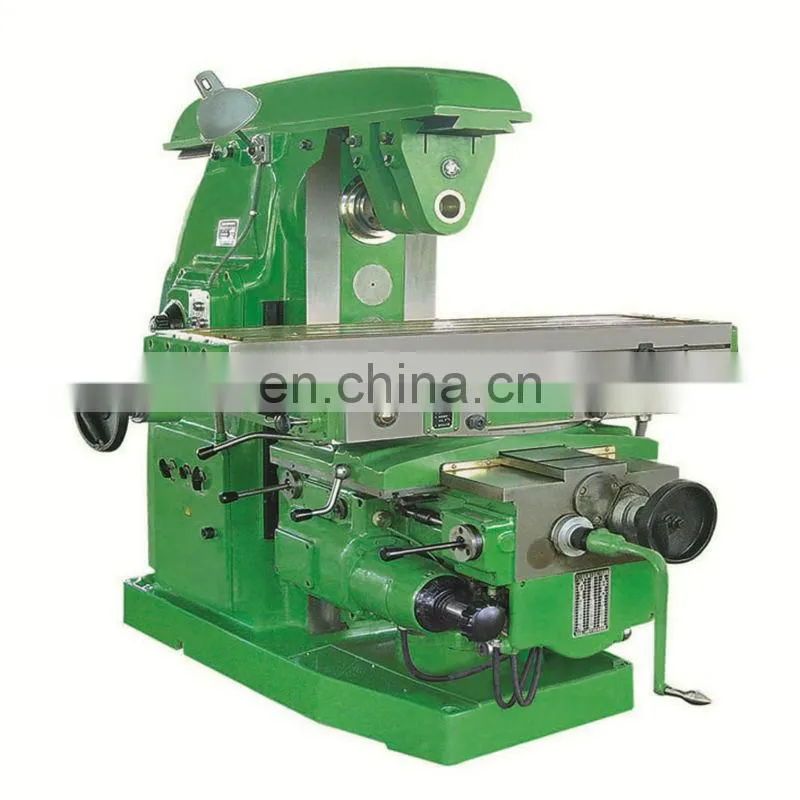

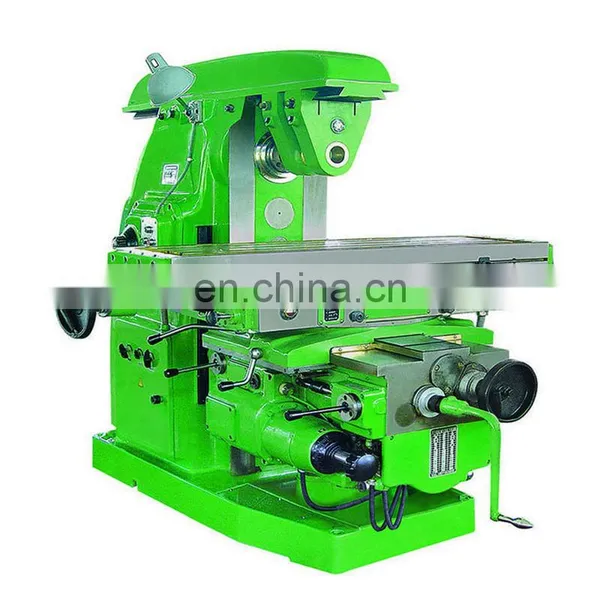

PRODUCT NAME:Metal processing knee type universal miller
SPECIFICATIONS:
| Item | Units | X6132 | |
| Table | Table size | mm | 320*1325/1600 |
| No.of T-slots | 3 | ||
| Width of T-slots | mm | 18 | |
| Max load | kg | 500 | |
| Distance between T-slots | mm | 70 | |
| Travel | Longitudinal travel(manual/auto) | mm | 700/680,980/960 |
| Cross travel(manual/auto) | mm | 245/230 | |
| Vertical travel(manual/auto) | mm | 320/300 | |
| Spindle | Spindle taper | 7:24(ISO NO.50) | |
| Spindle bore diameter | mm | 29 | |
| Spindle speed range | r/min | 30-1500 | |
| Spindle speed step | steps | 18 | |
| Axial mootion | mm | 85 | |
| Max.swivel angle of spindle | ±45 | ||
| Distance from spindle nose and table surface min/max. | mm | 215/470 | |
| Distance from centre line of spindle to vertical guideway surface of column | mm | 30/350 | |
| Feedrate | Cutting feed rate | mm/min | X:23.5-1180,Y:15-786,Z:8-394 |
| Rapid feed rate | mm/min | X:2300,Y:2300,Z:770 | |
| NO. of feed | mm | 18 | |
| Motor | Power of spindle motor | kw | 7.5 |
| Power of feed motor | kw | 2.2 | |
| Others | Overall dimensions(LxWxH) | mm | 2294X1170X1665 |
| Net weight | kg | 2850 | |
|
STANDARD ACCESSORIES: Wrenches/spanners,drawbar,foundation bolts ,nuts,washers,oil gun, lump ,mill cutter arbor
OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table(TS400),mill chuck,boring cutter holder,facing cutter,vertical mill cutter,vertical milling head,etc.
WHY CHOOSE US?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc.
The sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points! |
|
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. |
|
|

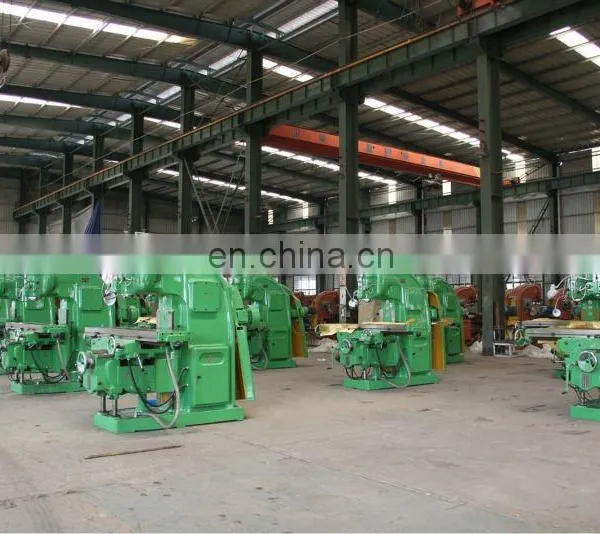

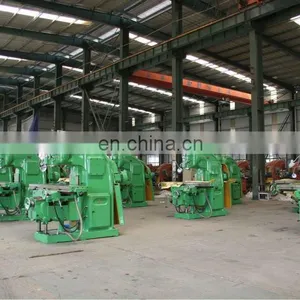

Assembly shop
|
|
|
Warehouse |
|
|
Casting
|
|
|
The main parts gear
|
|
