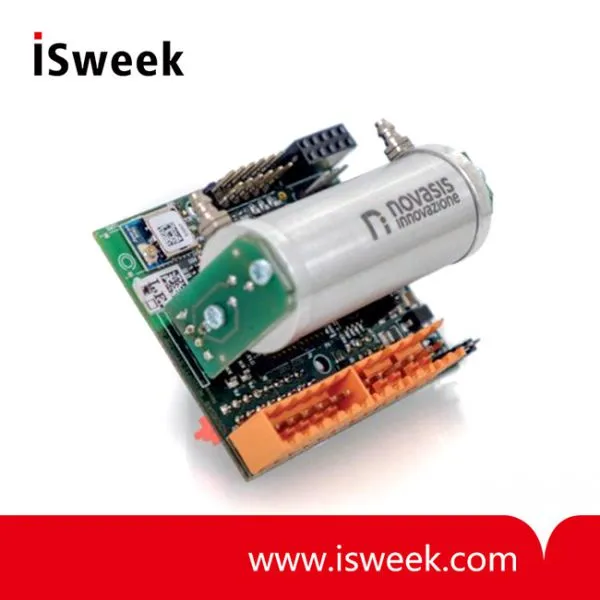

Novagas2 Compact Infrared Gas Module - NG2 Series

Novagas2 Compact Infrared Gas Module - NG2 Series thumbnail-1
Novagas2 Compact Infrared Gas Module - NG2 Series photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Novasis Innovazione
Place of Origin:
Italy
Model Number:
NG2 Series
Contact Supplier Request Quote Chat Now
Shenzhen Isweek Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Novasis Innovazione
Place of Origin Italy
Model Number NG2 Series
Usage Gas Sensor
Theory Other, Infrared Sensor

Novagas2 Compact Infrared Gas Module Description
Novagas2 is an innovative gas sensor for the measurement of CO2, CO, CH4, HC and N2O gas concentrations with automatically temperature compensation. Based on client needs, it can be easily integrated into existent measurement systems or monitoring  instruments.  It's a smart sensor characterized by native chips for wireless transmission, charging systems, energy recovery and sensor fault diagnostics.

Novagas2 Compact Infrared Gas Module Technical Data

Detection Method
 Dual channel Non-Dispersive InfraRed (NDIR)
Dimensions
 depending on the sensor model (type of gas and range)
Source drive freq.
 1 to 2Hz
Data refresh rate
 5 to 10 seconds
Response time (t90)
 15 to 40s @20°C ambient and @1l/min
Warm up time
Operating conditions
 Temperature 0°C to 50°C linear compensated
Humidity       0-95% RH (non-condensing) not compensated
Pressure       800-1150hPa not compensated
Pressure dependency
 +1.5% reading per kPa deviation from normal pressure of 100kPa
Analog Output
 4-20mA, 0-5V
Analog Input
 2 available for third-party devices
Digital I/O
 4 OUT: Open collector, ground referred, protected
4 IN: 0-5 V protected up to 24Vdc
Pipe connection
 For tube with diameter ø4/ø2.5mm
Interface connection
 UART (TTL level), baud rate: 9600 (default) - 19200 - 38400
Power supply
 9-24V DC, reverse protected
Power consumption
 max 90mA @ 9VDC, excluding pump power absorption
Connector type
 On module connectorMating connectorPower Supply:WeidmüllerSL3.5/2/180G3.2WeidmüllerBL3.5/2Analog I/O:WeidmüllerSL3.5/2/180G3.2WeidmüllerBL3.5/6Pump:WeidmüllerSL3.5/2/180G3.2WeidmüllerBL3.5/2Digital I/O:TE Connectivity*215307-5TE Connectivity826656-5Analog Out (0-5V):TE Connectivity*8-215464-6TE Connectivity8-215079-6Power Supply & UART TTLlevel (0-5V):TE Connectivity7-215464-6TE Connectivity7-215079-6
Storage temperature
 -40°C to 85°C
MTBF
 >5 years

* not mounted, available on request

Novagas2 Compact Infrared Gas Module Specifications

Gas
 Measurement Range*
 Accuracy**
Zero Res.
(ppm)
Full Scale
Res.
Zero
Repeatability
(ppm)
Full Scale
Repeatability
(ppm)
 Model
CO2
 0-1000ppm****
 ±1% FS
 1
 1% FS
 ±5
 ±10
 NG2-A-7
0-2000ppm
 ±1% FS
 1
 1% FS
 ±10
 ±25
 NG2-A-8
0-5000ppm
 ±1% FS
 1
 2% FS
 ±10
 ±50
 NG2-A-1
0-1%
 ±2% FS
 1
 2% FS
 ±25
 ±200
 NG2-A-9
0-5%
 ±2% FS
 1
 2% FS
 ±25
 ±250
 NG2-A-6
0-10%
 ±2% FS
 1
 2% FS
 ±25
 ±250
 NG2-A-2
0-25%
 ±2% FS
 1
 1% FS
 ±50
 ±500
 NG2-A-3
0-100%
 ±1% FS
 1
 1% FS
 ±1000
 ±5000
 NG2-A-4
0-100% biogas***
 ±1% FS
 1
 1% FS
 ±1000
 ±5000
 NG2-A-11I
CO
 0-2000ppm
 ±1% FS
 5 1% FS
 ±10
 ±70
 NG2-B-1
0-4000ppm****
 ±1% FS
 5 1% FS
 ±20
 ±70
 NG2-B-3
0-2%****
 ±1% FS
 5 1% FS
 ±20
 ±400
 NG2-B-4
0-5%****
 ±1% FS
 5 1% FS
 ±20
 ±600
 NG2-B-5
CH4
 0-2000ppm
 ±4% FS
 5 ±4% FS
 ±15
 ±100
 NG2-C-1
0-4000ppm****
 ±4% FS
 5 ±4% FS
 ±20
 ±100
 NG2-C-6
0-100% LEL
 ±2% FS
 15 ±4% FS
 ±50
 ±500
 NG2-C-2
0-100% vol. biogas***
 ±2% FS
 500 ±2% FS
 ±1000
 ±5000
 NG2-C-3I
0-100% vol.****
 ±2% FS
 300 ±2% FS
 ±500
 ±3000
 NG2-C-4
HC
 0-2000ppm
 ±4% FS
 5 4% FS
 ±15
 ±100
 NG2-D-1
0-100% LEL
 ±2% FS
 15 4% FS
 ±50
 ±500
 NG2-D-2
N2O
 0-100ppm
 ±2% FS
 1 2% FS
 ±3
 ±3
 NG2-F-3
0-2000ppm
 ±1% FS
 1 1% FS
 ±10
 ±20
 NG2-F-1

* Other measurement ranges available on request;
** Stated accuracy excludes calibration gas tolerance of ± 1%;
*** Corrosion-proof gas cell;
**** Delivery time depends on gas availability and quantity

Novagas2 Compact Infrared Gas Module Sensor dimensions

Model
 Dimensions (LxWxH)
NG2-A-1, NG2-A-2 ,  NG2-A-4, NG2-A-6, NG2-A-7, NG2-A-8,
NG2-A-9, NG2-A-11I, NG2-C-2, NG2-C-3I, NG2-C-4, NG2-D-2
 56mm x 48mm x 38mm
NG2-B-1, NG2-B-3, NG2-B-4, NG2-B-5, NG2-C-1, NG2-C-6,
NG2-D-1, NG2-F-1, NG2-F-3
 306mm x 48mm x 43mm
NG2-A-3
 56mm x 48mm x 43mm
