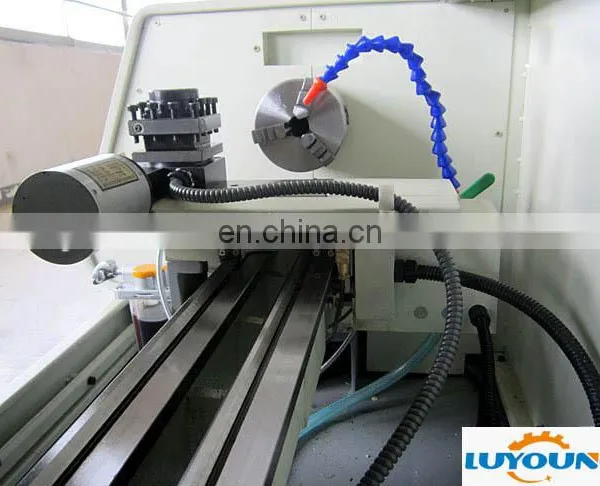

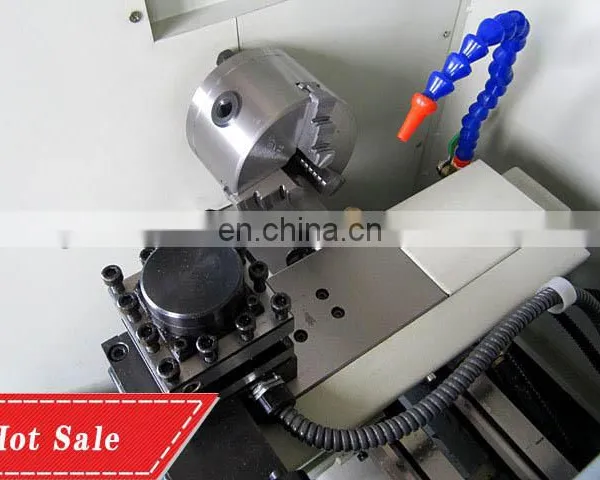

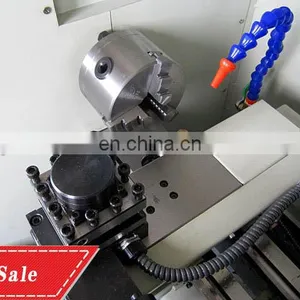

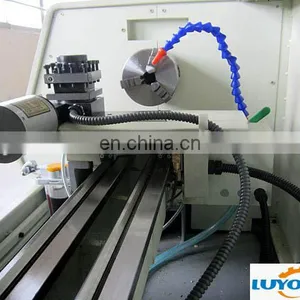

Cheap Small cnc teach lathe for school with Siemens Fanuc Mach3
Our advantage:
- 20 years experiences in cnc lathe machine reserach and production.
- Mechanical precision of our cnc lathe machine meet or exceed international standards
- High reliability ,long lifetime to 10 years
- Friendly factory price
- One year warranty for whole machine,GSK CNC System is 3 years
- Professional engineer team to help you choose the suitable model and configuration.
- 7X24 hours telephone or online technology support for free.
The Specification :
Machining accuracy |
0.015mm |
Max swing over bed |
200mm |
Max clamping diameter |
80mm |
X travel |
80mm |
Z travel |
280mm |
Spindle speed |
300~1750rpm±10% |
Fast moving |
2000mm/min |
The fastest feeding speed of Z axis |
2000mm /min |
The fastest feeding speed of X axis |
1000mm /min |
Tool turret |
4 station |
Rotary accuracy of tools |
0.005mm |
Spindle bore |
20mm |
Coolant |
With |
Turning screw function |
with |
Taper of spindle bore |
MT3 |
Taper of tailstock sleeve |
MT2 |
Power |
500W |
Electronic handwheel |
w |
Ball screw |
C5 ball screw |
Net/ Gross weight |
145/160kg |
Dimension of machine |
1000× 700 × 580 |
Dimension of package |
1100 × 800 × 680 |
System |
HNC-18XP/T,Optional Mach3,GSK,SIEMENS808D etc. |
CK57 Is one of popular mini hobby cnc lathe machine,we supply mach3,and other cnc conroller such as gsk,siemens,fanuc,If you have special requirment,pls kindly let us know.
Let’s talk more online!
About us
|
|
|
|
|
|
|
|
|
|
|
|
We have 20 years experiences in cnc machine export.
- According the weight of our machine,we desgin defferent package to insure the transportation safety.
- We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
Any other question,pls kindly contact with us!
