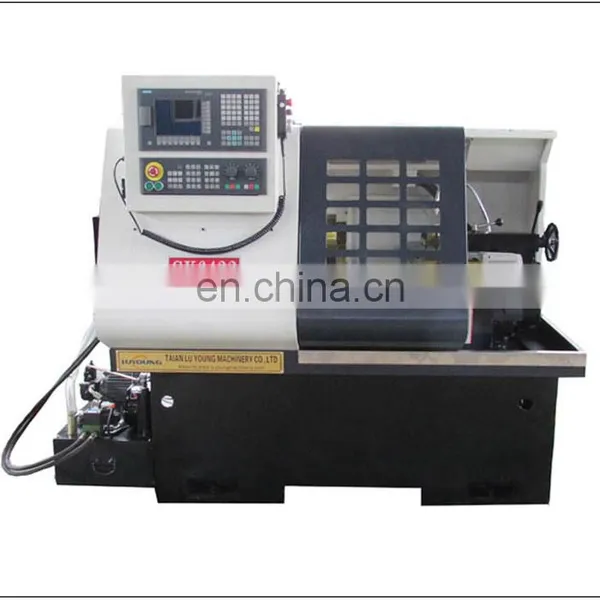

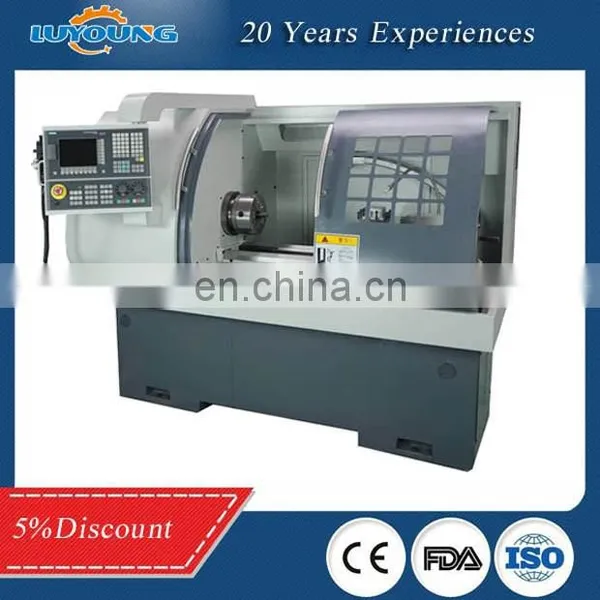

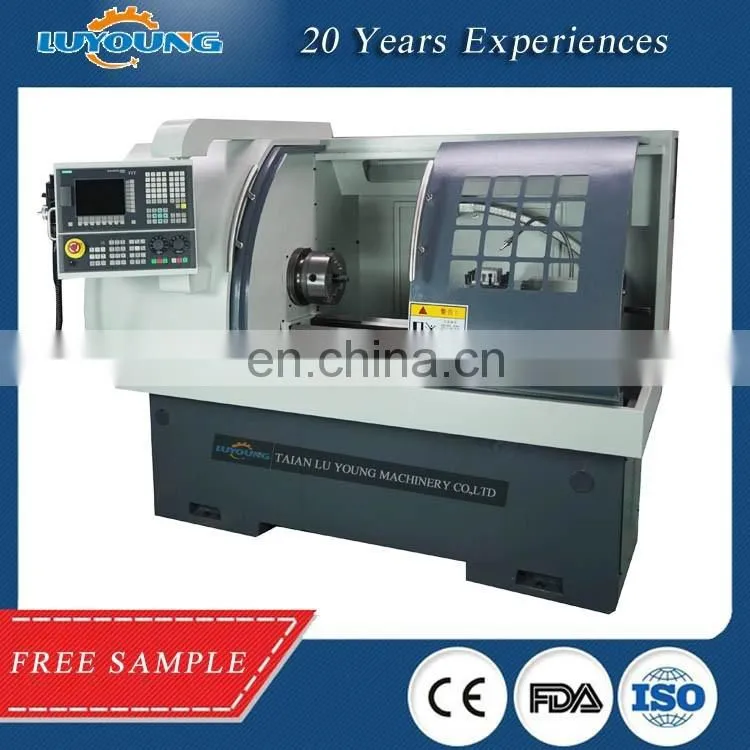

CK6432 Small CNC Lathe Machine with Manual or hydraulic chuck factory in China
| Specification for Small CNC Lathe Machine CK6432 | ||
| Item | CK6432 | |
| Max. swing dia. over bed | 360mm | |
| Max. swing dia. over cross slide | 150mm | |
| Max. processing length(mm) | 450 | 700 |
| Dia. of spindle hole | 60mm | |
| Spindle speed | 150-2500rpm | |
| spindle taper | MT6 | |
| Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | |
| Tool bar section | 20x20 | |
| Main motor power | 4kw | |
| X/Z axis fast feeding speed | 8/10 m/min | |
| X/Z axis position accuracy(mm) | 0.01/0.015 | |
| X/Z-axis repeatability(mm) | 0.012/0.013 | |
| Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |
| Tailstock sleeve dia. | 60 | |
| Tailstock sleeve travel | 100mm | |
| Tailstock taper | MT4 | |
| Dimension | 1660X1400x1700 | |
| 1940x1400x1700 | ||
| Weight(kg) | 1250 | 1450 |
| Standard configuration: | Optinal configuration: | |
| GSK928 CNC Controller | Siemens,Fanuc cnc controller system | |
| Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | |
| 3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | |

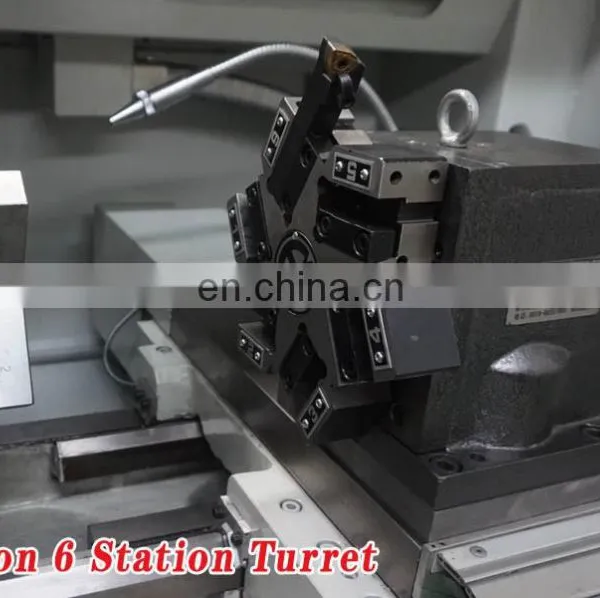

| 4 station electric tool post | 6 staion tool turret,8staiton tool turret | |
| Auto lubrication system | Auto feeder system | |
| lighting system | Chip conveyor | |
| cooling system | ||

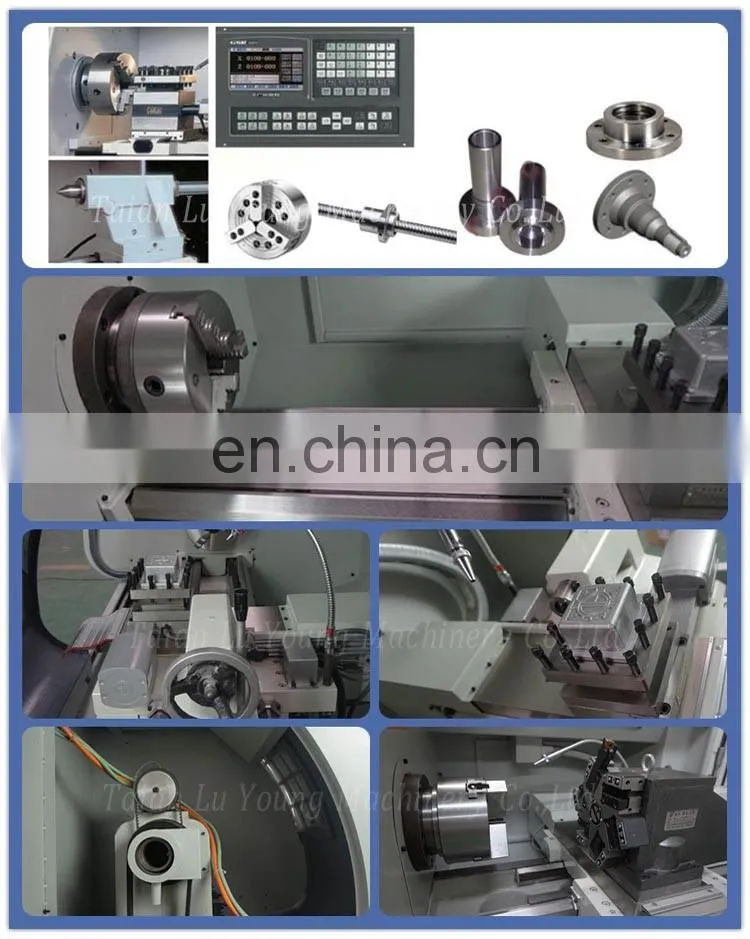

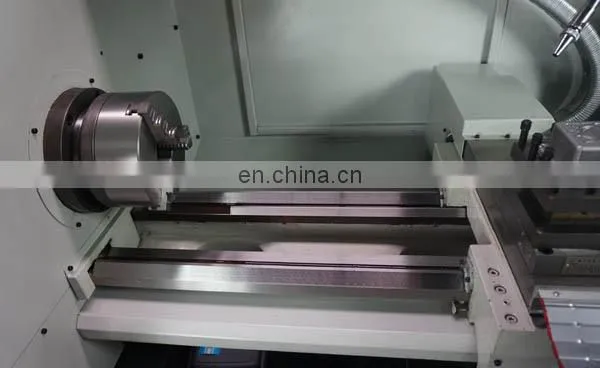

| Products Detail : |

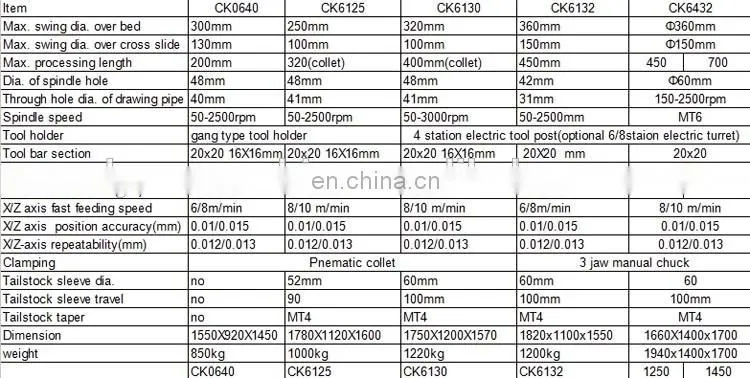

| Small Flat Bed CNC Lathe Machine Series | ||||||
| ||||||
| |
| |
|
Production Capatity: CNC Lathe Machine:400 sets/year CNC Milling Machine:300 sets/year Other CNC Machine 200sets/year | |
| |
| Workshop Detail: | |
| |
|
About factroy Established in 1995, covers an area of 35,000 square meters,and more than 300 workers in all. |
| Our Customer: |
|
|
|
|

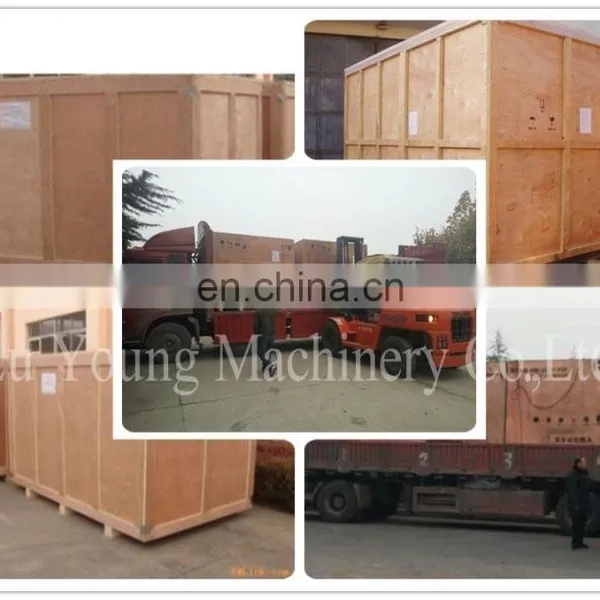

We have 20 years experiences in cnc machine export. According the weight of our machine,we desgin defferent package to insure the transportation safety. We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well. |
| Trade Contact! |
|
You Will Get Best Offer Within 24 Hours Attn : Bruce Yang Mobile &WhatsApp &Wechat : +86-18660852746 Skype :bruceyang688 |
|
