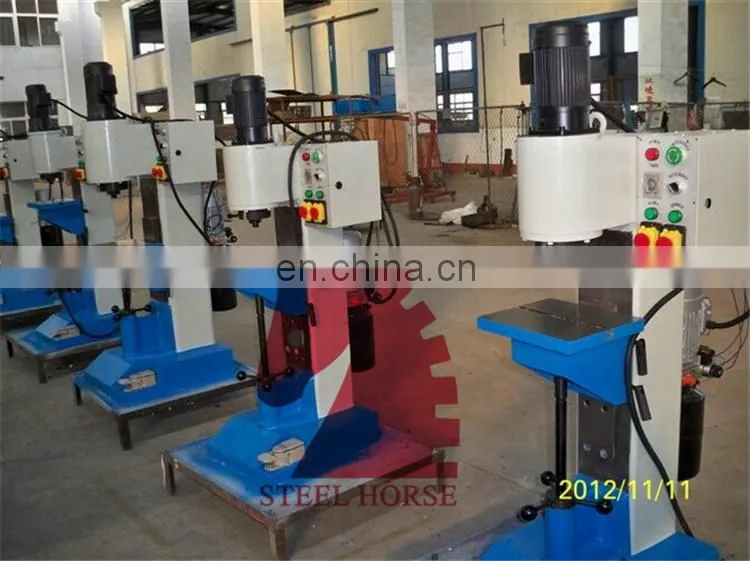

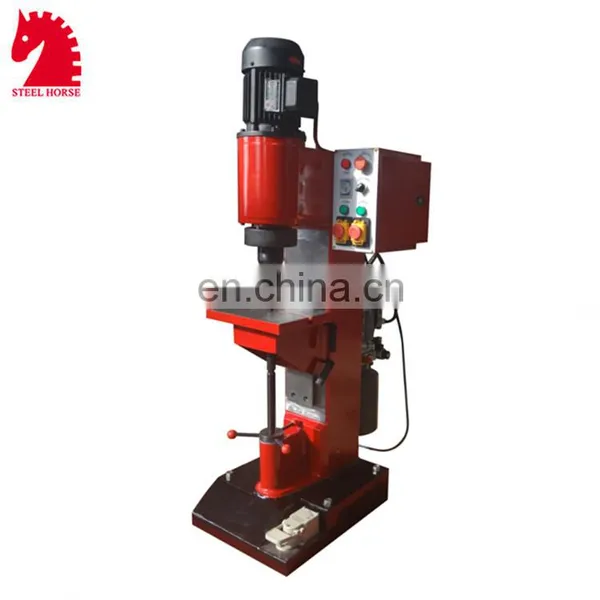

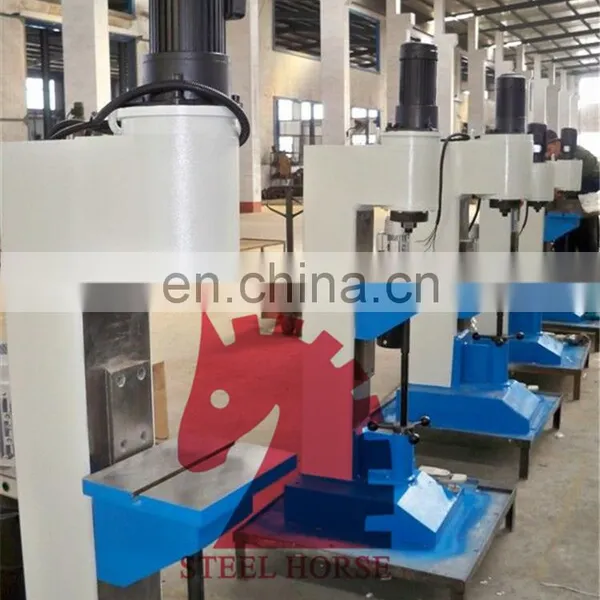

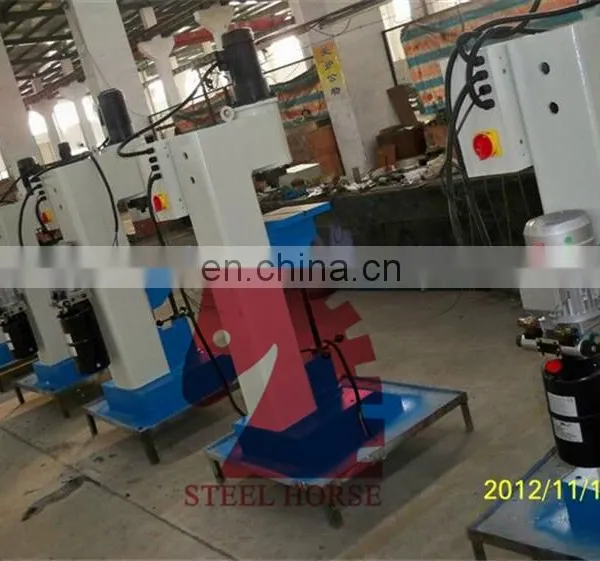

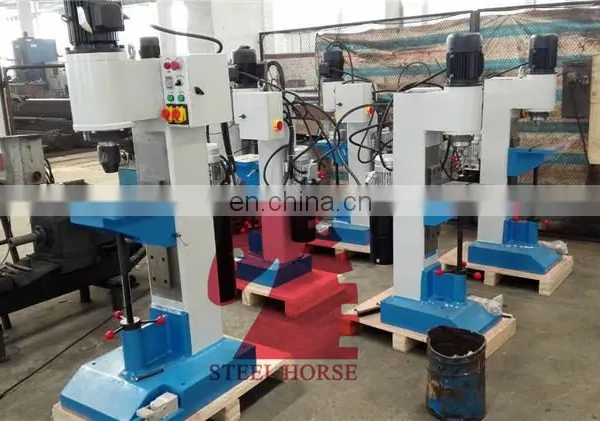

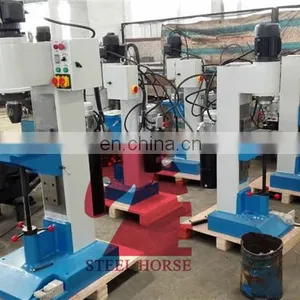

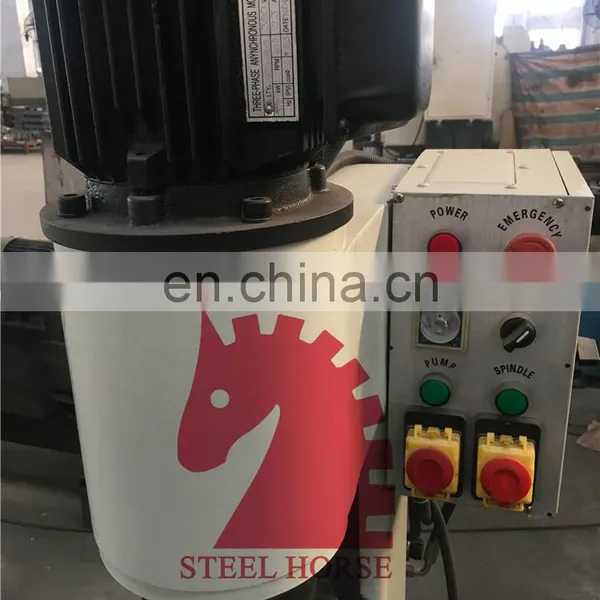

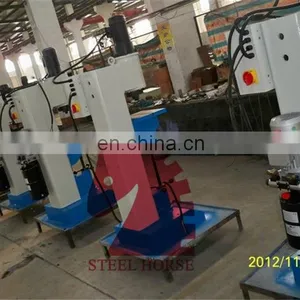

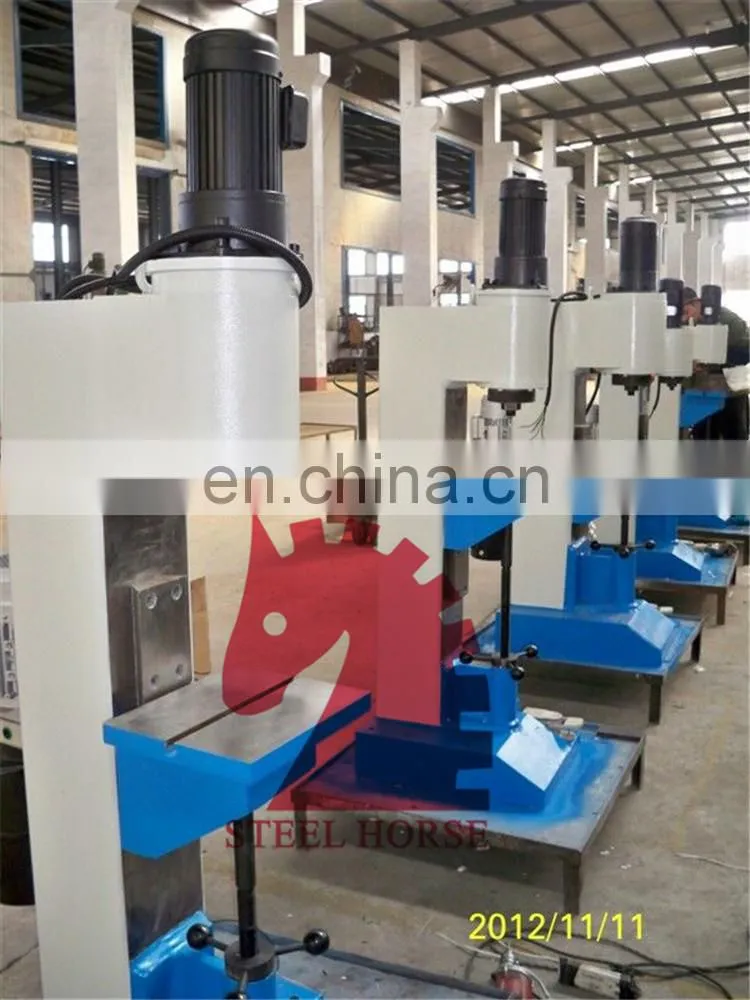

XM series automatic hydraulic riveting machine
XM series riveting machine is one new-style rolling riveter developed according to the principle of cold rolling work.
Compared to the traditional riveting technology, it has the folling obvious advantages:
1.Workpiece can keep fit without deformation after riveting as the riveting forming pressure is small which is only 1/10 pressure of the normal punch riveting;
2. Smooth and nice appearance after riveting;
3. No vibration, low noise, low energy consumption;
4. High efficiency and low cost;
5. Safe and easy operation.
Therefore the rolling riveting is replacing the traditional methods such as hammering, punching and hot riveting.
Now they are extensively used in automobile & motorcycle manufacturing,light industry manufacturing,appliance & instrument,and hardware tools ect.

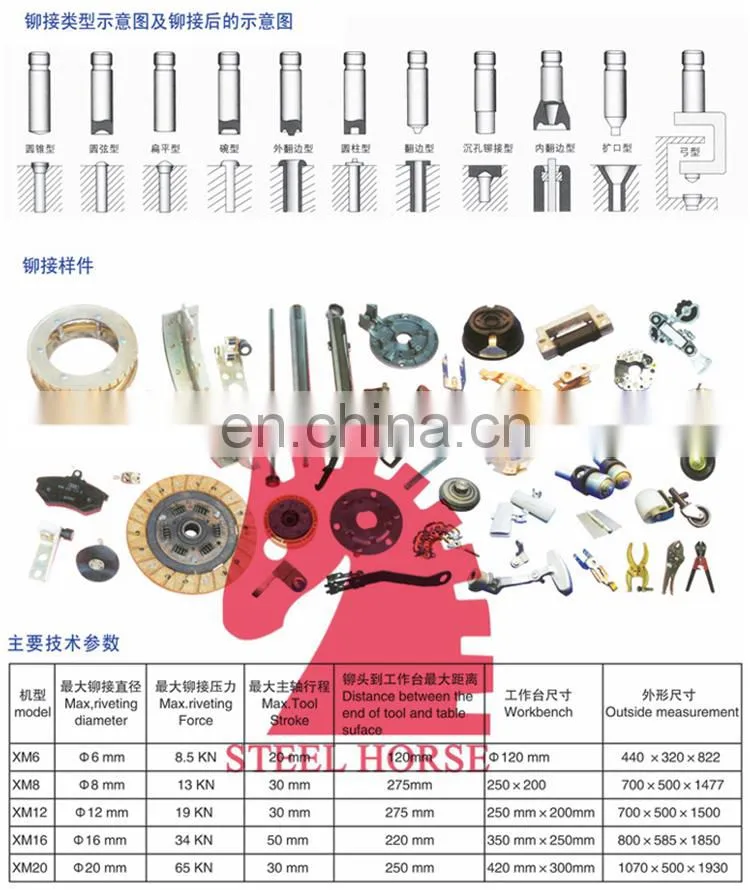

Main specifications of Brake shoe orbital riveting machine:
Model |
Max.riveting dia.(mm) |
Max. pressure(Kn) |
Max.spindle travel(mm) |
Max.distance from head to table (mm) |
Table size(mm) |
Overall dimension(mm) |
XM-5 |
5 |
8.5 |
20 |
120 |
120 |
440X320X822 |
XM-8 |
8 |
13 |
30 |
275 |
250X200 |
700X500X1477 |
XM-10 |
10 |
19 |
30 |
275 |
250X200 |
700X500X1500 |
XM-16 |
16 |
34 |
50 |
220 |
350X250 |
800X585X1850 |
XM-20 |
20 |
65 |
30 |
250 |
420X300 |
1070X500X1930 |
XM-30 |
30 |
100 |
30 |
300 |
500X355 |
1300X580X2200 |
XM-40 |
40 |
150 |
40 |
400 |
650X420 |
1600X680X2300 |
