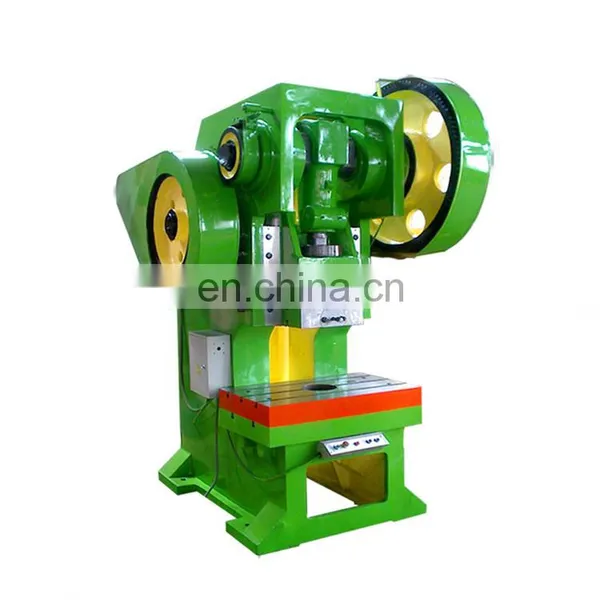

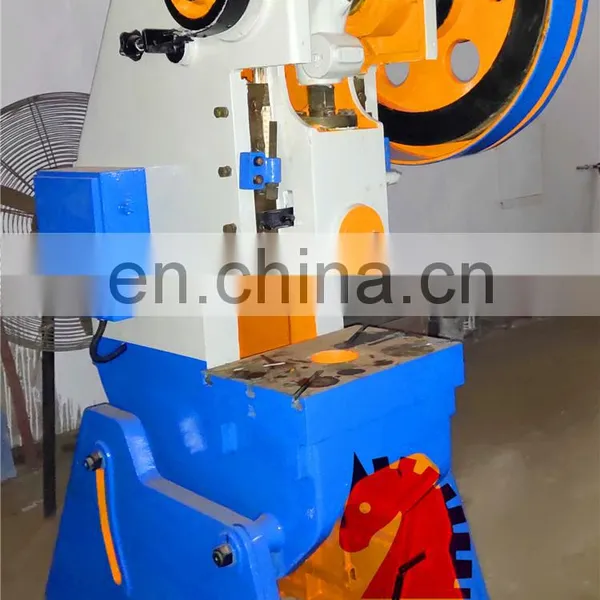

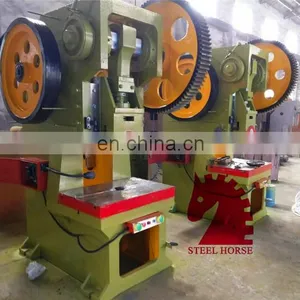

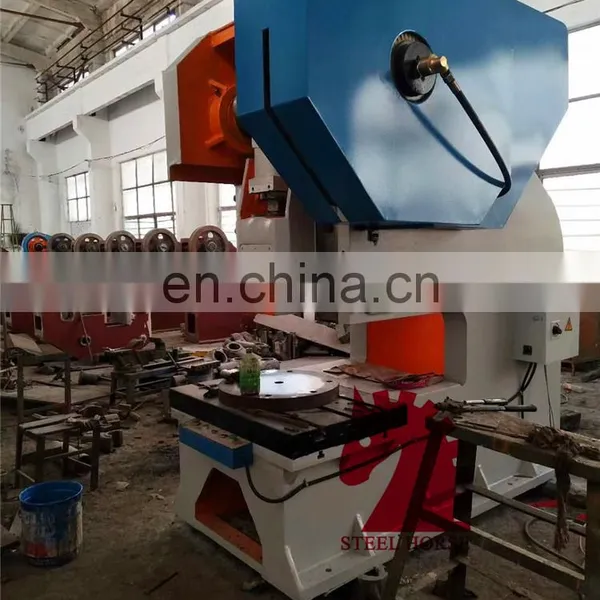

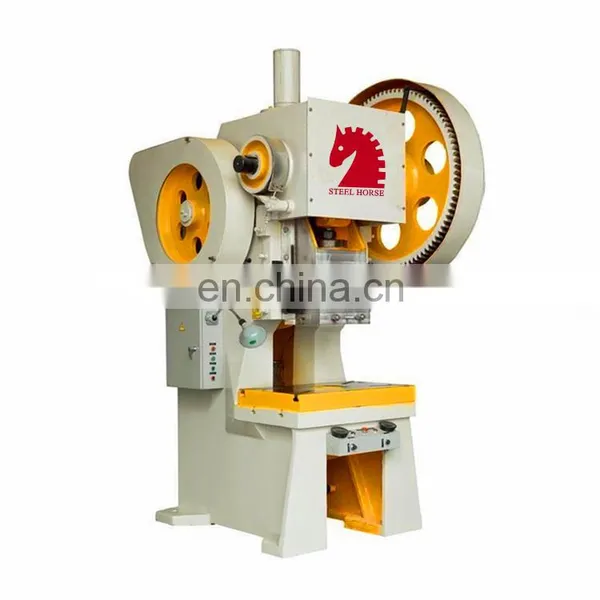

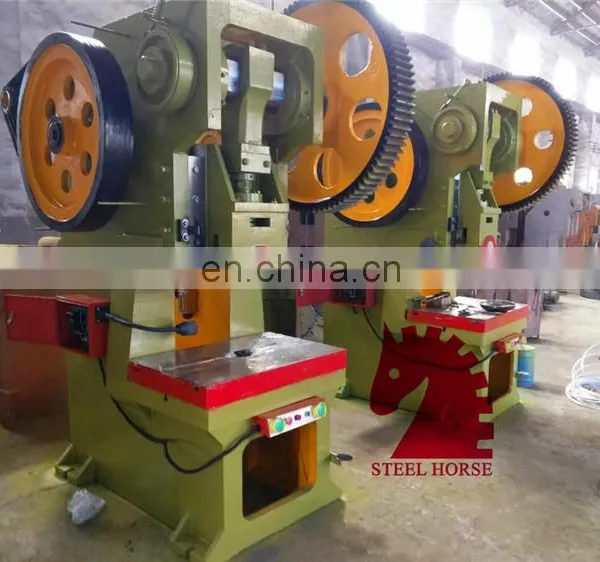

J21 J23 Adjustable and Deep Throat automatic mechanical power press 16 25 40 63 80 ton punching machine price puncher for sale
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
- 2016 trending products 2.2-30KW 1000 ton hydraulic press with low price
- Effect assurance opt hydraulic plate bending machine price in China
- Supply YQ41 single column mini oil press machine
- HP Factory supply automatic H type small hydraulic press machine
- Trending products Single column hydraulic press machine
- YQ41 Manufacturer supply c frame type hydraulic press machine
Product Details
Brand Name: | Steel horse | Place of Origin: | Shandong, China | Certification: | CE |
Warranty: | 2 Years | Weight: | 240kg | ||
Dimension(L*W*H): | 1000*1000*2000mm | Voltage: | 220/380 | Condition: | New |
Power(W): | 2.2-30KW | CNC or Not: | Normal | Power Source: | Hydraulic |
Product Description
Manufacturer J21 J23 Adjustable and Deep Throat automatic mechanical power press 16 25 40 63 80 ton punching machine price puncher for sale
Mechanical characteristics:
- Fram : The frame is of all steel construction, fabricated from Rolled steel plates with suitable cross ribbings. Presses up to 30T will be supplied with C.I. legs. proper alignment of the frame is ensured by machining.
- Clutch : The clutchis of pin/rolling key-type. the clutch is rigid and well supported. the clutch gives continuous strokes for mass production
- Crank Shaft : Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy
- Flywheel : Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running
- Gears : Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine
- Table & Ram : Table and fam are made pf high grade heavy duty cast iron & properly seasoned. They are perfectly aligned, to each other to obtain high accuracy & precision press operation

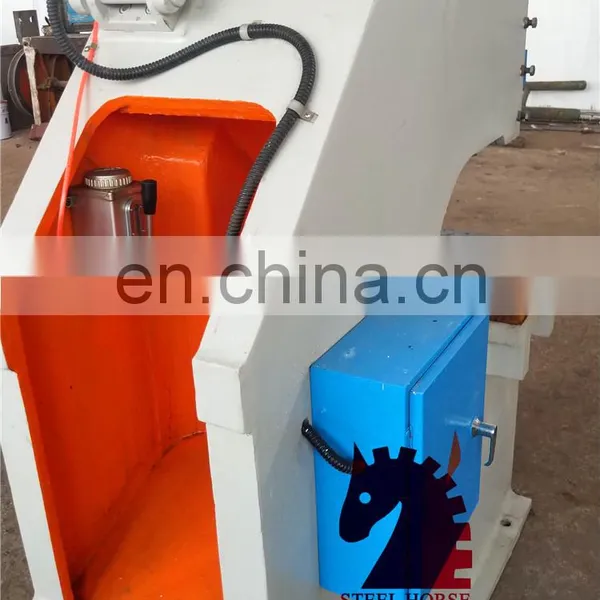

- Lubrication : An efficient shot luvrication system has been provided for lubricating the sliding surfaces and moving parts. The lubricant is applied by hand pump
- Inclining : Inclinable type presses are provided with inclining mechanism which can be easily det and locked in
- Mechanism : Position by spanners within minutes. the press ils so designed that even in maximum inclined position, it is stable under heavy pressing load
Application:
- Pressing and withdrawing axle and sleeve
- Bending and deep drawing sheet metal
- Straightening, forming, cutting and punching various materials
- Applied in compression trial.
- External cover of computer and sheet metal parts
- OA steel furniture drawer and rail parts
- External cover of air conditioner ,and sth.liked
Model | J21-6.3 | J21-10 | J21-16 | J21S-25 | J21S-40 | J21-63 | J21-80 | J21-100 | J21-125 | ||
Nominal force | KN | 63 | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | |
Stroke under nominal force | mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 | 6 | 6 | |
Max die set height | Mm | 110 | 130 | 170 | 180 | 220 | 270 | 290 | 320 | 320 | |
Die set height adjusdment | mm | 30 | 35 | 45 | 70 | 80 | 80 | 100 | 100 | 100 | |
Worktable dimensions(f.b*l.r) | mm | 200 | 240 | 320 | 400 | 480 | 480 | 4580 | 710 | 720 | |
310 | 360 | 480 | 600 | 710 | 710 | 610 | 1100 | 1200 | |||
Thickness of bolster | mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 120 | |
Size of the handle hole (diameter *depth) | mm | Φ30 | Φ30 | Φ40 | Φ40 | Φ50 | Φ50 | Φ60 | 60 | Φ60 | |
55 | 55 | 60 | 70 | 70 | 80 | 75 | 80 | 80 | |||
Distance between columns of body | mm | 162 | 182 | 220 | 350 | 390 | 450 | 450 | 580 | 580 | |
Motor | Type |
| Y2-90S-6 | Y2-90L-6 | Y2-100L-6 | Y2-100L1-4 | Y2-132M1-6 | Y2-132M1-6 | Y2-160M-2 | Y2-160M-6 | Y2-160L-6 |
power | Kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
