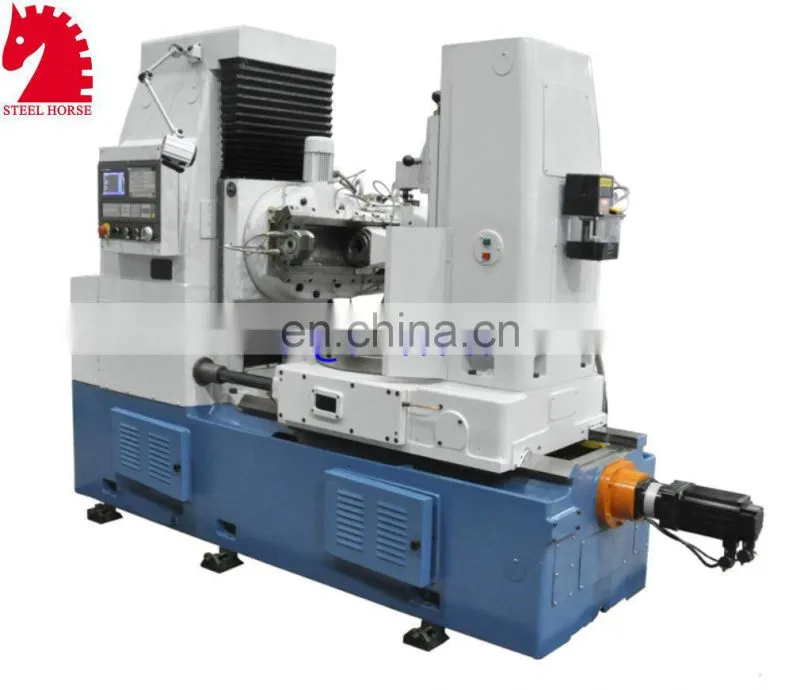

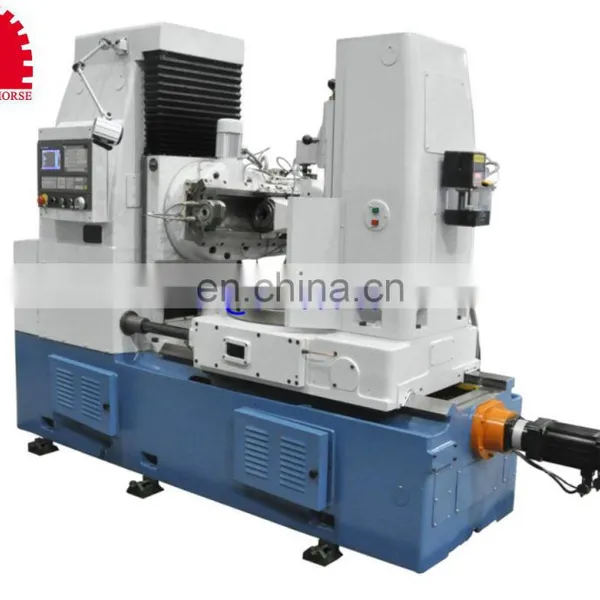

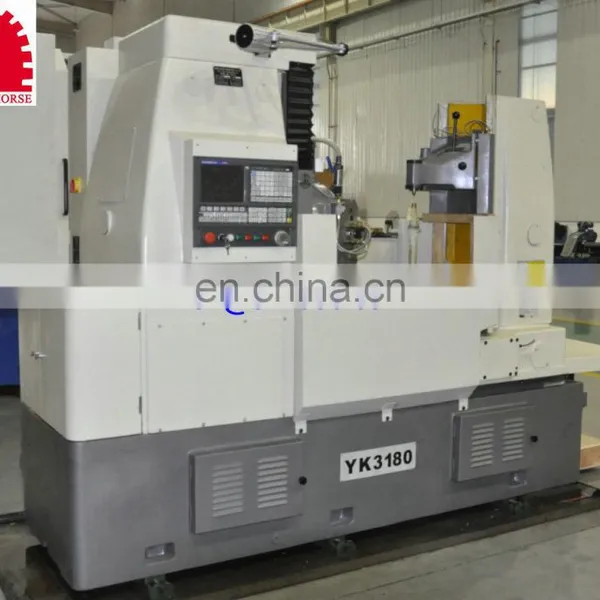

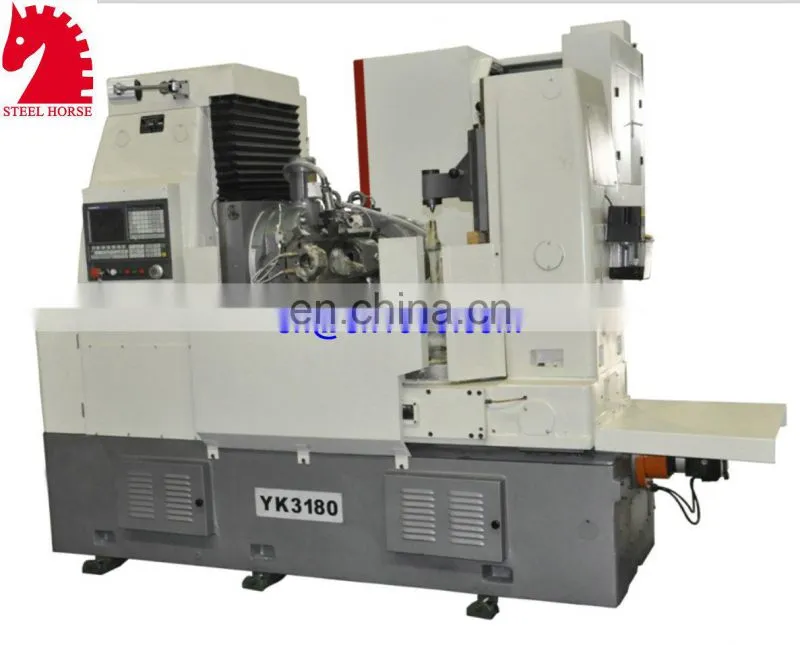

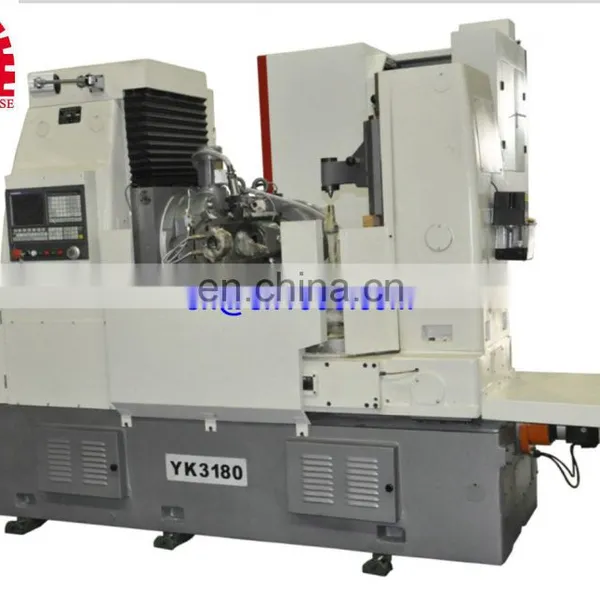

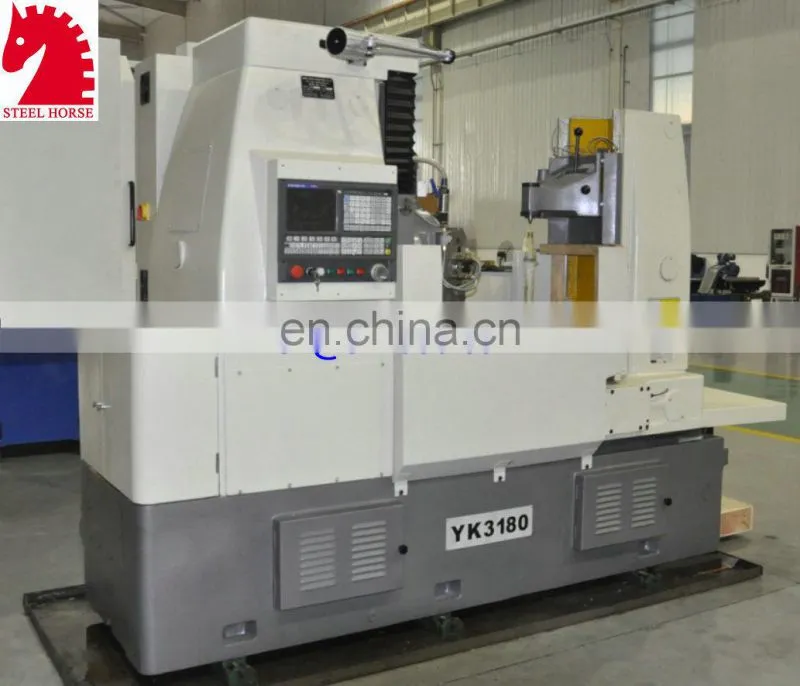

Steel horse High strength Y3180E cnc gear hobbing machine
Y3180H ordinary precision hobbing machine, according to "GB8064-87" "hobbing accuracy standards"
Standard test factory.
Under normal use, the processing accuracy can be achieved "GB10095-88" "involute cylindrical gear
precision," the seven precision.
Machine is suitable batch, small batch and single-piece cylindrical roller cutter and worm gears.
According to user needs, if there are special parts ordering, the available feed roller tangential cut long worm.
Description:

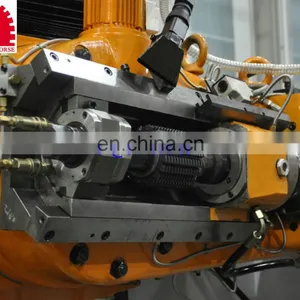

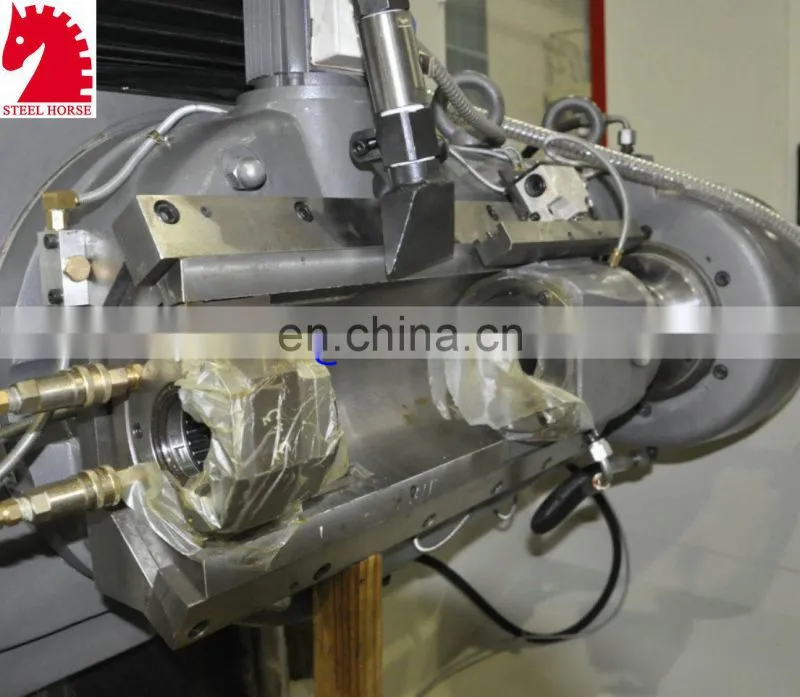

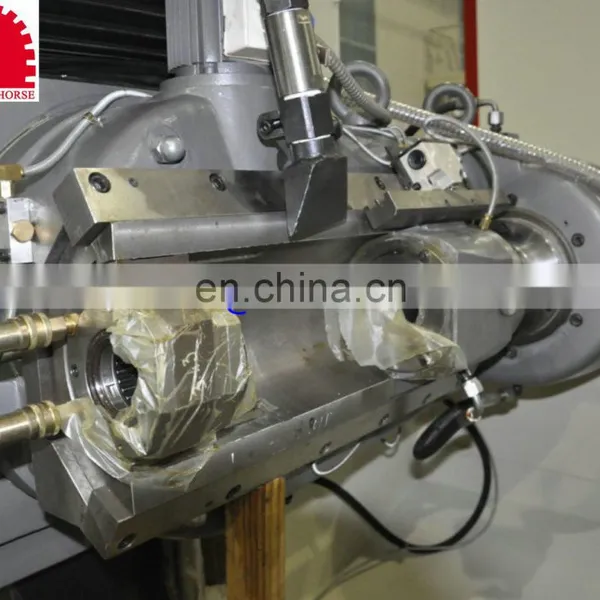

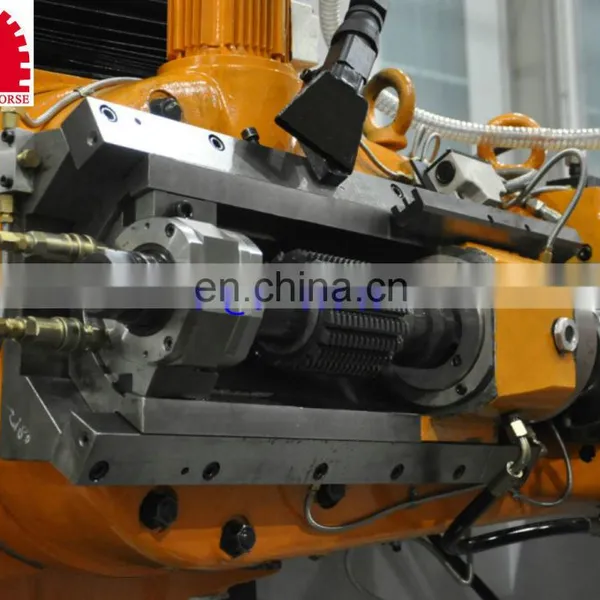

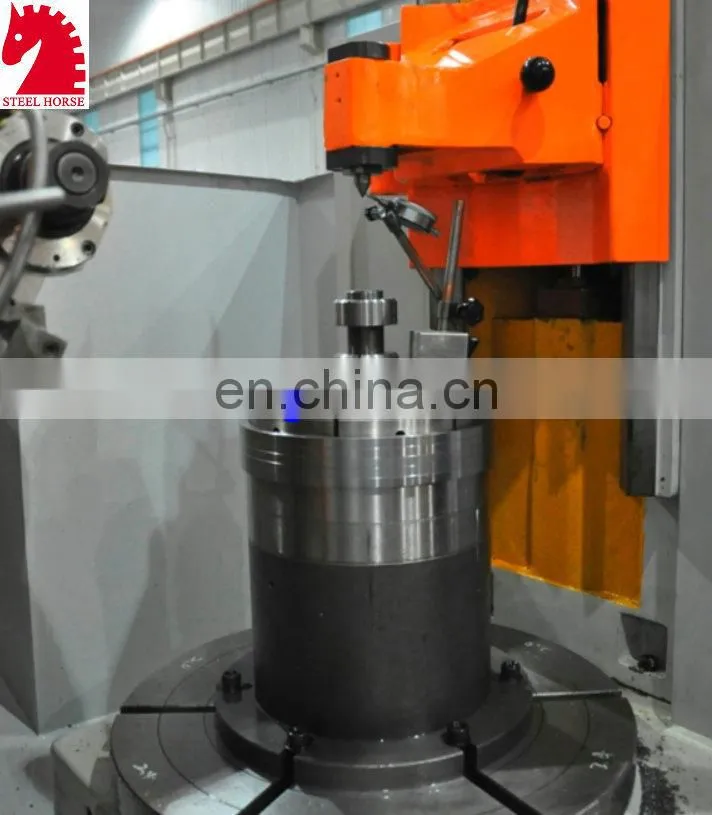

In batch processing of the same specifications of cylindrical gears, the central distance between worktable
and hob should be precisely adjusted.After finishing first gear,move knob 17(see figure 3), so that the
worktable exit driven by the rapid rolling cylinder,remove the processed gear,load gear embryo,revert the
tool head to the original position with fast axial motor,move the knob 17,move the worktable forward driven
by the hydraulic rapid cylinder. At this moment, the worktable return precisely to position of cutting the first gear,
then the second gear can be cut. So when process gears of same specifications, adjust the machine precisely
only when cut the first gear.Only when the machine tool wear to influence precision,the center distance between
worktable and hob should be adjusted once again.
Specifications:
Y3180E |
Units |
Max machining diameter With rear column |
550mm |
Max machining diameter Without rear column |
800mm |
Max modulus |
10 |
Max machining width |
|
Minimum workpiece teeth |
At least Z / K = 8 hob Heads |

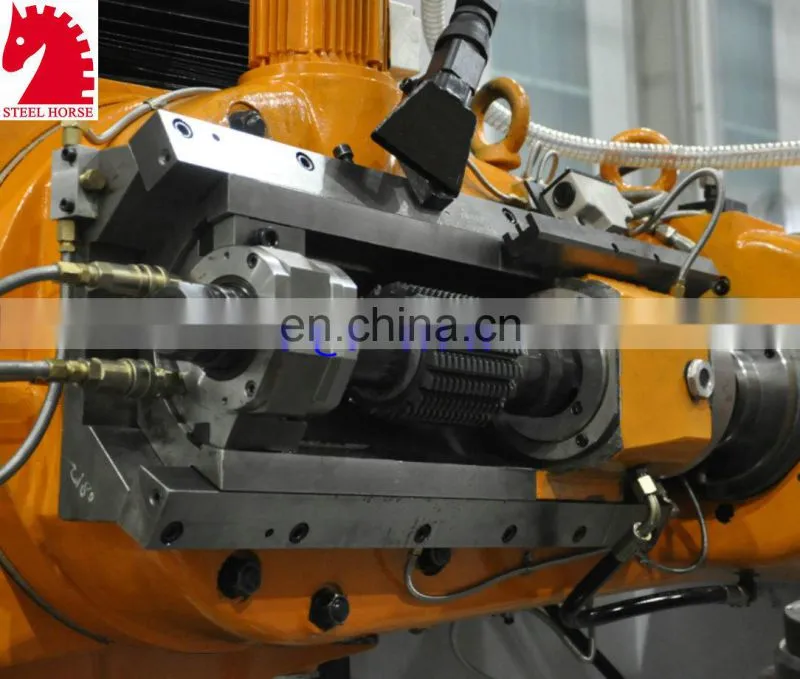

The maximum vertical travel turret |
350mm |
Maximum swivel turret |
240° |
Hob axis from the work surface to a maximum |
585mm |
Hob axis from the work surface to a minimum |
235mm |
Spindle taper |
Morse 5 |

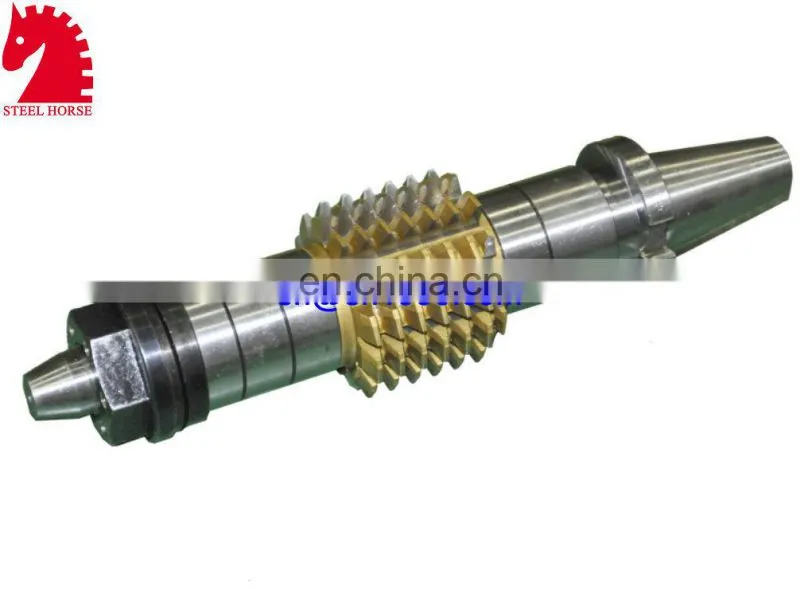

Allow the installation of the maximum diameter of the hob |
180mm |
The maximum length allowed hob installation |
180mm |
The maximum amount of axial movement hob |
50mm |
Hob diameter mandrel |
27 /32/40mm |
Hob axial distance between the axis of the table to the maximum |
550mm |
Hob axial distance between the axis of the table to a minimum |
50mm |
Bench hydraulic fast-moving distance |
50mm |
Table hole diameter |
80mm |
Work spindle taper seat |
Morse 5 |
Table diameter |
650mm |
Spindle speeds and speed range |
8 step 40-200r/min |
Turret skateboard rapid traverse rate |
Not more than 540mm/min |
Table rapid traverse rate |
Not more than 500mm/min |
Table surface bearing outer end face of the bearing bracket to a minimum |
400mm |
Table surface bearing outer end face of the bracket to the maximum |
600mm |
Feed progression and axial feed range |
12 step 0.4-4mm / r |
Main motor power and the synchronous speed |
N=5.5KW,1500r/min |
Axial fast synchronous motor power and speed |
N=1.1KW,100r/min |
Workbench fast and synchronous speed motor power |
N=0.55KW,1500r/min |
Hydraulic pump motor power, synchronous speed |
N=1.1KW,1000r/min |
Machine weight |
5500kg |
Machine outline size (L * W * H) |
2752*1490*1870mm |
Steel Horse machine,is a collection of machine development,testing,production,
sales and integration of joint-stock enterprises.Enterprises with an annual output
of 20,000 sets of various types of machine.Our company was founded in 1990,
in 1995 we shareholding system reform, found "Steel Horse Machine" brand.
With our "Steel Horse Machine" Twenty years in the machinery and equipment
manufacturing industry accumulated abundant capital and the introduction of
foreign advanced technology,in 2007 we spent a lot to create "White Horse
CNC" brand.Enterprise products have been metal processing, automotive,
military,aerospace and other key industries widely used.
Steel Horse machine"quality first,faith forever" as the purpose,we willing to cooperate
sincerely with friends at home and abroad for common development.
