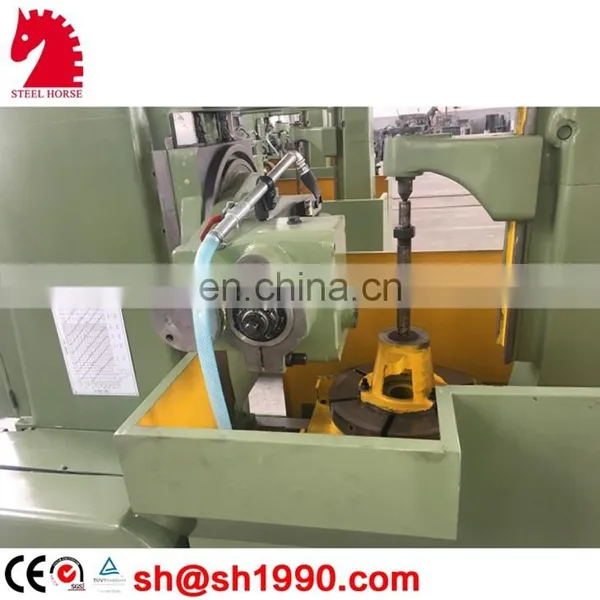

Economy Y3150-3 gear hobbing cutter machine
The machine is suitable for processing bulk and single-piece production spur gears, helical gears, worm and sprockets.
This machine has good rigidity, high strength, high precision, easy operation, adjustment and maintenance simple.
Hwasun milling methods can be used milling machining gear, axial or radial can be processed.
Can be configured according to the requirements of customers of Siemens CNC system, complete drum gear and
small taper bevel gear processing machine can also be heightened, lengthened to expand the machining range.
Y3150 gear hobbing machine Main data:
Main technical parameters |
Y3150 |
||
Max working module |
steel (mm) |
5 |
|
Cast iron(mm) |
6 |
||
Max diameter cutting straight Spur gear |
with column (mm) |
350 |
|
without column (mm) |
500 |
||
Max diameter cutting Cylindrical helical gear |
Rotation angle 30° |
370mm |
|
Rotation angle45° |
250mm |
||
Max vertical travel of hob (mm) |
260 |
||
Max length of cutting (mm) |
240 |
||
Distance from hob spindle to worktable surface (mm) |
Max(mm)
|
320 |
|
Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm |
25 |
||
Minimum distance from worktable surface to hob spindle axis (mm) |
170 |
||
The changeable Diameter of hob spindle(mm) |
22 27 32 |
||
Max diameter of hob (mm) |
120 |
||
Diameter of workingtable hole (mm) |
60 |
||
Diameter of worktable mandrel (mm) |
30 |
||
Speed of Hob main spindle |
Grade |
8 |
|
Range (r/min) |
50-275 |
||
The vertical feed of hob |
0.24-4.25 mm/r |
||
Main motor power |
3 kw |
||
Main motor speed |
1430 r/min |
||
Pump motor power |
0.125 kw |
||
Pump motor speed |
2790 r/min |
||
Net weight (inclusive all standard accessories) |
2500/2700 kg |
||
Size(L*W*H)mm |
1825*935*1730 |
||
