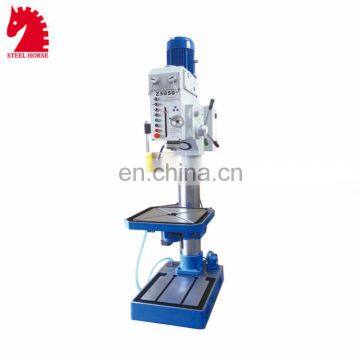

Help CenterZ5030 Z5035 Z5040 Z5050 Vertical Drilling and Milling Machine
Related Products
-
Z3040X13 Radial DrillingUS$ 5,000 - 6,000MOQ: 1 Set -
M12 The New Product Drilling & Tapping MachineUS$ 6,000 - 7,000MOQ: 1 Set
-
Z3035 Small Type Metal Radial Drilling MachineUS$ 5,000 - 6,000MOQ: 1 Set
-
50mm Radial Drill MachineUS$ 5,000 - 6,000MOQ: 1 Set
-
Radial Drilling Machine Z3040X13US$ 5,000 - 6,000MOQ: 1 Set
Good Slaes ZX5050 vertical drilling and milling machine
Features:
1.Automatic discharge knife device.
2. Spindle automatic feed

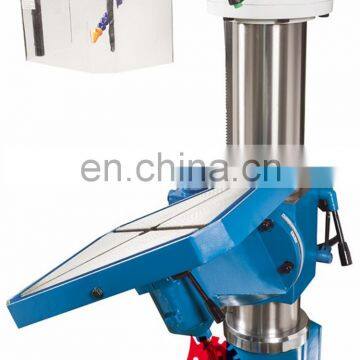

3.The working table can be ratated 180° And can be tited± 45° Also,
it is reliable and easy job can be done.

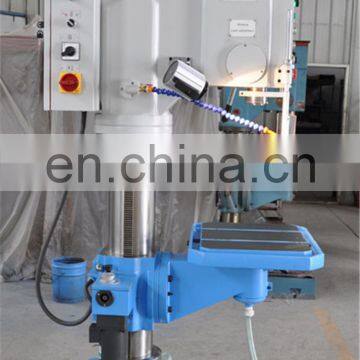

4.Equipped with coolant system and tapping mechanism.
5.Equipped with shortcut and overload protection,its electricasystem
with powerful spindlemotor,it designed according to IEC standard.
6.From positive to negative rotation,there is a short interrupt,this
can protect main motor from breakdown.
7.Characteristic protection device is safe and reliable.
8.Ideal choice for single pice,small batch and mass production for
drilling,counter boring,reaming,tapping,spot facing ect.
Specification:
Specifications |
Units |
Z5030 |
Z5035 |
Z5040 |
Z5050 |
|
Max. Drilling capacity |
mm |
30 |
35 |
40 |
50 |
|
Max. Tapping capacity |
|
M18 |
M20 |
M24 |
M24 |
|
Spindle travel |
mm |
135 |
150 |
180 |
240 |
|
Max.distance spindle axis to column generating line |
mm |
315 |
330 |
360 |
360 |
|
Max.distance from spindle nose to surface of worktable |
mm |
520 |
610 |
600 |
600 |
|
Swivel angle of worktable |
|
+/-45° |
+/-45° |
+/-45° |
+/-45° |
|
Spindle taper |
|
MT3 |
MT4 |
MT4 |
MT4 |
|
Spindle speeds range |
r/min |
70-2600 |
70-2600 |
42-2050 |
42-1865 |
|
Spindle speeds steps |
|
12
|
||||
Spindle speeds steps |
|
3 |
3 |
4 |
4 |
|
Dimension of worktable |
mm |
450x450 |
500x550 |
580x450 |
580x450 |
|
Diameter of column |
mm |
125 |
140 |
160 |
180 |
|
3-phase two speed AC motor |
power |
kw |
1.0/1.5 |
1.5/2.2 |
2.2/2.8 |
2.2/2.8 |
voltage |
v |
220.380.420.440 |
220.380.420.440 |
220.380.420.440 |
220.380.420.440 |
|
speed |
R/min |
960/1450 |
960/1450 |
960/1450 |
960/1450 |
|
Machine dimension |
cm |
650x1050x1950 |
700x1150x2150 |
700x2150x2150 |
700x1150x2150 |
|
G.W/N.W |
kg |
440/500 |
670/730 |
740/800 |
800/860 |
|
