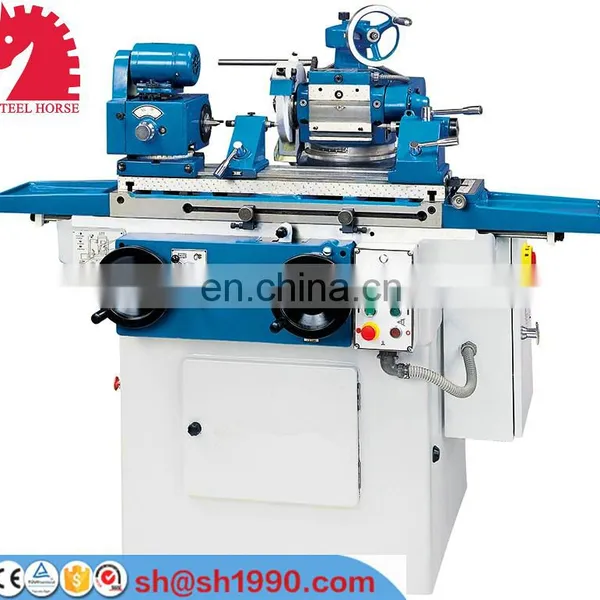

Brand New Universal Mini Grinder Machine for Circular,face Works
US$ 7,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
STEEL HORSE
Place of Origin:
Chongqing, China
Model Number:
2M9120A, 2MA9125
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Belt Grinder MachineUS$ 900 - 1,000MOQ: 1 Set -
M3025 BENCH GRINDERUS$ 900 - 1,000MOQ: 1 Set
-
China Leading,Only Manufacturer MW1420 M1432B Small Normal or CNC Cylindrical Grinding Machine Price Mini New UsedUS$ 14000.00 - 15000.00MOQ: 1 Unit
-
China Leading,Only Manufacturer M1420 Cylindrical Grinding MachineUS$ 14000.00 - 15000.00MOQ: 1 Unit
-
Steel Horse CNC Cylindrical Grinder Machine SC1420-800US$ 24000.00 - 25000.00MOQ: 1 Unit
Brand Name
STEEL HORSE
Place of Origin
Chongqing, China
Model Number
2M9120A, 2MA9125
Type
Universal
Certification
CE/SGS/ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Weight
1800
Dimension(L*W*H)
1500MM*1500MM*1300MM
Voltage
Customer's Requirement
Condition
New
Power(W)
2.995kw
CNC or Not
Normal
Max. Grinding Length
500mm
Max. Grinding Diameter
200mm

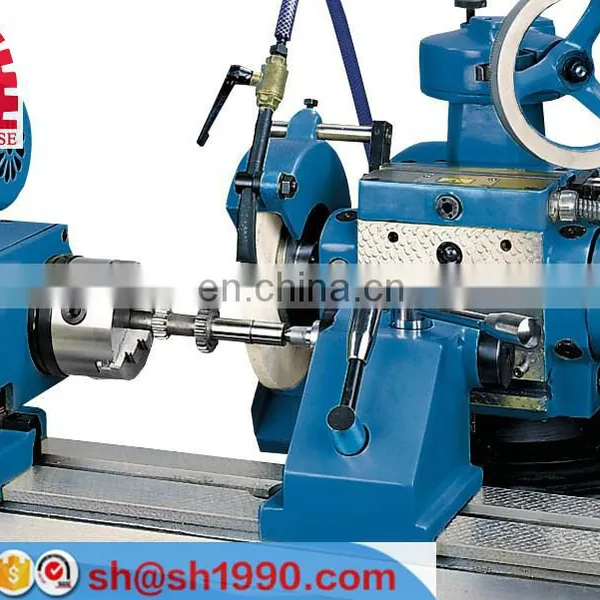

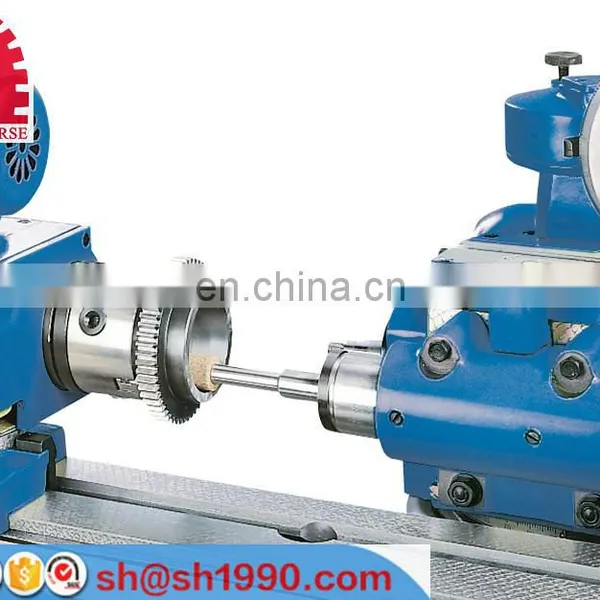

Brand new Universal mini Grinder machine for circular,face works

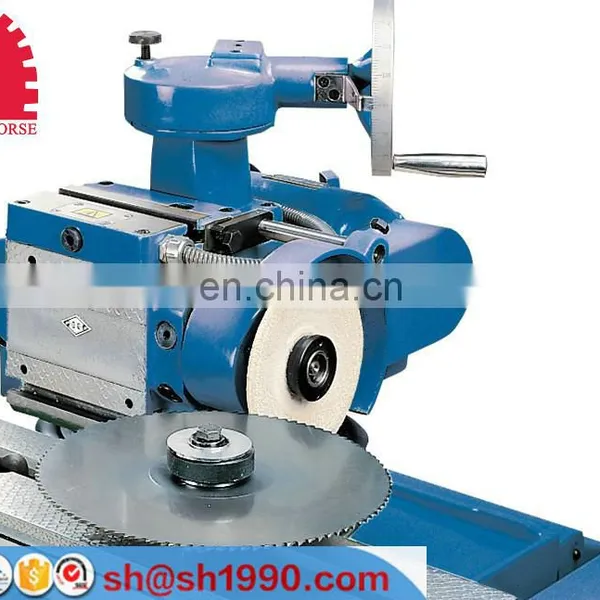

1. SHARPENING SAW BLADE CUTTER
2. SHARPENING STRIGHT SLOT HOBBER
| Specification | 2M9120A | 2MA9125 |
| Max.swing diameter over table | Φ200mm | Φ250mm |
| piece length | 500mm | |
| Size for surface Grinding | 300×125mm | |
| Size for cutter grinding | Φ200×500mm | |
| Max.weight of Workpiece | 10kg | |
| Workhead spindle speeds | 110, 200, 300rpm | 60, 90, 120, 175, 235 , 345rpm |
| Workhead swivel | ±90º | |
| Max.traverse of the wheelhead | ||
| Slide Vertical/Cross | 200/200mm | 250/200mm |
| Wheelhead spindle speeds | 2500rpm | |
| Speed of wheelhead up-down travel | 280/mm/min | |
| Internal grinding spindle speed | 13500rpm | |
| Longitudinal table travel,hand control | 480mm | |
| Table travelse speed | <7m/min | |
| Max.swivel of table | ±45º~-30º | |
| Total power | 2.905kw | 2.995kw |
| Overall dimensions | 1520×1133×1173mm | 1520×1220×1630mm |
| Size of case | 1900×1400×1630mm | 1900×1400×1630mm |
| Gross Weight/Netweight | 1700/1285kg | 1780/1380kg |
STANDARD ACCESSORIES:
| Coolant equipment |
| 6Piece-Grinding wheerl |
| 1Set-Internal grinding wheelhead |
| 1Piece-Extended gringing wheel spindle |
| 1Set-Cutter head |
| 1Set-Ttree-jaw chuck |
| 1Set-Plane grinding |
| 1 Piece-Centre |
| 1Set-Tooth rest |
| 1 Piece-Centre |
| 1Set-Lefttailstock |
| 5Set-Driving dogs |
| 1Set-Wheel dresser |
| without diamond |
| 3Piece-Wheel pullers |
| 2 Piece-Vee-belt |
| 1Set-Wheelbalancing stand |
| 1Piece-Flat belts |
| 3Sets-Flangesfor grinding wheel |
| 2Piece-Centering technical sleeves |
| 2Sets-Wheel guards |
OPTIONAL ACCESSORIES:
| 1 Set-Wheel dresser for grinding Staight fluted Hob |
| 1 Set-Dust collactor |
| 1 Set-Permanent table |
| 1 Set-Toper reamer grinding cttachment |
| 1 Set-Universal wheel dresser |
WORK ACCURACY:
| Circularity | |
| External | 0.0015mm |
| Internal | 0.0025mm |
| Circularity | Ra0.32m |
| Surface roughness | Ra0.63µm |
