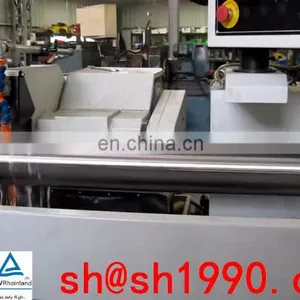

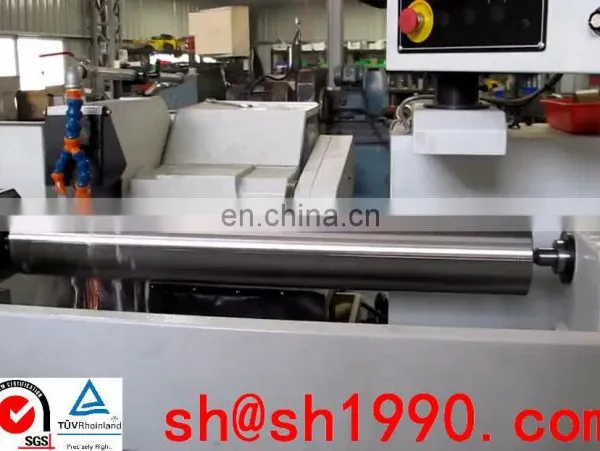

CNC cylindrical grinding machine SC1420-500

FOB Price

USD $19,000 - $20,000

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	steel horse	Place of Origin:	Shandong, China	Model Number:	SC1420-500
Type:	Cylindrical Grinding Machine	Certification:	TUV	After-sales Service Provided:	Engineers available to service machinery overseas
Weight:	4300kg	Dimension(LWH):	280017502350mm	Voltage:	Customer's Requirement
Condition:	New	Power(W):	11KW	CNC or Not:	CNC
Max. Grinding Length:	1500mm	Max. Grinding Diameter:	500mm

Product Description

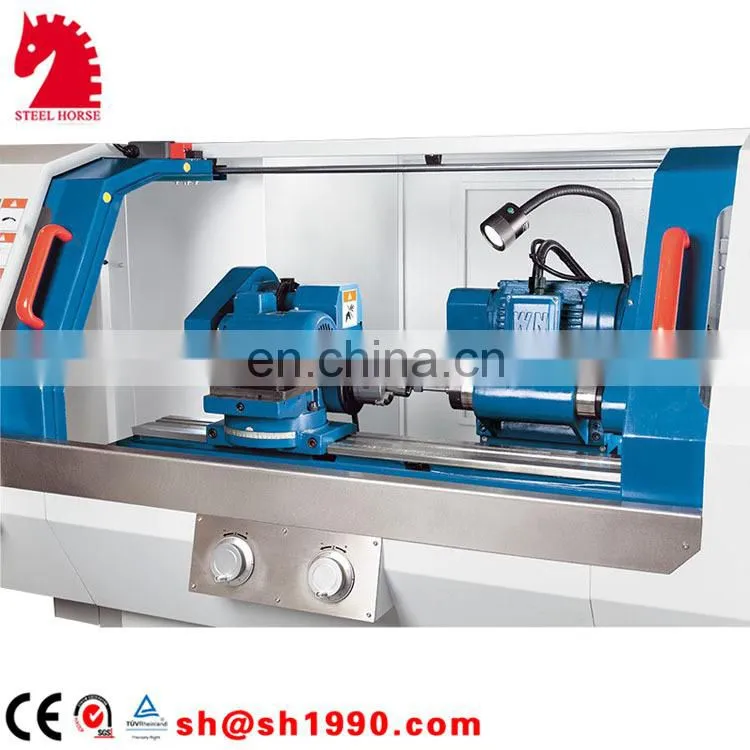

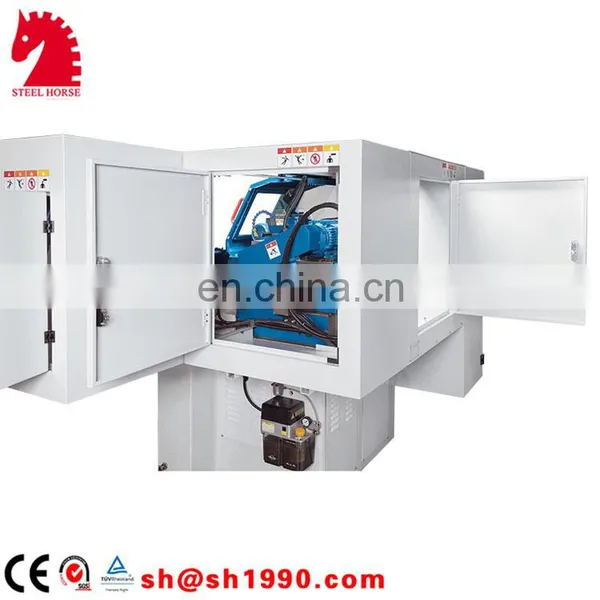

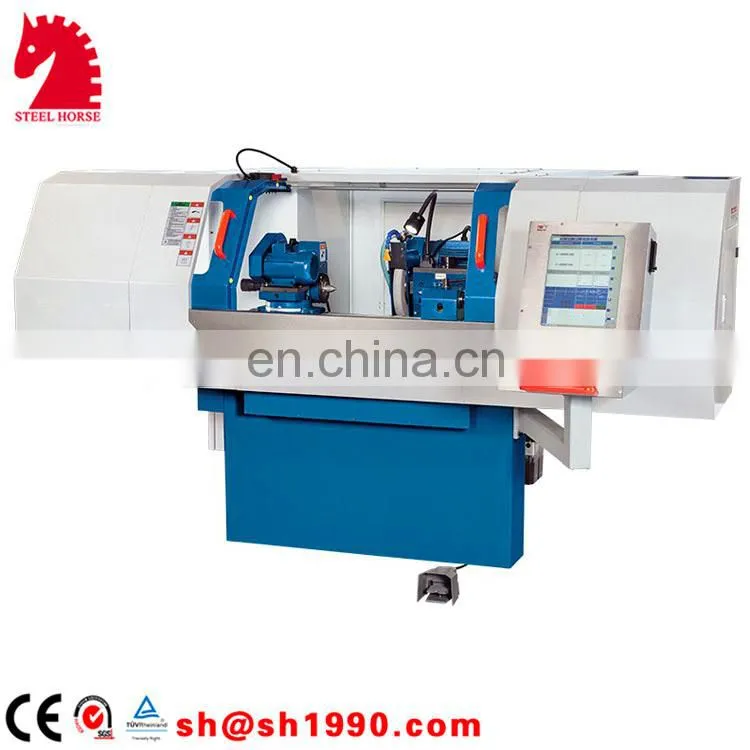

CNC cylindrical grinding machine SC1420-500

· superior machining quality and high flexibility for small batch productions

· -Servo-driven axes run on precision preloaded ball screws

· -Electronic hand-wheels for grinding headstock movement

· -high-precision hydrodynamic bearings of the grinding spindle ensure optimum grinding results

SC1420-500 CNC cylindrical machine specification:

	SC1420x500	SC1420x800	SC1432x1000	SC1432x1500
Height of center mm	135	135	180	180
Max grinding (without steady rest)mm	200	200	320	320
Max grinding (with steady rest) mm	60	60	60	60
Min grinding diameter mm	8	8	8	8
Max grinding length mm	500	800	1000	1500
Max grinding depth mm	125	125	125	125
Headstock taper	MT4	MT4	MT4	MT4
Max. workpiece weight kg	50	50	150	150
tailstock taper	MT4	MT4	MT4	MT4
Tailstock spindle stroke	28	28	28	28
Headstock swivel range	±30°	±30°	±30°	±30°
Grinding spindle speeds rpm	1670	1670	1670	1670
Grinding head trvel mm	200	200	246	246
Motor rating of worktable moving KW	10Nm	10Nm	15Nm	15Nm
diamensions (LxWxH) mm	2500x1600x1700	3100×1600×1700	3400×2000×2000	4300×2000×2000
weight kg	2300	2700	3700	4300

SC1420-500 CNC cylindrical machine STANDARD ACCESSORY:

Complete set of electric epuipment
Complete set of coolant epuipment
Grinding wheel peripheral dresser
Wheel hub
Wheel balancing mandrel
3-claw chuck
Open-type steady-rest
Leveling wedge
Close-type steady- rest
Wheel balancing stand
