US$ 23,000 - 44,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Steel horse
Place of Origin:
Shandong, China
Type:
Surface Grinding Machine
Contact Supplier Request Quote Chat Now
Horizontal Lathe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Steel horse
Place of Origin Shandong, China
Type Surface Grinding Machine
Certification CE Certification
After-sales Service Provided Engineers available to service machinery overseas
Weight 4300kg
Dimension(L*W*H) 280x175x235CM
Voltage 220V,380V,as Client
Condition New
Power(W) 11KW
CNC or Not Normal
Max. Grinding Length 1000x400/1600x400/2000x400mm
Max. Grinding Diameter 630mm

M7163 Horizontal precision Surface grinder machine

Product Description
Technical Data:

Parameters

Unit

M7163BX1250

M7163BX16

M7163BX20

Size of Worktable(L×W×H)

mm

1250X630x600

1600X630x600

2000X630x600

Max.Longitudinal
Movement of Worktable

mm

1350

1700

2100

Max.Distance from the Spindle Centerline to the Worktable Surface

mm

800

800

800

Max.Cross Movement Grinding Head

mm

680

680

680

Vertical Movement of the Grinding Head by Handwheel

1 gard

mm

0.01

0.01

0.01

1 rev

mm

1

1

1

Rapid Lifting Motor

power

kw

0.37

0.37

0.37

speed

r/min

1440

1440

1440

Abrasive Wheel Dim(D×d×w)

mm

Φ400×40×127

Φ400×40×127

Φ400×40×127

Speed of Grinding Wheel

r/min

1440

1440

1440

Total Power of Motor

kw

12

13.5

13.5

Power of Spindle Motor

kw

9

9

9

Power of Oil Pump Motor

kw

4

5.5

5.5

Parallelism of Work Piece
Surface to Base Level

mm

0.015/1000

0.015/1000

0.015/1000

Surface Roughness

um

Ra:0.63

Ra:0.63

Ra:0.63

N/G Weight

kg

5800/6500

6500/7500

7800/8500

Package(L×W×H)

mm

3800X1950X2480

4800X1850X2350

5300X1850X2350

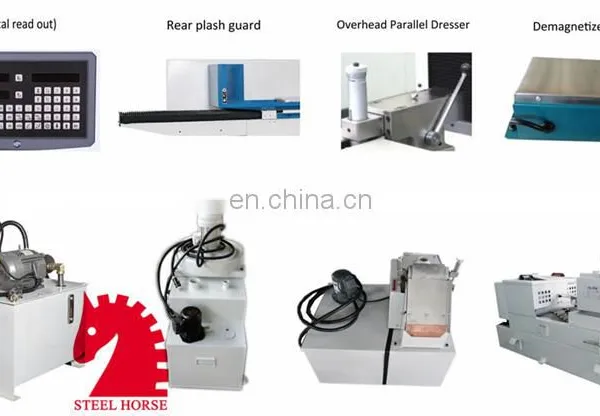

Standard Equipment:

M7163 Surface grinding machine Wheel Head Moving heavy duty large Surface Grinder Machine M7130A M7140A M7150A

































































M7163 Surface grinding machine Wheel Head Moving heavy duty large Surface Grinder Machine M7130A M7140A M7150A

M7163 Surface grinding machine Wheel Head Moving heavy duty large Surface Grinder Machine M7130A M7140A M7150A

company new

M7163 Surface grinding machine Wheel Head Moving heavy duty large Surface Grinder Machine M7130A M7140A M7150A
