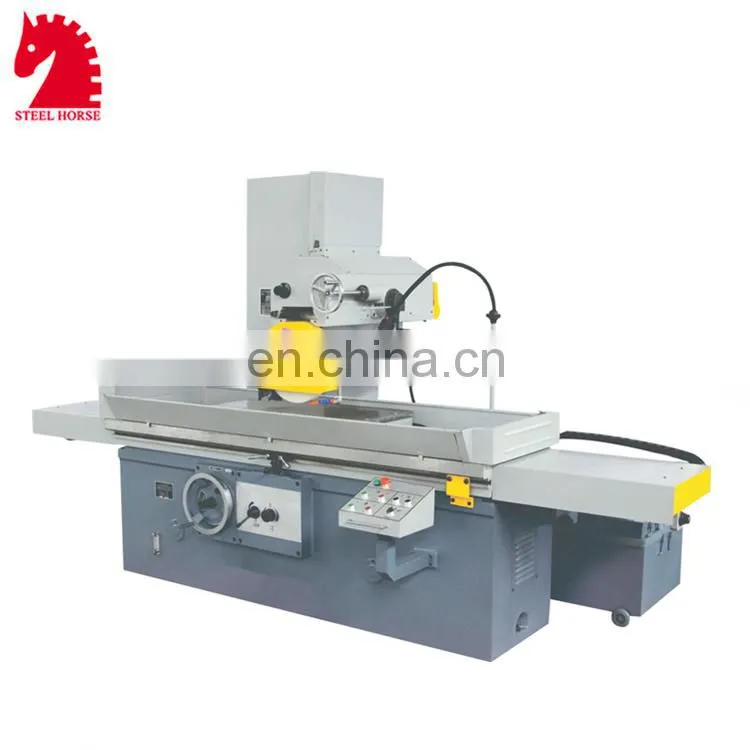

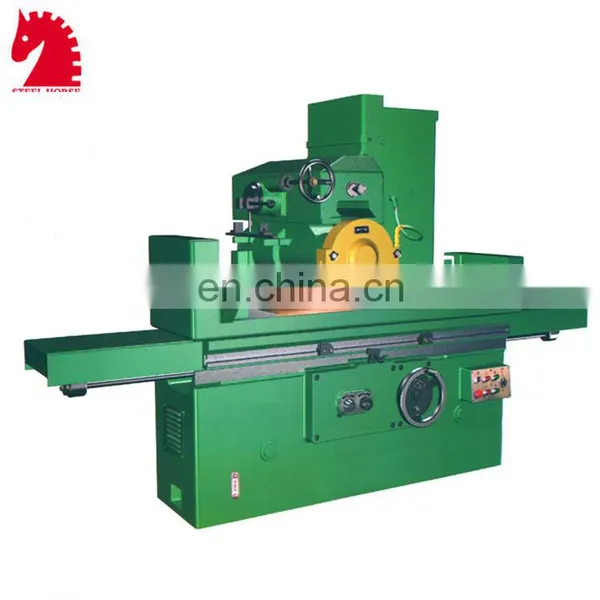

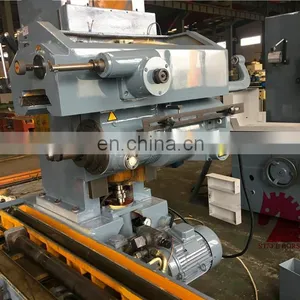

M7160 Horizontal precision Surface grinder machine
This machine can grind various complex plane and formed surfaces,do not need to apply to
motor feed grinding,precision class P4 spindle bearings,labyrinth seal,waterproof and dustproof
performance,smooth motion,high accuracy.Longitudinal using steel ball rail,light and flexible,
column-shaped rail with large span,steel,and high stability.Centralized lubrication machine with
manual pumps.
Technical Data:
Parameters |
Unit |
M7160X1250 |
M7160X1600 |
M7160X2000 |
|||
Size of Worktable(L×W×H) |
mm |
1250X600x600 |
1600X600x600 |
2000X600x600 |
|||
Max.Longitudinal |
mm |
1350 |
1700 |
2100 |
|||
Max.Distance from the Spindle Centerline to the Worktable Surface |
mm |
800 |
800 |
800 |
|||
Max.Cross Movement Grinding Head |
mm |
650 |
650 |
650 |
|||
Vertical Movement of the Grinding Head by Handwheel |
1 gard |
mm |
0.01 |
0.01 |
0.01 |
||
1 rev |
mm |
1 |
1 |
1 |
|||
Rapid Lifting Motor |
power |
kw |
0.37 |
0.37 |
0.37 |
||
speed |
r/min |
1440 |
1440 |
1440 |
|||
Abrasive Wheel Dim(D×d×w) |
mm |
Φ400×40×127 |
Φ400×40×127 |
Φ400×40×127 |
|||
Speed of Grinding Wheel |
r/min |
1440 |
1440 |
1440 |
|||
Total Power of Motor |
kw |
12 |
13.5 |
13.5 |
|||
Power of Spindle Motor |
kw |
7.5 |
7.5 |
7.5 |
|||
Power of Oil Pump Motor |
kw |
4 |
5.5 |
5.5 |
|||
Parallelism of Work Piece |
mm |
0.015/1000 |
0.015/1000 |
0.015/1000 |
|||
Surface Roughness |
um |
Ra:0.63 |
Ra:0.63 |
Ra:0.63 |
|||
N/G Weight |
kg |
5600/6300 |
6200/7100 |
7500/8200 |
|||
Package(L×W×H) |
mm |
3800×1950×2480 |
4800×1850×2350 |
5300×1850×2350 |
|||
Standard Equipment:
