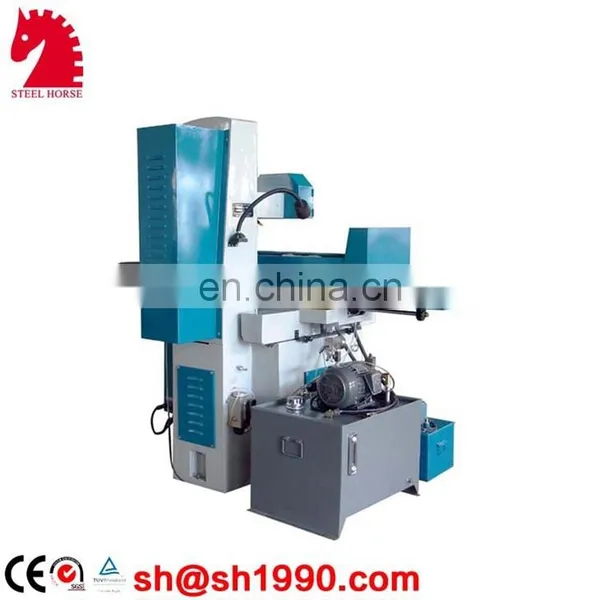

M7132 Horizontal METAL Hydraulic surface grinder MACHINE
This machine can grind various complex plane and formed surfaces,do not need to apply to
motor feed grinding,precision class P4 spindle bearings,labyrinth seal,waterproof and dustproof
performance,smooth motion,high accuracy.Longitudinal using steel ball rail,light and flexible,
column-shaped rail with large span,steel,and high stability.Centralized lubrication machine with
manual pumps.
Technical Data:
Description |
Units |
M7132x1000 |
M7132x1600 |
M7132x2000 |
|
Size of work table(L x W x H) |
mm |
1000x320 |
1600x320 |
2000x320 |
|
Max. Longitudinal movement of worktable |
mm |
1100 |
1700 |
2100 |
|
Max. Distance from the spindle centerline to the worktable surface |
mm |
570 |
570 |
570 |
|
Max. Cross movement of grinding herd |
mm |
350 |
350 |
350 |
|
Max. Vertical movement of grinding head |
mm |
400 |
400 |
400 |
|
Vertical movement of the grinding head by hand wheel |
Every lattice |
mm |
0.01 |
0.01 |
0.01 |
Each turn |
mm |
1.00 |
1.00 |
1.00 |
|
Rapid lifting motor |
Power |
KW |
0.37 |
0.37 |
0.37 |
Speed |
R/min |
1440 |
1440 |
1440 |
|
Abrasive wheel dim (L x D x W) |
mm |
350x127x40 |
350x127x40 |
350x127x40 |
|
Speed of grinding wheel |
r/min |
1440 |
1440 |
1440 |
|
Total power of motor |
KW |
9 |
10 |
12 |
|
Power of spindle motor |
KW |
5.5 |
5.5 |
5.5 |
|
Power of oil pump motor |
KW |
3 |
4 |
5.5 |
|
Processing accuracy |
mm |
0.015/1000 |
0.015/1000 |
0.015/1000 |
|
Surface roughness |
um |
Ra:0.63 |
Ra:0.63 |
Ra:0.63 |
|
Package(L x W x H) |
mm |
2800x1750x2350 |
4500x2000x2350 |
5500x2000x2350 |
|
Net weight |
Kg |
3500 |
3550 |
3600 |
|
Standard Equipment:
