CNC Milling Machine VMC420L
Feature
1.High strength resin sand casting
2.3-axis Taiwan line rail
3.SIMENS : 802C
4.Separate handwheel
5.Turntable Style Tool Magazine :12
6.Pneumatic broach system
7.Full guard
8.Adjustment of shim and screw
9.Automatic intermittent lubrication
Specification
Items |
VMC420L(XH7124) |
|
Table size (mm) |
800×240 |
|
T-Slot Q-W(mm)–Distance(mm) |
5-16-50 |
|
Max,load (kg) |
150 |
|
Travel of X axis(mm) |
410 |
|
Travel of Y axis(mm) |
260 |
|
Travel of Z axis(mm) |
410 |
|
Distance from spindle nose to table (mm) |
70-480 |
|
Distance from center of spindle to Column guide way (mm) |
315 |
|
Taper hole of spindle |
BT30 |
|
Max speed of spindle (Rpm) |
60 to 3000 |
|
Power of main power(kW) |
2.2 |
|
Motor of feeding |
X Torque (N.M) |
5 |
X Torque(N.M) |
5 |
|
X Torque(N.M) |
6 |
|
Max,dimension of installation |
XY Square 110×11diameter φ95 |
|
Rapid feed rate (m/min.) |
10 |
|
fast cutting speed (mm/min) |
1-4000 |
|
Screw parameters(ø mm/screw pitch mm) |
XY 20/5 |
|
Width of liner guide rail X/Y/Z(mm) |
XY 20 |
|
Accuracy |
Positional accuracy(mm) |
0.02 |
Repeat positional accuracy(mm) |
0.01 |
|
Tools |
Number |
10 or 12 |
Time of tool changing |
8s |
|
Operation pressure Mpa |
0.6 |
|
Weight |
1700KG |
|
Dimension |
1900*1400*2100mm |
|

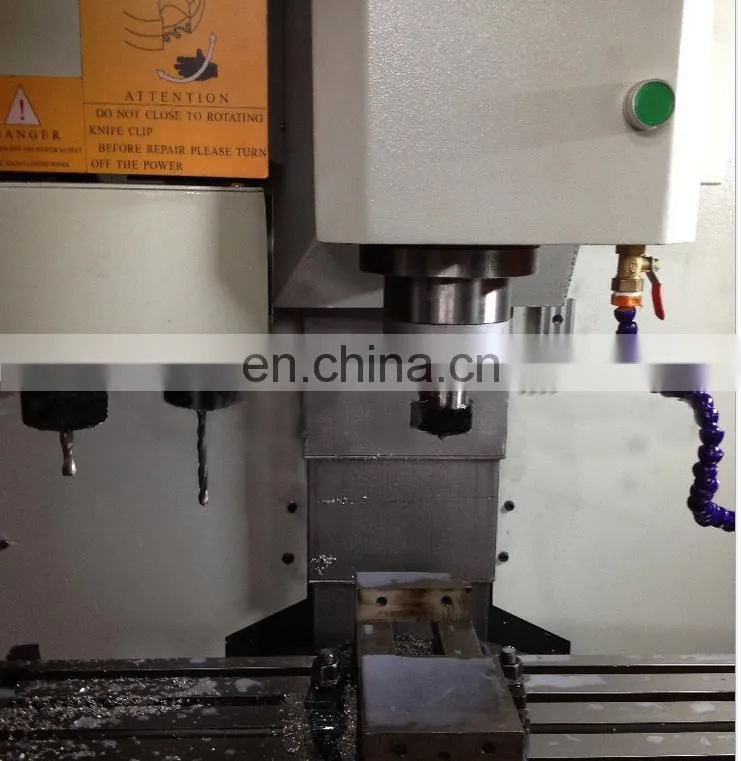

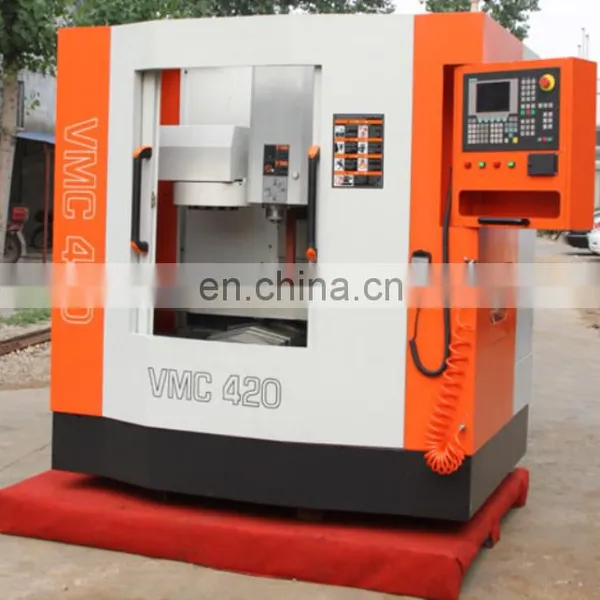

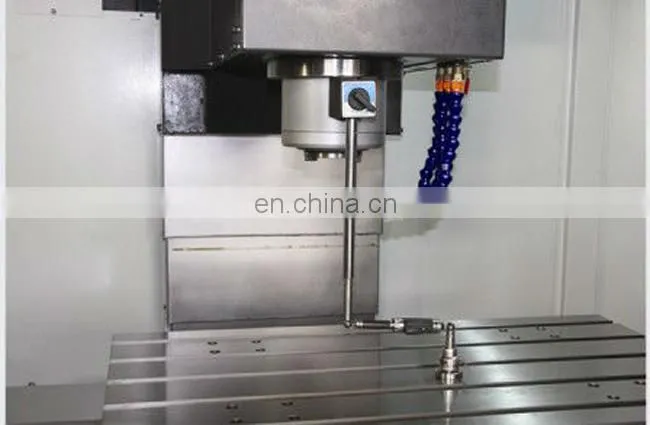

Pictures of product
Workshop scene
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Make you satisfied is our business!
- The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
- Over 300 clients from more than 40 countries could tell you we are your realiable parter.
- We are professional cnc machine factory,our price could beat any competitors in china market .
- We supply professional solution to you based on your own process one by one.
- We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
- We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
- 7*24 hours Email or phone service.
