Help CenterTobee® SP Vertical Slurry Pump-www.slurrypumpsupply.com
Related Products
-
300TV-SP Vertical Slurry Pump-www.slurrypumpsupply.comUS$ 800 - 2000MOQ: 1 Set -
Tobee® TP250SV Vertical Cantilever Pump-www.slurrypumpsupply.comUS$ 800 - 2000MOQ: 1 Set
-
Tobee Vertical Sump Slurry Pump Manufacturer From ChinaUS$ 2200 - 3000MOQ: 1 Piece
-
Vertical Sump Slurry Pump Manufacturer in ChinaUS$ 2200 - 3000MOQ: 1 Piece
-
Tobee™ WARAMN Equivalent Vertical Sump Slurry Pump ManufacturerUS$ 2200 - 3000MOQ: 1 Piece
Size: 40~300mm Capacity: 7.28-1300m3/h Head: 3-45m Handing solids: 0-79mm Concentration: 0%-70% Submerged length:500-3600mm Materials:High chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel

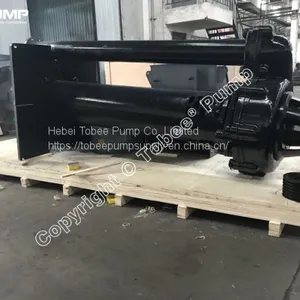

Tobee® SP/SPR vertical slurry pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Customized submerged length and suction agitator available. The SP/SPR vertical sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
Design Features:
√ Less wear, less corrosion
Wetted components are available in a wide range of alloys and elastomers, from which Weir Minerals selects the optimum combination of materials for maximum resistance to wear in virtually any industrial application, including those demanding both abrasion and corrosion resistance and where larger particles or high density slurries are encountered.
• Abrasion resistant A05 Ultrachrome® alloy.
• Abrasion/corrosion-resistant A49 Hyperchrome® alloy.
• Corrosion-resistant stainless steels.
• Natural and synthetic elastomers.
√ No submerged bearing failures
The robust cantilever shaft avoids the need for lower submerged bearings - which are often the source of premature bearing failure.
• Heavy duty roller bearings, above mountingplate.
• No submerged bearings.
• Labyrinth/flinger bearing protection.
• Rigid, large diameter shaft.
√ No shaft sealing problems
The vertical cantilever design requires no shaft seal.
√ No priming required
The top and bottom inlet design is ideally suited for “snore” conditions.
√ Less risk of blocking
The screened inlets and large impeller passages reduce the risk of blockages.
√ Zero ancillary water costs
The vertical cantilever design with no gland or submerged bearings avoids the need for expensive gland or bearing flushing water.
Tobee® SP/SPR Vertical Slurry Pumps Structural Drawing:
Tobee® SP/SPR Vertical Slurry Pumps Applications:
The SP/SPR verical slurry pumps are available in a wide range of popular sizes to suit most pumping applications. The SP/SPR sump pumps are proving their reliability and efficiency worldwide in: minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation. The SP/SPR pump design with either hard metal (SP) or elastomer covered (SPR) components makes it ideal for abrasive and/or corrosive slurries, large particle sizes, high density slurries, continuous or “snore” operation, heavy duties demanding cantilever shafts.
vertical centrifugal slurry pump
vertical submerged chemical pump
chemical melting hot salt pump
hot salt pump
vertical mud pump
vertical sump slurry pump
Iron ore concentrate vertical slurry pump
Vertical centrifugal slurry pump
mining vertical slurry pump for mineral processing
